接觸角/張力計測定機500型（Automated Goniometer / Tensiometer）

• 產品型號：Model 500
• 品    牌：Ramé-hart
• 產    地：美國

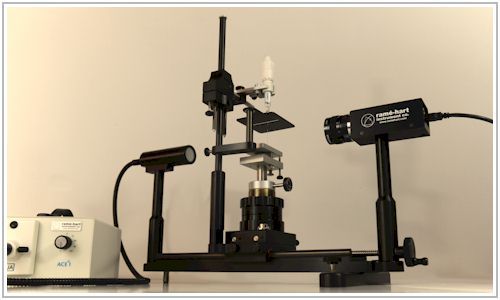

Ramé-hart Model 500 (p/n 500-U1)
500型高級接觸角/張力計測定機適用於任何附件，包括DROPimage高級軟件。該軟件可以測量分析並記錄滴液的具體情況，測量角度和表麵張力。此外，自動點膠系統可以加快滴液的速度以便滿足更高要求的實驗研究。

配件箱：U1系列攝影機，微量註射器夾具，可變光纖照明燈，一個22g註射針，具有火線介面和LCD，DROPimage高級軟件，用戶手冊，校準工具和存儲板蓋。

• 技術參數：

  樣品臺尺寸：2 x 3 in (51 x 76mm)
  樣品尺寸：可達到12 in (300mm) deep x unlimited
  接觸角范圍：0-- 180°
  接觸角分辨率：0.1°
  接觸角精度：+/- 0.10°
  攝影機： SuperSpeed USB 3.0, 1/3” CCD,100fps, Progressive Scan, Sony,Sensor, 659 x 494 pixels
  背光設置：可變光纖照明
  樣品臺：高精度3維樣品臺
  機器尺寸：19 x 20 x 10 in (480500x250mm)
  機器重量：20 lbs / 9.1 kg（不包括電源）
  電源：110或220 VAC
  耗材：光纖燈100-00-FOB
  微量註射器套件100-10-20
  註射針100-10-12-22
  可選項：自動點膠100-22
  環控箱100-07
  恒溫箱100-07-H
  溫度漸變器100-11
  晶片100-21-x
  真空夾具100-21-VCx
  傾斜底座100-06
  引框支架100-23
  固定裝置100-07-60
  膠片夾100-15

ramé-hart Model 500 (p/n 500-U1)

This top-of-the-line modular tool is the starting point for many possible configurations. Model 500 accepts every available accessory and includes our awardwinning DROPimage Advanced software for complete methods-based interfacial analysis with pendant, inverted pendant, sessile, and captive bubble drops. Additionally, contact angle, surface energy, surface tension, and calibration tools are included. Add the optional Automated Dispensing System to increase

the accuracy and speed of dispensing as well as for advancing and receding studies.

What’s in the box:Goniometer/Tensiometer with U1 Series Camera, Microsyringe Fixture and Shade, Illuminator and Fiber Optic Bundle, (1) Microsyringe Assembly, (1) 22g Straight Needle for manual dispensing, PC and LCD, DROPimage Advanced Software, User Manual, Calibration Tool, and Storage Cover — everything needed to start taking measurements.

Specifications

Stage Size2 x 3 in (51 x 76mm)

Sample Sizeup to 13.6 in (345mm) x unlimited*

Contact Angle Range0 to 180°

Resolution0.01°

Accuracy +/-0.10°

Camera:SuperSpeed USB 3.0, 1/3” CCD,100fps, Progressive Scan, Sony,Sensor, 659 x 494 pixels

BacklightingVariable Fiber Optic Illuminator

StagePrecision 3-Axis

Dimensions19 x 20 x 10 in (480500x250mm)

Weight20 lbs / 9.1 kg (less power and PC)

Power Supply110 or 220 VAC

DROPimage FeaturesContact Angle Measurement

(7) Surface Energy Tools

Methods-based Surface Tension

Pendant, Sessile, Captive Bubble

Calibration Tool

ConsumablesIlluminator Bulb 100-00-FOB

Microsyringe Assembly 100-10-20

Needles 100-10-12-22

OptionsAutomated Dispenser 100-22

Environmental Chamber 100-07

Advanced Chamber 100-26-T/TH

Elevated Temp. Syringe 100-11

Wafer Support 100-21-x

Vacuum Chuck 100-21-VCx

Tilting base 100-06

Lead frame Support 100-23

Environmental Fixture 100-07-60

Film Clamps 100-15

Contact us for a complete options list.

Custom options available.

* requires custom optics and substrate support

options for larger samples.
