接觸角測定機290型（Automated Goniometer / Tensiometer）
- 產品型號：Model 290
- 品 牌：Ramé-hart
- 產 地：美國

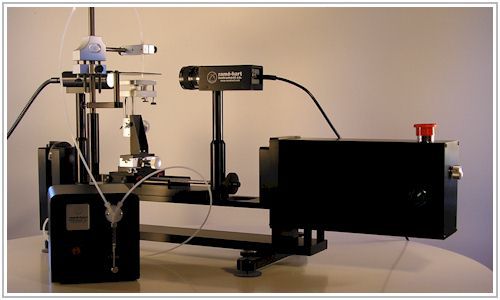

Ramé-hart Model 290 (p/n 290-U1)
290型接觸角測定機是我們自動化功能最強的一款產品。該機器的自動化系統適用於自動傾斜平臺和自動點膠系統。此外，DROPimage高級軟件可以測量分析更大的角度，表麵的張力等。自動傾斜平臺是測量和記錄測試角度的理想選擇。
配件箱：U1系列數位攝影機，微量註射器夾具，可變光纖照明燈，一個22g註射針，具有火線介面和LCD，DROPimage高級軟件，用戶手冊，校準工具和存儲板蓋，自動傾斜底座，自動點膠系統。
技術參數：
樣品臺尺寸：2x3 in (51 x 76mm)
樣品尺寸：3 in (76mm) deep x unlimited
接觸角范圍：0-- 180°
接觸角分辨率：0.1°
接觸角精度：+/- 0.10°
攝影機： SuperSpeed USB 3.0, 1/3” CCD,100fps, Progressive Scan, Sony,Sensor, 659 x 494 pixels
背光設置：可變光纖照明
樣品臺：高精度3維水平樣品臺
機器尺寸：39 x 21 x 10 in (990530x250mm)機器重量：49 lbs / 22.2 kg（不包括電源）
電源：110或220 VAC
ramé-hart Model 290 (p/n 290-U1)
Model 290 is one of the most automated tools available.
This system features the standard 3-axis stage, an Automated Tilting base and Automated Dispensing System. In addition, the DROPimage Advanced software is included for handling a wide range of methods-based interfacial analysis tools using pendant, inverted pendant, sessile, and captive bubble drops. Additionally, contact angle, surface energy, surface tension, and calibration
tools are included. The Automated Tilting base is ideal for measuring advancing and receding contact angle. The Automated Dispensing System is well-suited for dynamic studies and adds precision to the formation of pendant and sessile drops. Model 290 is an excellent choice for a wide variety of static and dynamic surface evaluation, contact angle.
What’s in the box:Goniometer with U1 Series Digital Camera, Microsyringe Fixture and Shade, Illuminator and Fiber Optic Bundle, (1) Microsyringe Assembly, (1) 22g Straight Needle, PC and LCD and FireWire Interface, DROPimage Advanced Software, User Manual, Calibration Tool, Storage Cover, Automated Tilting base**, Automated Dispensing System**.
Specifications**
Stage Size2 x 3 in (51 x 76mm)
Sample Size3 in (76mm) deep x unlimited
Range0 to 180° contact angle
Resolution0.01°
Accuracy +/-0.10°
Camera: SuperSpeed USB 3.0, 1/3” CCD,100fps, Progressive Scan, Sony,Sensor, 659 x 494 pixels
BacklightingVariable Fiber Optic Illuminator
StageStandard locking 3-axis Stage
Dimensions39 x 21 x 10 in (480500x250mm)
Weight49 lbs / 22.2kg (less power and PC)
Power Supply115 or 230 VAC
DROPimage FeaturesContact Angle Measurement
(7) Surface Energy Tools
Methods-based Surface Tension
Pendant, Sessile, Captive Bubble
Calibration Tool
SparesIlluminator Bulb 100-00-FOB
Microsyringe Assy 100-10-20
Needle 100-10-12-22
OptionsHigh Speed Upgrade 100-12-G1
Environmental Fixture 100-07-60
Wafer Support (4”) 100-21-4
Oscillator 100-28
Manual Tilting base 100-25-M
Film Clamps 100-15
Fixed dro Ref. Tool 100-27-03
Fixed Pendant dro Tool 100-25-05
** For additional specifications and details on the Automated
Tilting base and Automated Dispensing System,
please consult the corresponding product brochures.
