供應美國API (Absolute Process Instruments)信號變送器

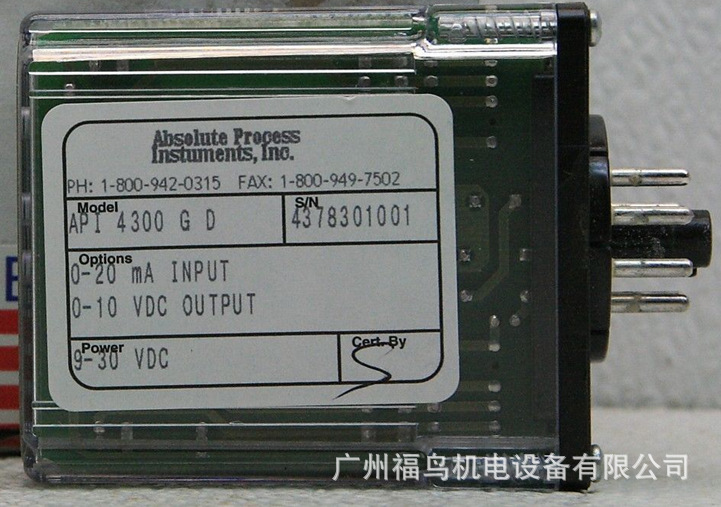

型號: API4300GD  9-30VDC

業務QQ: 2543525125, 2054518018, 532560858.

手機: 18922127186

選型及參數:

API 4300 G:  DC to DC isolated transmitter, w. loop power supply, 115 VAC

Options—Add to end of model number:
P:  Powered by 80-265 VAC or 48-300 VDC, 50/60 Hz
A230:  Powered by 230 VAC, 50/60 Hz
D: Powered by 9-30 VDC
5A:  Up to 5 amp DC input with socket and 25 W shunt
DF:  Fast response, 1 millisecond nominal response time
HC:  High current output, >20 mA to 50 mADC
BP:  ±1 mA bipolar output current
M01:  Input/output reversal, such as 4-20 mA in to 20-4 mA out
M09:  High voltage output to 24 VDC
EXTSUP:  Open collector output when a “sinking” output is required
U:  Conformal coating for moisture resistance

Accessories—Order as separate line item:
API 008 8-pin socket
API 008 FS 8-pin finger-safe socket
API TK36 DIN rail, 35 mm W x 39" L, aluminum
