供應美國API (Absolute Process Instruments)信號變送器

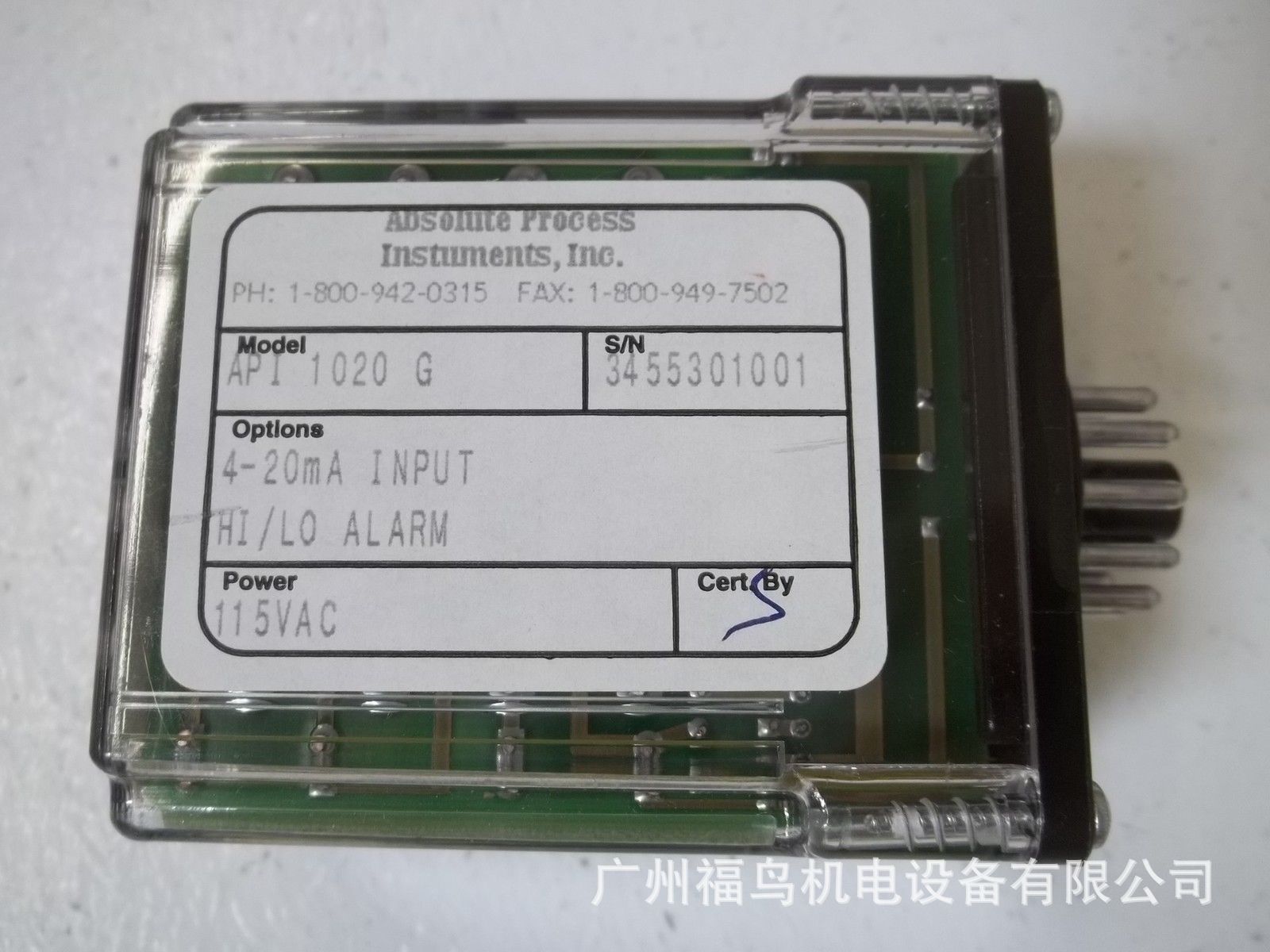

型號: API1020G 115VAC
業務QQ: 2543525125, 2054518018, 532560858.
手機: 18922127186
主要參數:
Models & Options
Factory Configured—Please specify input range and options
API 1000 G: DC input, DPDT HI alarm, normal action, non-latching,115 VAC
API 1000 G 5A: Up to 5 amp DC input with socket and 25 W shunt, DPDT, HI
alarm, normal action, non-latching, 115 VAC
API 1020 G: DC input, 2 SPDT, HI/LO, normal action, non-latching, 115 VAC
API 1020 G 5A: Up to 5 amp DC input with socket and 25 W shunt, 2 SPDT
relays, HI/LO, normal action, non-latching, 115 VAC
Options—Add to end of model number:
P: Powered by 80-265 VAC or 48-300 VDC, 50/60 Hz
A230: Powered by 230 VAC, 50/60 Hz
D: Powered by 9-30 VDC
R: Reverse-acting alarms
L: Low trip (on decreasing signal) for 1000 G
HT: Latching alarm with pushbutton reset, API 1000 G only
HP: Latching alarm with power-off reset, API 1000 G only
A: Adjustable deadbands for 1020 G
HH: High/High trip for 1020 G instead of High/Low
LL: Low/Low trip for 1020 G instead of High/Low
U: Conformal coating for moisture resistance
Accessories—Order as a separate line item:
API 011 11-pin socket
API 011 FS 11-pin finger safe socket
API TK36 DIN rail, 35 mm W x 39" L, aluminum
