品牌	STAR	型號	R1512 370 55	內徑	1（mm）
外徑	3（mm）	加工定製	是	工作原理	滑動

R15

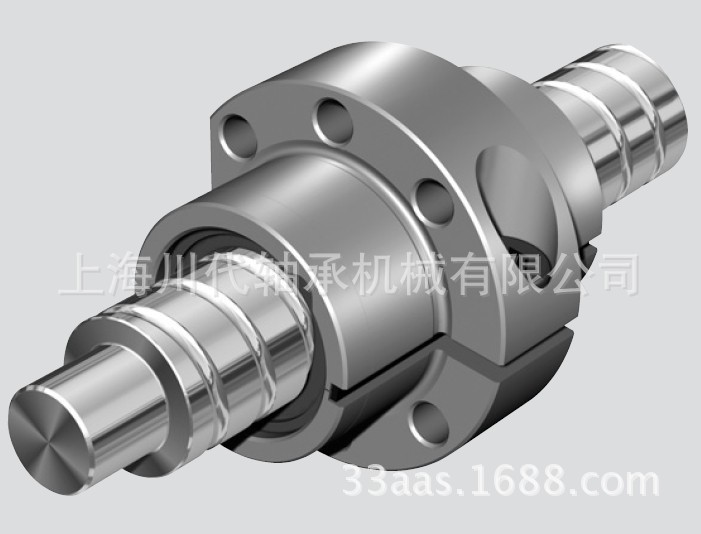

Click to enlarge picture.

Produktbild

<x# dummy='FilterAttrDefsObject("AttributeSet",' "harticle",="" "articleinfo",="" "hview")="" set="" #="">

Part numbers (TNR)

R1512 370 55

Size d₀x P x D_w- i

32 x 20R x 3,969 - 3

Category

C (made to order)

C [N]

19700

C₀stat. [N]

33700

v_max[m/min]

See additional information "Technical Notes" chapter Characteristic speed d₀*n and additional information "Design Calculations" chapter Critical speed n_cr

d₁[mm]

d₂[mm]

27.9

D₁f9 [mm]

D₅[mm]

Hole pattern

BB2

D₆[mm]

D₇[mm]

L [mm]

L₃[mm]

L₄[mm]

L₅[mm]

L8 [mm]

12.5

L9 [mm]

L₁₀[mm]

S [mm]

See additional information "Technical Notes" chapter Characteristic speed d₀*n and additional information "Design Calculations" chapter Critical speed n_k

m [kg]

1.04

Product group info

Standard series
Mounting dimension per DIN 69 051, Part 5
Flange type C
With standard seals
Reinforced seals, see Catalog R310EN 3301
Adjustable preload
For precision-rolled scews SN-R of tolerance grade T5, T7
When setting up applications, do not allow components to collide with the Front Lube Unit.
