| Music Angel | |
| 功能說明 FUNCTION EXPLANATION | |
| 1.這款迷你音箱可謂是經典和現代的完美結合，音箱中的精品。 | |
| 2.全新微型鋁振膜揚聲器，高音清澈，低音純凈，獨特胡設計，令音質表現更出色。 | |
| 3.新概念一體化立體聲便攜式移動音樂胡數碼音箱，連接你的MP3.MP4.CD.DVD.IPOD.IPHONE.GPS.PSP.手機.筆記本電腦.USB隨身碟.MICRO SD. | |
| 4.金屬外殼,更顯高貴時尚，與眾不同，多種顏色，多種方案，給你更多選擇. | |
| 5.電池，電腦USB，適配器DC-5V多種供電方式，讓你隨時隨地聆聽數碼的魅力. | |
| 1.This mini audio box can be deemed as perfect combination of classic and modehm perfomance,and it is praised as masterwork of audio boxes. | |
| 2.New mini aluminum vibration film loud speaker,which has clear alt and pure woof .The unique design makes tone performance perfect. | |
| 3.Mini audio box with new concept integral stereo portable mobile music,connecting your MP3、MP4,CD、DVD、iPod、iPhone、GPS、PSP、moble phone,notebook computer U disk and Sdcard more. | |
| 4.Metallic,shell shows noble and fashionable,out of ordinary,with many colours,several solution;for your option. | |
| 5.Several power supply manners including batery,computer USB,adaptor DC-5Vallow you to enjoy the charm of digital products at any time. | |
Bitmap
| |
| 輸出工率：RMS 4W（2W+2W）THD=10% | |
| 頻率響應：150-18000Hz（±3dB) | |
| 信噪比：≥80dB | |
| 揚聲器：1.5英寸（外徑40mm)防磁，4歐姆 | |
| Line in 接口：配3.5mm產體插頭 | |
| 電源輸入：5V/1000mA交流電源適配器，USB電源轉接線（可選） | |
| Work rate of the output: RMS 4W (2W +2 W) THD = 10% | |
| Frequency response :150-18000Hz (± 3dB) | |
| SNR: ≥ 80dB | |
| Speaker: 1.5 inch (diameter 40mm) magnetically shielded, 4 ohm | |
| Line in the interface: the body with 3.5mm plug production | |
| Power input: 5V/1000mA AC power adapter, USB power adapter cable (optional) | |
| 操作說明 USE EXPLANATION | |
| 內置鋰電池，當鋰電池失效時，可拆除鋰電池，轉用（AAA）電池。 | |
| 電池：按正確極性裝入4節（AAA）電池，當指示燈變暗或閃爍，或聲音失真時，請更換新電池。 | |
| 充電：使用USB 5V或DC-5V供電時並充電，關機充電紅色指示燈亮，充滿紅色指示燈熄滅，開機充電指示燈變粉紅色，開機不充電時，指示燈為藍。 | |

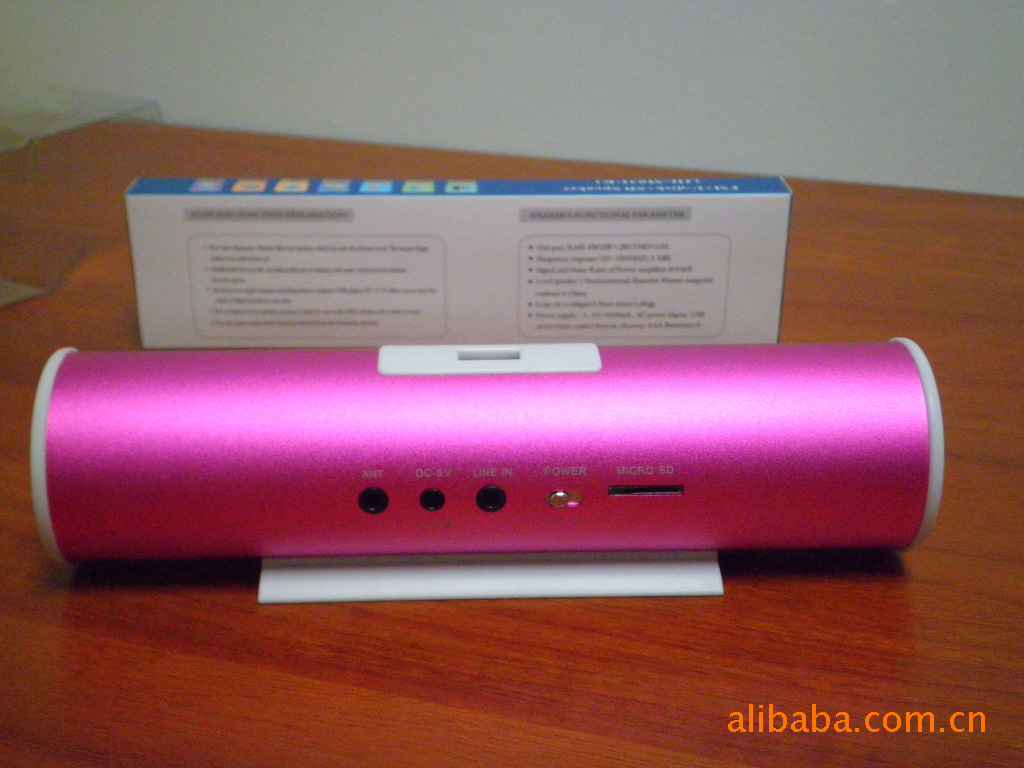

| Line in:音頻輸入 | |
| DC-5V：直流5V（0.4A-1A）電源適配器，可用USB電源 | |
| OFF/ON：開關置於OFF音響則停止播放音樂，置於ON則音頻經功放輸出 | |
| ANT：FM天線孔，使用FM時，可用音頻線插入比孔才能使用。 | |
| MICRO SD：將TF卡或MICRO SD卡插入此孔。 | |
| Pict | |
| Built-in lithium battery, when the lithium battery failure, removable lithium battery, switch (AAA) batteries. | |
| Battery: 4 into the correct polarity (AAA) batteries, when the lights dim or flicker, or the sound is distorted, replace the new battery. | |
| Charge: Using USB 5V or DC-5V power supply and charging time, charging off the red indicator light, full of red light is off, charging indicator variable pink boot, the boot is not charged, the indicator light is blue. | |
| Line in: Audio Input | |
| DC-5V: DC 5V (0.4A-1A) power adapter, USB power supply available | |
| OFF / ON: OFF switch will stop the music sound, placed by the audio amplifier output ON | |
| ANT: FM antenna hole, the use of FM, the audio cable into the pore can be used. | |
| MICRO SD: the TF card or MICRO SD card into the hole. |
