安裝說明instructions

1. 1.    打開包裝，取出所有配件,以ZH015型號為例。

Open the pakage ,take out a set of clock ,including all accessories.(such as item ZH015)

2.在墻上找好中心位置，拉掉圓形鐘盤底部的不乾膠膠紙Check the middle of the wall ,remove the double-sided tape.

3.把鐘盤底座粘貼到墻上，按壓數秒。

Stick the clock plate base on wall and press several seconds.

4.取出刻度尺，尺中心有圓孔，尺後麵有雙麵膠（或用透明膠），

Take out the white paper scale ,8MM hole in its middle and remove the double-sided tape on its back(or use scotch tape).

5.把刻度尺貼到底盤上，數字12點超正上方位置貼正。

Stick the scale on the clock plate base ,No.12 should be just above.

6左手按住刻度尺圓盤，右手展開刻度尺，找到想要調整的尺寸，用鉛筆在墻上畫出標記。

 Hold on the scale plate with your left hand,the right hand control the scale and check the best size which you need ,use a pencil to remark on the wall.

7.完成3.6.9.12四個點的刻度標記,建議3和9，12和6在同一條線上，以此達到美觀的效果

Completed the 3.6.9.12 o’clocktick marks ,3 and 9 keep on line,12 and 6 keep on line.

8.接下來按順時針方向繼續標出剩下的時間刻度。

Continue to mark the rest of numbers in clockwise .

9．把亞克力鏡麵展開，檢查所有數字把亞克力字體粘到黑色EVA板上。

9.Check the acrylic mirror ,stick all mirror acrylic numbers on black EVA.

10.在EVA板上摘下數字12，剝開白色膠紙，貼到墻上12點的位置，接著把3.6.9也貼好。

Take off the number12 from EVA,remove white double-coating tape ,stick number 12 on 12 o’clock on wall,then continue to stick 3.6.9 on wall.

11.再貼剩下的數字,全部貼好效果圖。用尺子調整各個數字的位置，使整體效果美觀整齊，調整並粘貼好。

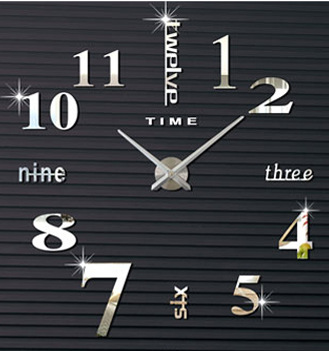

Then stick the rest of EVA numbers，show the picture of acrylic mirror .Use the scale to check again ,make sure the space and size is correct ,adjust and paste the good effect, finish all mirror digital.

12.拿出指針，從邊沿撕下保護膜。

Remove the protective film from the adge of clock needles .

13.把鐘盤放平，取下機芯頂端的金色小帽。

13.Put down the clock plate, gently rotate down the gold screw cap in counterclockwise.

14.把時針（較短的針，圓孔有金色銅扣的那根）壓到對應的機芯時針軸

14.Pick up the hour needle (the shorter needle with round hole ),press it on the hour length of the movement.

15.類似的，把分針水平裝到方孔分針軸上，註意兩根針須平行不能交叉.把剛旋下來的金色小銅帽，按照順時針方向再旋回機芯上。

15.Similar fix the minute needle to square hole minute length,two needles should be parallel.

Pick up the gold small cap,in clockwise up and tighten it.

16.裝上電池，註意正負極，

16.Equipped with battery，pay attentionto positive and negative pole.

17.用手指撥動機芯上的調時旋鈕，調準時間。

17.Adjust the time:stir the time push button of the clock movement to correct time.

18.把鐘盤扣到底座上，壓緊。

18.Press the clock plate to the base on wall, compress tightly.

19.大功告成，效果美觀大氣。

19.Finish！Enjoy your DIY!

溫馨提示：

Warm tips:

1. 1.    建議使用一節5號碳性電池，請勿使用有聚能環的高電流電池或者充電電池（如南孚，雙鹿，金霸王等），以免損壞機芯。

1.recommend use a 5carbon batteries ,don’t use high current battery such as nanfu,duracell,rechargeable batteries ,lest damage mechanism.

1. 2.    本品適用於光滑墻麵，掉灰或潮濕的墻麵都會使數字背後的膠性下降。

2. This product is suitable for smooth wall,ash falling walls or damp walls will make the figures behind the gelatinous drop.

3.本品膠水屬於特製品，粘性較強，如需移除本品請先用熱吹風機吹熱後再輕輕取下，切勿暴力操作。

This product belongs to the special glue items,strong viscous, please use the hair dryer blowing the glue hot then gently remove,don’t violent operation.

4.機芯屬於精密機器，安裝時針需用雙手拖住機芯把針壓到相應卡位，再擰緊螺絲，指針間不松動，不卡位，走時才可精準。

4.The movement belongs to precision instruments ,installation with hands holding the needls to corresponding movement press card,then tighten the screw ,no loose,needls don’t card ,travel time can be accurately.

5.清潔本品時請勿用硬物擦洗，用柔軟的佈擦拭即可，不用添加洗滌劑。

5.Clean this product don’t scrub with a hard object ,please use a soft cloth,don’t add any detergent.

6.本品為DIY產品，上墻最佳效果直徑為80—100CM，您可以根據自己的需要調節尺寸。

6.This is DIY products, the best effect on the wall diameter is 80—100CM,size can according to bigger or smaller by yourself.

7.兒童操作本品需在成人指導下進行。

7.Children to operate this product needs under the guidance of adult.
