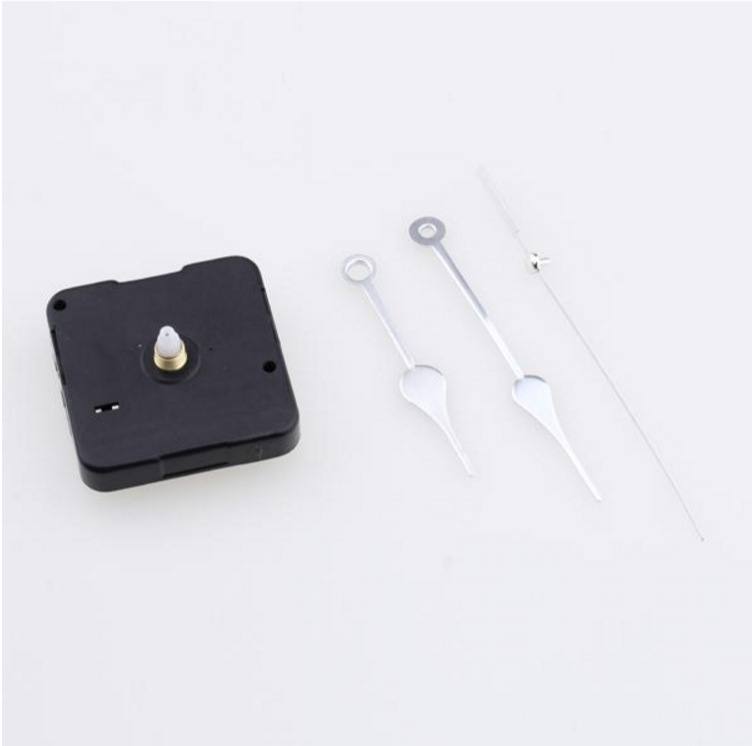

Brand new and high quality
Long spindle
Suitable for clock faces up to 6mm thick
Great for repairing, replacing or making a clock
Case size: 56 x 56 x 16 mm (2.2'' x 2.2'' x 0.65")
Spindle diameter: 8mm
Hour hand length: 73 mm
Minute hand length: 96 mm
Second hand length: 123 mm
Spindle length: about 19 mm
Thread length: about 11.5 mm
Suitable for clock panel with thickness not more than 10mm
Plastic casing with metal hands
Housing: black
Hour, minute and second hands: gold
Powered by one AA battery (not included
Long spindle
Suitable for clock faces up to 6mm thick
Great for repairing, replacing or making a clock
Case size: 56 x 56 x 16 mm (2.2'' x 2.2'' x 0.65")
Spindle diameter: 8mm
Hour hand length: 73 mm
Minute hand length: 96 mm
Second hand length: 123 mm
Spindle length: about 19 mm
Thread length: about 11.5 mm
Suitable for clock panel with thickness not more than 10mm
Plastic casing with metal hands
Housing: black
Hour, minute and second hands: gold
Powered by one AA battery (not included
石英鐘機芯分兩大類：靜音掃描和有聲跳秒。
高質量，壽命高達3-5年以上，一秒級機芯
中檔質量，壽命24個月左右，二秒級機芯
低檔質量 ，壽命12個月左右，超秒
可定製 大扭力/低功耗/高精度，價格優！
晶振頻率: | 32.768KHz |
平均日差: | ±1sec/day at 1.5v,24℃ |
工作電壓： | 1.25v to 1.7v |
工作溫度： | -10℃ to 50℃ |
圓周輸出頻率： | 0.5Hz |
重量： | 近似22g w/o battery |
秒針輸出力矩： | ≥1.5gf-cm(1.5V) |
分針輸出力矩： | ≥30gf-cm(1.5V) |
電源： | 1.5v |
電源型號： | AAsize(IEC R6)1 piece |
電池壽命： | 1 year |
平均功耗電流： | under 130uA at 1.5v |
時分針要求： | Second Minute Hour |
長度： | ≤130mm 160mm |
重量： | ≤2g 6g |
損耗力矩： | ≤0.15g-cm 6g-cm |
尺寸： | 56MM*56MM*16MM |
軸長： | 5.5mm/9mm/12mm/14mm/16mm/19mm/22mm |
標準鐘表規格 5.6*5.6*1.6CM
配套配件：金色墊片、螺絲、時針、分針、秒針。
安裝方法：先用手輕輕按進時針，在裝分針、秒針。
註意：指針材質為金屬鋁，可能在運輸途中變的彎曲，用手輕輕捋直，不影響使用。如果對其要求特別高的，請慎拍！
