Model Code:YL-CL072B-72W
Features:
1. Eco-friendly, long life span and high lumens.
2. Aluminum lamp body, waterproof, shockproof, anti-corrosive.
3. Can be used in various harsh environments.
4. Wide voltage can be applied to different types of vehicles.
5. Soft light, no glare.
6. IP67
Applications:
Widely used in automobiles, trucks, SUVs, mechanical vehicles, agricultural machinery,
construction vehicles, excavators, forklifts, snow vehicles, ships lamp lighting project.
Parameters:
Model NO | YL-CL072B-72W | |||||||
Power(W) | 36W | 60W | 72W | 120W | 180W | 240W | 288W | 300W |
Input Voltage | 10-30VDC | |||||||
Lighting Source | Cree | Imitation lumen | ||||||
LED Chips Quantity | 24pcs | 24pcs | ||||||
LED Luminous Efficiency | 110-140Lm /W | |||||||
Color Temperature | 5500K～6500K | |||||||
Lamp’s Luminous Efficiency | ≥85 Lm/W | |||||||
Lumen Maintenance | 70%(30000Hrs) | |||||||
Color Rendering Index | Ra≥70 | |||||||
Operating Temperature | -40℃～+45℃ | |||||||
Storage Temperature | -40℃～+65℃ | |||||||
IP Grade | IP67 | |||||||
Light Distribution | 30°/60° | |||||||
Life-span | 30000Hrs | |||||||
Materials | Diecast aluminum housing | |||||||
Appliance Class | ClassⅠ | |||||||
The color of the lamp shell | Black | |||||||
Lens material | PC | |||||||

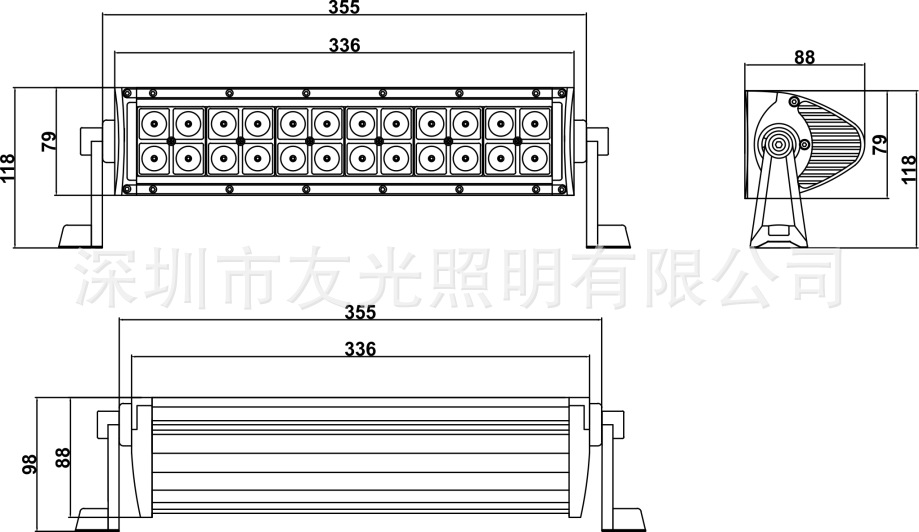

Mechanical Dimensions: (Unit :mm)
Packing:
Part No | pcs/box(Carton) | Box(Carton) | |||
YL-CL072A-72W | 12 | Net weight | Gross weight | Inner box/MM | Carton/MM |
---Kg | ---Kg | ****** | ------ | ||
Installation Instructions:
1. The product base is fixed to the support frame, locking screws.
2. Then the product is fixed on the base, locked at both ends of the screws.

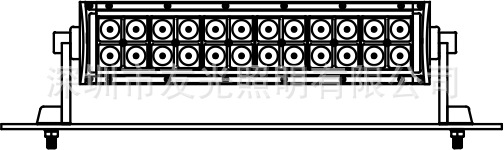

3. According to the demand, the adjustment of product irradiation angle. (See below)
|
4. After fixing this product, connect the power cor(brown+ /blue -)
Note: This product is DC10-30V input voltage, AC power supply is prohibited.
|
