電器性能Electrical Specification

機械性能Mechanical Specifications

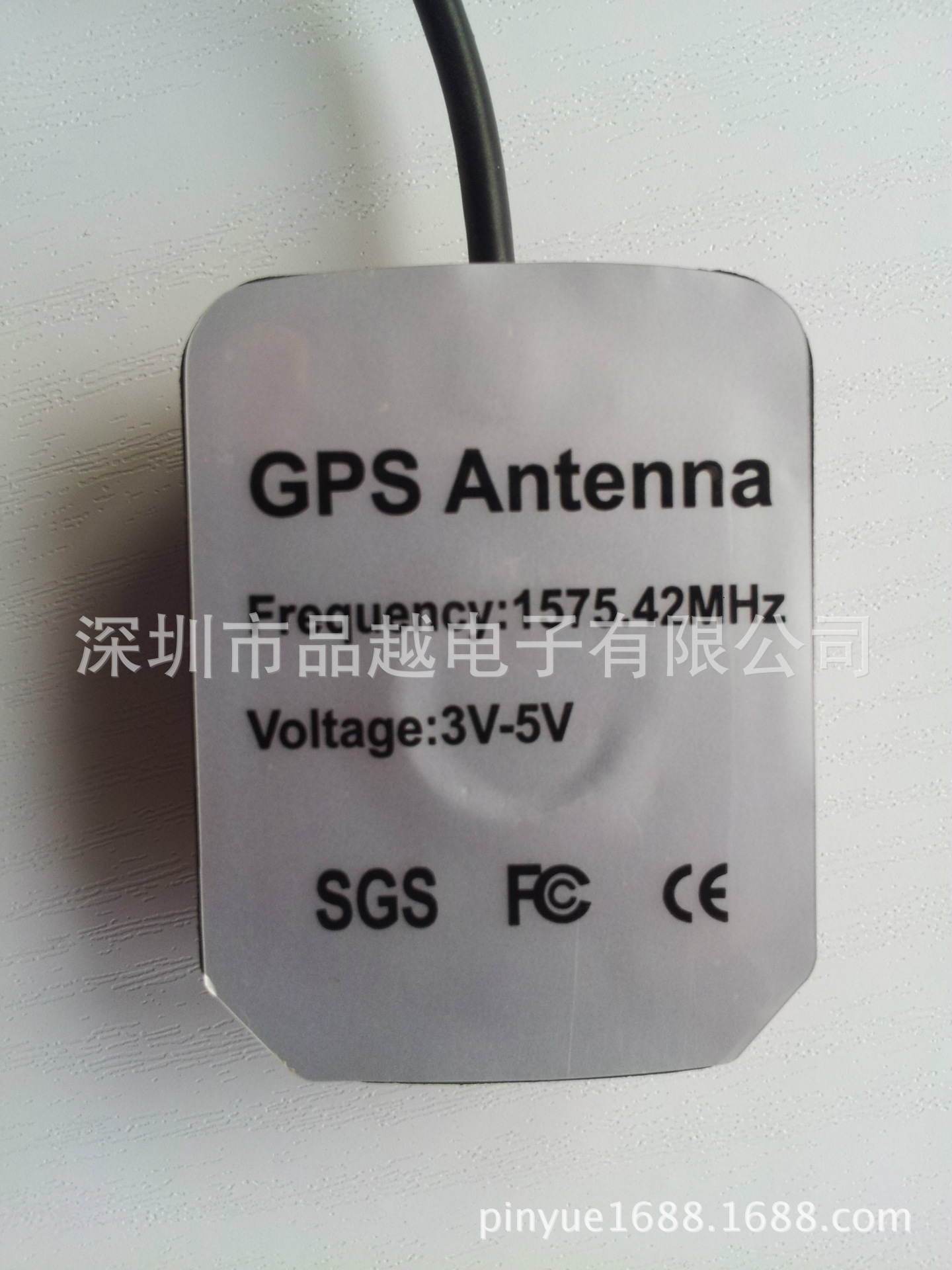

接收頻率范圍（MHz）
Range of Receiving Frequency

1575.42±3

外型尺Size(mm)   長x寬x高

48mm×37mm×15mm

55mm×50mm×16mm

駐波比V.S.W.R (in Center Frequency)

≤1.5

連接器型號Connector

SMA/BNC/MCX/MMCX/SMB/FAKRA或其他

軸比Axial Ratio(with 70mm Square GND plan)

≤3.0

電纜線Cable

RG-174

放大器增益（dB）LNA Gain(With cable)

28±2

固定方式Mounting

磁性 Magnetic

噪聲系數Noise Figure

≤2.0

顏色color

黑色Black

偏振方式Polarization

右旋圓極化Right-Handed Circular

重量Weight

＜110g

特性阻抗(Ω) Impedance

50

防水Weatherproof

100%Waterproof

工作電壓（V)Supply Voltage

3～5

工作電流(mA）Current Consumption

12±1
