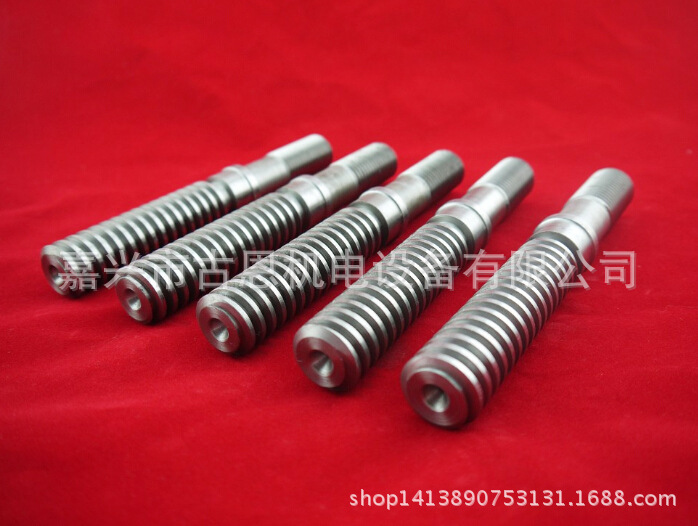

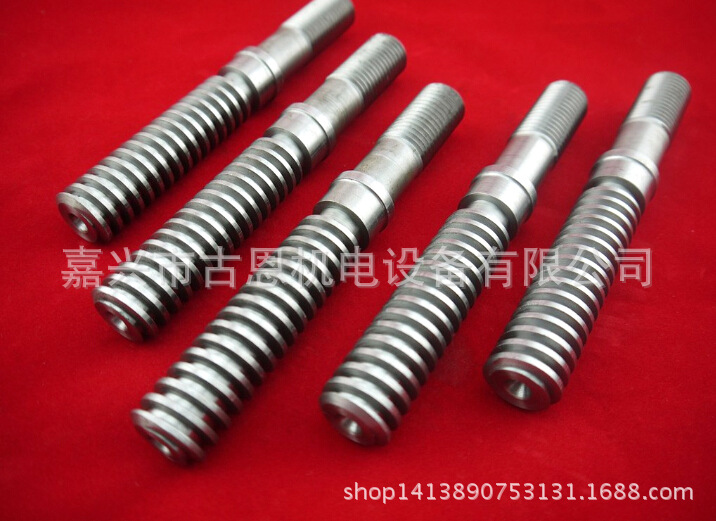

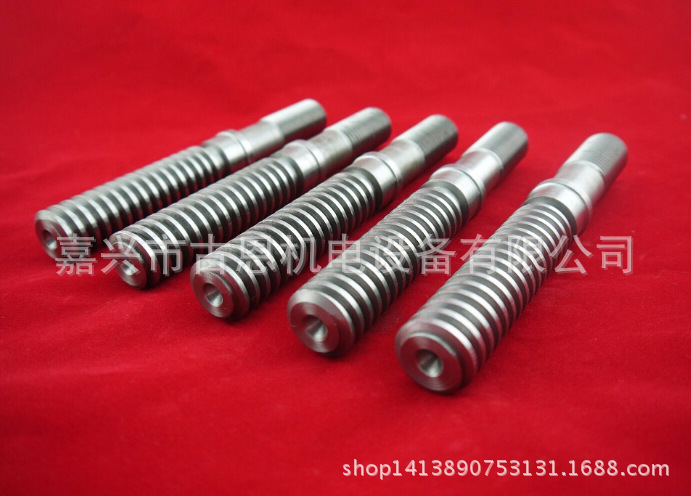

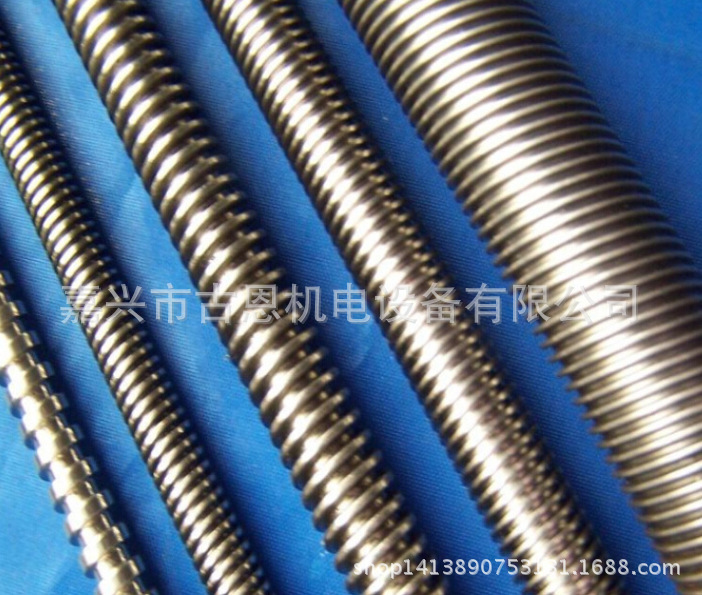

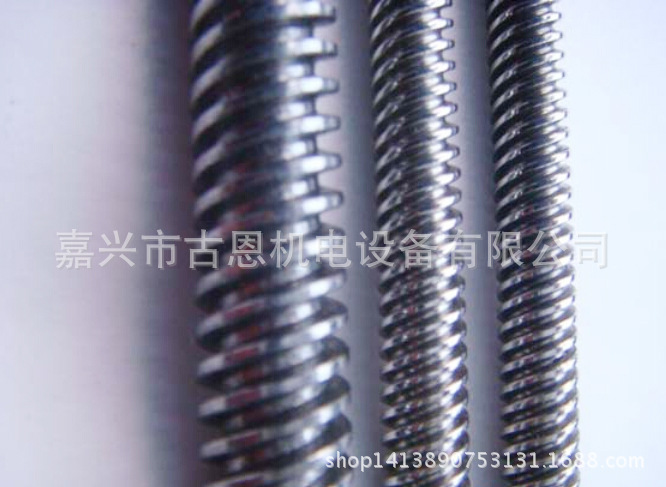

| 梯形絲桿介紹 | ||||||||||||
| 產品名稱 | Tr梯形絲桿 | Product name | Trapezoidal Lead Screw | |||||||||
| 外徑 | Ø5mm -Ø40mm,公差控製在0.01mm | External Diameter | 5mm to 40mm, tolerance can be controlled in 0.01mm | |||||||||
| 螺距 | 0.5mm到4.0mm,公差控製在0.005mm | Pitch for thread | 0.5mm to 4.0mm, tolerance can be controlled in 0.005mm | |||||||||
| 長度 | 20mm到2500mm,公差控製在0.03mm | Length | 20mm to 2500mm, tolerance can be controlled in 0.03mm | |||||||||
| 螺紋頭數 | 1-12頭 | Number for thread | 1-12P | |||||||||
| 螺紋方向 | 右螺紋、左螺紋、左右螺紋 | Thread direction | Right thread, Left thread , about thread | |||||||||
| 螺紋標準 | 公製、英製 | screw thread standard | Metric Inch thread | |||||||||
| 加工類型 | 確保零件同心度可一次完成：切段、車外圓、銑扁、銑齒、剖槽、鉆孔、車攻牙等 | Processing | To makesure the concentricity of part, the process finished in one time: CNC cutting, truning, milling flat, milling gear, cutting slot, drilling hole, Tapping and others as required. | |||||||||
| 材料 | 不銹鋼、碳鋼、銅、鐵、鋁等實心棒與空心管金屬材料 | Material | Solid pipe and tube Stainless steel, Carbon steel, copper, Iron, Aluminum and others as required; | |||||||||
| 表麵處理 | 高頻淬火、鐵氟龍、熱處理、淡化、精磨、精拋、陽極氧化、粉沫噴塗、電泳漆等 | Surface treatment | High Frequency Hardening, Teflon, Heat treatment, surface hardening,Accurate grinding and others as required. | |||||||||
| 已有客戶群 | 汽車工業、機械工業、傳動系統、醫療設備、太陽能領域,傢具、門窗、安防等 | Client base | Auto industry, Mechanical industry, Medical equipment, Solar energy field, furniture, Door & Window, security and protection etc. | |||||||||
| 交貨時間 | 根據數量協商,正常交貨期為7-15天 | Delivery time | Within 7-15 days common according to quantity | |||||||||
| 包裝方式 | 氣泡袋封裝或按客戶要求 | Packing | General export package, or according to customer's requirement. | |||||||||
| 驗收方式 | 封樣對照及檢測報告為依據 | After Service | The commodity inspection to our final /confirm/iation | |||||||||
| 運用領域 | 導螺桿手動升降滑、工業電動直線驅動器,JWM螺釘,小型數控銑床,螺釘,螺釘定位平臺,迷你電動直線驅動器,諧波減速器,直線電機,G夾,絲桿導程機械手,螺桿減速機 | Field of application | Lead screw manual lifting slide , Industrial electric linear actuator, JWM Screw lift , Small CNC milling machine, Screw Lift , Screw locating platform , Mini Electric Linear Actuator ,Harmonic Reducer , Linear motor , G Clamp ,Lead screw manipulator , Screw reducer | |||||||||
================
嘉興市古恩機電設備有限公司是一傢專業生產噴繪、打碼、電子、機器機表、梯形絲桿、蝸輪蝸桿、傳動軸桿、 液壓裝置、汽車等精密機械部件的企業。公司主要從事以精密CNC車床，CNC銑床，加工中心,沖壓，壓鑄等各式精密機械為依托，對外承接精密零件的加工業務。
公司始終堅持以誠信為本，創新為魂，銳意進取，追求卓越的經營管理理念，以一流的質量和一流的服務來更好地滿足客戶的需求,歡迎來圖來樣來電訂做!
聯系人:鄭小姐 電話:18668338665
郵箱:[email protected] QQ:3135349311
