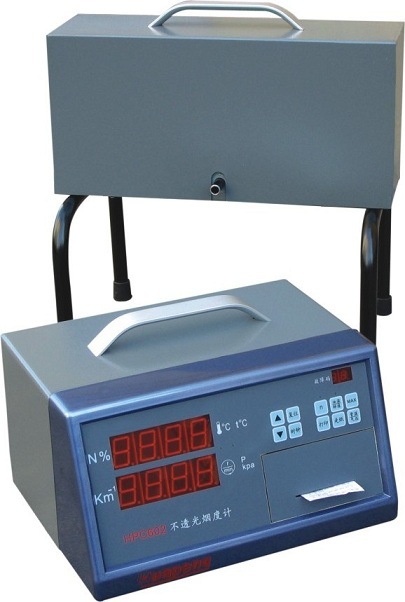

HPC602不透光煙度計
主要功能特點：
分體式結構設計，操作更方便,數據更精確；
采用分流式取樣技術、柴油機加速、減速和穩速時均可測量煙度；
數據自動線性化處理，可顯示不透光度N、光吸收系數K和對應濾紙式煙度值SF；
高亮度數位顯示；
采用“空氣幕”技術保護光學系統免受污染；
檢測室自動恒溫控製，可防冷凝而影響測試精度；
附自動時間顯示；可選配轉速測量和油溫測量；
出現故障自動診斷顯示所在單元；
配內置打印機（或數字RS－232A介面或模擬介面）；
符合ISO11614和GB3847－1999技術要求。
主要技術參數：
測量范圍 不透光度N: 0～100%(相當煙度值0～10FSN)
光吸收系數K:0-16.06m-1
示值誤差 ≤±2%(測量值)
穩定性 自動校零，量矩漂移≤±1%/4h
重復性 重復誤差≤±1%
分辨率 0.1%
輸出方式 數字直讀顯示，可附打印機打印煙濃度(暗度)最大值，測試時間、日期等。可附介面與計算機聯網
測量煙度溫度 70℃(自動恒溫)，當溫度誤差≥±10%時，溫度及錯誤指示燈亮
環境條件 溫度0～40℃，相對濕度≤90%
電源 AC100-240V 50Hz 消耗功率150VA
外形尺寸（含支架） 控製部分 240mm(長)×310mm(寬)×170mm(高)
光路部分 130mm(長)×400mm(寬)×390mm(高)
重量 控製部分 4kg
光路部分 5kg
MainFeatures:
◆Separated structural design, operation more convenient and more accurate data.
◆Adopted a triage-type sampling technique, diesel engine acceleration, deceleration, and steady speed can be measured when the smoke;
◆Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K and the corresponding value of filter paper-type smoke SF;
◆High-brightness digital display;
◆Use of "air curtain" technology to protect the optical system from contamination;
◆Automatic detection of room temperature control, anti-condensation can affect the test accuracy;
◆Automatically attached to the time display; optional speed measurement and oil temperature measurement
◆Show wher the failure of automatic diagnosis unit;
◆Equipped with built-in printer (or digital RS-232A interface or analog interface);
◆In line with ISO11614 and GB3847-1999 technical requirements.
Main technical parameters:
Test Scope：No light transmission N:：0～100%(equivalent to smoke value 0 ~ 10FSN)
Light absorption coefficientK：0-16 .06m-1
Shows the value error：≤ ± 2% (measured value)
Stability：Automatic zero, volume moments drift ≤ ± 1% / 4h
Repeatability：Repeat the error ≤ ± 1%
Resolution：0.1%
Output Mode：Digital direct-reading shows that smoke concentrations can be attached
printer (dark degrees) the maximum test time, date and so on. Can be
attached to interface with the computer network
Measurement of smoke temperature：70℃(automatic constant temperature), when
the temperature error of ≥ ± 10%, the temperature and the error
indicator light
Environmental conditions：Temperature 0 ~ 40℃, relative humidity ≤ 90%
Power：AC100-240V 50Hz Power consumption 150VA
Dimensions：Control section 240mm (length) × 310mm (width) × 170mm (H)
(with stand) Optical part of the 130mm (length) × 400mm (width) × 390mm (H)
Weight：Control part 4kg
Optical part of the 5kg
