V802 Color screen VAG and CAN EOBD/OBDII PROFESSIonAL SCANNER

奧迪、大眾專業檢測機，增送OBD2全模式診斷

1.updat by internet !!!

2.One tool price two tools function

3.Support all VAG car and all OBD2 EOBD2 car

4.2.8" TFT true color 320*240 LCD display

V802 scanner is a strongest professional scan tool designed for user to pinpoint engine, transmission, ABS and airbag faults. It is an ideal scanner for ALL VW, Au-di, Seat and Skoda series vehicle, and can detect over 130 systems. It supports the Controlled Area Network (TP-CAN) and New UDS protocol.  And this tool delivers all the OBDII functionality at a price unmatched in the industry

VEHICLE COVERAGE:

• All VW/AU-DI/SEAT/SKODA from 1996 to 2015
• GM '96 - Current Year (OBD-II)
• Ford '96 - Current Year (OBD-II)
• Chrysler '96 - Current Year (OBD-II)
• Toyota '96 - Current Year (OBD-II)
• Honda '96 - Current Year (OBD-II)
• NISSAN '96 - Current Year (OBD-II)
• All other Asian and European '96 - Current Year (OBD-II)
• All new CAN protocol cars.

 Languange support:

Germany,English,French,Italian,Czech,Spanish,Turkish,Poland.(Afer you place order, please tell me the language you want)

Product Features:

VAG (VW/AU-DI/SEAT/SKODA):

1. Works with Volkswagen and Audi (Audi/ Seat/ Skoda/ Jetta/ Golf / Beetle/ Touareg/ GTI/ Passat and more) since 1990.

2. Supports All VW Diagnostic protocol includes KWP1281 KWP 2000 TP-CANBUS NEW UDS.

3. More Function : Reads ECU and Live data , Reads data, Erases fault codes, Resets service lights, etc.

4. Turn off the MIL Lights after clearing fault code.

5. Easily detects nearly 130 systems includes engine, ABS, Airbags, transmission, radio, climate control, instruments, immobilizer and so on.

6. Oil Reset:

After the oil vehicle maintenance, reset oil service light

7. Airbag Reset:(onLY SUPPORT SOME KWP1281 )

Don’t suggest you condition of the vehicle airbag safety in the use of this feature, in order to avoid triggering a fault

8. Mileage correction:(onLY SUPPORT SOME KWP1281 )

This feature can be modified on the mileage meter, not all Volkswagen cars are supported by this feature, according to the characteristics of the vehicle instrumentation varies.

More function:

. Controller Info

. Fault Codes

. Clear Codes

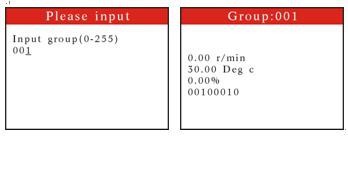

. Measuring Blocks

. Output Tests

. Basic Settings

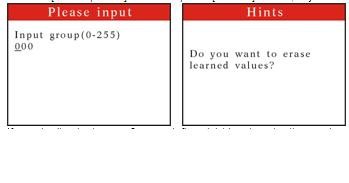

. Adaptation

. Coding

. Security Access

. Advanced ID

. Readiness

More Special function:

* Throttle adjustment

CAN/OBDII:

1.Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols)

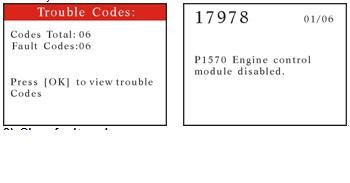

2.Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)

3.Trouble codes display on the LCD, needn't the code book.

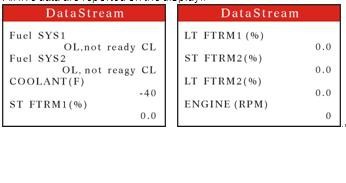

4.Scanning live data

5.Reading Freeze frame Data

6.Testing I/M Reading Status

7.Reading vehicle info

8.Oxygen Test

9. Model 6 test

10.Component Test

11.Fuel consumption test

12.Rescanning Dataest

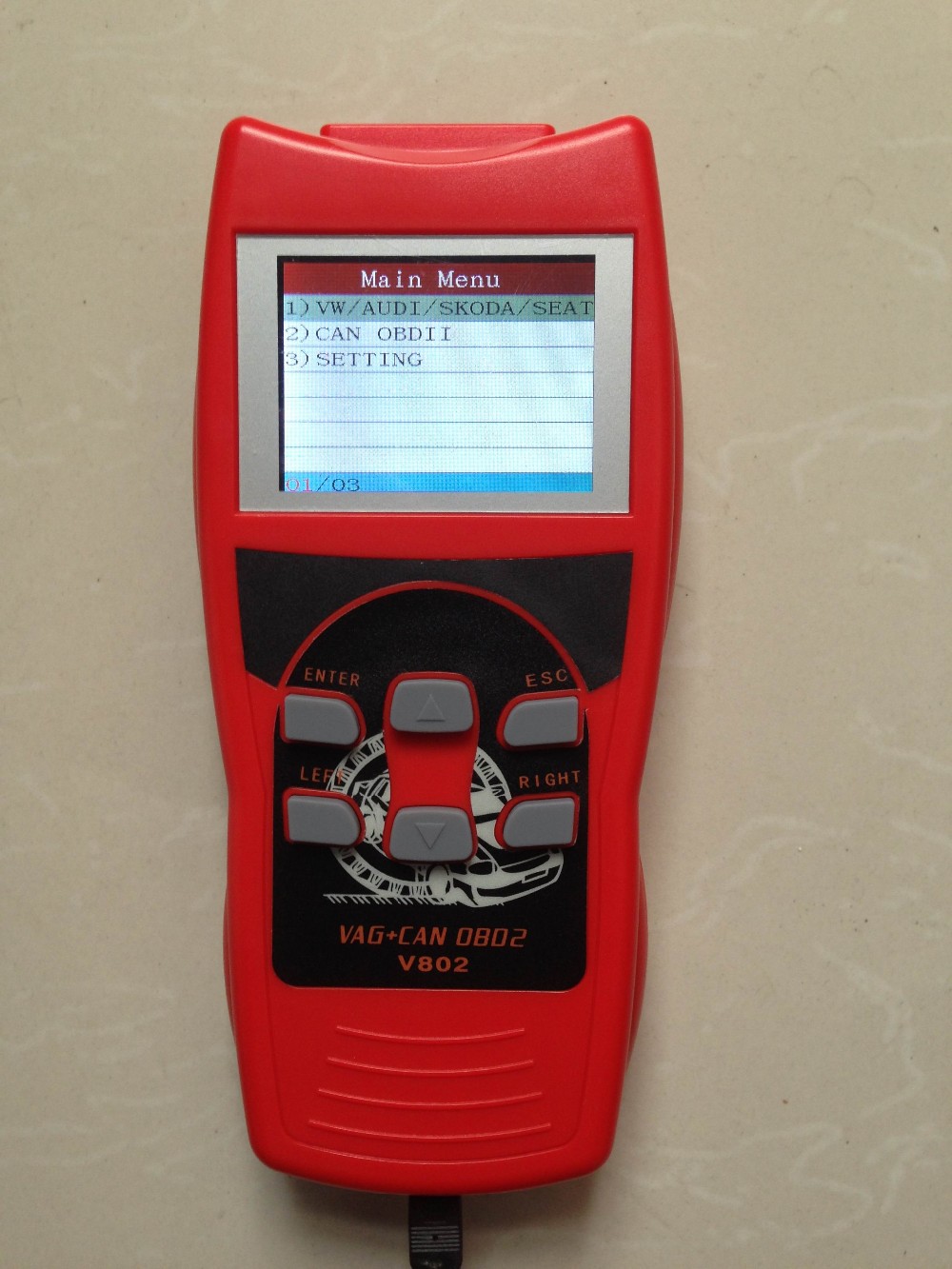

Tool Description:

1. LCD Display , 2.8" TFT true color 320*240 LCD display

2.Enter key  selects displayed

3.Exit key   go back to the previous screens

4.up/down arrows-moves the selection pointer and scrolls up or down.

5.LEFT/RIGHT arrows-selec responses and moves cursor.

6.OBDII connector cable, connect car and the scan tool


Product Specifications:

• Display-2.8" TFT true color 320*240 LCD display

• Operating Temperature- 0 to 5

• External Power: 10.0 to 15.5 vols provided via vehicle battery

• updat by internet

Accessories:

- 1pcX V802 Tool

-1pc x User's Manual

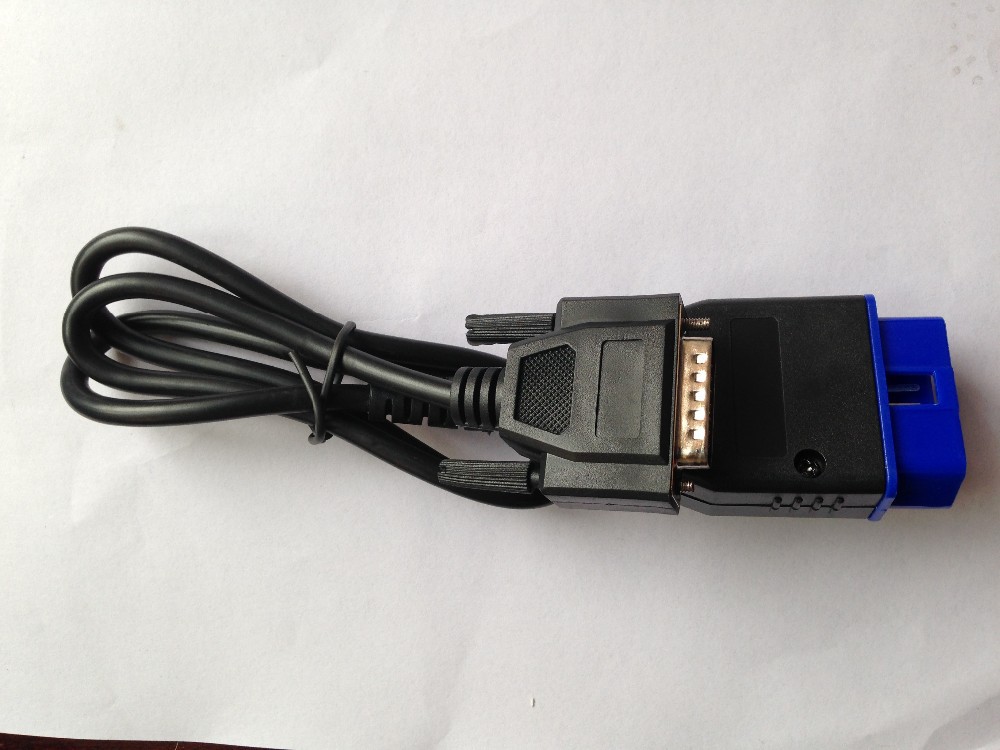

- 1pc x OBDII cable

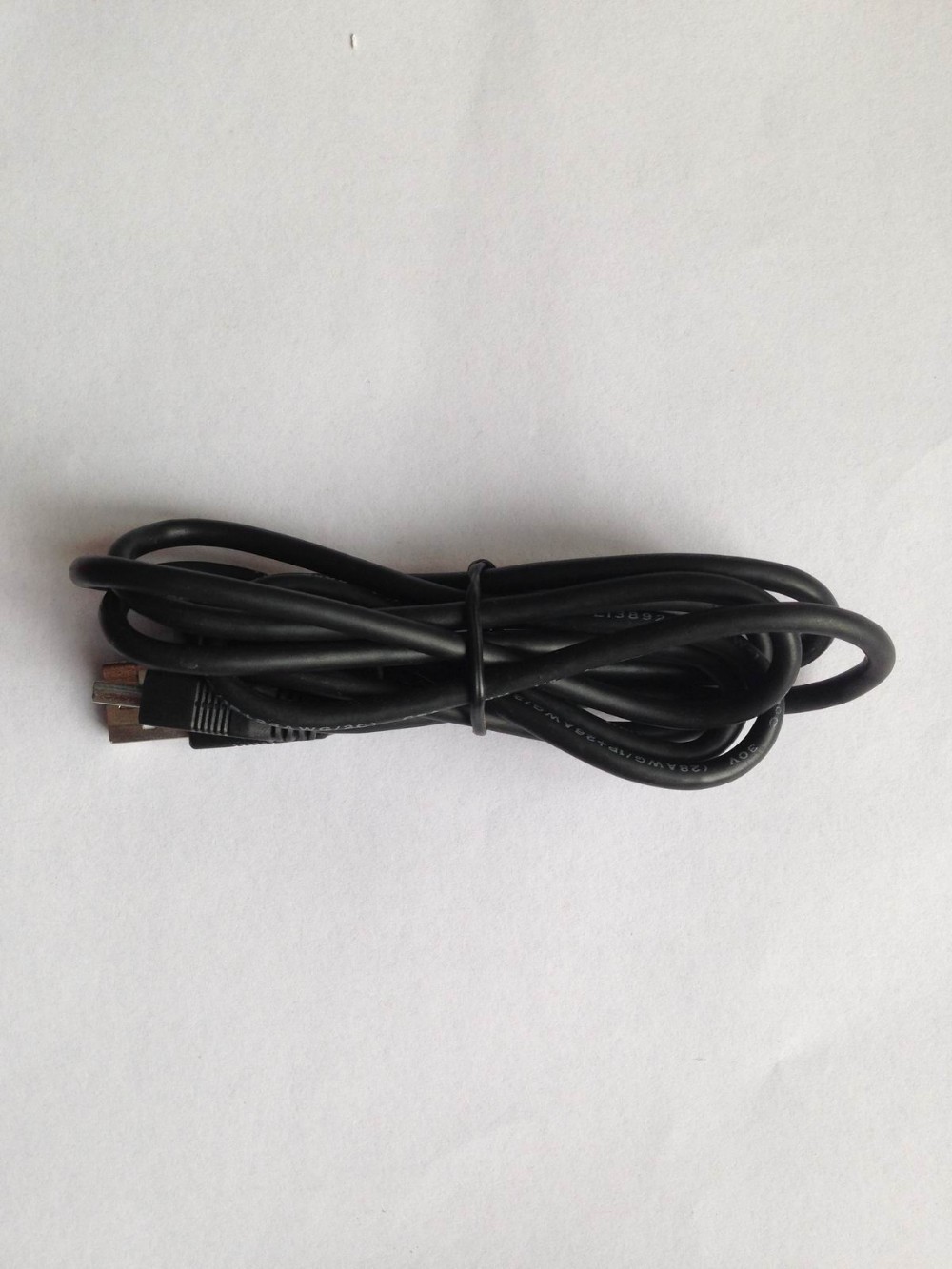

 - 1pc x USB cable
