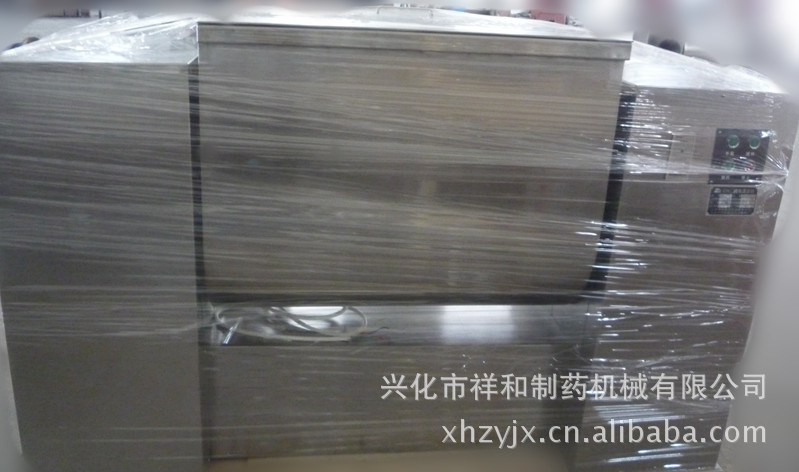

CH槽型原料混合機

簡介：

本機為全不銹鋼臥式槽形混合機，在製藥、化工、食品中用於混合粉狀或糊狀的物料。工作原理：
　　本機通過機械轉動，使S式攪拌槳旋轉，推動物料往復翻動，均勻混合，操作時采用電器控製，可設定混合時間，到時自動停機，從而提高每批物料的混合質量。

技術參數：

型號	50型	100型	150型	200型	300型	400型	500型	600型
漿葉形式	S式單漿
工作容積(L)	50	100	150	200	300	400	500	600
攪拌漿轉速(r/min)	24
倒拌角度	<105°
攪拌電動(kw)	1.5	2.2	3	4	5.5	5.5	7.5	11
倒料電機(kw)	0.37	0.55	0.55	0.75	1.1	1.1	1.5	2.2
外形尺寸(mm)	1200×500×950	1400×580×1000	1800×600×1150	2000×650×1200	2200×700×1250	2280×750×1250	2350×800×1300	2400×850×1350
重量(kg)	280	350	410	450	520	580	680	750

Introduction:

1.This machine is compact, simple operation, beautiful appearance, small footprint, easy clean.

2.By Operation with electronic control, mixing time can be set to automatically shut down, thereby improving the quality of each batch of mixed material.

3.It with the barrel body small gap, no dead ends mixed, with stirring shaft seals at both ends, to prevent the material spilled outside, use the button to move the control of the hopper.

Ch Trough Type Mixing Machine is designed for thorough mixing powders or pastes. It is a horizontal through type mixer with singe arm. The stirring arm is removable so that it is easy to clean .The parts?surface which may touch the mixing materials are made of stainless steel ,so they are good corrosion-re-sistent. The mixing trough can automatically reverse for discharge.

4. Good corrosion resistance

Main Technical Specification:

Model	CH50	CH100	CH200
Through capacity	50L	100L	200L
Mixing arm speed	24r/min	24r/min	24r/min
Tilting angle of the through	360°	360°	360°
Tilting speed of though	10r/min	12r/min	11r/min
Main motor	1.1kw	2.2kw	4kw
Tilting motor	0.75kw	0.75kw	1.1kw
Overall size	1170380700mm	1380500900mm	16706001150mm
Net weight	170kg	270kg	600kg
