主要特征：
1.60小時電池壽命（W/O背光），AA堿性電池
2.快速啟動和連接：15秒
3.通過英特網升級的設備描述和固件---就地升級
4.軟件狗相關AC電源適配器和串行通信配件
5.復製/上載/下載組態
6.離線開發/檢測組態
7.200多個文件和存儲組態
8.DMS軟件記載的AS-FOUND/AS-LEFT歷史
9.13行，128*128像素圖像，背光顯示
10.全字母-數字鍵
11.從檢查/編輯模式直接編輯
12.快捷菜單鍵
13.HART菜單返回鍵
14.專用文本編輯鍵
15.編輯鎖定設置
16.從任何模式直接調校的對照鍵
17.靈活的手帶和可調肩帶
18.菜單上，下，選擇翻查鍵（左手）
19.專用便攜式軟包
應用：
1.設備調試
-逐步組態
-文件AS-LSFT組態
2.設備運行
-過程變化再組態
-批量變化再組態
-文件AS-FOUND/AS-LEFT組態
-形成DMS數據庫軟件
3.設備維護
-使用HART®檢修設備
-查看設備故障信息
-調試更換時復製設備
規格：
基本尺寸：10/8L*4/4"TO2½"W*1¼"TO1 77/8"D
ABS塑料殼，1.7IBS(W/BATTS)
鍵盤：薄膜鍵：4個軟鍵，8個單功能鍵，30個雙功能鍵，3個翻查鍵
顯示;13行，128*128 2.1*2.1“可視范圍，背光
電源：六節堿性電池，本安型隻能使用認證的堿性電池
溫度條件：工作溫度：23ºF-122ºF（-5ºC-50ºC）
連接：HART®通訊器使用標準香蕉插孔（¾ CENTER）;軟件狗使用ODU連接器；數據傳輸使用AC適配器和DB-9電纜
認證:本安型 ：ATEX和CULUS(隻能使用經認證的堿性電池)
EEX ia IIC T4
本安型
型譜選擇：
H HART
F HART and FOuNDATION fieldbus (2)
Code Battery Type
R Rechargeable NiMH Battery Pack
P Rechargeable Lithium-Ion Power Module
Code Power Supply/Charger
1 Power Supply/Recharger NiMH/Li-Ion (100/240 VAC, 50/60Hz, uS/uK/Eu connection types included) (3)
9 Not included (4)
Code Language
E English
Code Product Certifications
KL CENELEC/ATEX, FM, CSA, and IECEx Intrinsically Safe (includes FISCO as applicable)
NA No Approval
Code Easy upgrade
u Easy upgrade (3 year) Option (5)
9 Not Included
Code Options
A Power Module (6) (10)
B Spare Rechargeable NiMH Battery Pack (6) (9)
C Configuration Expansion Module (7)
G Graphics Option (2) (8)

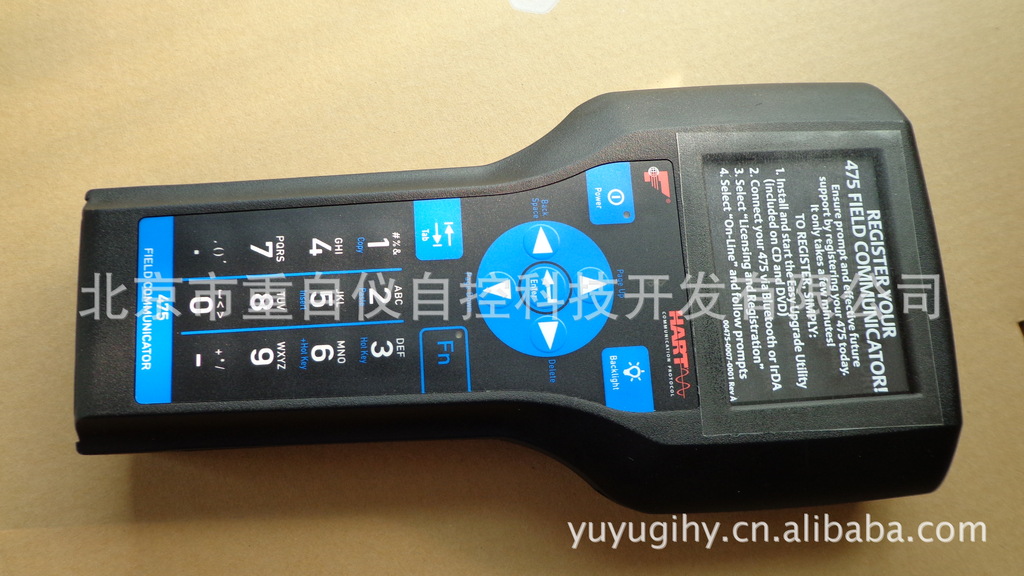

Typical HART Model Number: 475 H P 1 E KL u
Typical HART/Fieldbus Model Number: 475 F P 1 E KL u
(1) base Model 475 includes Field Communicator unit, System Card, Leadset with Connectors, Carrying Case, Getting Started Guide,
user ’s Manual, 475 Resource CD, Stylus and Straps.
(2) Must specify Easy upgrade Option (Code u) when ordering this model option.
(3) To obtain Australian Power cord, order part numbers 00475.
(4) This option should be considered only if the user already has a 475 Power Supply/Charger that supports the battery type they are ordering.
(5) The Easy upgrade capability allows the user to add new System Application software and Device Descriptions (DDs) to the
475 for a period of 3 years. To upgrade without this feature, the System Card would have to be sent to a Service Center.
(6) A fully charged NiMH battery pack is capable of delivering power for 8 hours of typical field use, wheras a Li-Ion Power Module is
capable of delivering 20 hours. If requirements exceed this specification, a second battery pack is (Code B or A) recommended.
(7) The 475 is capable of storing a total of 25 configurations. For increased storage capacity, use the Configuration Expansion Module
which is capable of storing in excess of 500 configurations.
(8) The Graphics Option enables a user to access Enhanced Graphical features
