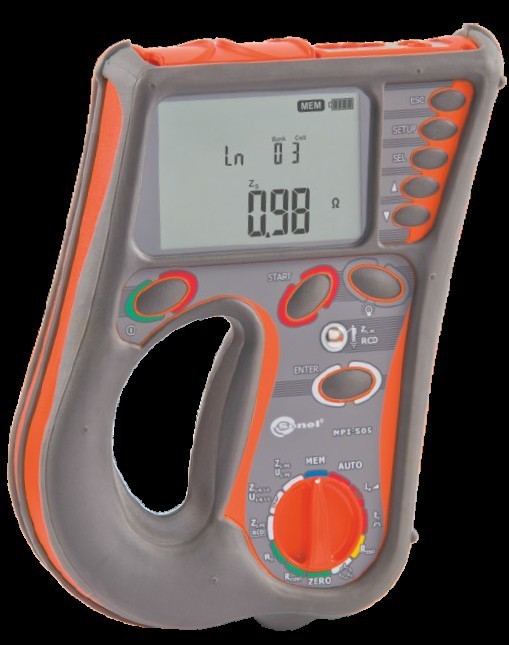

    MPI-505

    指數:

    WMGBMPI505

    Multifunction Electrical Installations Meter

    Measurement of short-circuit loop parameters:

    • in L-PE, L-N, L-L circuits as well as in L-PE (RCD) circuits - without tripping RCD breakers of current 30 mA.
    • impedance measurement of short-circuit loops in power networks of nominal voltages: 115/200 V, 220/380 V, 230/400 V, 240/415 V and frequencies in the range of 4565 Hz..



    Testing of AC and A types residual current circuit breakers:

    • testing of regular and selecive residual current circuit breakers of nominal differential currents: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA,
    • IA trip current measurement,
    • tA trip time measurement for 0.5In, In, 2In, 5In,
    • measurement of earth continuity and touch voltage without tripping RCDs,
    • functionality of automatic measurement of residual current circuit breaker parameters.

    Measurement of insulation resistance at voltages: 100 V, 250 V, 500 V and 1000 V.

    Low-voltage measurement of resistance, protective connections and equipotential bonding:

    • measurement of continuity of protective connections with current ±200 mA,
    • automatic calibration of test leads - capability of using any test leads,
    • measurement of resistance with low current and acoustic signaling.

    Quick verification of correctness of the PE wire connection with a touch probe.

    Measurement of AC voltage.

    Indication of phase sequence.

    Memory of 990 measurements, data transfer to a PC over the USB interface.

    MPI-505 is equipment to perform complete test and verify on electrical installations according to the most common safety standards (IEC 61557, VDE 0100, BS7671).

    Measurement of short-circuit loop impedance ZL-PE, ZL-N, ZL-L

    Measurement range acc. to IEC 61557: 0.13...1999 Ω for a 1.2 m test lead:

    Display range

    Resolution

    Accuracy

    0,00...19,99 Ω

    0,01 Ω

    ±(5% m.v +3 digits)

    20,0...199,9 Ω

    0,1 Ω

    200...1999 Ω

    1 Ω

    • Nominal operating voltage UnL-N/ UnL-L: 115/200 V, 220/380 V, 230/400 V, 240/415 V
    • Operating voltage range: 100…264 V (for ZL-PE i ZL-N) and 100…440 V (for ZL-L)
    • Nominal power network frequency fn: 50 Hz, 60 Hz
    • Operating frequency range: 45…65 Hz
    • Maximal measurement current: 23 A at 230 V (10 ms), 40 A at 400 V (10 ms),
    • Verification of correctness of the PE terminal connection with a touch (for ZL-PE)

    Measurement of short-circuit loop impedance ZL-PE in the RCD mode
    Measurement range acc. to IEC 61557: 0.5...1999 Ω for a 1.2 m test lead

    Display range

    Resolution

    Accuracy

    0,00...19,99 Ω

    0,01 Ω

    ±(6% m.v + 10 digits)

    20,0...199,9 Ω

    0,1 Ω

    ±(6% m.v + 5 digits)

    200...1999 Ω

    1 Ω

    • Does not trip RCD breakers of RCD current IΔn ≥ 30 mA
    • Nominal operating voltage Un: 115 V, 220 V, 230 V, 240 V
    • Operating voltage range: 100…264 V
    • Nominal power network frequency fn: 50 Hz, 60 Hz
    • Operating frequency range: 45…65 Hz
    • Verification of correctness of the PE terminal connection with a touch probe



    Measurement of insulation resistance
    Measurement range acc. to IEC 61557 - 2:

    • for UN = 100 V: 100 kΩ...500 MΩ
    • for UN = 250 V: 250 kΩ...1 GΩ
    • for UN = 500 V: 500 kΩ...2 GΩ
    • for UN = 1000 V: 1 MΩ...3 GΩ



    Display range*)

    Resolution

    Accuracy

    0...1999 kΩ

    1 kΩ

    ±(3% m.v. + 8 digits)

    2,00...19,99 MΩ

    0,01 MΩ

    20,0...199,9 MΩ

    0,1 MΩ

    200...500 MΩ

    1 MΩ

    200...1000 MΩ

    1 MΩ

    200...1999 MΩ

    1 MΩ

    2,00...3,00 GΩ

    0,01 GΩ

    ±(4% m.v. + 6 digits)



    *) not exceeding the measurement range for a given voltage.

    • Measurement voltage: 100 V, 250 V, 500 V and 1000 V
    • Detection of presence of voltage before the measurement
    • Discharge of the measured object after the measurement
    • Measurements of voltage on terminals +RISO, -RISO within the range of: 0…440 V
    • Measurement current < 2 mA

    Low-voltage measurement of circuit continuity and resistance
    Measurement of protective conductor continuity with current ±200 mA
    Measurement range acc. to IEC 61557 - 4: 0.12...400 Ω

    Range

    Resolution

    Accuracy

    0,00...19,99 Ω

    0,01 Ω

    ±(2% m.v. + 3 digits)

    20,0...199,9 Ω

    0,1 Ω

    200...400 Ω

    1 Ω

    • Voltage on open terminals: 4…9 V
    • Output current at R<2 Ω: min. 200 mA
    • Compensation of test lead resistance
    • Measurements for both polarities of current

    Measurements of RCD breaker parameters (operating voltage range 100…264 V):
    RCD tripping test and measurement of tA trip time (for the tA measurement function)

    RCD type

    Test current
    multiplier

    Range

    Resolution

    Accuracy

    Standard

    0,5*IΔn

    0...300 ms

    1 ms

    ± (2% m.v. + 2 digits)

    1*IΔn

    2*IΔn

    0...150 ms

    5*IΔn

    0...40 ms

    Selective

    0,5*IΔn

    0...500 ms

    1*IΔn

    2*IΔn

    0...200 ms

    5*IΔn

    0...150 ms

    *for IΔn= 10 mA and 0.5 IΔn uncertainty is + 2% m.v. + 3 digits



    Measurement of IA RCD trip current for sinusoidal differential current:



    Selected
    current

    Measurement
    range

    Resolution

    Test
    current

    Accuracy

    10 mA

    3,3...10,0 mA

    0,1 mA

    0,3xIΔn...1,0xIΔn

    ± 5% IΔn

    30 mA

    9,0...30,0 mA

    100 mA

    33...100 mA

    1 mA

    300 mA

    90...300 mA

    500 mA

    150...500 mA

    1000 mA

    330...1000 mA

    • Capability of starting the measurement from either positive or negative half-period of forced leakage current

    Measurement of IA RCD trip current for pulsating unidirectional current:

    Selected
    current

    Measurement
    range

    Resolution

    Test
    current

    Accuracy

    10 mA

    4...20,0 mA

    0,1 mA

    0,35 x IΔn ...2,0 x IΔn

    ±10% IΔn

    30 mA

    12,0...42,0 mA

    0,35xIΔ..1,4xIΔn

    100 mA

    40,0...140 mA

    1 mA

    300 mA

    120...420 mA

    500 mA

    200...700 mA

    • Capability of measurement for either positive or negative half-periods of forced leakage current
    • Maximal time of the measurement current flow is 3200 ms



    “m.v” - measurement value
