TREK MODEL 152-1
SURFACE/VOLUME RESISTANCE METER
±10° C and 20% to 70% RH:
103 to 1012 Ω range, ±5%, 1013 Ω range, ±8%
103 to 1013 Ω range, ±5%
103 to 1013 Ω range, ±10%
User selectable, 10 V or 100 V ±2%
Note: Resistance X Factor 10 = Resistivity:
- 103 to 1013 Ω

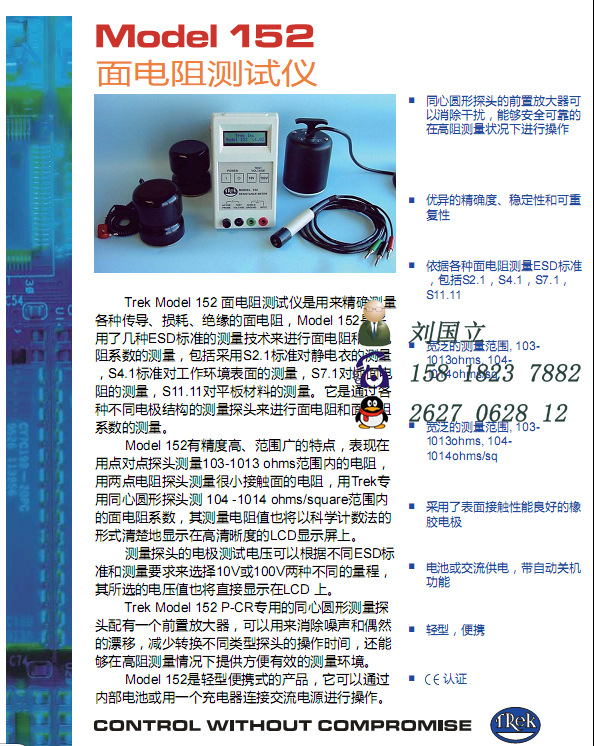

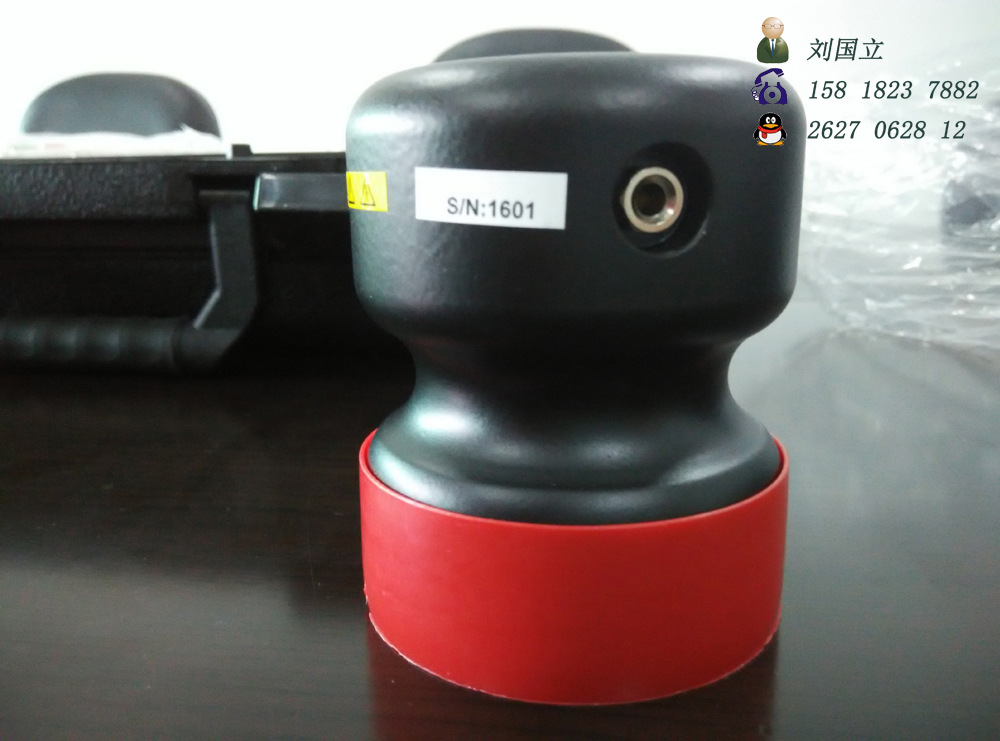

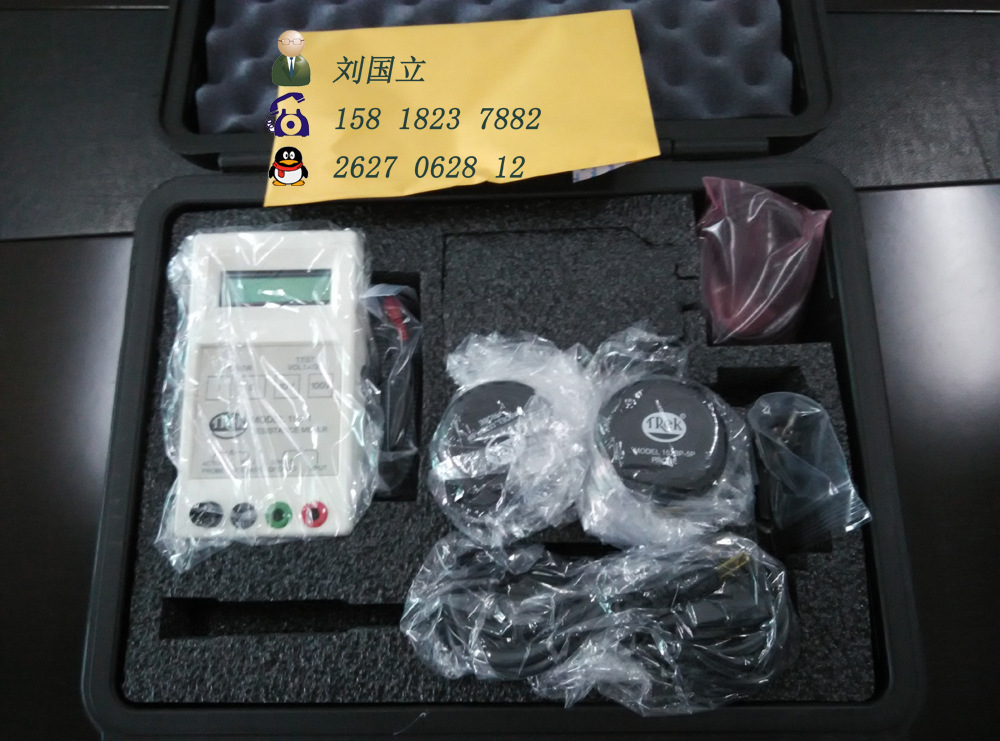

The Trek Model 152-1 Surface/Volume Resistance Meter is designed to precisely measure surface or volume resistance on a wide variety of conductive, dissipative, and insulative materials. It features exceptional measurement accuracy and wide measurement ranges. When used with Trek’s uniquely designed 152P-CR-1 concentric ring probe, the instrument provides consistent ease of operation even at very high resistance values. The Model 152-1 is lightweight, portable and operable via batteries or an AC line power source with battery eliminator.
Typical Applications Include
- Measuring surface or volume resistance on a variety of conductive, dissapative and insulative materials
- Measuring in accordance with ANSI/ESD standards for:
- Garments (STM2.1)
- Work surfaces (S4.1)
- Flooring (S7.1)
- Footwear (STM9.1)
- Planar materials (STM11.11)
- Volume resistance (STM11.12 and IEC 61340-2-3)
- Seating (STM12.1)
- Two point resistance measurements (STM11.13)
- Floor materials/footwear (STM97.1)
Features and Benefits
- Wide measurement range (103 to 1013 Ω)
- Complies to ANSI/ESD Association Standards
- Concentric ring probe pre-amplifier eliminates interference and enables reliable operation at high resistance values
- Exceptional accuracy, stability and repeatability
- Elastomer electrodes for excellent surface contact
- Optional accessories include a Walking Test Adapter and Test Plate set
- NIST-traceable Certificate of Calibration provided with each unit
