    7X18高爾夫電子測距機 高爾夫球望遠鏡Digital Golf Range Finder
    商品代碼: 4600892
    (可點擊以下立即詢價直接線上諮詢,或來電提供此商品代碼諮詢)
    即日起提供日本樂天代購服務-詳見 Rakuten-suki日本樂天代購,謝謝。
    商品詳細說明

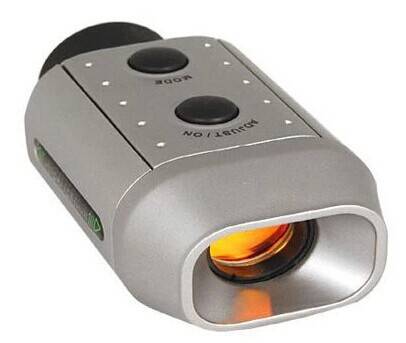

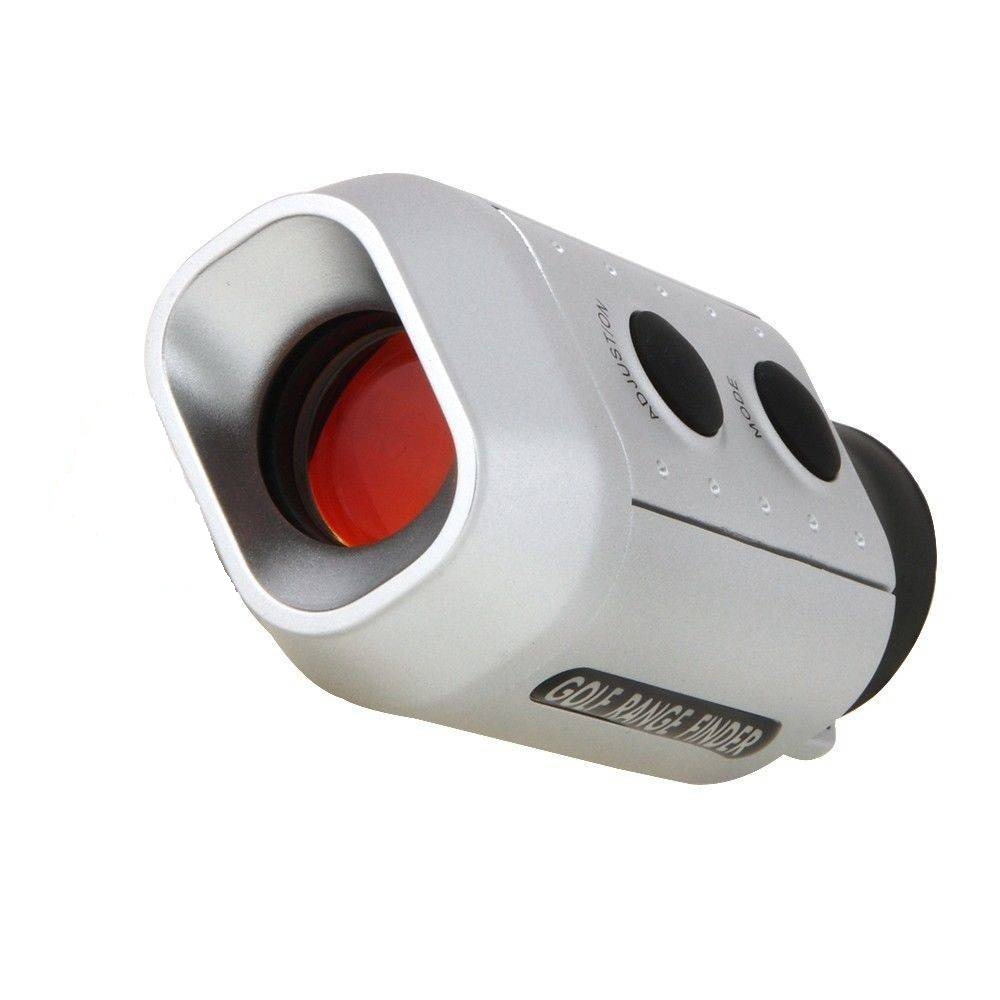

    7X18高爾夫電子測距機 高爾夫球望遠鏡Digital Golf Range Finder

    Y410000701

    Y410000702

    Y410000703

    產品名稱:高爾夫電子測距機
    產品詳細說明:
    您喜歡打高爾夫球嗎?您喜歡戶外活動嗎?請看看這款剛剛上市的▲小型數字距離測量機/高爾夫觀察機!!!
    她可也是送禮的佳品哦!!!
    專為高爾夫設計,準確測量球員和洞之間的距離。
    一 特征

    這是一種新發明的用精密光學和數字技術測量距離的高爾夫觀察機器,這是一部很安全的距離測試裝置,安沒有任何形式的能量放射,在測量距離的活動中對人體沒有任何損傷和破壞。

    二 兩種功能

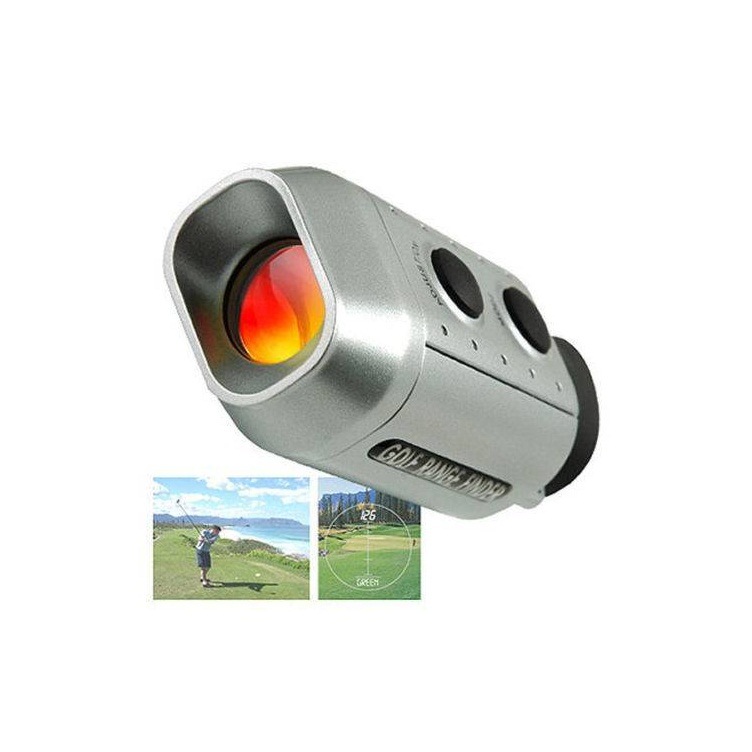

    1.GREEN MODE(草坪功能)
    此功能是特別為打高爾夫球的人設計的,您可以輕而易舉地得到您的球洞之間的距離.
    2.GENERAL MODE(一般功能)
    此功能適合於普通情況,首先您把目標物的高度輸入進去,就能測量您和目標物之間的距離.

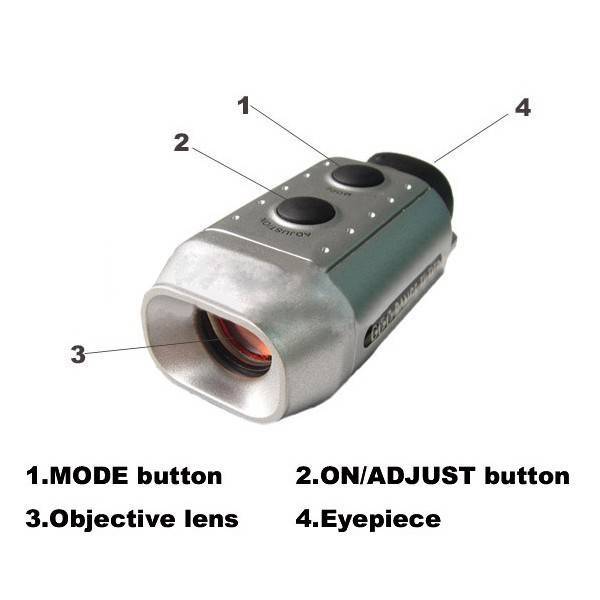

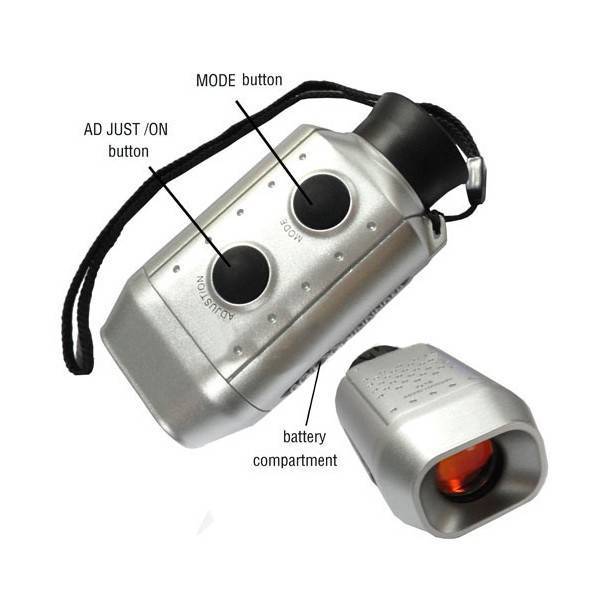

    三 部件名稱

    1.開關/調整鍵
    2.功能鍵
    3.電池投裝入部位
    4.窺視孔
    5.物鏡
    主要參數指標:
    物鏡:28mm;
    目鏡:16mm;
    分辨率:13″;
    放大倍率:7倍;
    最遠測試距離:930碼(1碼=0.914米)
    視角:7.8°;

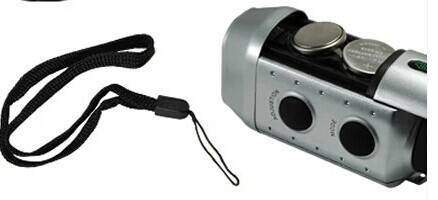

    電源:使用兩顆cr2032紐扣電池
    體積:90mm×50mm×38mm;

    四 使用方法

    1.按開關/調整鍵使機器啟動,安將會直接進入到草坪功能.
    2.使用於打高爾夫球時:
    以碼為單位的標尺的高度(2.6碼)是已輸入進去的.
    (1)把屏幕的最底線與草坪的水平線對齊.
    (2)按開關/調整鍵把掃描線的位置往上調到高爾夫球旗桿的頂端.
    (3)數字將會出在屏幕的頂端,提示您和球洞的距離.
    3.使用於測特殊目標的距離
    按功能鍵時機器進入一般功能狀態,屏幕會顯示三位數以及小數點一位數.
    如您想查您與目標物的距離時,請把它的高度輸入.
    (1)按開關/調整鍵輸入一般功能狀態,屏幕會顯示三位數以及小數點一位數.
    (2)按功能鍵移到十位數,然後按開關/調整鍵輸入數字,范圍也是0到9。
    (3)重復以上步驟,設置各位數以及小數點以下一位數。
    (4)按功能鍵結束以上的輸入過程。
    (5)根據您輸入的高度,屏幕會顯示您可以測量的最小距離。
    (6)把屏幕的最底線與目標物的最低線對齊。
    (7)按開關/調整鍵把掃描線的位置往上調到目標物的頂端。
    (8)數字將會出現在屏幕的頂端,提示您和目標物的距離。

    五 註意事項
    1.所顯示的距離與已輸入的高度單位是一致的。
    2.操作結束60秒以後電源自動開關。
    3.註意!請不要肉眼用此產品觀察太陽,這樣會對您的眼睛造成永久性的損傷。

    裝箱規格:50個 一箱
    尺寸、; 35*29*24.8cm
    重量:6.5KG

    undefined

    undefined

    undefined

    undefined

    undefined

    undefined

    undefined

    undefined

    Net Weight:100g
    Angle:7.8 °
    Eyepiece:16mm
    Resolution:13"
    Magnification:7 times
    Objective distance:28mm
    Volume:90mm X 50mm X 38mm
    Power:use of two CR2032 button battery
    A. feature
    It is a new invention with precision optical and digital techniques for measuring distance golf observation instruments, this is a very safe distance measuring device, safety without any form of energy radiation,in the measurement of the distance to the activities of the human body without any damage and destruction.
    B. two functions
    1. GREEN MODE (lawn function)
    This feature is especially for people who play golf design, you can be an easy job to get your ball to the distance between the holes.
    2. GENERAL MODE (general)
    This function is suitable for general situation, first of all you have input into the target height can be measured, you and the distance between the target.

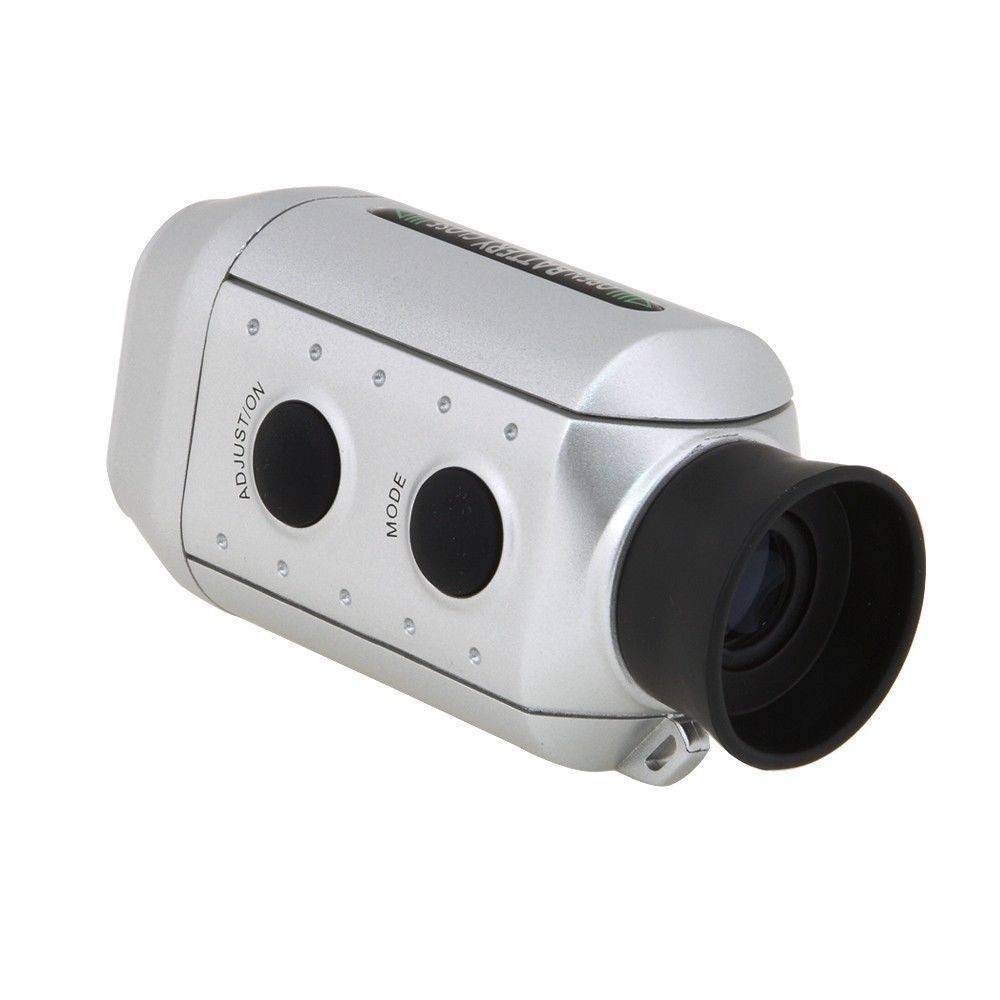

    C. part name:
    1 switching / adjusting key
    2 function keys
    3 battery cast in site
    4 the peephole
    5 objective lens
    D. Using methods
    1according to the switching / adjusting key enables the apparatus to start, Ann will directly into the lawn.
    2used in golf:
    To code for the unit scale height (2.6 yards) is entered into.
    (1) the screen bottom line and lawn level alignment.
    (2) according to the switching / adjusting button to scan line position to increase to a golf flagstick top.
    (3) digital will appear at the top of the screen, that you and the hole distance.
    The 3used in the measurement of special target distance
    Press the function key instruments into the general function, the screen will display three digits and a few decimal places.
    If you want to check you with a target distance, please put it on the high input.
    (1) according to the switching / adjusting key input general functional state, the screen will display three digits and a few decimal places.
    (2) according to the function keys to move to the ten digit number, then press the switch / adjustment keys to input numbers, range is0 to9.
    (3) repeat the above steps, the number and decimal point following a digit.
    (4) press the function key to end above the input process.
    (5) based on your input height, screen will show you can measure the minimum distance.
    (6) the screen bottom line and target the minimum alignment.
    (7) according to the switching / adjusting button to scan line position to move to the target.
    (8) digital will appear at the top of the screen, prompt you and target distance.
    E. attention
    1 shows the distance and has input height units are consistent.
    2 operating over 60 seconds after power supply automatic switch.
    3 attention! Please do not use this product gross observation of the sun, so will your cause permanent eye injury.

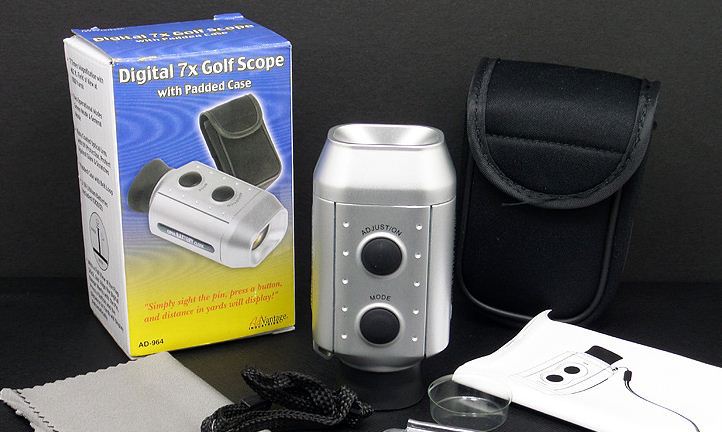

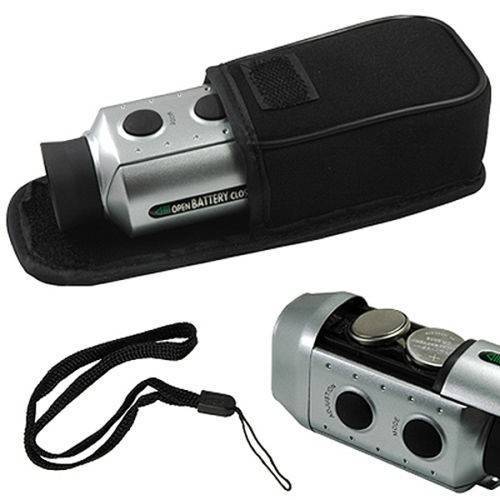

    Package Included:
    1 x Binocular
    1 x Pouch
    1 x Lens Cloth
    1 x Specification
    USES:

    Durable goods, especially suitable for watching field tour concert and field operations, forestry, electric power, telecom, public security, fire control, border, transportation etc Construction unit to use.
    [Maintenance]
    1 cleaning the lens, a telescope with a lens cloth or other soft, clean cloth.
    2 to remove residual stain on the cloth, drip 1-2 drops of alcohol.
    3 the telescope should be kept in a ventilated, dry environment

    Note:
    Do not telescope directly at the sun to watch, so as to avoid burns.
