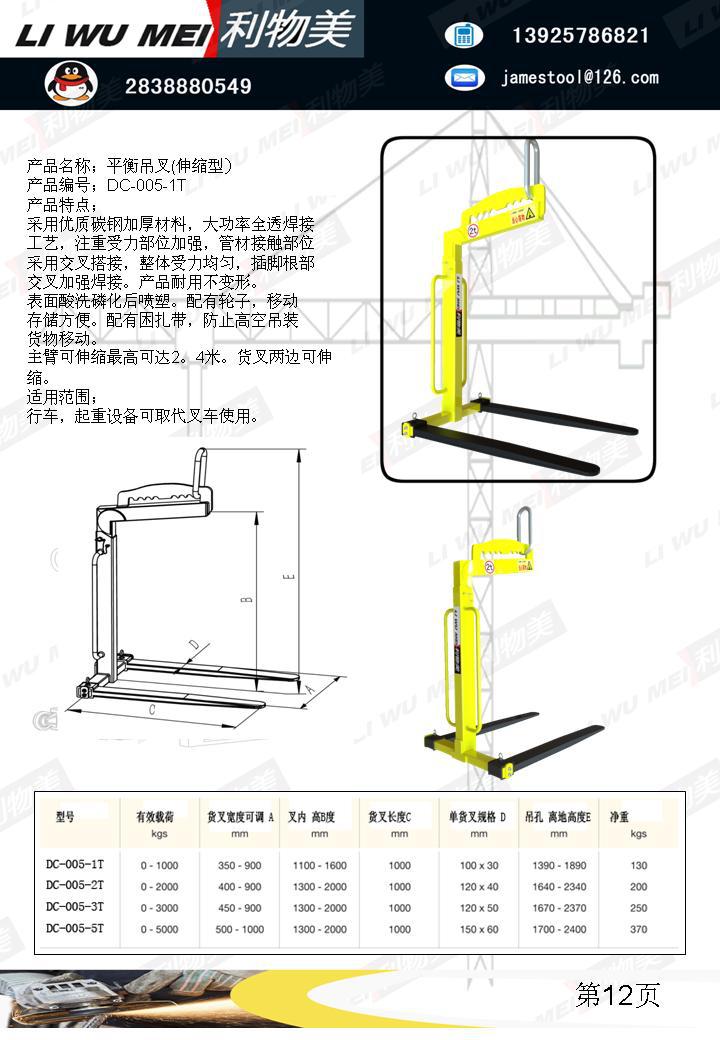

產品名稱；平衡吊叉
產品編號；DC-005-1產品特點；
采用優質碳鋼加厚材料，大功率全透焊接
工藝，註重受力部位加強，管材接觸部位
采用交叉搭接，整體受力均勻，插腳根部
交叉加強焊接。產品耐用不變形。
表麵酸洗磷化後噴塑。配有輪子，移動
存儲方便。配有困紮帶，防止高空吊裝
貨物移動。
適用范圍；
行車，起重設備可取代叉車使用。
e product name; The balance suspending fork
Product number; DC - 001.
Product characteristics;
More high quality carbon steel material, high power full penetration welding
Process, pay attention to stress areas of pipe material contact parts
Using cross overlap, and the overall force uniform, pins the roots
Cross to strengthen the welding. Products durable without deformation.
After pickling phosphating coating surface. Equipped with wheels to move
Storage is convenient. Equipped with stranded cable tie, prevent the overhead lifting
The goods movement.
Scope of application;
Driving, hoisting device can replac forklift use.
型號290 | LMM | HMM | H1MM | DMM | 凈重KG | 附件 |
DC-001-2T | 1000 | 1200 | 1400 | 12050 | 120 | 困紮帶 |
DC-001-3T | 1000 | 1200 | 1400 | 12050 | 160 | 困紮帶 |
DC-001-4T | 1000 | 1200 | 1400 | 12060 | 220 | 困紮帶 |
DC-001-5T | 1200 | 1200 | 1400 | 12060 | 290 | 困紮帶 |
DC-001-6T | 1200 | 1200 | 1400 | 12070 | 290 | 困紮帶 |
