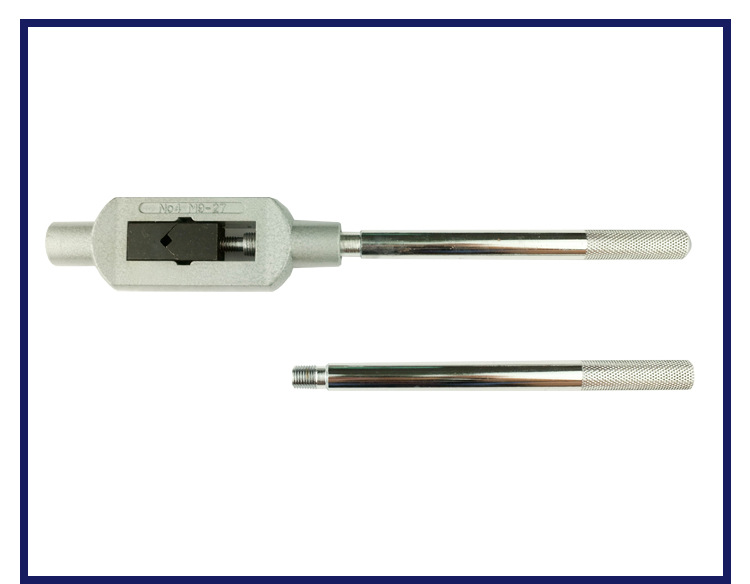

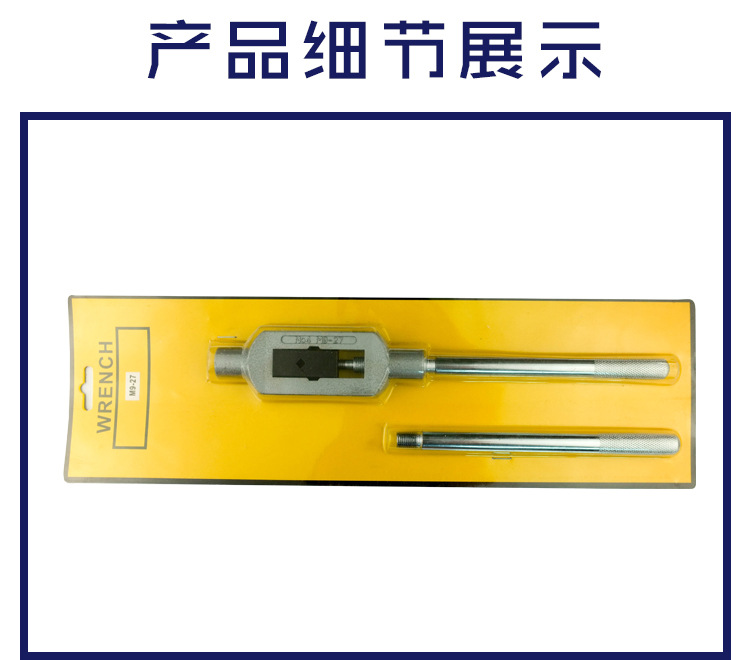

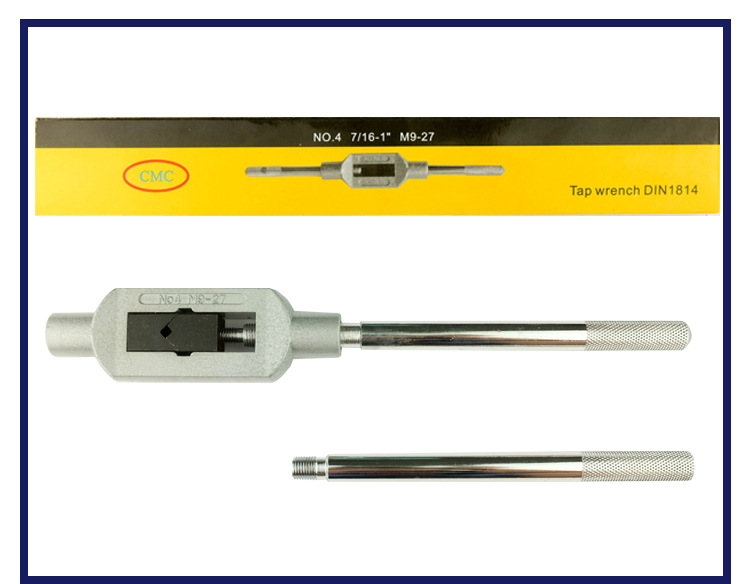

德標DIN1814 絲錐扳手 DIN225板牙扳手
【材質】 鋅合金 【標準】德標
【表麵處理】光亮
【尺寸范圍】
| SIZE | For Size of Taps | Length | ||
| Metric | UNC/UNF | Pipe | ||
| No.0 | M1-M8 | 1/16-5/16 | 125 | |
| No.1 | M3-M10 | 1/8-3/8 | 180 | |
| No.1-1/2 | M3-M12 | 1/8-1/2 | G1/8 | 200 |
| No.2 | M4-M12 | 3/16-5/8 | G1/8-G3/8 | 280 |
| No.3 | M5-M20 | 1/4-3/4 | G1/8-G1/2 | 375 |
| No.4 | M10-M27 | 3/8-1 | G1/8-G3/4 | 500 |
| No.5 | M14-M33 | 5/8-1-1/4 | G1/4-G1-11 | 750 |
| No.6 | M18-M42 | 3/4-1-1/2 | G1/4-G1-1/4 | 1000 |
| No.7 | M25-M52 | 7/8-2-11 | G5/8-G2-1/4 | 1250 |
德標DIN225 板牙扳手尺寸
| SIZE | For Size of Taps | Length | ||
| Metric | UNC/UNF | Pipe | ||
| 16X5 | M1-M2.6 | 1/16-3/32 | 160 | |
| 20x7 | M4.5-M6 | 3/16-1/4 | 200 | |
| 25x9 | M7-M9 | 5/16 | G1/16 | 224 |
| 3011 | M10-M11 | 3/8-7/16 | G1/8 | 280 |
| 38x14 | M12-M14 | 1/2-9/16 | G1/4 | 315 |
| 45x18 | M16-M20 | 5/8-3/4 | G3/8-G1/2 | 450 |
| 55x22 | M22-M24 | 7/8-1 | G5/8-G3/4 | 560 |
| 65x25 | M27-M36 | 1-1/8-1-3/8 | G7/8-G1 | 630 |
