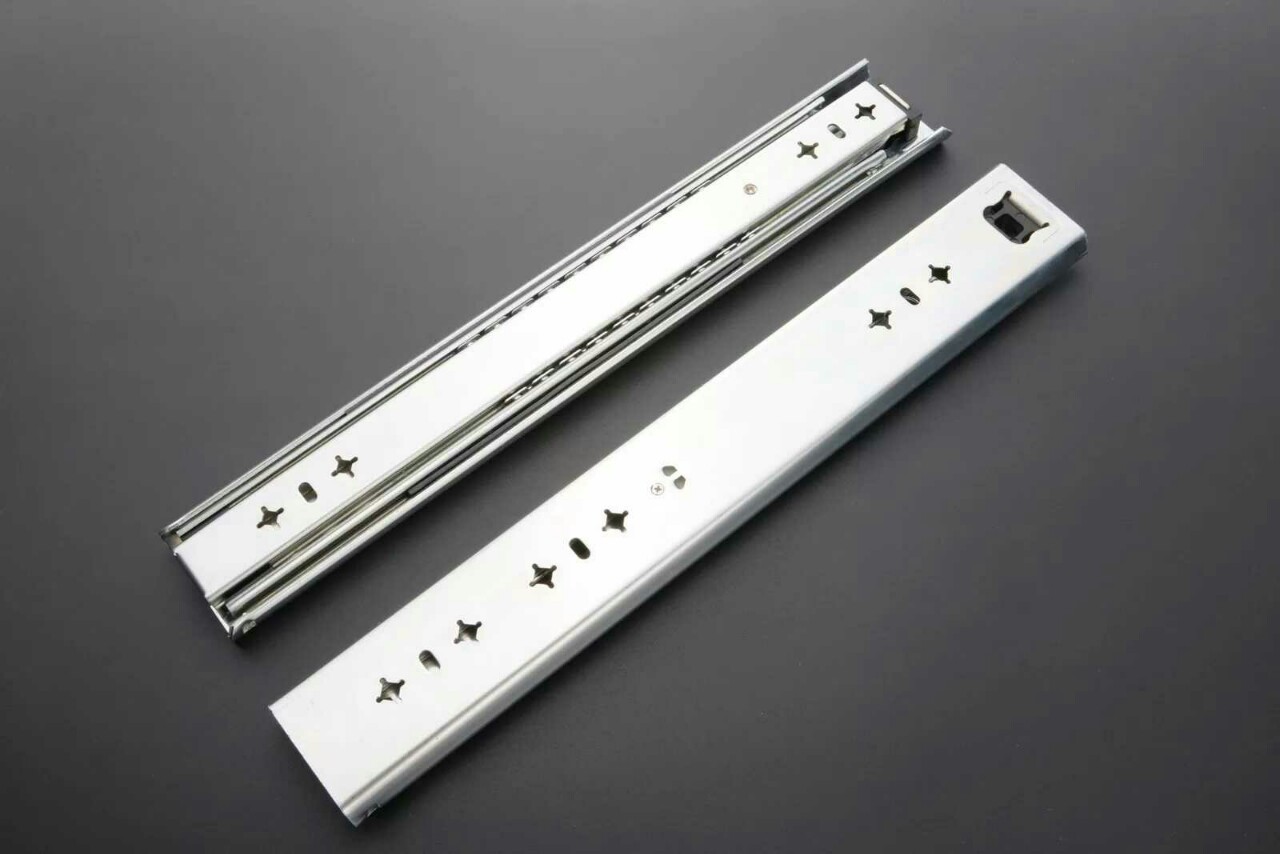

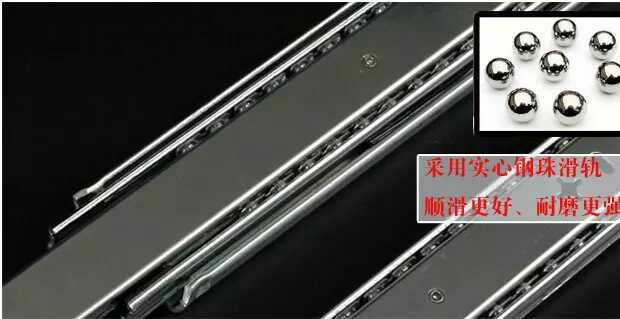

全拉出53mm寬重型三節鋼珠軌 ZM-5320
產品又稱：重型導軌，重型三節滑軌，工具箱重型滑軌，櫥櫃重型滑軌，工業重型滑軌
適用范圍：各種需要承重250磅的民用和工業用抽屜、拉籃、櫥櫃、托盤、工具箱，櫥櫃，儲藏櫃等

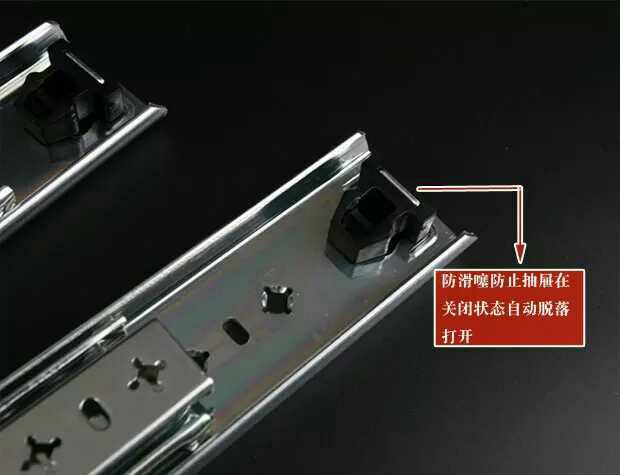

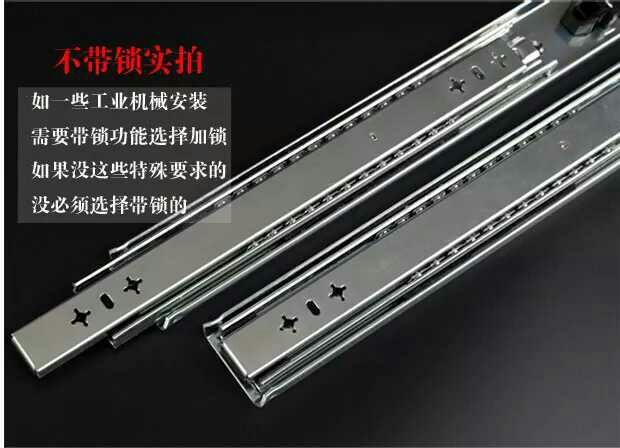

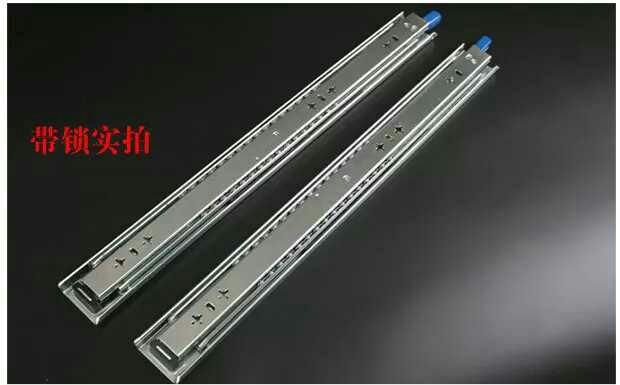

特 點：抽屜安裝拆去方便，鎖住功能可預防抽屜自行滑動滑動順暢，噪音小
若您想瞭解更多，請隨時聯系我們！無論訂單大小，我們都將竭誠為您提供周到的服務，盡最大可能滿足您的需求！
廣東.製美五金誠邀您親臨我廠參觀指導工作！

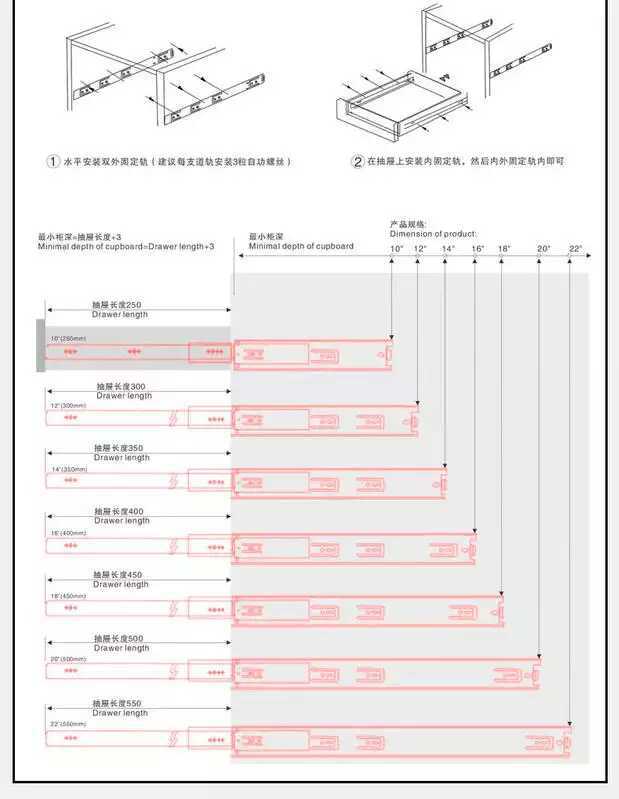

現貨供應尺寸：10寸-60寸都有現貨的......
10寸=250mm
12寸=300mm
14寸=350mm
16寸=400mm
18寸=450mm
20寸=500mm
22寸=550mm
24寸=600mm
26寸、28寸。。。。。。
建議用途：辦公用具、櫥具及傢用抽屜，高度抗酸防銹

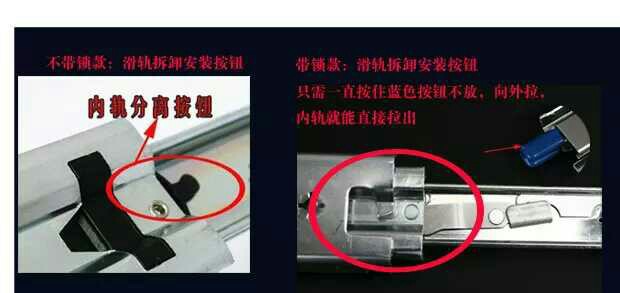

產品特點：“32mm"倍數標準孔位，帶可分離松膠臼(內軌可分離的)
額定負荷：250磅（113公斤）/18”

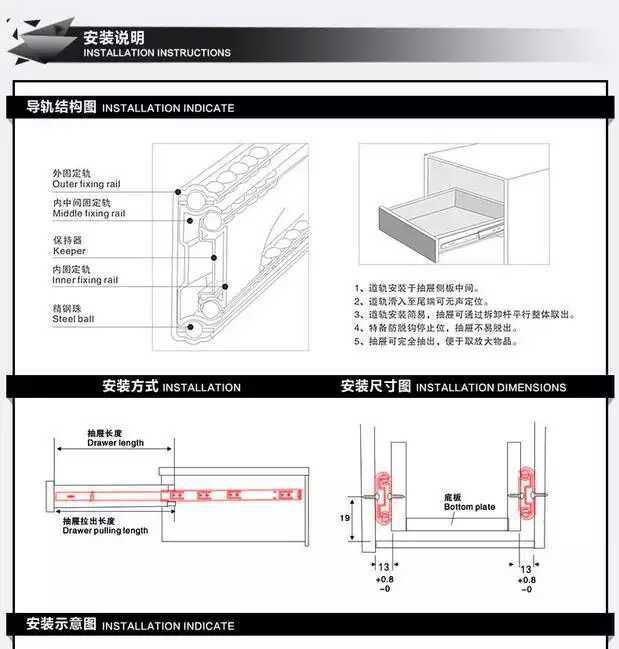

安裝方式：側麵安裝
表麵處理：鍍鋅、電泳黑色

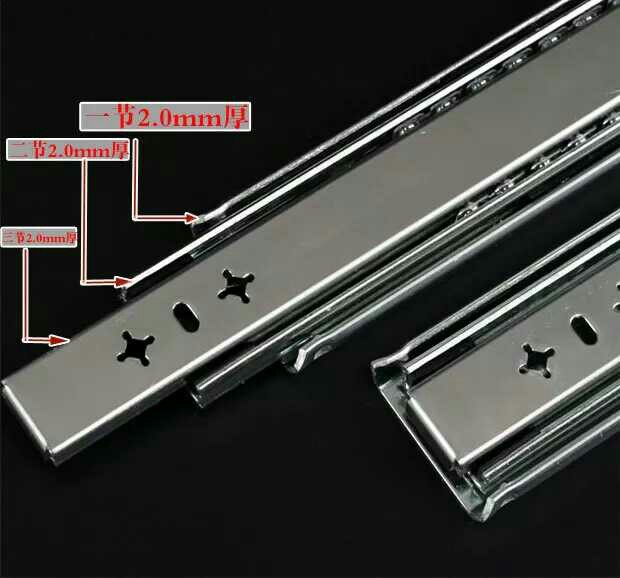

材料：冷軋鋼材卷材2.0*2.0*2.0mm
產品說明：
1、 產品采用高張力冷軌板，配合先進設計，運動平滑無噪音，適合高檔傢用傢具使用；
2、 采品采用優良電鍍工藝（鍍鋅），具備較強防銹蝕功能。
3、多種規格何供客戶選擇，不同長度（10寸-24寸，可以定做更長尺寸），不同厚度（2.0-2.5mm），最大程度滿足客戶需求。
53mm Full extension three section with heavy track ball bearing drawer slide ZM-5320
The pull out the 53mm wide heavy steel rail ZM-5320three section
Products: heavy rail, also known as heavy three slide, heavy rail heavy rail toolbox, cabinets, industrial heavy rail
Applicable scope: a variety of needs supports up to 250 pounds of civilian and industrial drawer, basket, tray, cabinets, toolbox, cabinets, storage cabinets
Special: drawer is arranged to remove the convenience, the lock function can prevent the drawer to slide sliding smoothly, low noise
If you want to know more, please contact us at any time! No matter the size of orders, we will be happy to provide you with good service, the greatest extent possible to meet your needs!
Guangdong. The ZMC Hardware sincerely invite you to visit our factory visit guidance!
Spot supply size: 10” - 24”
10”= 250mm
12”= 300mm
14”= 350mm
16”= 400mm
18”= 450mm
20”= 500mm
22”= 550mm
24”= 600mm
26” ,28 ” ......
Suggested use: office appliances, Kitchenware and household drawer, highly acid-fast rust
Product characteristic:"32mm" multiple standard bore, with separable plastic pine mortar
Rated load:250 pounds (113 kg ) / 18"
Installation: side installation
Surface treatment: zinc, electrophoresis black
Material: cold rolled steel coil 2.0 *2.0 * 2.0mm
Product description:
1, products with high tension of cold rolled plate, with advanced design, motion smoothness, no noise, suitable for high-end furniture;
In 2, mining products used excellent plating (zinc ), strong corrosion prevention function.
In 3, a variety of specifications of what for customer choice, different length (10” - 24 ” longer, can be customized size ), different thickness (2.0-2.5mm ), the greatest extent to meet customer demand.
