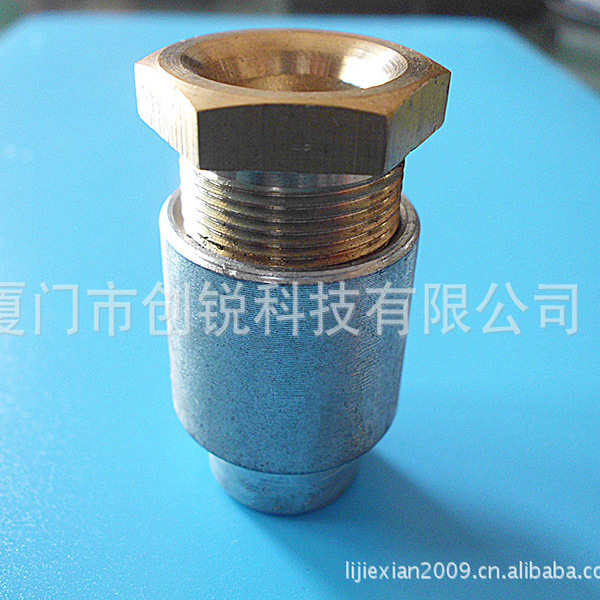

TH焊接式船用填料函TH soldiered type Marine cable gasket
產品材質：D.部采用黃銅製成、D1部采用優質鋼材製成，夾緊圈采用丁睛橡膠(NBR)製成。
防護等級：在規定的卡口范圍內，旋緊迫緊頭，達到IP54。
Material:partD.D1 is completely made of brass coated,part D1 is made of high quality steel,and the clamping ring is made of nitrile butadiene rubber (NBR).
Protection level:IP54 when it‘s within regulated bayonet mount range and rubber washer is used to fix the sealing nut.

型號
Model

d(mm)

D(mm)

d1(mm)

D1(mm)

H(mm)

H1(mm)

配用電纜外徑
Equipped with cable diameter

TH-8

8

M16×1

13

20

32

3

5-7

TH-13

13

M20×1

17

24

35

8

6-12

TH-16

16

M27×1.5

22

32

40

8

11-15

TH-19

19

M30×1.5

24

35

42

8

14-18

TH-24

24

M35×1.5

30

41

44

8

17-23

TH-28

28

M42×2

35

49

46

8

22-27

TH-34

34

M47×2

42

53

49

8

26-33

TH-42

42

M55×2

50

60

54

8

32-41

TH-50

50

M62×2

58

69

56

8

40-49

TH-58

58

M71×2

66

80

56

8

48-57
