    【廠傢直銷】Bimed塑料電纜接頭 模具快速接頭 bimed呼吸閥
    商品代碼: 4481438
    (可點擊以下立即詢價直接線上諮詢,或來電提供此商品代碼諮詢)
    即日起提供日本樂天代購服務-詳見 Rakuten-suki日本樂天代購,謝謝。
    商品詳細說明

    undefined
    undefined

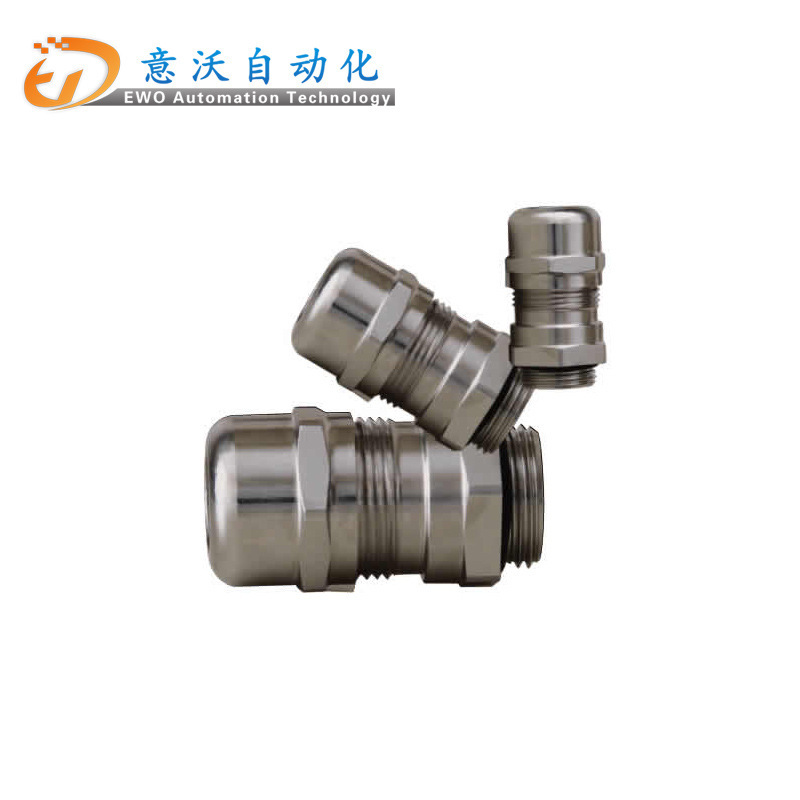

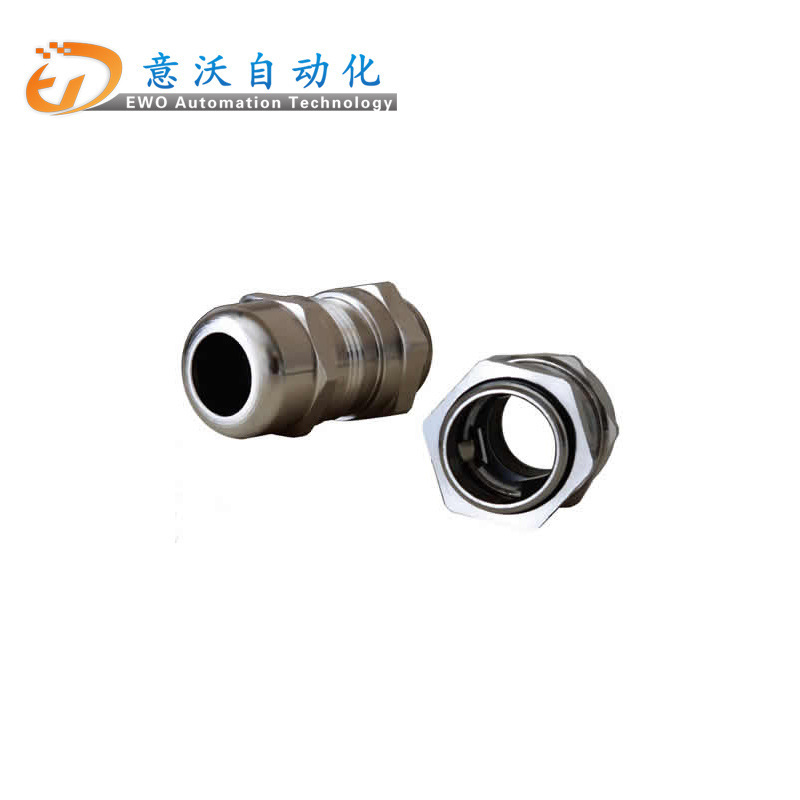

    第二代EMC防電磁屏蔽電纜接頭



    These EMC cable glands combine several advantages in one product. First, you get the same clamping ranges as the standard brass glands. The protection class is IP68. In order to get a low electrical impedance between the cable gland and the braiding of the cable the cable gland does not have to be disassembled. Secondly, a perfect shielding will be achieved by just tightening the dome nut. This high tech cable gland consists of a nickel plated brass body, PA6 clamping insert, an EMC contact element and choloprene seal. The components are pre-assembled.

    To install an EMC cable gland remove approx. 5 – 10 mm (0.20 – 0.39) of the insulation of the cable. Insert the cable in to the cable gland and adjust it without the contact elements touching the braiding. Tighten the cap and conductivity will be established. The design of the contact elements will adapt to different cable diameters according to the clamping range of the cable glands. Since the clamping insert of the cable gland is as long as the gland itself electrical shortcuts between the body and individual wires will be avoided.



    Technical Details

    Material



    Body

    Brass, Nickel plated



    Cap

    Brass, Nickel plated



    Contact Spr.

    Special Copper Alloy



    Clamp.Insert

    Polyamide 6 V2



    Seal

    Chloroprene



    O-ring

    NBR

    Flammability

    V2 (According to UL 94)

    Protection Class

    IP 68 - 5 Bar

    Operating Temperature



    Permanent

    -20 °C up to +100 °C



    Intermittent

    -40 °C up to +150 °C

    Benefits



    Suitable for highest demands of todays technology



    Easy to assemble



    Easy handling



    Water tight



    Strain relief

    Accessories



    Lock nuts

    Remarks



    Manufactured according to the requirements of EN 50262
