煙霧感應器DV說明書
首先對您使用本公司的產品表示感謝!在使用之前請先閱讀此說明書,正確使用此產品。
為瞭更好的服務,本用戶手冊的內容可能變更。因為產品的性能和功能而發生的變更,將不做另行通知。

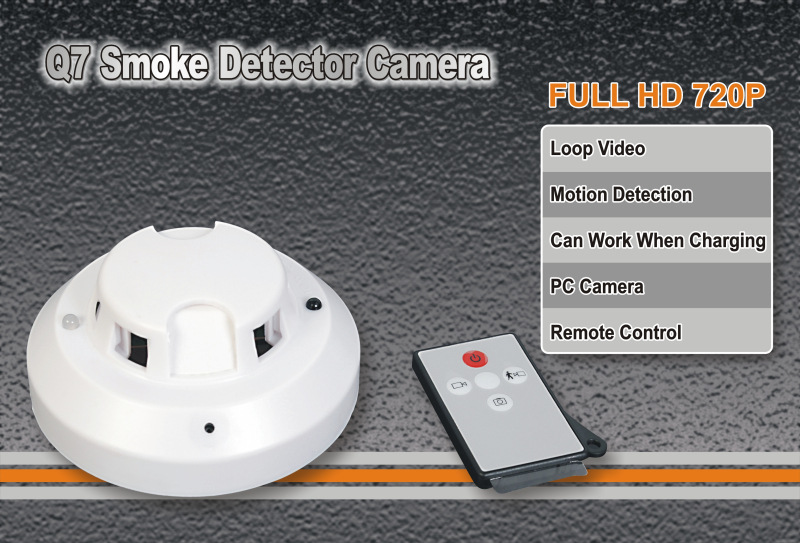

一、 外型、各部件介紹
1:USB,2:RESET,3:電源開關,4遙控接收頭,5:狀態指示燈,6:攝影頭
(圖片僅供參考,請以實物為準)
二,遙控器
三操作說明
1. 把主機上的3鍵撥到ON方向開通電源。
2. 用遙控器對準本機4(遙控接收頭)正麵按開機,紅藍雙燈亮,初始化完後,藍燈滅,紅燈長亮,進入待機狀態。
3. (拍照)在待機狀態下,點按鍵,,紅燈閃爍一次,拍一張照片。
4. (錄影)在待機狀態下,點按鍵,紅燈閃爍三次滅掉,開始錄影,在錄影狀態下,點按鍵,停止攝影並保存,進入待機狀態。
5. (移動偵測)在待機狀態下,點按紅藍雙燈同時閃爍4下後滅掉,進入移動偵測待機狀態中,機器前方有物體移動時,藍燈閃一下進入移動偵測攝影,再短按鍵,停止移偵並自動保存進入待機狀態。
6. (網路攝影頭)在使用前請安裝光盤驅動軟件,機器在OFF狀態下,插入USB連接線,進入PC CAM(網路攝頭)。
7. 本機充電時能循環錄影,每3分鐘一個文件。
8. 復位:當產品因非法操作或其他莫名原因停止響應時,請按RESET鍵復位,或把撥動開關打到OFF狀態,然後再打到ON就可以對產品進行復位。
四、相關參數
項目 | 相關參數 |
視訊格式 | AVI |
視訊編碼 | M-JEPG |
視訊分辨率 | 1280×720P |
視訊幀率 | 30fps |
播放軟件 | 操作系統自帶或主流影音播放軟件 |
圖片格式 | JPG 4032×3024 |
圖片 | 5M pix |
影像比例 | 4:3 |
支持系統 | Windows me/2000 xp 2003/vista:M |
內置聚合物電池 | 600ma |
工作時間 | 5Hours- |
充電電壓 | DC5V |
介面類型 | MINI 5pin USB |
存儲支持 | micro SD card, |
|
|
規格參數可能升級、更新會有所改變,請以實物為準
五:免責聲明
請用戶在攝影完畢後及時對攝錄資料進行保存,本公司對於因軟件故障,硬件誤操作、產品維修或者其他意外情況引起的個人數據資料丟失和損壞不負任何責任,也不對由此造成的其他間接損失承擔責任,同時我們也無法控製用戶對本手冊闡明的產品使用功能和用途誤解或者有侵犯隱私權或者法律的任何行為,因此本公司不對任何因為使用本產品而造成的諸多隱私權或者法律的糾紛而承擔責任,也不對因使用本產品而引起的第三方索賠負責
Smoke detector DV Operation instructions
First thank you for using our company’s products! Before using this product, please carefully read this user manual. In order to be better service, the user may change the contents of the manual. Because of the change of product performance and functionality, will not notice.

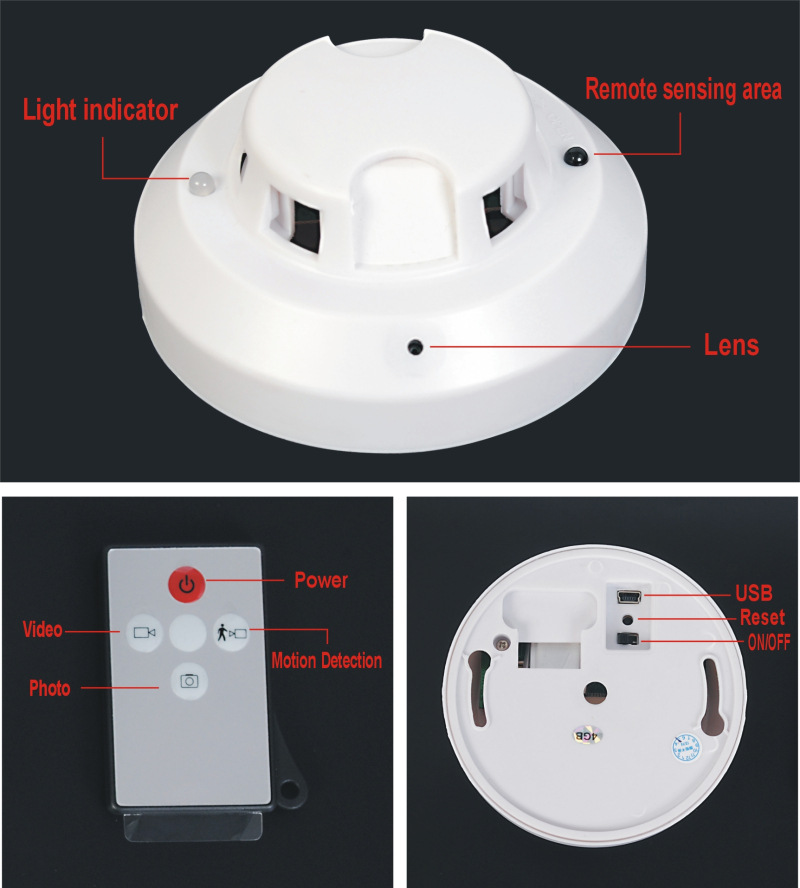

- 1. Appearance and buttons
1:USB 2:RESET 3:ON/OFF 4 : Remote sensing area
5:Light indicator 6:Lens
- 2. Remot
- 3. Operation instruction
1.Push smoke detector the 3(ON/OFF) button to ON side,open the product
2. Use the remote control on the remote sensing area, press the button for open,blue and red light together on ,after the Initialize ,the blue light off ,the red light on,the product entering standby mode。
3. Take photo: On the standby mode,press the button ,the red light flash one time,then take one photo。
4.Take video:On the standby mode,press thebutton,the red light flash three times,begin to take video,then press thebutton,stop and record the video,the red light on ,the product on the standby mode .
5. Motion detection: On the standby mode,press the button ,the red and blue right together flash four times and off,begin to the motion detection mode,when something move near the product,the blue light flash one time the begin to take video,press the button,stop and record the video .
6. OFF : Press the button,then off.
7. When this product charging ,the product can loop video,three mins one video.
8. Reset:When the product because of illegal operation or other strange reason stopped responding, please press the RESET button to RESET, or beat toggle switch to the OFF state, and then hit ON can be RESET to the product.
4. parameters
Item | parameters |
Video format | AVI |
Video encoding | M-JEPG |
Video resolution | 1280×720P |
Video frame rate | 30fps |
Media playing software | Attached software of the operating system or mainstream audio and video media playing software |
Picture format | JPG 4032×3024 |
Picture pixels | 5M pix |
The ratio of image | 4:3 |
Supporting system | Windows me/2000 xp 2003/vista:M |
Battery capacity | 600ma |
Working hour | 5Hours |
Charge pressure | DC5V |
Interface type | MINI 5pin USB |
Storage support | 4GB 8GB or 16GB memory can be choose |
Battery type | High-capacity lithium polymer |
5. warning
l Application: please strictly abide relevant regulations and laws .This product should not be used for any illegal purposes. The user is fully responsible for its using purpose
l Battery: if do not use this recording function after long time ,please charged it fully before using.
l File security: This product is not a professional storage device. It does not guarantee the integrity and security of saved files. Please back up your important documents on the computer or other storage device timely.
