    1. General Description
    The module

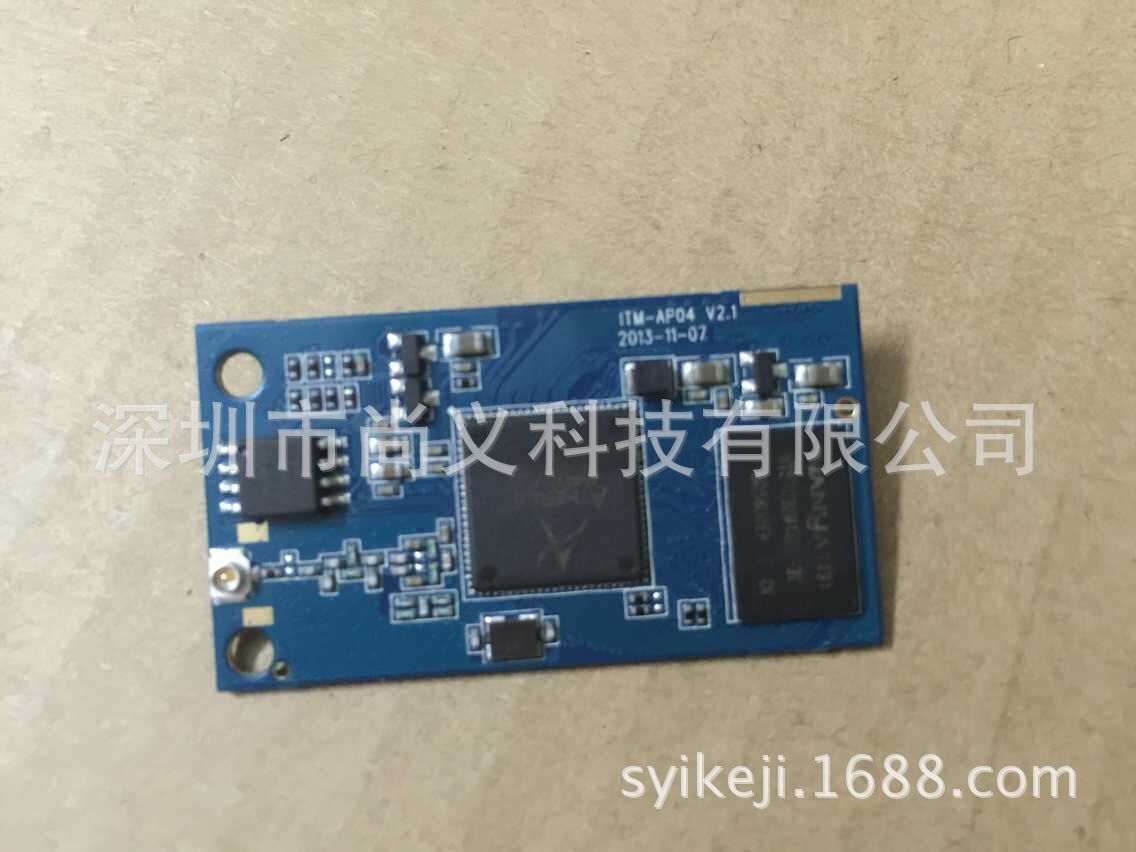

    ITM-AP04-V2 is a complete, small form
    factor 802.11 b/g/n Wi-Fi Solution
    optimized for low power, low-cost, and
    highly integrated AP and consumer electronic devices, the module integrates allWi-Fi functionality in a package friendly to low-cost PCB design, requiringonly a few external 3.3V power supply and connection to antenna.



    The module based on the single chip AR9331 which integrates an 802.11n
    1x1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operationsup to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively,and IEEE 802.11b/g data rates.



    The module support AP mode and client mode at the same time and
    include mass service application software to reduce the research and designwork of customer.




    2. Module Hardware Overview
    2.1   Block Diagram
    The general Hardware architecture is shown below Figure:

    undefined

    Module Block Diagram


    2.2 Features
    <>MIPS 24K processor operating at up to 400 Mhz.
    <>DD2 memory up to 512 Mb.
    <>SPI NOR Flash memory up to 128Mb.
    <>4LAN ports and 1 WAN port.
    <>High-speed UART for console support.
    <>I2S audio interface.
    <>USB 2.0 host/device mode support.
    <>GPIO/LED support.
    <>SPI support.

    2.3Interface
    <> Interface
           60pin connector
           Antenna: IPEX connector
    <> Pin definition

    undefined
    undefined
    undefinedundefined

    Note:
    I:Digital input signal          O:A digital output signal
    IA:Analog input signal       OA:An analog output signal
    The internal      I/O Supply Voltage is 2.6V, the input and output characteristics of the GPIO pins
    work at 2.6V

    3.Electrical Specification

    3.1    Recommended operating rating

    undefined

    3.2    DC Characteristics

    undefined

    3.3    Environment Storage Condition

    undefined

    4.RF Specification
    4.1    Rx Characteristics

    undefined

    4.2    Tx Characteristics

    undefined

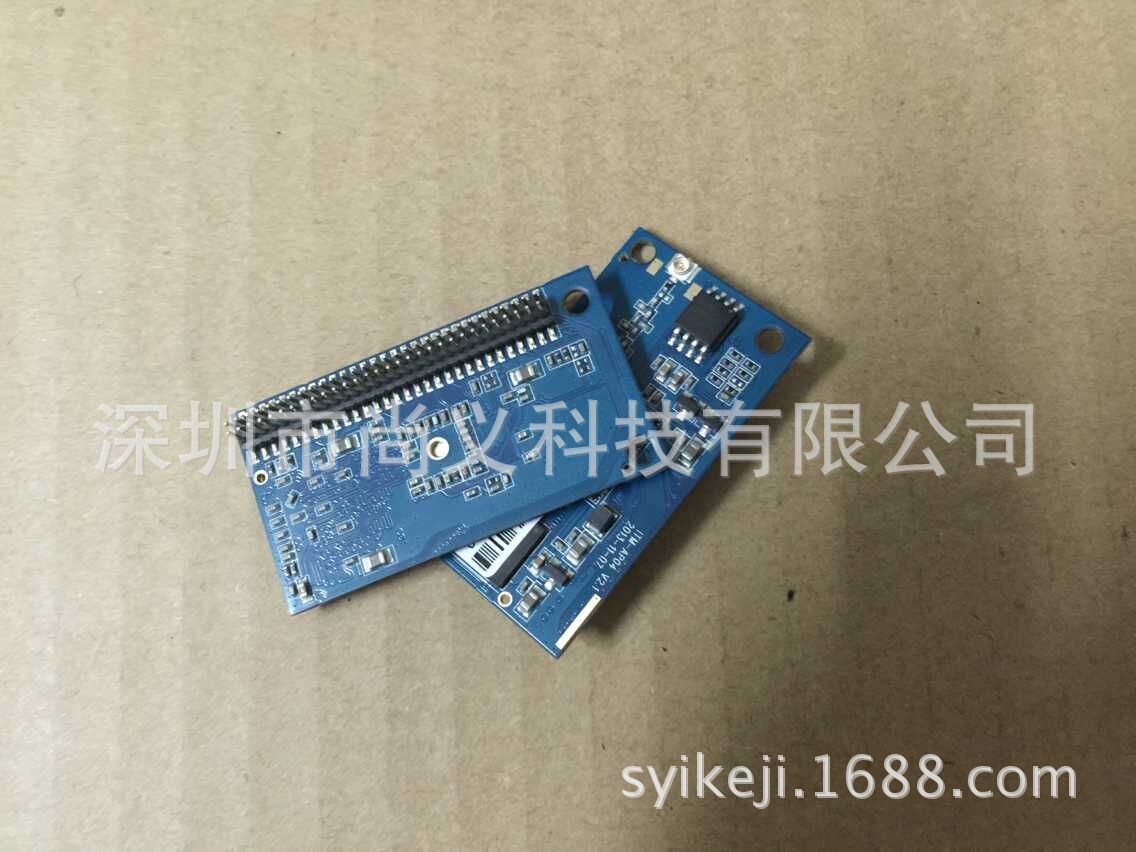

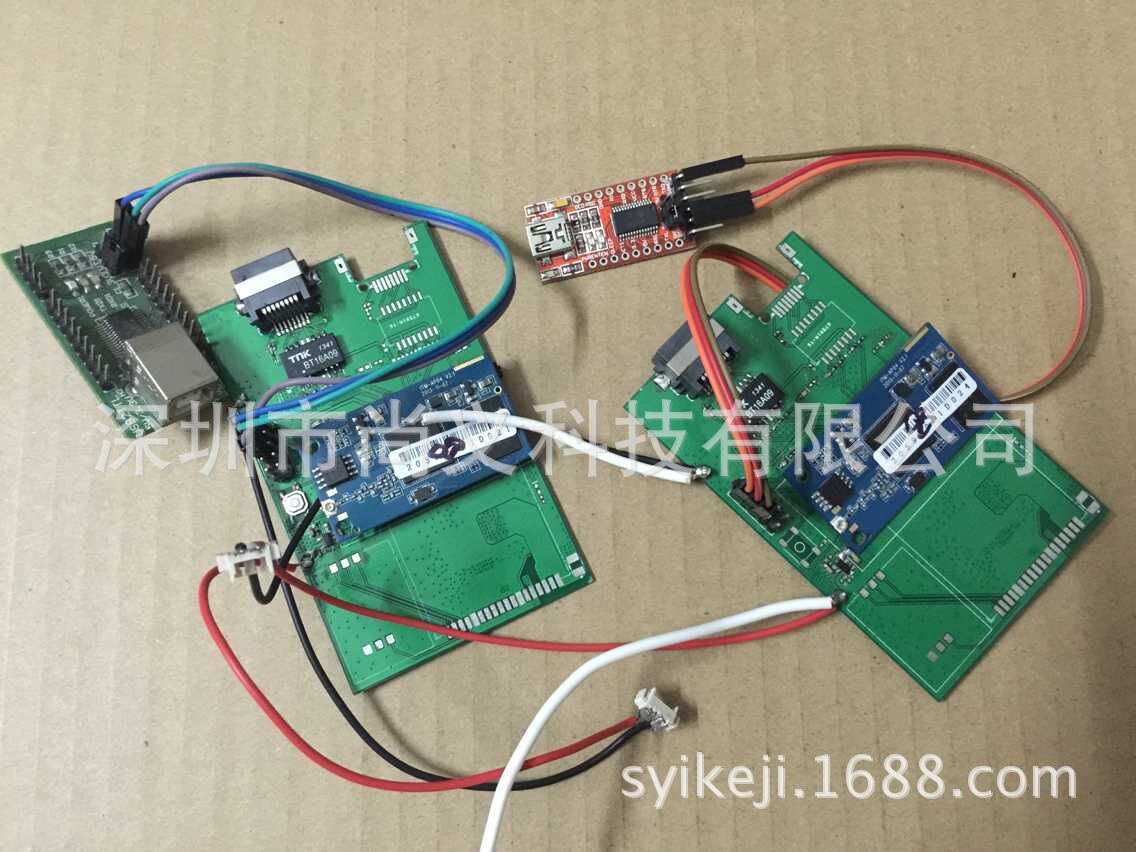

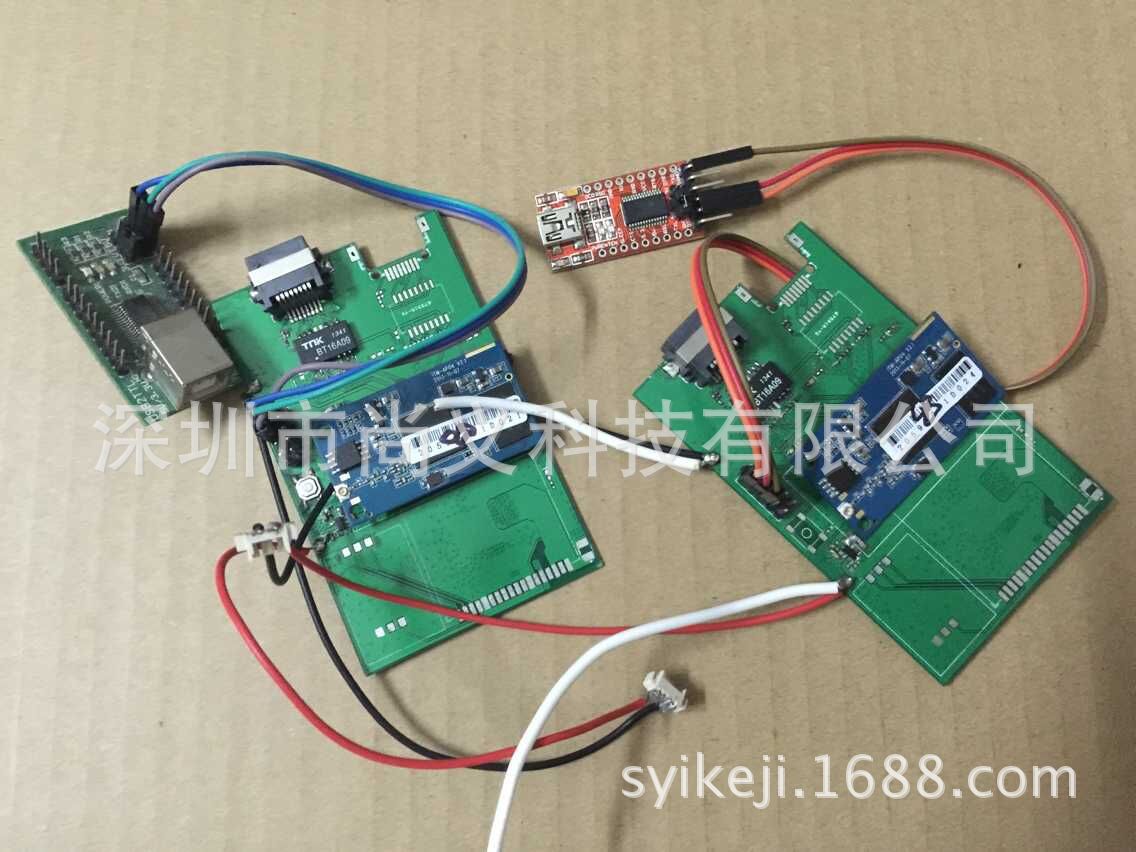

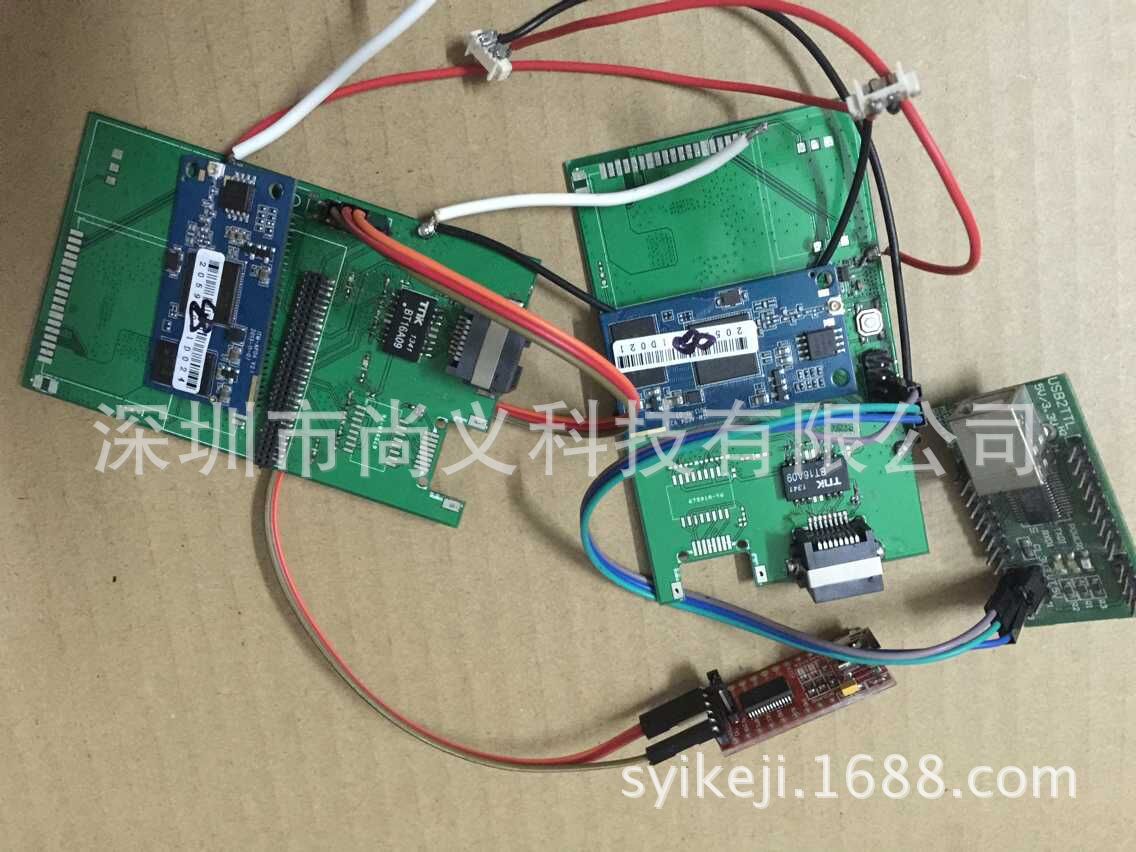

    5.Mechanical Specifications
    PCB Assembly Dimension:
    <>Dimension (L x W x H):
                    L:45mm* W:24.7mm * H:9 mm
    <>PCB: 4 layer High Tg-FR4 design

    undefined

    undefined
