General

Brand

ZIDOO

Model

X6

Color

Silver

Material

Plastic

System

Operating System

Android 5.1

CPU

Rockchip R3368 Octa Core up to 1.6GHz (Cortex-A53 64bit)

GPU

SGX6110; support 4K*2K H.265/H.264

RAM

2GB DDR3

ROM

Nand Flash 16GB

Communication

Wifi Connectivity

IEEE 802.11a/b/g/n/mimo, 802.11ac WiFi compliant; 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) AP6335

Ethernet

10/100/1000M

Bluetooth

4.0

Media

Video Supported

Main/Main10 HEVC/H.265 decoder by 4k60FPS
Support up to 4096x2304 resolution
Support up to 100Mbps bit rate
Embedded memory management unit(MMU)
Stream error detector (28 IDs)
Internal 128k cache for bandwidth reduction
Multi-clock domains and auto clock-gating design for power saving
Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC
Error detection and concealment support for all video formats
Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264
H.264 up to HP level 5.2:4Kx2K30fps (4096x2304)
MPEG-4 up to ASP level 5:1080p60fps (19201088)
MPEG-2 up to MP:2160p30fps (38402160)
MPEG-1 up to MP:1080p60fps (19201088)
H.263:576p60fps (720576)
Sorenson Spark:1080p60fps (19201088)
VC-1 up to AP level 3:1080p30fps (19201088)
RV8/RV9/RV10:1080p60fps (19201088)
VP6/VP8:2160p24fps (38402160)
AVS:1080p60fps (19201088)
MVC:2160p30fps (38402160)
For AVS, 4:4:4 sampling not supported
For H.264, image cropping not supported
For MPEG-4, GMC(global motion compensation) not supported
For VC-1, upscaling and range mapping are supported in image post-processor
For MPEG-4 SP/H.263/Sorenson spark, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit

Audio Supported

AAC-LC/HEAAC/HE-AAC v2,AC3,AMR-NB,DTS,MP3,OGG,RA_COOK,WMA,WMA,LPCM/PCM/ADPCM,FLA

Resolution

4K*2K

Interfaces

HDMI Port

Standard HDMI female, v2.0

Other Interfaces

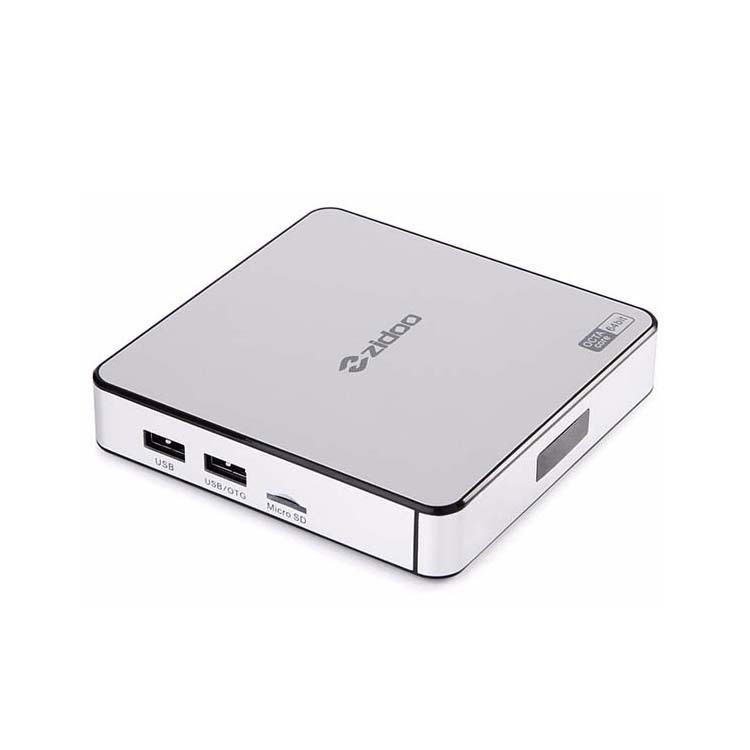

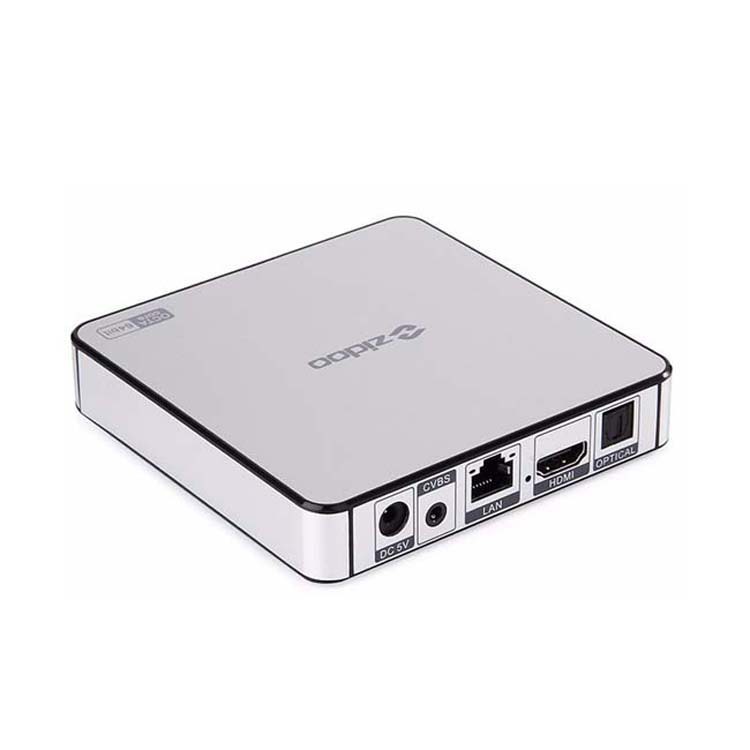

1 * TF card reader SD card interface,2 * USB 2.0 port(one could be a OTG port) ,1 * IR receiver,1 * Composite video and audio port ,1 * S/SPDIF (2CH, 5.1CH)Power,1 * RJ-45 Ethernet Jack

Other Features

3G

N/A

Power

Adapter 5V 2A

Package Contents

1 x TV box

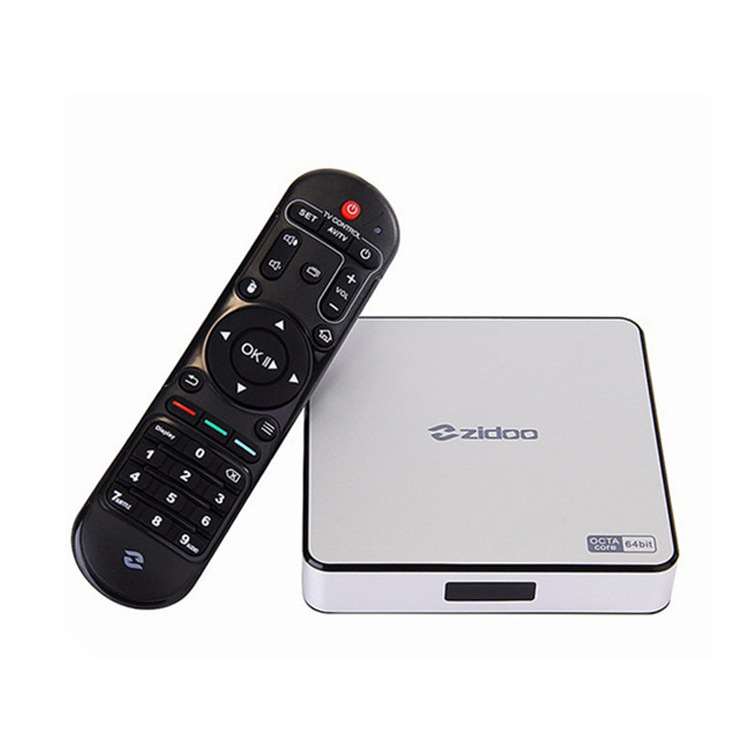

1 x IR remote control

1 x HDMI cable

1 x Power adapter (A right AC Adapter will be sent as your shipping country)

1 x User manual
