【OverView】

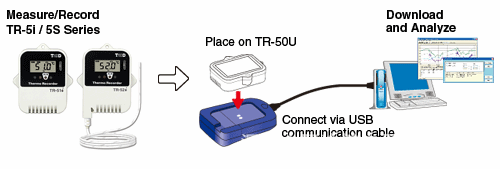

TR-50U2 is a Communication Port to download data measured and recorded by Thermo Recorder TR-51i/51S and/or TR-52i/52S to your computer.
The collected data can be downloaded to your computer via the included software "Thermo Recorder for Windows (TR-5,7xU)" wher you can use the software to create colorful graphs , tables, export text files, as well as manage files and control printing.
The collected data can be downloaded to your computer via the included software "Thermo Recorder for Windows (TR-5,7xU)" wher you can use the software to create colorful graphs , tables, export text files, as well as manage files and control printing.
[Specifications]
| TR-50U | |
| Compatible Models | TR-51i / 52i, TR-51S / 52S, TR-51A / TR-52 |
| Communication Speed | TR-51i / 52i,TR-51S / 52S: MAX speed 19200bps / Download Time at Full data: about 20 seconds TR-51A / 52 : MAX speed 2400bps / Download Time at Full data: about 160 seconds |
| Dimensions | H: 80mm x W: 56mm x D: 16.5mm (excluding protrusions) |
| Weight | Approx. 30g |
| Operating Environment | Temperature: -10 to 60°C Humidity: less than 90%RH (No condensation) Do not use if the Data Logger is wet. |
| * Communication is not possible with RTR-5 Series units. |

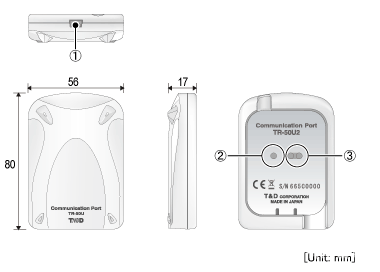

[Dimensions]
1:USB Cable Jack
2:Remote Detection Sensor
3:Optical Communication Spots
2:Remote Detection Sensor
3:Optical Communication Spots
[Setup]
產地： 日本
