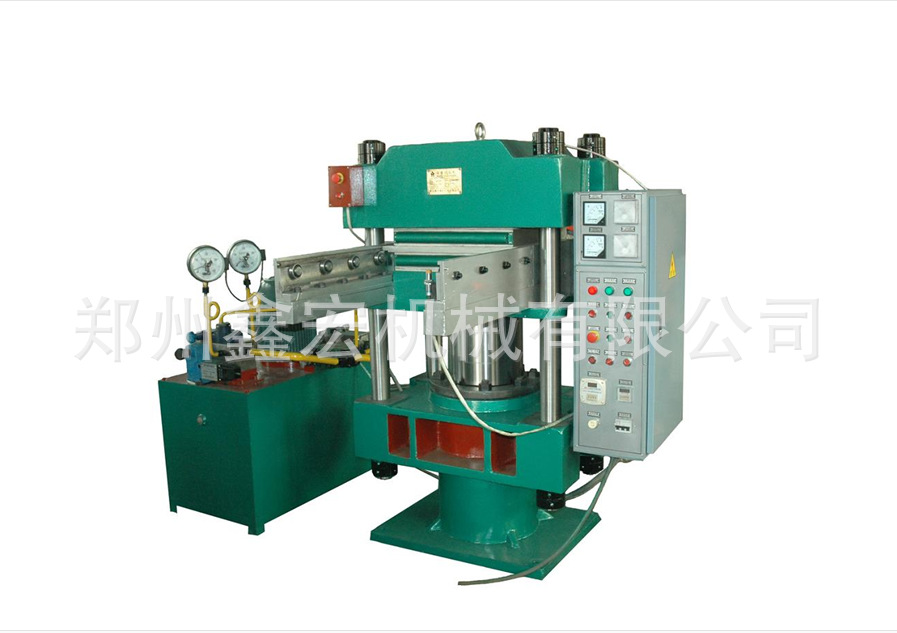

全自動橡膠硫化機
用途: 本產品除瞭具有熱板溫差小,保壓及自動補壓功能外,還有開合模同步且開模速度極快等優點,尤宜成型發泡類拖鞋、鞋用材料、座墊、建築裝璜材料,也可成型鞋底,輸送帶、膠襯等橡塑製 品。 | Application: In addition to a small temperature difference between platens and reliable pressure-holding and automatic pressure compen sation functions, these products have advantageous features of synchronous mould opening and closing operations and a very fast mould opening speed, They are especially suitable for moulding foamed slippers, shoe materials, seat cushions, decoration materials for buildings, and they can also be used to mould other rubber or plastics products such sa shoe soles, converor belts and rubber linings |
產品概述:
硫化機是一種較先進的橡膠製品熱壓成型設備,結構緊湊、效率高、成品率高。尤其適合於生產形狀復雜、不易排氣等成型難度較高的橡膠模型製品及使用易產生氣泡的膠料的橡膠製品。主要技術參數:
型號項目 | 25T | 50T | 63T | 100T | 160T | 250T | 315T | 400T | 630T |
公稱合模力 | 250KN | 500KN | 630KN | 1000KN | 1600KN | 2500KN | 3150KN | 4000KN | 6300KN |
熱板規格 | 350×350mm | 400×400mm | 500×100mm | 600×600mm | 750×850mm | 1150×1150mm | 1200×1500mm | 1200×1500mm | 1500×1500mm |
熱板距離 | 100mm | 125mm | 125mm | 125mm | 125mm | 200mm | 150mm | 150mm | 150mm |
工作層數 | 1-2 | 1-2 | 1-2 | 1-4 | 4 | 2 | 1-5 | 1-5 | 5 |
最大液壓力 | 14.5Mpa | 16Mpa | 20Mpa | 16Mpa | 16Mpa | 20Mpa | 25Mpa | 25Mpa | 20Mpa |
熱板單位麵積壓力 | 2Mpa | 3.125Mpa | 2.5Mpa | 2.8Mpa | 2.5Mpa | 2.5Mpa | 2.2Mpa | 2.2Mpa | 2.8Mpa |
柱塞行程或主缸行程 | 200mm | 250mm | 250mm | 500mm | 500mm | 500mm | 600mm | 600mm | 550mm |
加熱方式 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 | 蒸汽加熱/電加熱 |
電機功率 | 2.2kw | 2.2kw | 2.2kw | 3kw | 5.2kw | 11kw | 13kw | 13kw | 21kw |
外形尺寸(L×W×H) | 1233×532×1408mm | 1295×595×1680mm | 1420×550×1768mm | 2070×1050×2230mm | 3000×1600×2523mm | 1780×1150×3634mm | 3310×1500×2984mm | 3310×1500×2984 mm | 3800×1500×3100mm |
重量(Kg) | Approx (大約)1000Kg | Approx. (大約)1600Kg | Approx. (大約)1700Kg | Approx (大約) 1900Kg | Approx (大約) 6811Kg | Approx (大約) 13000Kg | Approx (大約)18000 Kg | Approx (大約)18000 Kg | Approx (大約)30000 Kg |
同時還用於矽膠製品的成型,如矽膠手環、矽膠按鍵、矽膠手機套、矽膠雜件、橡皮筋、密封圈、蛋糕模等系列產品,此機生產效率高,自動推模加前頂功能,還可以軌道掀模等功能,性能穩定,品質保證,價格合理,供貨準時,售後服務好,此機是矽膠製品行業最佳選選擇
咨詢電話:13523088279 QQ客服:951799289 免費安裝 貨到付款
