60CCD自對對位網印機 全自動絲印機 觸控麵板絲印機
設備用途:
適用於高精密CCD影像自動對位絲網印刷,如冷光板、導光板、擴散片、觸控麵板、柔性電路板、電路板BGA、觸摸屏線路、筆記本及電腦屏幕玻璃。
Application :
This machine is suitable for high precise automatic positioning printing material , Such as EL ,LGP ,Diffuser , touch panel ,PCB ,Circuit board BGA ,Touch screen line ,Computer and notebook screen glass ,etc .
機器特點:
1、采用高性能畫像處理裝置和高精度位置整合系統,實現瞭高精度定位。
2、采用獨自的離網系統,對於刮刀移動可任意地調節離網量,實現瞭高精密印刷(特殊功能)。
3、通過菜單功能,迅速、準確地再現不同基板的印刷條件,縮短操作準備時間(標準規格)。
4、機械操作和畫像處理采用觸摸屏和伺服馬達做數字控製,實現瞭正確的印刷動作。
5、通過觸摸屏顯示故障原因和對應措施,便於操作。
Machine Features :
1.This machine is equipped with high quality image processing device and high precise position integrated system . high precise positioning .
2.This machine adopts independent off-grid system . The distance between scraper and screen frame could be adjusted easily . Which could supports high precision printing .(Unique function)
3.The Menu function could shows the requirements for different kinds of material .shorten the preparing time .
4.Machine operation and image processing were controlled by touch screen and servo drive .
5.The touch screen could indicate the reason of bug and corresponding measures .
基本規格:

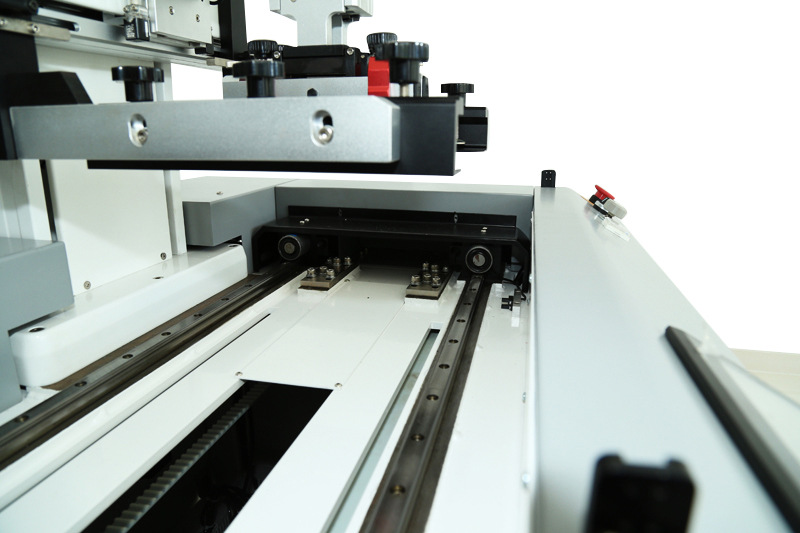

項 目 | 參 數 |
印刷板大小 | 200 ( X )×50 ( Y ) -610 ( X )×610 ( Y )mm (有以上尺寸范圍外印刷要求的客戶,請事先與我司協商) |
印刷能力 | 約7秒/枚(除裝卸印刷板的時間;照相機印刷能力圖形認識和定位、印刷和回墨各以1秒計算時) |
網框系統 | 適用網框 :950×950mm、1000×1000mm、厚度 驅動方法 :A C伺服馬達&精密螺桿(前後各1軸) 網版高度 :0-20mm ( 0指網麵與印刷臺在同一水平麵上) 離網量 :0-20mm( 0指印刷時網麵的高度保持設定的網版高度時) 微調整量 :±5 mm ( X、Y 1、Y 2方向微調量) 網框升降方式:網框前端上升(約22°) |
印刷刮刀系統 | 驅動方式:A C伺服馬達&皮帶驅動 印刷行程:0-760mm 印刷速度:2.1-39.6m /min ( 35-660mm / sec ) 刮刀角度調整:60°-80° 大小:350-700( L )×45-50( W )×9( T ) mm |
印刷臺 | 大小:750( W )×750( D )×32( T ) mm 材料 表麵:不銹鋼 主結構:鋁 印刷板固定法:真空吸收(吸引量增加結構) 真空吸孔:吸孔孔徑ø1.0mm、孔距15mm、真空范圍600×600mm 印刷臺驅動方法:以A C伺服馬達&精密螺桿,左右移動 印刷臺反復著位精度:±0.01mm 位置整合驅動:步進馬達或伺服馬達&精密螺桿×3軸 整合精度:±0.015mm |

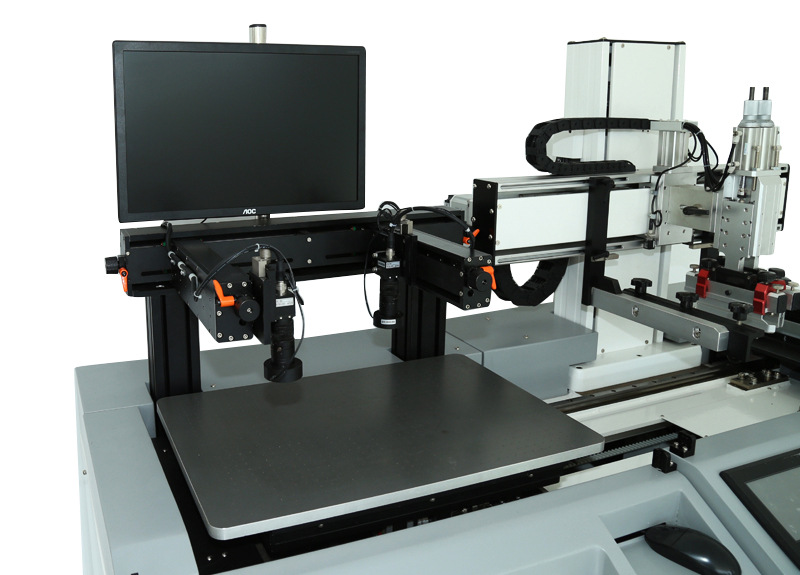

畫像處理系統 | CCD數量:CCD相機2臺或4臺 (緘瓢大致定位方式) CCD視野:8 ( H ) mm×6 ( V ) mm 照明(光源) :二極管燈環 |
安全設施 | 在印刷機的前麵,設有安全檢測器。如版框下降時檢測出危險,則版框立即停止下降 |
本體 | 大小:2500( W )×1500 ( D )×1210( H ) m m 重量:約1600kg 印刷臺高度:900±10mm |
機械安裝條件 | 使用電源:3相、AC200 V±10 %、50/60 Hz 使用電力:5.2 kVA (空氣電閘,漏電檢測量:30mA 使用氣壓:0.4 - 0.5 MPa 使用氣量:6L/m i n |
特殊功能 | 回墨鏟傾斜印刷±5度曲線離網方式自動印壓設定 |
Specification:
Item | Parameter |
Screen frame size | 200 ( X )×50 ( Y ) -610 ( X )×610 ( Y )mm (If this size is not suitable ,we could customize it for you .) |
Printing Capacity | 7 seconds per piece (The time for identify , positioning , printing , ink clamping are calculated as 1 second .) |
Mesh frame system | Suitable Mesh frame :950×950mm、1000×1000mm、 Drive method :A C servo motor & precise screws (there are 1 piece of screw for both front and back side ) Height of Screen frame :0-20mm ( 0mm means the Mesh frame and printing table are at the same level ) Height of off-grid :0-20mm Fine tuning :±5 mm ( X、Y 1、Y 2 ) Mesh frame up-down method: The front edge of mesh frame rise (Approximately 22°) |
Printing scraper system | Drive method:A C servo motor & belt Printing stroke:0-760mm Printing speed :2.1-39.6m /min ( 35-660mm / sec ) Adjustment of scraper angle :60°-80° size:350-700( L )×45-50( W )×9( T ) mm |
Printing table | Size:750( W )×750( D )×32( T ) mm Material Surface:stainless steel Main structure: Aluminium Fixed printing plate method:Vacuum absorptive Vacuum absorptive hole:hole diameter ø1.0mm,hole distance 15mm,vacuum range 600×600mm Printing table drive method:A C servo motor & precise screws ,move left and right. Printing table repeat position accuracy:±0.01mm location drive:stepping motor or servo drive & precise screw ×3 shafts Accuracy :±0.015mm |
Image Processing system | CCD quantity:CCD cameras 2 or 4 sets CCD visual field:8 ( H ) mm×6 ( V ) mm Light :LED light ring |
Safety facility | There are safety detector in front of printing machine .The mesh frame will emergency stop in case there is dangerous when mesh frame goes down . |
Main body | size:2500( W )×1500 ( D )×1210( H ) m m Weight: 1600kg Height of printing table :900±10mm |
Installation condition | Voltage:3 phase、AC200 V±10 %、50/60 Hz Current:5.2 kVA (Air switch,leakage electricity detection:30mA Air pressure:0.4 - 0.5 MPa Gas Volume:6L/m i n |
Unique Function | Ink shovel slope printing ±5 curves off-grid method automatic printing set . |
