WFAY-B

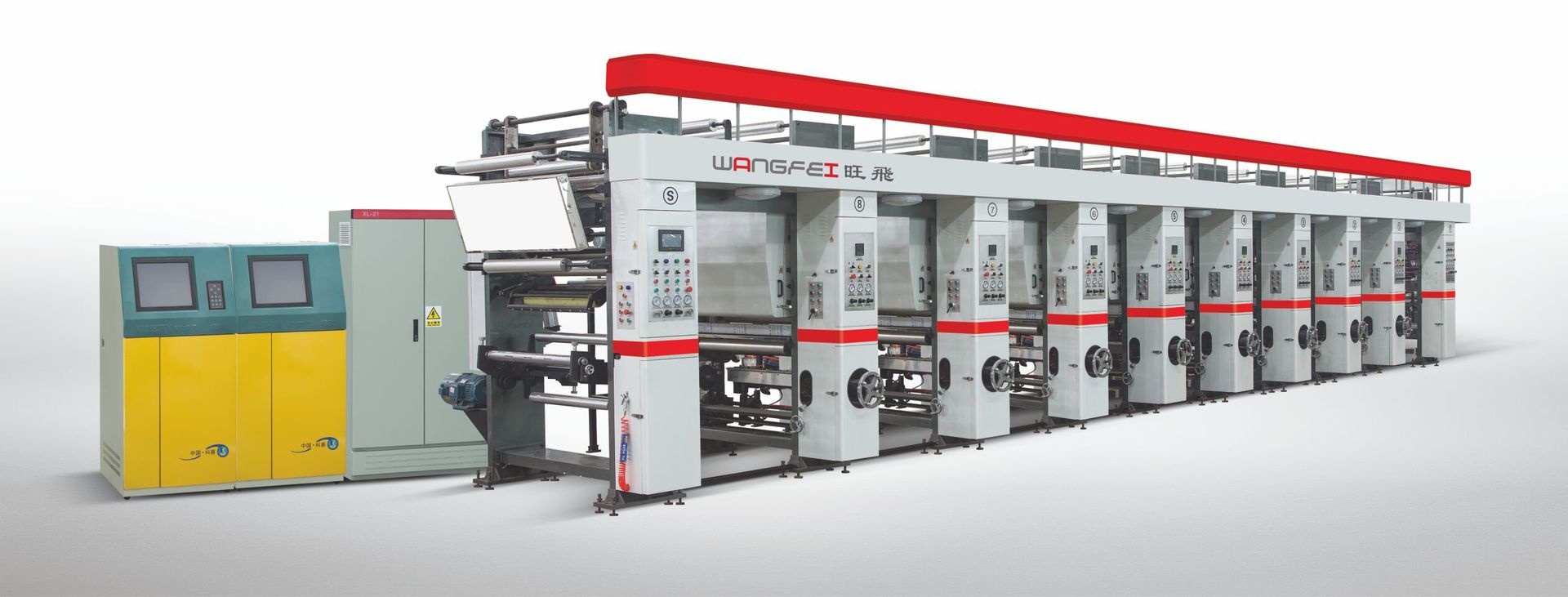

高速電腦套色凹版印刷機
High-speed Computerize Register Rotogravure Printing Machine

undefined

該機是新一代高速電腦套色凹版彩印機。適用於各種塑料、紙張等卷筒材料的凹版多色印刷。整機設計合理、品質精良。主要電器配置進口品牌，自動化程度高，穩定性好、套印精準、成品率高，是目前國內先進的高速凹版印刷設備。

註：可根據客戶需要另配裝橫向自動套色機構、正反印機構、電子軸傳動機構、
遞墨輥機構等。

※ 收放卷AB氣漲軸、高速不停機自動裁接換料
※ 配冷風裝置（也可增配水冷卻輥裝置）
※ 擺臂式雙氣缸壓輥
※ 氣頂式無軸裝版
※ 雙室式循環風烘乾箱
※ 外置式電供熱裝置
※ 獨立機組式結構
※ 自動套色系統控製各單元組，可迅速準確的修正套色偏差
※ 整機張力四浮輥七電機同步閉環控製
※ 進口品牌浮輥張力、氣缸及氣閥（日本藤倉）
※ 高清晰度的靜止畫面和精密的絲桿套色系統配置
※ 國際品牌的西門子PLC及矢量變頻器控製
※ 文本式人機界麵操作

MAIN CHARACTERISTICS
1. Rewinder and unwinder AB air shaft ,high speed non-stop
    automatically cutting change rolls
2.With the cooling wind device (also with cooling roller device)
3.Swaying arm type double cylinder pressure roller
4.Pneumatic shaftless plate cylinder installation system
5.double channels type circle wind oven box
6.Electrical heating device from the outside of machine
7.independent separately printing unit frame
8.Full automatically chromatically system to control each
   printing unit ,which can adjust the torlance for the
   chromatically very fast
9.Whole machine tension has four pcs of the floating roller
   with seven motors synchronous controlled in closed loop
10.import brand float roller tension.pneumatic and air valve
    (Japan Tengbin )
11.High precision static pictures and prevision silk roller
     chromatically system device
12.import famous brand siemens plc and vector inverter
     controlled
13.word type man machine interface operation

主要技術參數/MAIN TECHNICAL PARAMTER:

型號	Model	WFAY-600B
印刷色數	Printing Colors	8	8	8	8
印刷版輥直徑	Diamter of Printing Cylinder	120-300mm	120-300mm	120-300mm	120-300mm
最大印刷寬度	Max.Printing Width	600mm	800mm	1000mm	1200mm
放卷最大直徑	Max.Diameter of Unwind	800mm	800mm	800mm	800mm
收卷最大直徑	Max.Diameter of Rewind	800mm	800mm	800mm	800mm
最大印刷速度	Max.Printing Speed	160m/min	160m/min	160m/min	160m/min
機械最高速度	Max.Mechanical Speed	180m/min	180m/min	180m/min	180m/min
套印精度	Register Precision	≤0.15mm	≤0.15mm	≤0.15mm	≤0.15mm
烘乾方式	Drying Method	Electric heating	Electric heating	Electric heating	Electric heating
機器功率	Machine Power	100KW	110KW	120KW	130KW
機器重量	Machine Weight	16000KG	17000KG	18000KG	19000KG
形尺外寸	Overall Dimension	162002600x2600mm	16200x28002600mm.	16200x30002600mm	16200x32002600mm
