自動診斷:隨機電腦故障自動診斷系統,提示報警,利於及時排除故障。結合遠程控製系統,通過電話線連接,實現遠程監視控製、診斷。
技術參數:
機臺最大外型尺寸 | 液壓系統額定壓力 | 主振形式 | 振動頻率 | 振動加速度 |
7200×2100×2825(L×W×H)(mm) | 21Mpa | 臺模壓合振 | 50~70Hz | 10-15g |
適應磚高 | 托板尺寸 | 成型周期 | 整機功率 | 整機重量 |
50-200mm | 木製、920×850×40(mm) | 15s | 36.8kw | 11.8t |
產品規格及每板產量:
型號 | 砌塊規格(毫米) | 成型數(塊) | 成型周期(秒) | 班產(8小時)(塊) | 主機功率(瓦) |
8-15 | 390×190×190(砌塊) | 8 | 15 | 15360 | 36.8 |
8-15 | 240×115×90(多孔磚) | 21 | 15 | 40320 | 36.8 |
8-15 | 240×115×53(標磚) | 42 | 15 | 80640 | 36.8 |
場 地 | 操作工棚 | 原料空間 | 辦公用房 | 員工 | 配電 | 耗水 |
10-15畝 | 60 | 300 | 30 | 10-15人 | 40kw | 10T/天 |

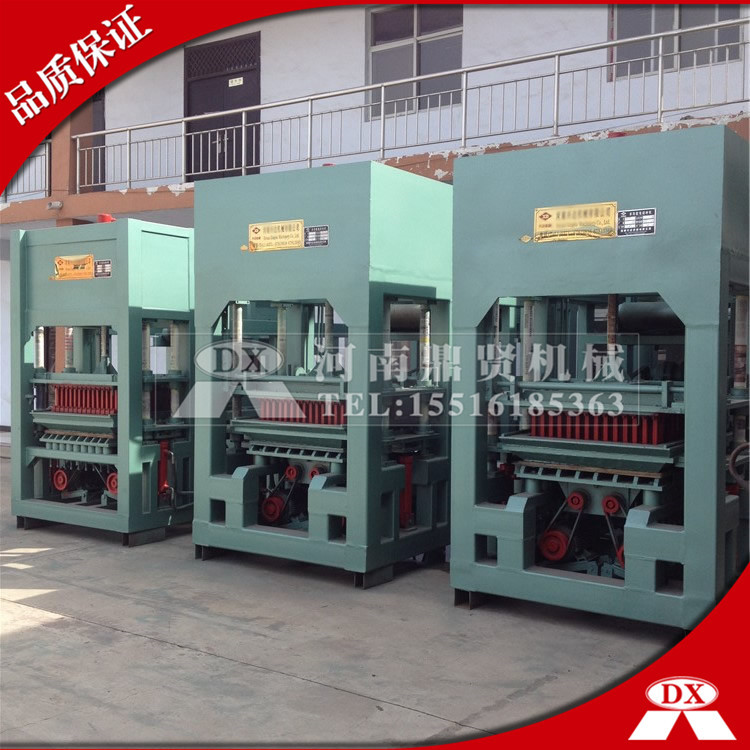

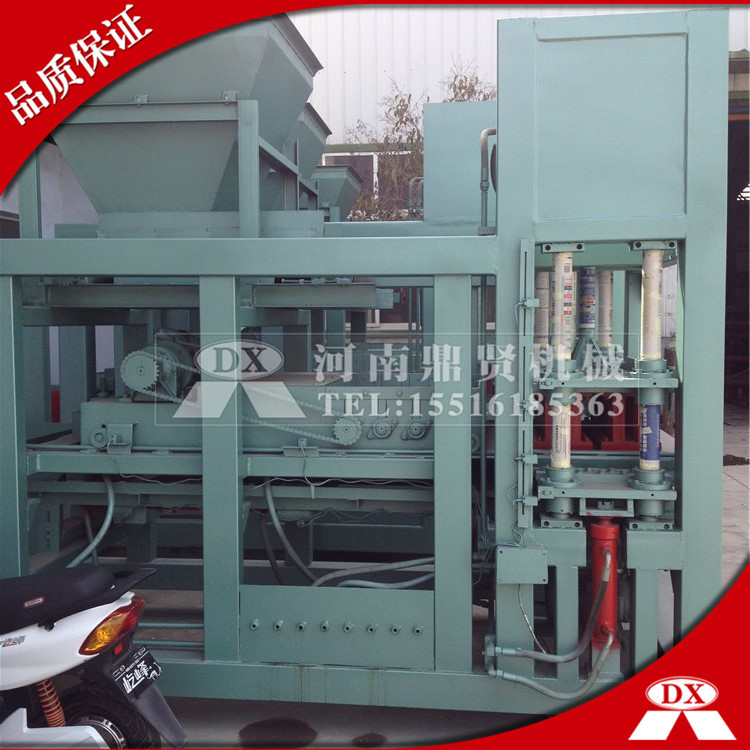

8-15 type baking free brick machine uses: the baking free brick machine suitable for fixed in the production of a variety of different specifications of the standard bricks, hollow bricks, porous brick and concrete products.
characteristic:

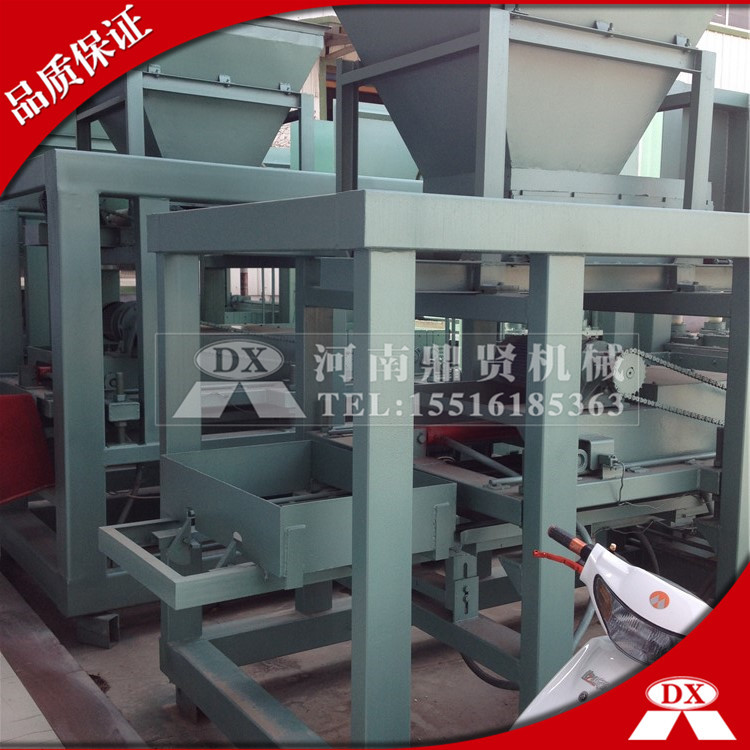

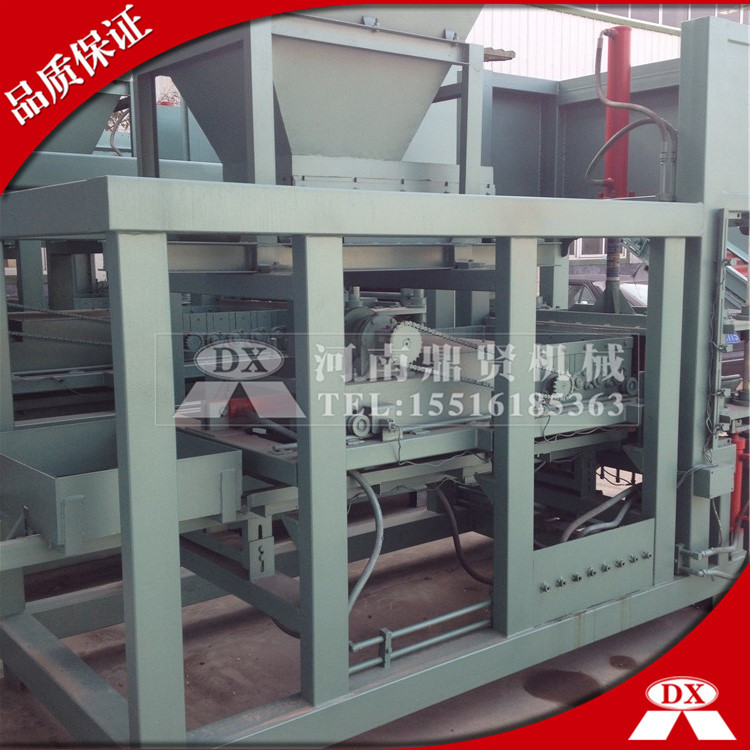

8-15 type baking free brick machine unique design of the stored material sub feeding system: to ensure the feeding precision, reduce material, including pressure and other external factors produce uneven density, effect of the feed, to ensure that material that is used to send, to feed accurate, so that the density of product consistency is good.
8-15 type brick using multi-source system: in order to adapt to the large-scale machine design. Suitable for large working table, set computer control, hydraulic drive, mechanical and electrical synchronization, and many other technology. Using full synchronous vibration mode, the vibrating force can be adjusted, the frequency can be adjusted according to different process requirements, low frequency feeding, high frequency forming, exciting force can be based on different raw materials to achieve the best effect.
8-15 type baking free brick machine control system: digital and displacement sensing technology are combined effectively, the action is accurate and reliable, applicable to the busy complex working conditions. System to collect hundreds of production process, advanced technology, easy to operate.
Automatic diagnosis: random computer automatic fault diagnosis system, prompt alarm, which is conducive to timely troubleshooting. Combined with the remote control system, through the telephone line connection, realize the remote monitoring control, diagnosis.
Sale manager: Mr.yuan
Telephone number: 155 1618 5363
QQ: 15516185363
Homepage: https://hndxjx.1688.com
Address: Zhengzhou city,Henan province
