隻要你有量，價格都好談，實力工廠，價格有可能比上麵看到的報價更低（配置不一樣，價格不一樣，潛力客戶量不大也可以低價）

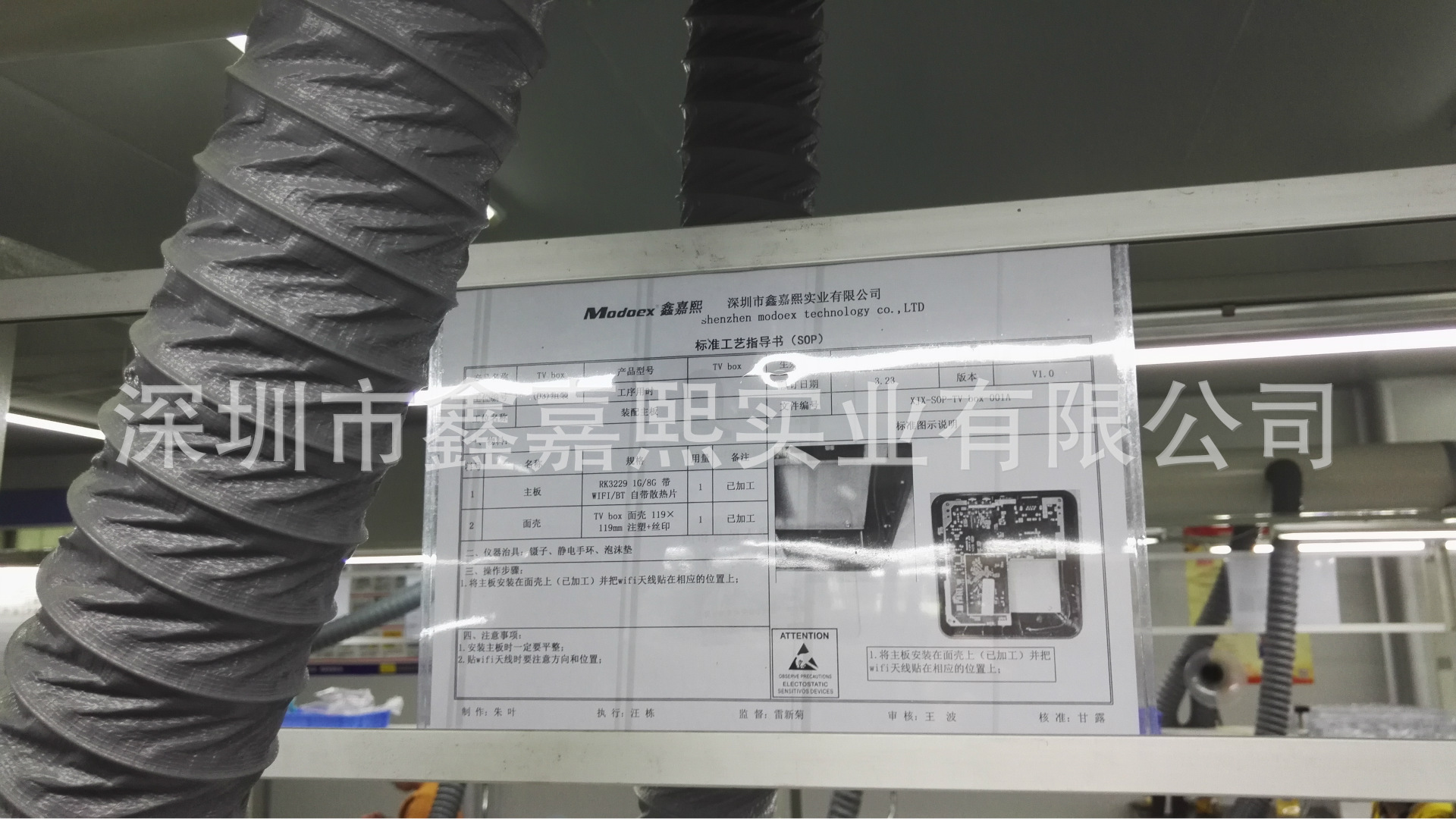

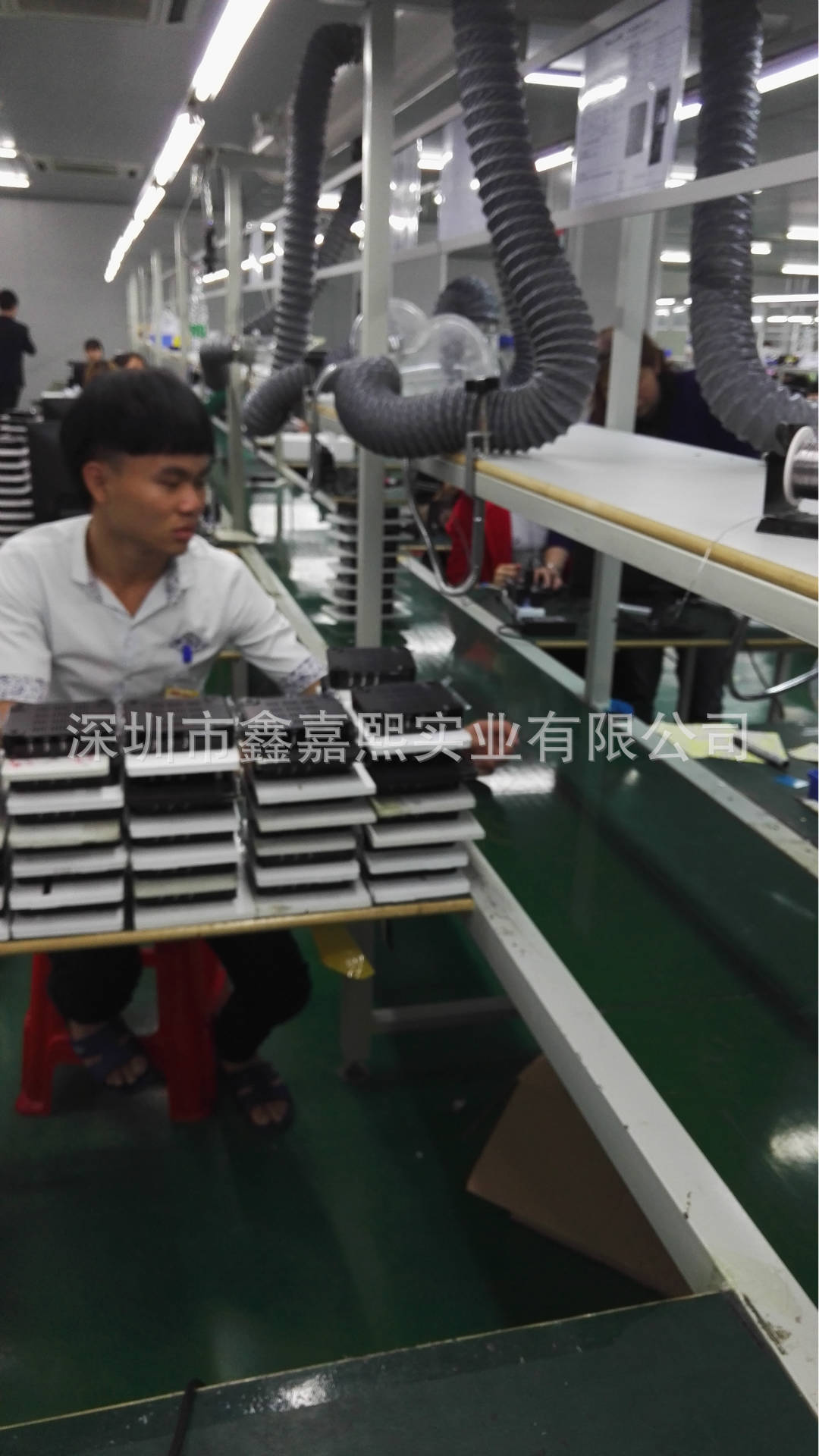

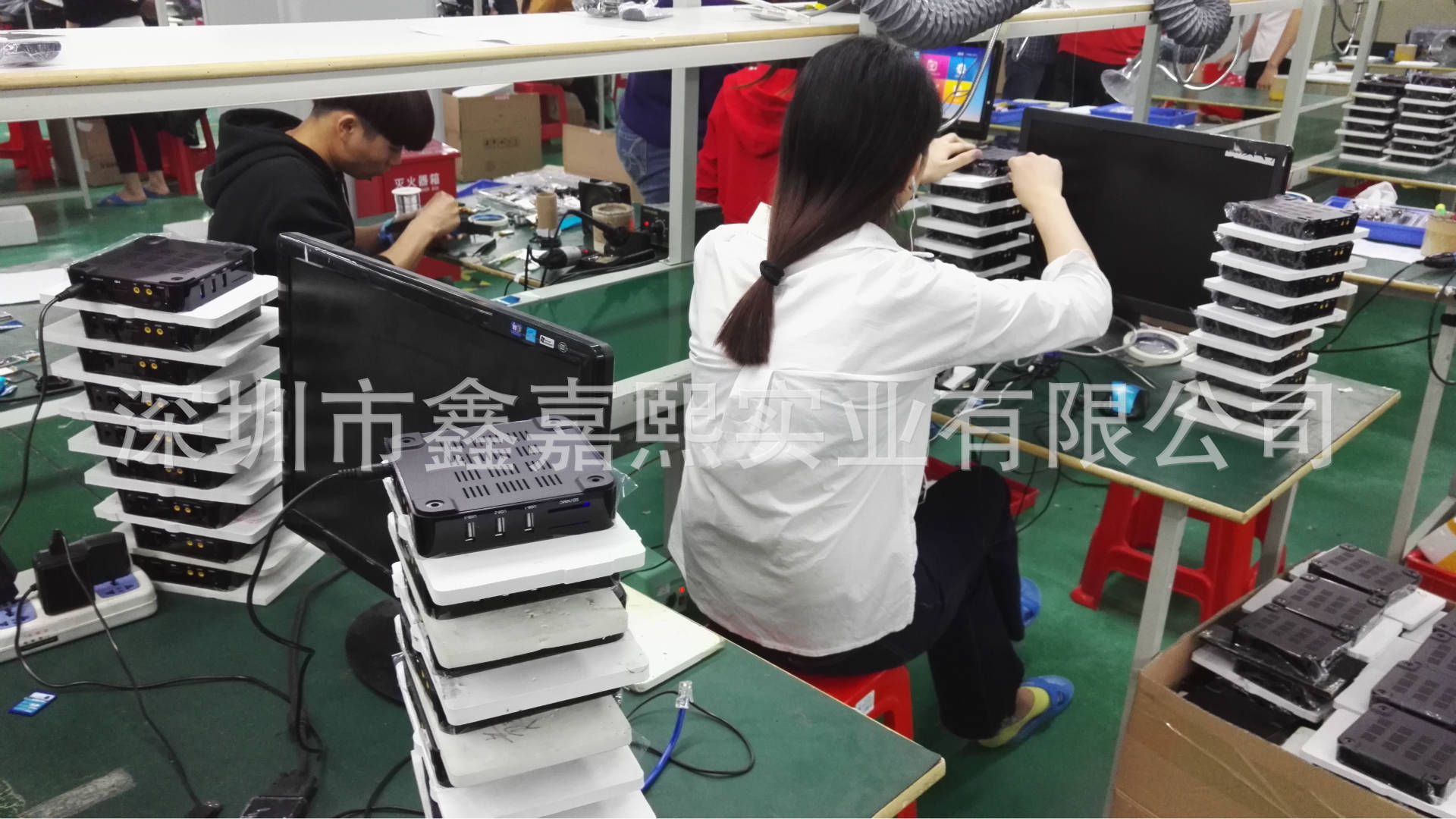

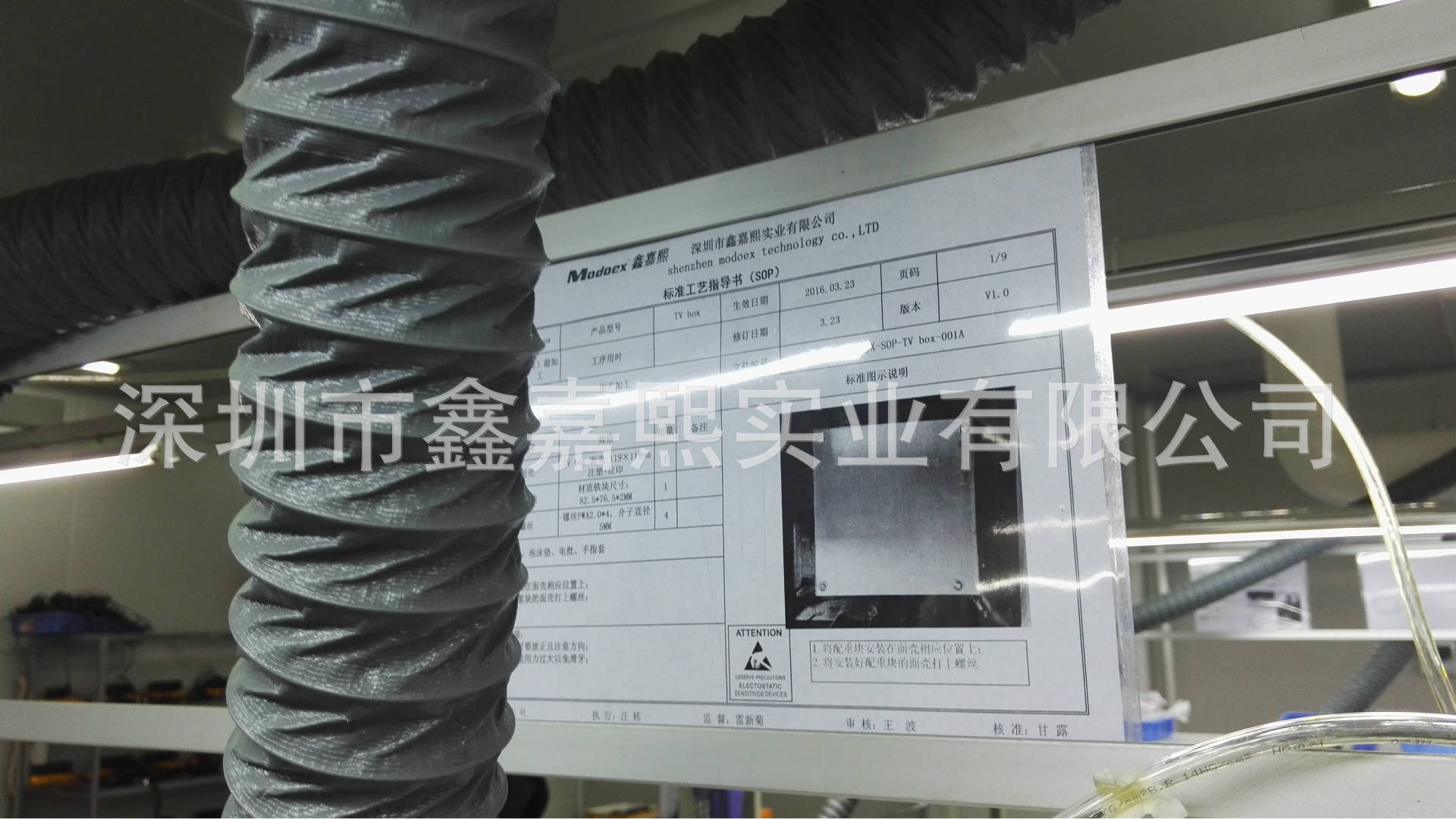

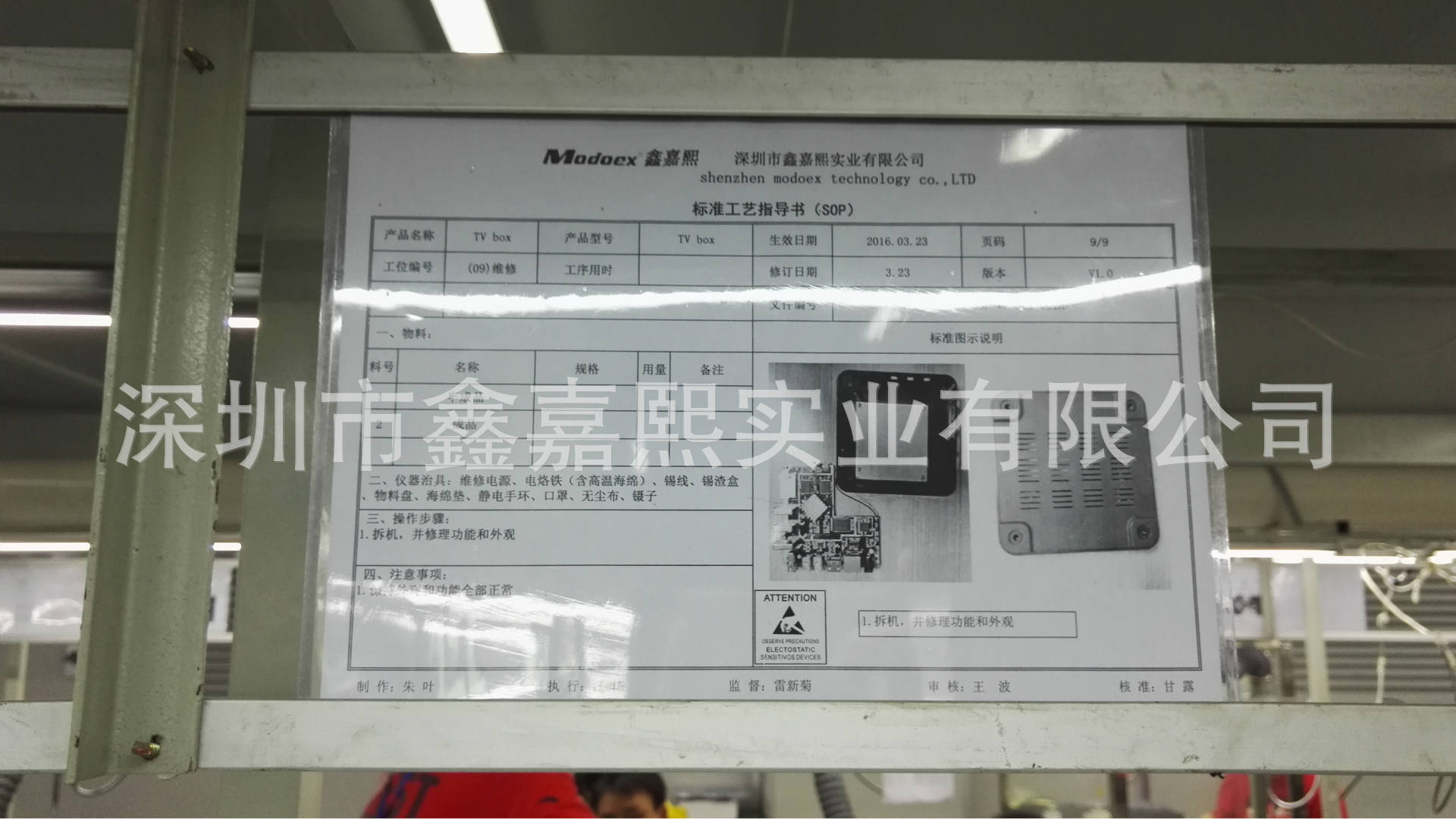

製作MXQ-4K網路機頂盒工廠現場實拍圖
安卓電視機頂盒MXQ-4K RK3229 1+8G 四核TV BOX 4K高清網路播放器
MXQ-4K亮點：
RK3229 RK3229, 28nm Quadcore Cortex A7, High cost performance 4K OTT Box solution
1：4核CPU cortex-A9，主頻高達2GHz，4核超強GPU Mali-450，采用28nm半導體工藝確保超低功耗！
2：UHD和3D-HD，MXQ-4K支持最前沿的超高清解碼，分辨率達4Kx2K；支持全高清3D視訊（1080Px2），兼容MPEG1/2/4,realvideo8/9/10，WMV/VC-1,H.264,H.265等多中視訊格式。
3：WIFI/HDMI1.4 內置WIFI-802.11n，HDMI1.4介面、四USB2.0-Hispeed、RJ-45標準有線介面、支持SD/MMC卡槽、支持CVBS，光纖輸出，模擬立體聲音頻輸出，
4：安卓4.4版本，兼容更多的應用軟件
5：MXQ-4K雙色指示燈套管規格：4x4mm（直徑4mm，高4mm）
大小版PCB螺絲規格：PA2.05mm（六顆）
外殼螺絲規格：PA2.08mm（四顆）
6:支持幾乎所有的視訊、音頻、圖片格式！讓客廳真正豐富起來！
7:獨傢精美包裝！高檔精美，送禮佳品！
| Hardware | ||
| CPU | RK3229, 28nm Quad core Cortex A7, High cost performance 4K OTT Box solution | |
| GPU | ARM Mali-400 GPU | |
| HDMI | Including an HDMI 2.0 for HDMI 2.0 for 4K YUV420@60Hz with HDCP 1.4/2.2 | |
| Support 4K 10-bit H.265/H.264/VP9 video playback and display | ||
| Memory | 1GB DDRIII | |
| Flash | 8GB Nand Flash (up to 32GB) | |
| WiFi | 802.11 b/g/n, RTL8703 (RTL 8723,optional) | |
| Wired network | Ethernet GMAC 10/100/100M Ethernet controller | |
| Support 10/100/1000 data transfer rate and RGMII interface | ||
| Support 10/100Mbps data transfer rate and RGMII interface | ||
| IR | Infra Remote control | |
| Power Supply | DC input 5V/2A | |
| I/O: | ||
| 1*HDMI 1.4b with CEC | Built-in HDMI 1.4b transmitter including both controller and PHY with CEC and HDCP, 4K @ 60FPS max resolution output | |
| 1*Mirco SD Card (TF) | TF cards (up to 32GB) | |
| 4*USB HOST | 2High speed USB 2.0,support USB DISK and USB HDD | |
| 1*SPDIF | SPDIF output | |
| 1*RJ45 | Ethernet:10/100M, standard RJ-45 | |
| 1*Power input | 5V/2A | |
| Accessories | Gift box | |
| Power charger adapter | ||
| HDMI cable (optional) | ||
| IR remote control (optional) | ||
| User's Manual | ||
| Software | ||
| OS | Android 4.4.4 | |
| 3D | Hardward 3D graphics acceleration | |
| Video decoding | 4K VP9 Video decoder, 4K 10-bits H.265/H.264 video decoder | |
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) | ||
| Support conversion from BT.2020 to Rec.709/Rec.601 | ||
| Video post processor: de-interlace | ||
| Support H.263/H.264 2160P@ 24fps | ||
| Support VC-1 ,MPEG - 1 1080p @ 60fps | ||
| Support MPEG- 2 2160P @ 24fps | ||
| Support MPEG-4 1080P @ 60fps | ||
| Support AVS 1080p @ 60fps | ||
| Support MVC 2160P @ 24fps | ||
| Support WMV,3GP,MKV,ASF,3G2M4V,MJPEG,RV8,RV9,RV10 1080P@60fps | ||
| Support HEVC decoder | ||
| Support Main/Main10 HEVC/H.265 decoder, 4K @ 60FPS | ||
| Support 4096x2304 resolution | ||
| Support HDMI 720P-2160P FUII 3D HD( 2160P, 3840 * 2160 ), 4K+2 K | ||
| Support flash11.1 | ||
| Video Decoder format | H.264,H.265,VP8,MVC(1080P) | |
| Video format | Supports DIVD/DIVX/REAL8 / 9 / 10, RV, RM, RMVB, PMP, FLV, MP4, M4V, VOB, VP6, VP8 2160P @ 24fps | |
| Audio format | Supports MP1, MP2, MP3, WMA, OGG, AAC, M4A , FLAC, APE, AMR, RA, WAV, etc | |
| Picture format | Supports JPG, JPEG, BMP, GIF, PNG, JFIF etc Resolution 8192x8192 | |
| HDD file system | FAT16 / FAT32 / NTFS | |
| Support Subtitle | SRT, SMI, SUB, SSA, IDX+USB | |

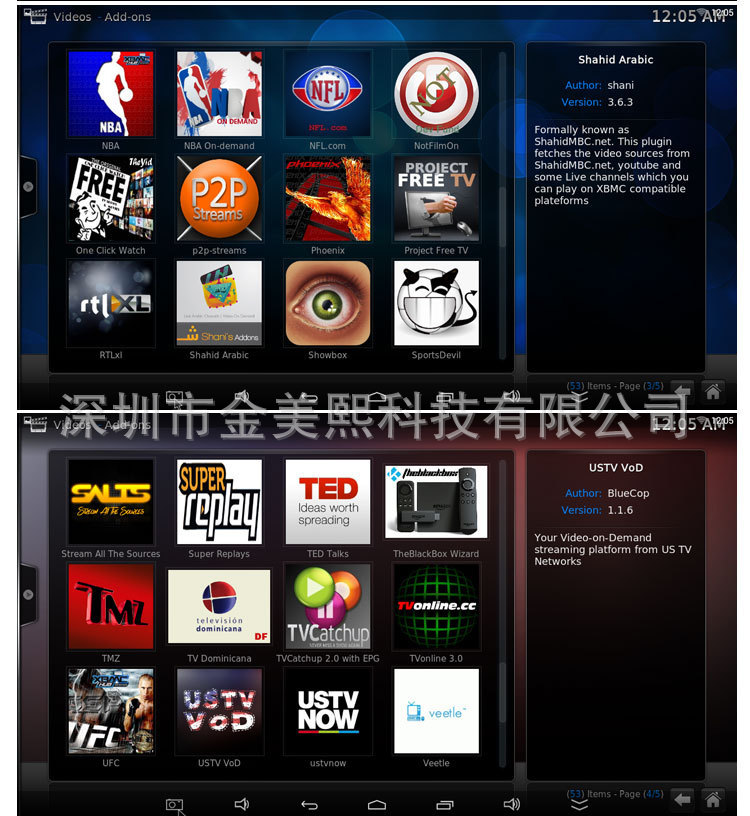

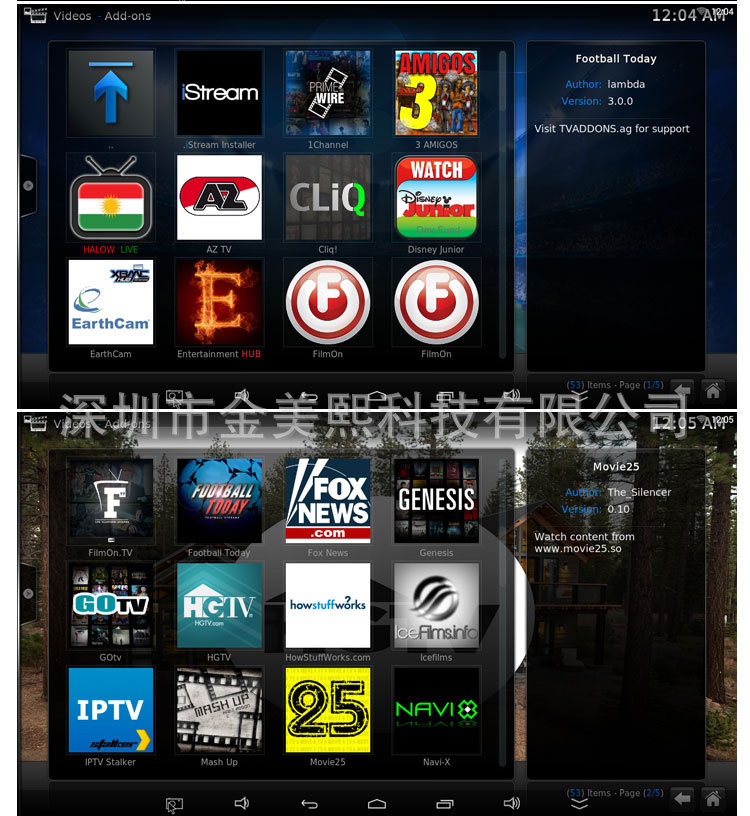

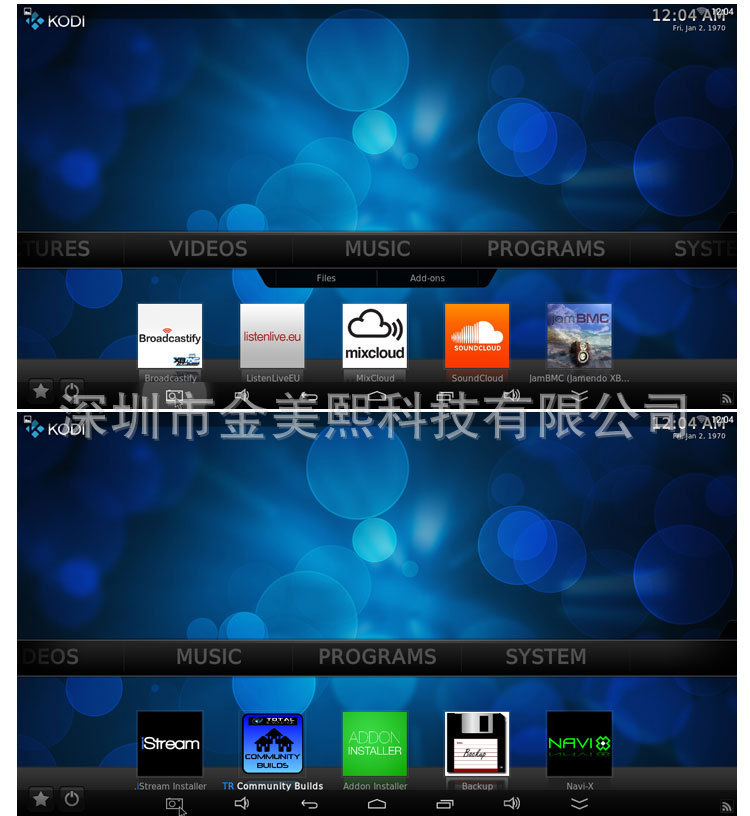

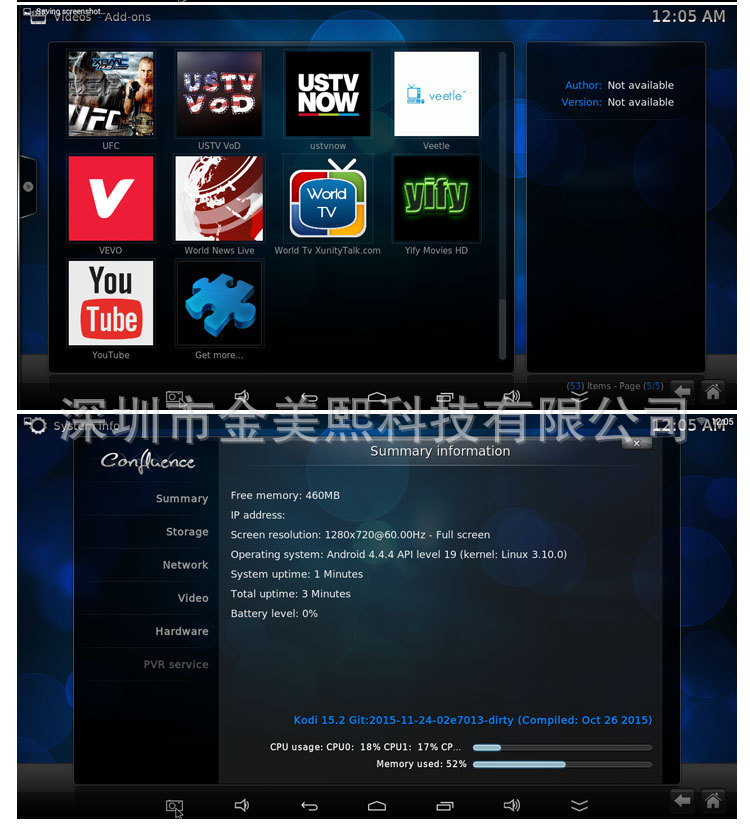

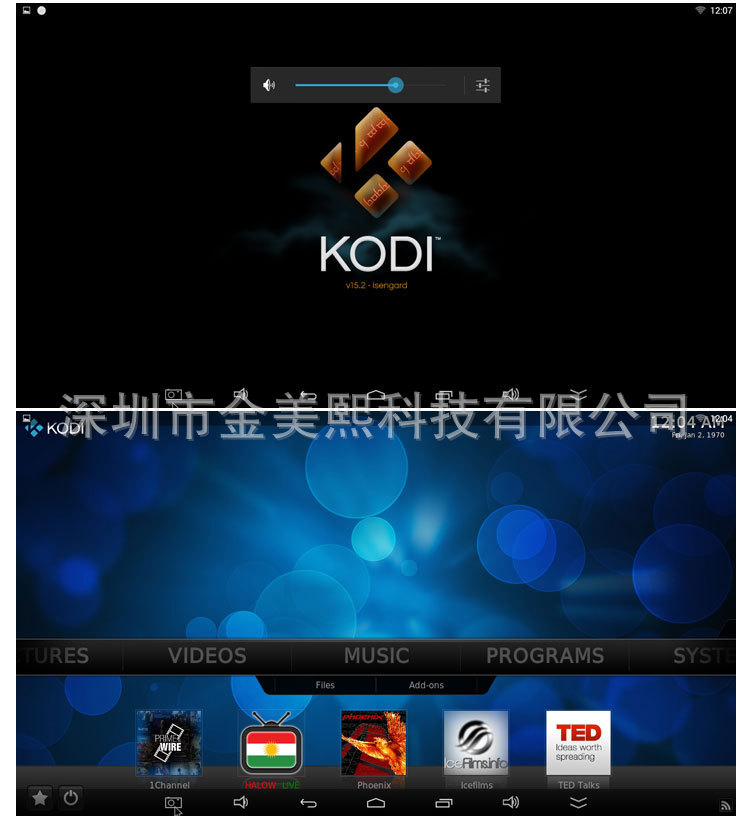

| XBMC/KODI | Support | |
| DRM | Support Widewine Level1, DRM PlayReady ,Verimatrix, built in Trustzone, | |
| HDCP 2.2/1.4 | ||
| Support language | Chinese, English, Germany, Japanese, Korea etc. multilateral languages | |
| Appliactions | ||
| Online | Browse all video websites, support Netflix, Hulu, Flixster, youtube etc | |

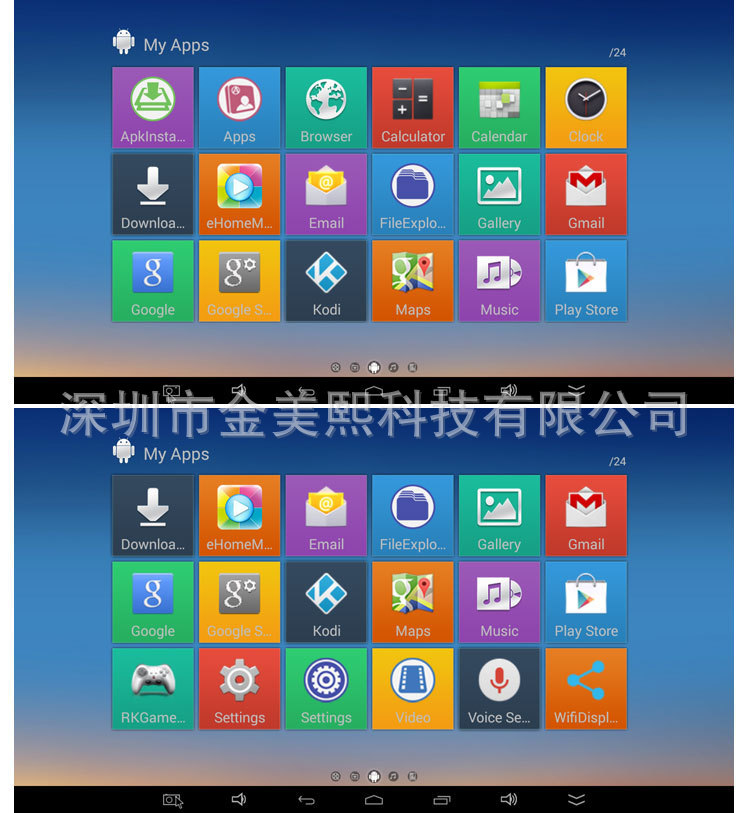

| Apps | Apps download freely form android market, amazon appstore etc | |
| Medium | Local Media playback, support HDD, U disck ,SD card | |
| Talk online | Support SKYPE video call, MSN, facebook, twitter, QQ etc | |
| Others | Support WiFi hotpiont, could be as a wireless router | |
| Support DLNA, Google TV Remote, LAN, 3D Moive, Email, office suit etc | ||
| Packing | ||
| Dimension | 118*118*25 mm | |
| N. Weight | 154g | |
| G. Weight | 560g | |
| Color Box Dimension | 240*150*60mm | |
| Carton Dimension | 50.5*32.5*32.5 cm | |
| Qty./CTN | 20PCS | |
| G.W./CTN | 10.5KG | |
