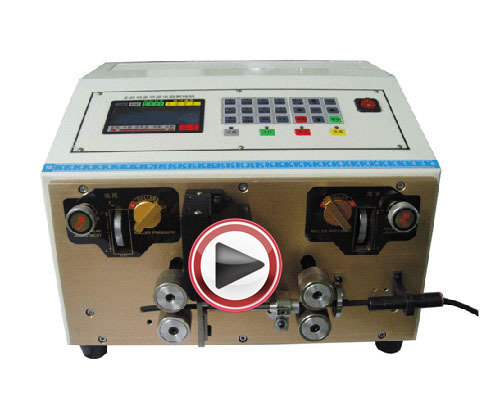

HC-515C電腦剝線機（6平方）
The computer shells wire machine(6 squares)
特點說明（Characteristic description)：6平方以下的電線都好進行切斷、剝皮，適合於汽車電力行業的線束加工。高速、精密驅動，剝線系列配套用步進驅動控製器。
6 the square is as follows of electric wire all progress cutting skinning, suited for the wicking transform of autocar electric power craft.Is top speed, the nicety drive and shell wire series kit is driven controller with the stepping.
機型規格Model specification
型號Model | HC-515C |
外形尺寸Dimensions | L418*W358*H308 |
重量Weight | 25KG |
顯示方式Display | 中文，液晶 Chinese interface LCD display or English interface |
電源Power | 220V／400W |
切割長度(mm)Cutting Length | 0.5mm-99999.99mm |
剝皮長度Stripping Length | 0.5mm-30mm |
中間剝切Intermediate peeling and cutting | 帶有中間切皮15處Intermediate cut at fifteen |
剝線范圍Cutting Range | 0．1-6mm2多股軟線 |
導線類型Wire Material | PVC、鐵氟龍線、玻璃線 PVC and ferromolybdenum fluorine Long Xian, glass wire |
切割公差Cutting tolerance | Within 0.002* Lmm※L=cutting length |
導管直徑Max. wire diam | 1-6mm |
驅動方式Driving way | 四輪驅動，,獨立驅動盒驅動Four-wheel drive, independent drive box driver |
生產率（次／分）Productivity(pcs／m) | 70PCS |
