本月暢銷的帶線纜的光伏連接器,中間線長可以是1M、2M、3M、5M、10M、*****,價格以最終確定為準。
The hot sale PV connector (with cable) this month, the middle length can be 1M, 2M, 3M, 5M, 10M.…The prices are subjected to the final /confirm/iation.
雙芯光伏線纜,目前是我們公司專門為光伏電站特別配製。國內第一傢。
產品簡要說明:
Brief introductions of product:
光伏線纜是專為太陽能配電系統設計的單芯軟電纜.
Photovoltaic cable is designed for solar power distribution system design of the single core soft cable.
光伏線纜可承載超強的機械負荷,具有良好的耐磨、耐候特性,具有超長的使用壽命。基於絕緣材料技術的發展,一些小線徑的電纜具有同樣優越的特性。
Photovoltaic cable can carry super mechanical load,good wear-resisting,high temperature resistant,weather resistance,with long service life.based on the insulation technology development,some XiaoXian diameter of cable is also advantageous characteristics.
精密的自動化控製系統,確保線纜公差精確,易於組裝。高能電子束輻照交聯材料,確保壓模、成型、焊接過程中無回縮無其變化。在為災發生時,不會產有毒有害氣體,發煙量低。
Precision automation control system to ensure accurate and assemble cable tolerances,High-energy electron beam irradiation crosslinking materials to ensure molding.forming and welding process retraction less no other changes.In case of a fire,won't produce toxic or harmful gases.low smoke.
產品主要參數:
Mainly parameters of product:
額定電壓:U0/U=600V AC,1000/1800V DC
The rated voltage:U0/U=600V AC,1000/1800V DC
測試電壓:50Hz,6500V,5min
Test voltage:50Hz,6500V,5min
額定溫度:-40℃至+120℃
Rated temperature:-40℃ to +120℃
使用壽命:(-40 ℃到+90℃)>25年
Longevity:(-40 ℃ to +90℃)>25years
導體最高使用溫度:+120℃
Max.conductor temperature:+120℃
短路使用溫度:+280℃
Short circuit using temperature:+280℃
彎曲半徑:≥4×Ø(D<8mm) ≥6×Ø(D≥8mm)
Bending radius:≥4×Ø(D<8mm) ≥6×Ø(D≥8mm)
阻燃測試:IEC610332-1,UL1581 VW-1
Retarding test:IEC610332-1,UL1581 VW-1
煙密度:IEC61034,EN50268-2
Smoke density:IEC61034,EN50268-2
鹵酸氣體釋放量:IEC670754-1 EN50267-2-1
Stewed acid gas release quantity:IEC670754-1 EN50267-2-1

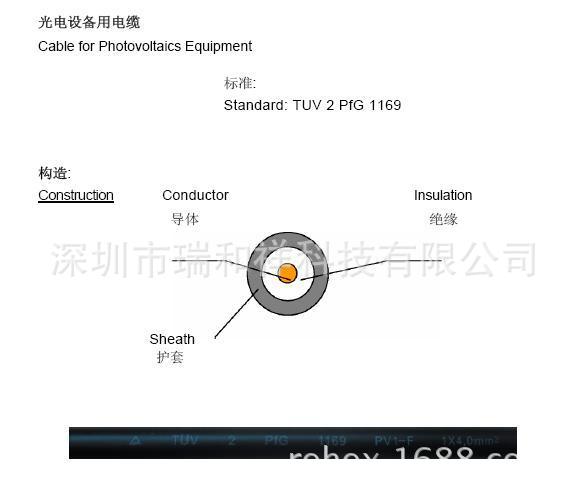

產品設計圖紙:
Design paper of product:
產品安裝方式:
Way of product installation:
Quality inspection process:
質量檢測流程:

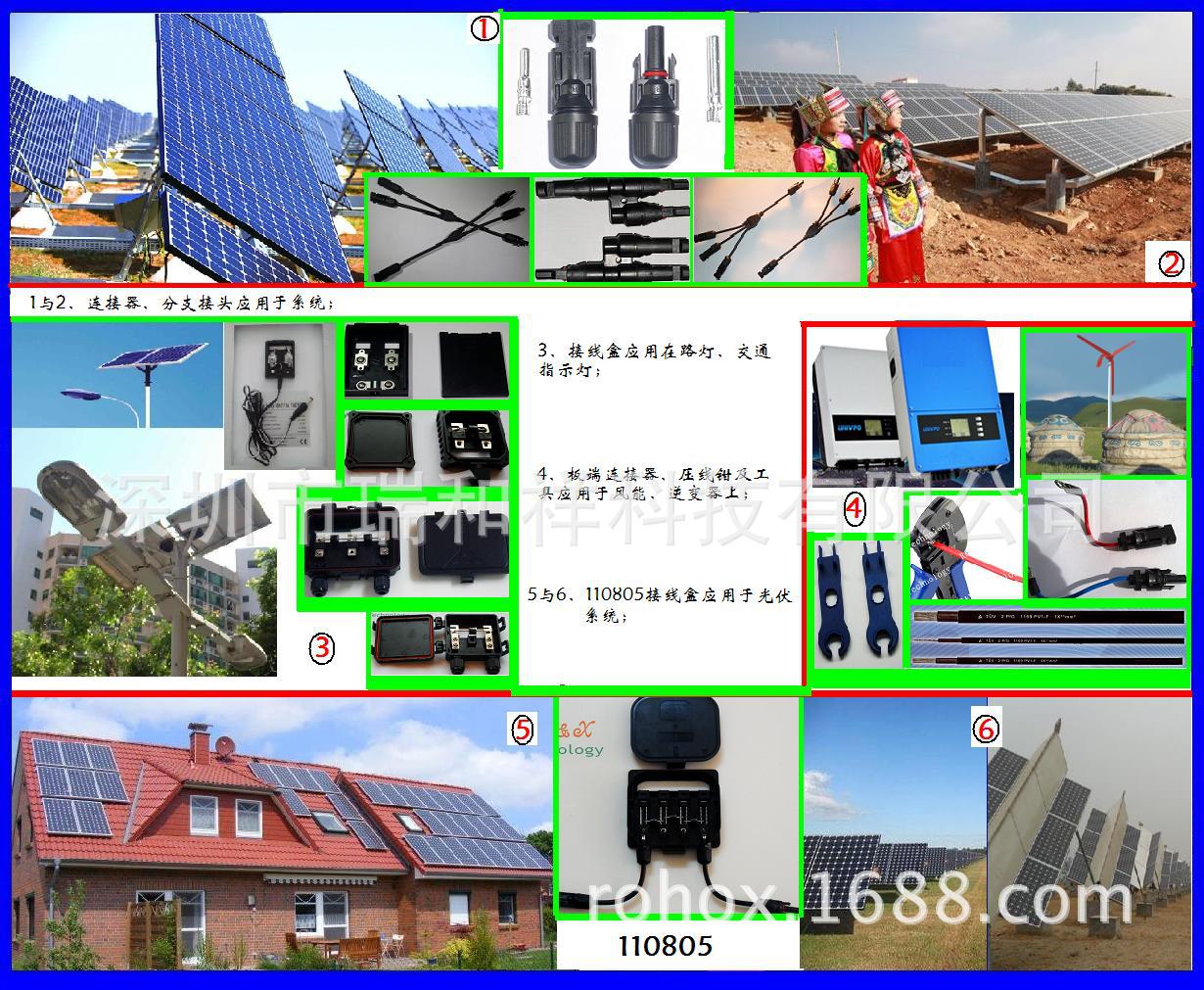

產品應用實例圖片:
Application pictures of product:
Machine equipment and production workshop:
機器設備與生產車間:
其他工程產品圖片:
Product pictures of other project:
Pictures of discussing in the exhibition:
參展洽談圖片
工程實例圖片展:
True application picture of the project:
單芯的主要用於接線盒。是接線盒與電站上專用的。
