Specifications

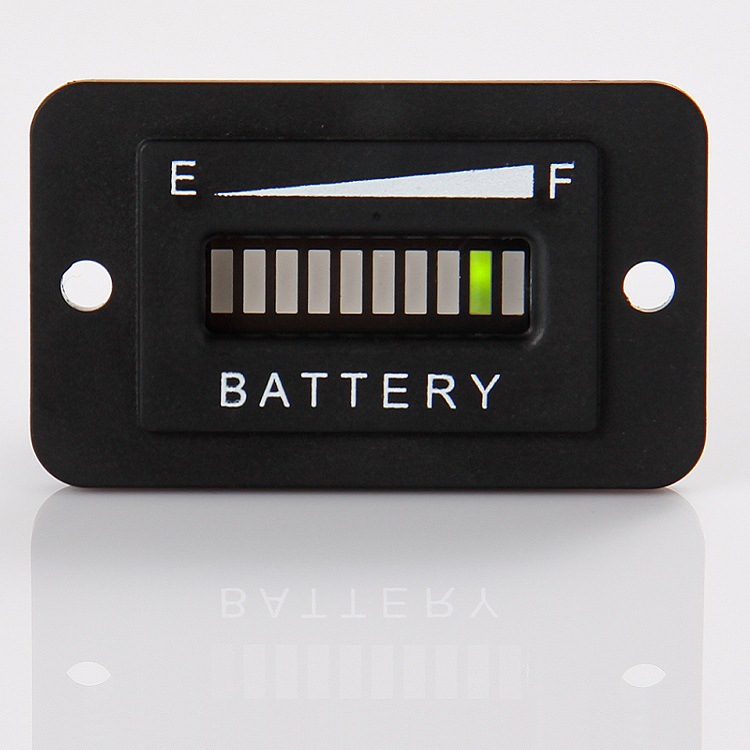

Battery Indictor,SRT-BI001,Solar System, Forklift, Golf Cart or other DC battery powered equipment
Used for forklift trucks, Golf Carts, RV's, Boats, Scooters and electric vehicle. etc
For use on any equipment wher the battery status is important. It is specifically designed for battery power equipment to monitor the charge status of the battery or batteries.
Competitive advantage
1.High reliability
2.Low cost and small size
3.Lower operating current
4.Wide operating voltage and temperature range
5.Solid state electronics
6.Quartz crystal
Parameter
Display: 10-bar LED indicates the battery state of discharge.
Terminals: Max. 3; 3/16”-spades
Mounting: U-shape bracket
Panel Cutout (mm): 37x25mm
Operating Temperature: -40°C to +85°C
Storage Temperature: -50°C to +90°C
Humidity: 95% RH (Non Condensing) at 38°C
Operating voltage: 12/24V; 36V; 48V; 72V
Battery indicating range can be customized (e.g. 2.04Vpc at full, 1.73Vpc at empty).
EEPROM memory
