  • 大量供應批發優質鋁合金電機配減速機TS5622-B5
    商品代碼: 3956102
    (可點擊以下立即詢價直接線上諮詢,或來電提供此商品代碼諮詢)
    即日起提供日本樂天代購服務-詳見 Rakuten-suki日本樂天代購,謝謝。
    商品詳細說明

    產品標註:
    電機產品標註按以下規則標註:系列代號+機座號+鐵芯長度規格號+電機極數+安裝形式.
    例:YS7124 B5
    YL-90L-2 B3

    性能參數
    TYPEPOWER(KW)NN(R/MIN)IN(A)COSØMN(N.M)Mst/MNMMAX/MNIS/INη(%)
    2Pn0=3000r/min
    YS50120.0428000.170.650.1372.32.3655
    YS50220.0628000.230.660.2052.32.3660
    YS56120.0928000.320.680.3072.32.3662
    YS56220.1228000.380.710.4102.32.3667
    YS56320.1828000.650.700.6142.32.3660
    YS63120.1828000.530.750.6142.32.3669
    YS63220.2528000.680.780.8532.32.3672
    YS63320.3728001.050.781.262.32.3668.5
    YS71170.3728000.960.801.262.32.3673.5
    YS71220.5528001.350.821.882.32.3675.5
    YS71320.7528001.820.832.562.32.3675.5
    YS80120.7528001.750.852.562.32.3676.5
    YS80221.128002.550.853.752.32.3677
    Y90S-21.528403.440.855.042.22.3678
    Y90L-22.228404.830.867.402.22.3780.5
    Y100L-2328606.390.8710.02.22.2782
    Y100L2-2428608.100.8713.42.22.2784
    Y112M-2428807.990.8713.32.22.2785.5
    Y132S-25.5290011.10.8818.12.22.2785.5
    Y132M-27.52900150.8824.72.22.2786.2
    4Pn0=1500r/min
    YS50140.02514000.170.530.1712.42.4642
    YS50240.0414000.230.540.2732.42.4650
    YS56140.0614000.280.580.4102.42.4656
    YS56240.0914000.390.610.6142.42.4658
    YS56340.1214000.520.620.8192.42.4656.5
    YS63140.1214000.480.630.8192.42.4660
    YS63240.1814000.650.661.232.42.4664
    YS63340.2514000.860.671.712.42.4666
    YS71140.2514000.830.681.712.42.4667
    YS71240.3714001.120.722.532.42.4669.5
    YS71340.5514001.660.703.752.42.4672
    YS80140.5514001.560.733.752.42.4673.5
    YS80240.7514002.010.755.122.32.4673.5
    YS80341.114002.780.777.502.32.3678
    YS90S-41.114202.750.78704.2.32.36.578
    YS90L-41.514203.650.7910.12.32.36.579
    Y100L1-42.214205.030.8214.82.22.3781
    Y100L2-4314206.820.8120.22.22.3782.5
    Y112M-4414408.70.8226.52.22.2784.5
    Y132S-45.5145011.60.8436.22.22.2785.5
    Y132M-47.5145015.40.8549.42.22.2787
    6Pn0=1000r/min
    YS7116 0.189100.740.637.882.02.05.559
    YS71260.259100.940.642.622.02.05.563
    YS80160.379101.290.643.882.02.05.568
    YS80260.559101.810.655.772.02.05.571
    Y90S-60.759202.190.707.782.02.05.574.5
    Y90L-61.19202.980.7211.42.02.05.578
    Y100L-61.59403.900.7415.22.02.0679
    Y112M-62.29405.60.7422.32.02.0680.5
    Y132S-639607.20.7629.82.02.06.583
    Y132M1-649609.40.7739.82.02.06.584
    Y132M2-65.596012.60.7854.72.02.06.585.3
    註:以上參數按三相380V/50Hz的額定電壓及頻率提供。

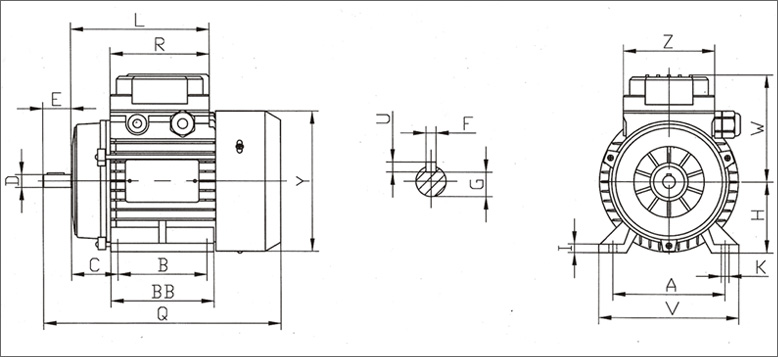

    YS -B3-安裝尺寸


     ABCDEFGHIQUVWYBBLRZK
    5080633392037.250717031007699739870655.8
    5690713592037.2568195311093117879970655.8
    631008043112348.563922241239512210410270658
    71112904514305117110245513610813711311480758
    80125100511940615.580102836154118156125118807510
    901401255624508209012336718012816915513498.598.510
    10016014063286082410014390720514519417614098.598.512
    11219014070286082411215400723015321818016512212212
    132M216215893880103313216500826018825625519914514512
    132S21617889388010331321646382601882562161991451452

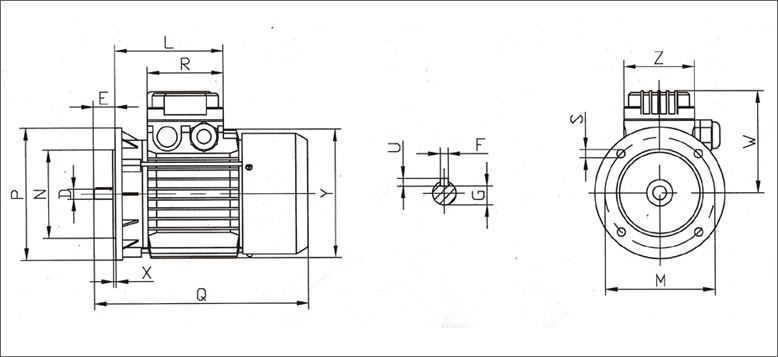

    YS -B14-安裝尺寸


     DEFGMNPQSUWXYLRZ
    5092037.2554070170M53762.599987065
    5692037.2655080197M53932.51171007065
    63112348.5756090220M54952.51221027065
    7114305118570105245M651082.51371148075
    801940615.510080120283M6611831561188075
    90245082011595138336M87128316913598.598.5
    1002860824130110160390M871453.519414198.598.5

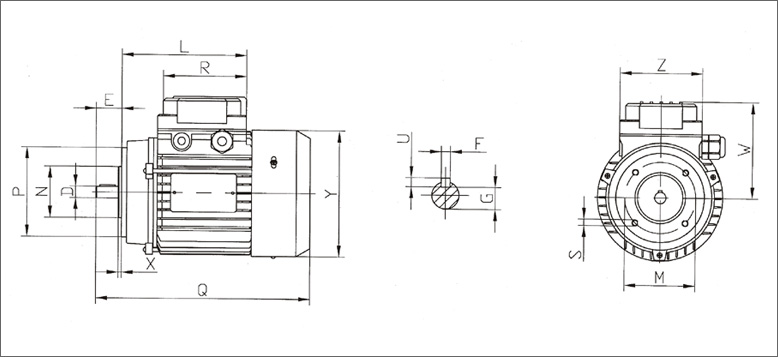

    YS -B5-安裝尺寸


     DEFGMNPQSUWXYLRZ
    5692037.21008012019773932.51171007065
    63112348.5115951402249.549531221047065
    7114305111301101602391051083.51371088075
    801940615.51651302002781261183.51561148075
    9024508201651302003361261183.516913598.598.5
    1002860824215180250390157145419414198.598.5
    11228608242151802504001571534218165122122
    132M388010332652303005001581884256199145145
    132S388010332652303004631581884256199145145
