加工定制:是 | 型號:AH000200QTA | 功率:8W-58W(W) |
類型:電子鎮流器 | 電壓:110V-277V(V) | 品牌:AOHUI LIGHTING |
頻率:50/60(HZ) | 工作電流:0.07~1.00(A) | 啟動電流:0.07~1.00(A) |
功率因數:0.97~0.99 |

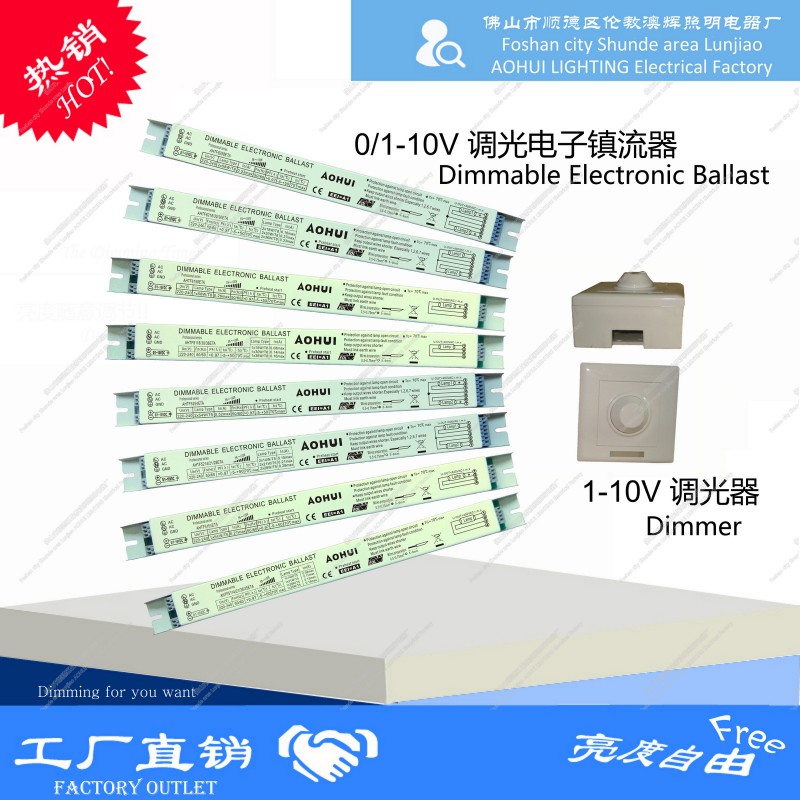

(8W-58W)x2 一拖二調光電子鎮流器
-輸入電壓220V或110V或110V-270V全電壓,工作頻率50/60Hz
-功率可使用范圍 8W~58W(非通用),例如 8Wx2,14Wx2,21Wx2......58Wx2
- 0/1-10V模擬信號標準調光控制接口,調光范圍5-100%
-可以用智能照明系統控制,也可以用0/1-10V調光器控制調光,組成小型的調光系統使用
-適用T5、T8直形燈管,PL、PH插拔型燈管、T5、T6環形燈管等
-可以帶動二支燈管
-可以任何調光點啟動,調至最暗節能省電高達80%,節約能源
-無級調光,平滑無頻閃,能效等級EEI=A1
-連接調光器可以調光,斷開調光器最亮狀態正常使用
-有源功率因數校正,高功率因數,低諧波,輸入電壓波動不影響光功率輸出
-采用IC控制電路,變頻預熱啟動,良好的啟動特性有效地防止燈管黑化和延長使用壽命
-帶有燈管壽終和異常狀態保護
-更換燈管後自動重啟動
-使用簡便安全的標準接線端口,適合不同的燈具安裝
-外殼白色塑膠盒或鐵盒,雙向安裝孔,輕盈精簡的外殼設計適合不同的燈具配套,如格柵燈、T5一體燈、吸頂燈、落地燈、筒燈、壁燈、場景燈等
-以光暗隨意、環保節能、控制方便、安裝簡單、適用范圍廣、安全性好、穩定性高的優點,廣泛應用於商業照明、工業照明、傢居照明、會議室、展覽館、演播室、影劇院及室外夜景照明等等場合,滿足不同的燈光環境和控制需要
-方型外殼 122*78*33mm,長方型外殼 360*30*30mm
- Input 220V, 110V or wide voltage 110-277V, 50/60 Hz
- Range of Wattage can bei use 8W~58W(Not mix),e.g. 8Wx2,14Wx2,21Wx2......58Wx2
- 0/1-10 Analog signal dimmable control interface standard and the dimmable range 5-100%
- Use to intelligent lighting system or compose 0/1-10V dimmable to a small dimmable lighting system
- Suitable to T5, T8 linear fluorescent tubes, the PL, PH plug tubes, and T5, T6 circular fluorescent tubes
- Startup two pieces lamp
- Startup by anyone dimmable spot, attune to the darkest energy-efficient reach up to 80%
- Dimmer Stepless, smooth and no frequently glisten, EEI=A1
- Connect to dimmable can dimmer, disconnect dimmable is the brightest, normal service condition
- APFC, high power factor, low harmonic wave, input voltage fluctuation can not influence optical power output
- Use IC to control circuit, frequency conversion warm start, the nice starting characteristic effectively prevent tube melanism and extend light life
- Protection against lamp open circuit. Protection against lamp fault condition
- Automatically restart after replacement bulbs
- Easy-to-use standard connection port security, suitable for different installation
- Plastic box or Iron white shell, two-way mounting hole, the lightweight and tidy shell, suitable for grille lamp, T5 Integration lamp, ceiling lamp, floor lamp, down lamp, wall lamp, scene lamp, etc
- Dimmer in arbitrary、energy saving、convenient control、wide application scope、safety、high stability, it widely used in different occasions commercial lamp, industrial lamp,、home lamp、meeting room、gallery、studio、theater and outdoor Lamp, etc. Meet the needs of different lamp environment and control needs
- Square size 122*78*33mm,rectangle size 360*30*30mm
