| 名稱 | mc4二極管連接器 | 產品用途 | 保護電路 |

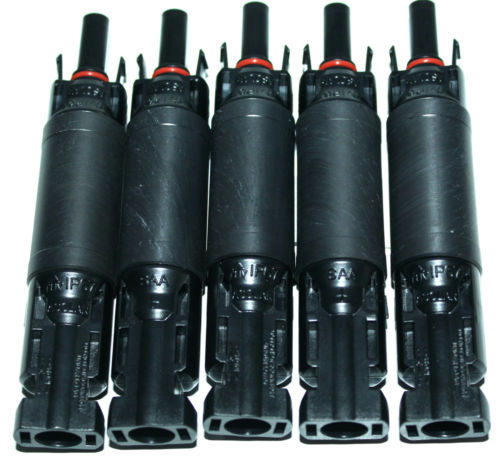

MC4光伏二極管連接器
Rated Voltage | TUV 1000V DC / UL 600V DC |
Rating Current | £30A |
Pin dimension | Æ4.0mm |
Pollution degree | 2 |
Protection class | Class II |
Contact Material | Copper, tin-plated |
Contact Resistance | £ 5mW |
Connector Material | PPO |
Degree of Protection IP | IP67(IEC 60529) |
Withdrawal Force | ³ 50N |
Inserition Force | £50N |
Temperature Range | -40ºc ∼ +85ºc |
Flame Class | UL94V - 0 |
Diode forward voltage | 10AMP/12AMP |
