18升八角農用背負式電動噴霧器

充電應註意充滿8小時以上12小時以下

18 liter star and star
Charging should be paid attention to more than 12 hours less than 8 hours

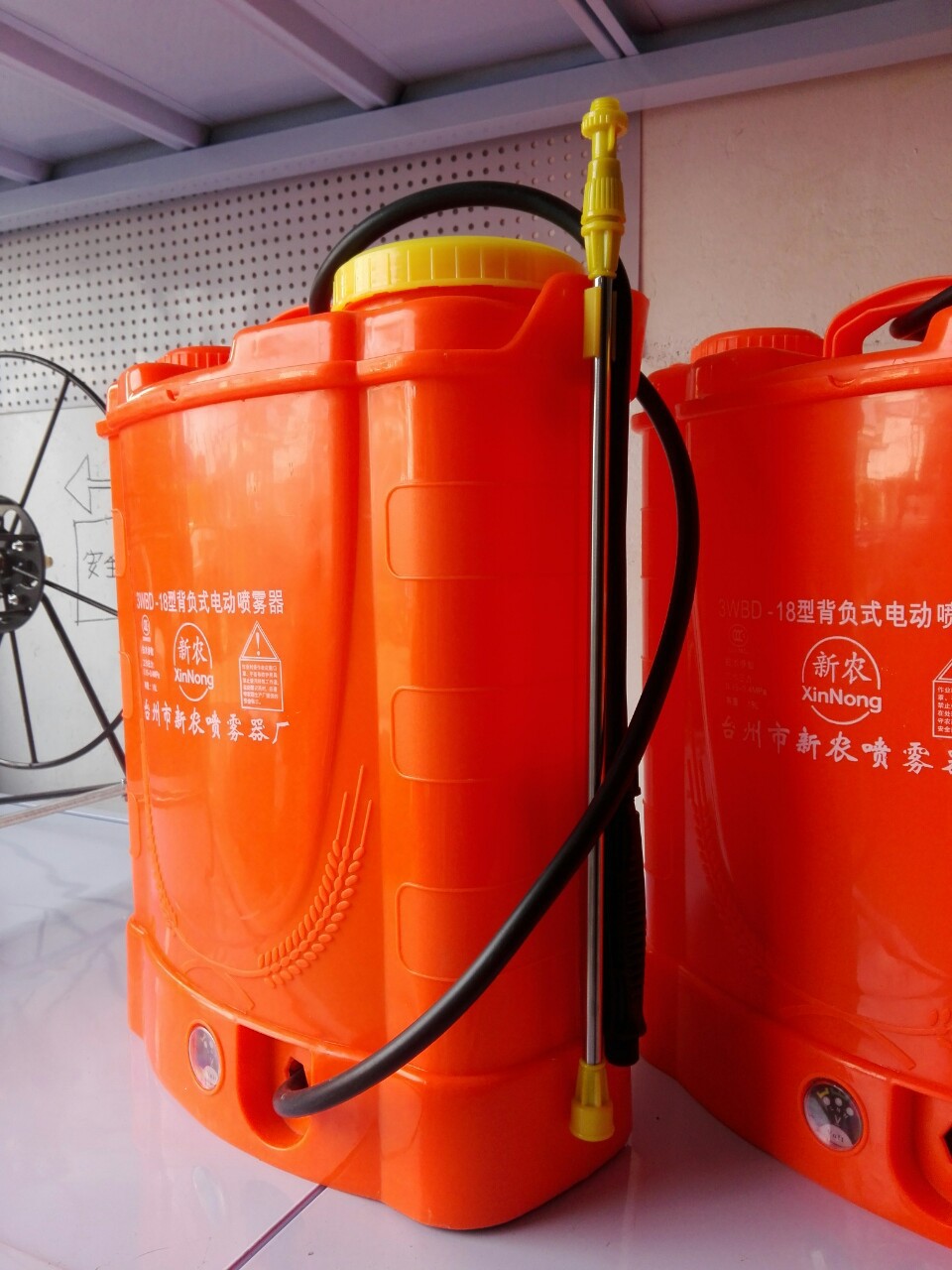

產品正麵細節圖

Product front detail drawing

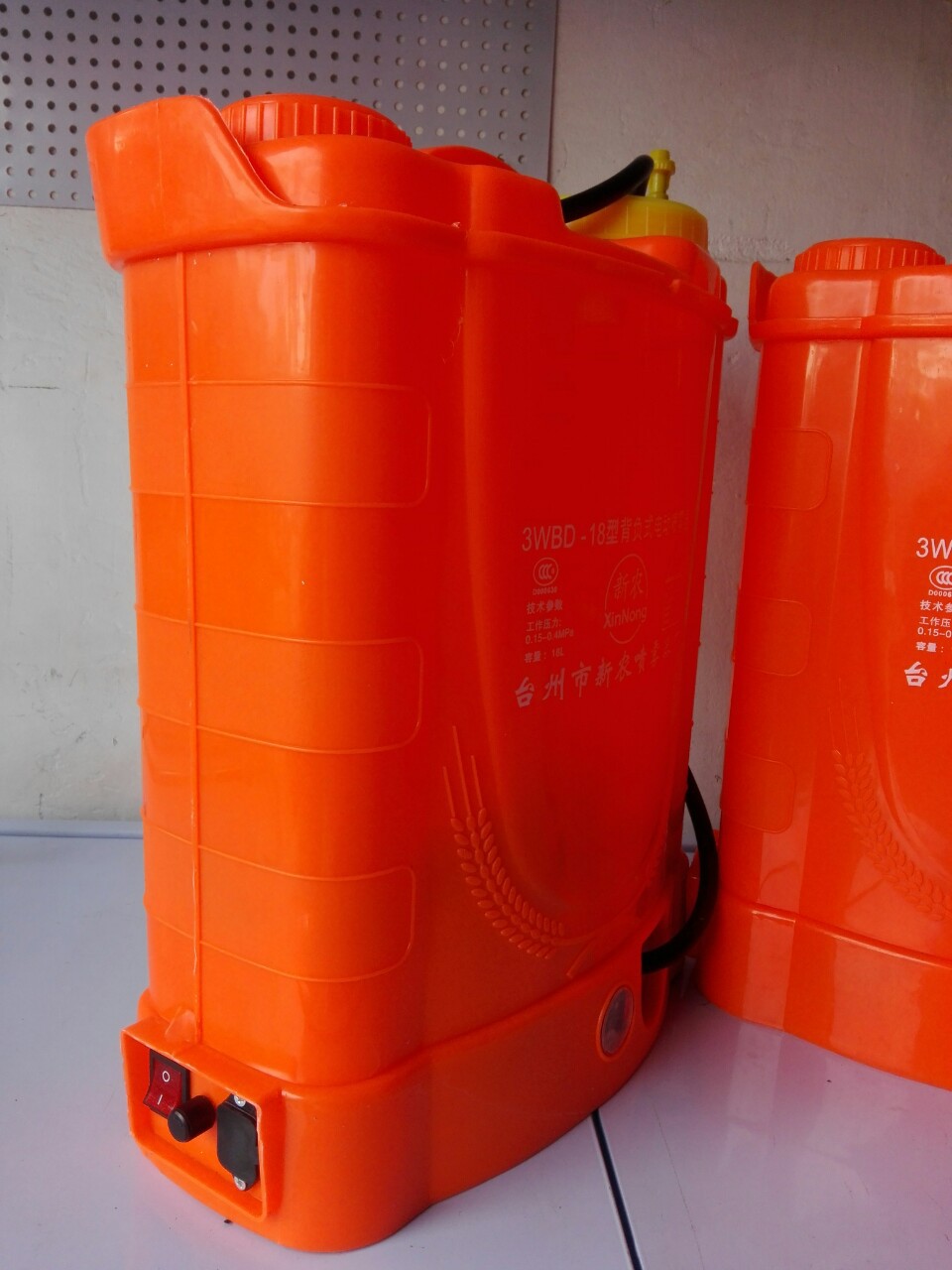

 產品側麵細節圖

Product side detail drawing

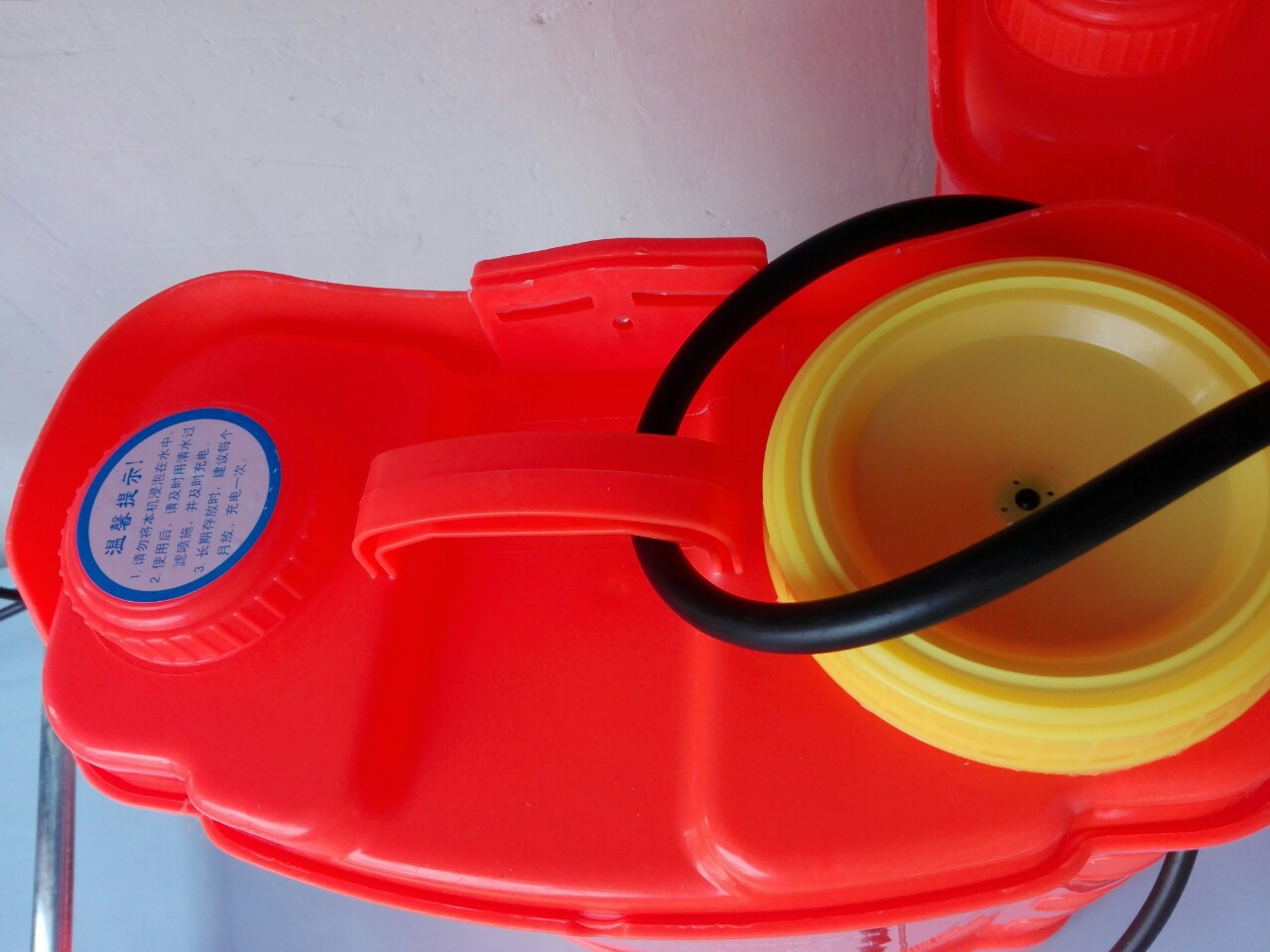

產品頂部細節圖

Product top detail chart

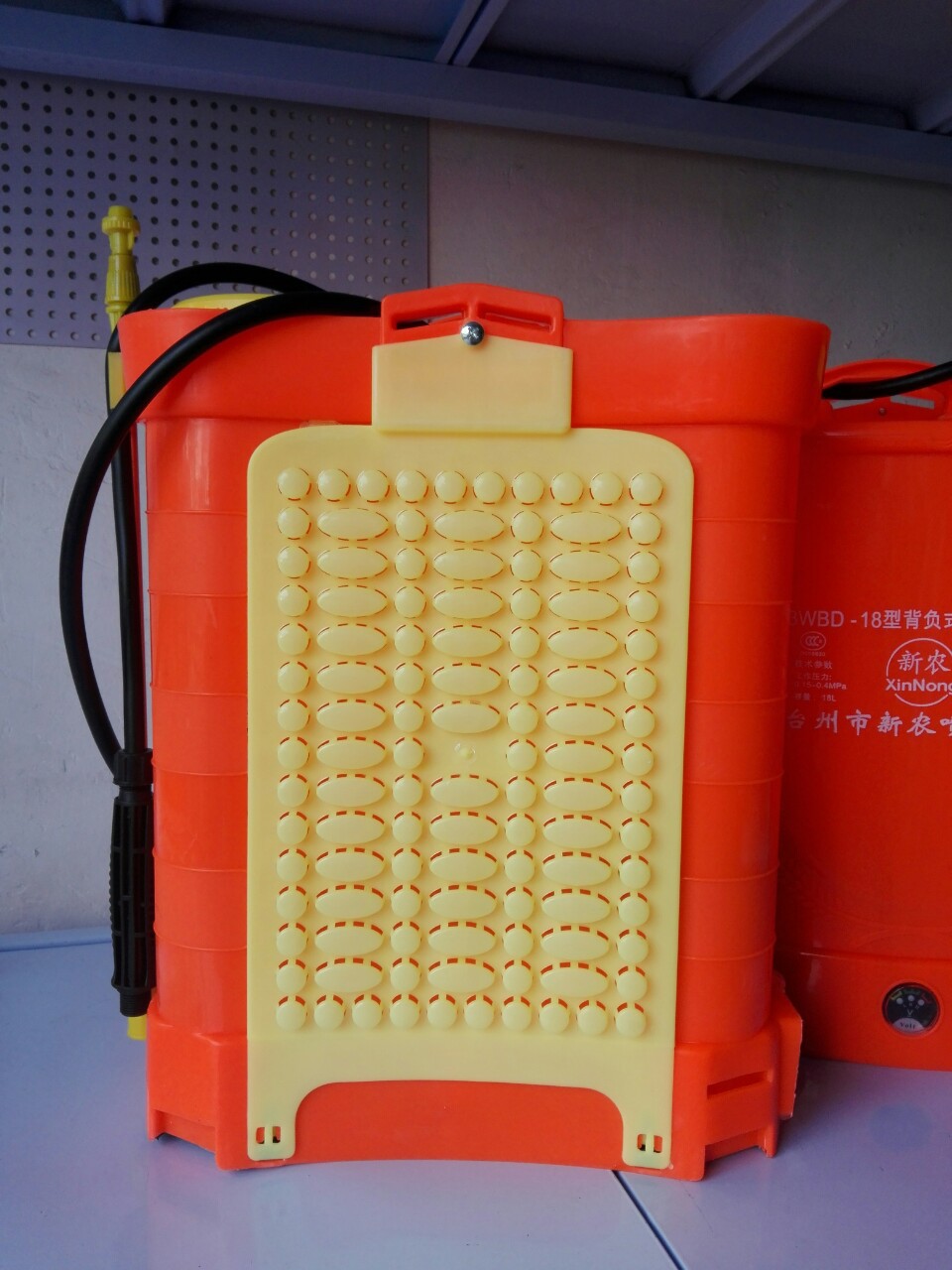

產品背麵細節圖

Product back detail drawing

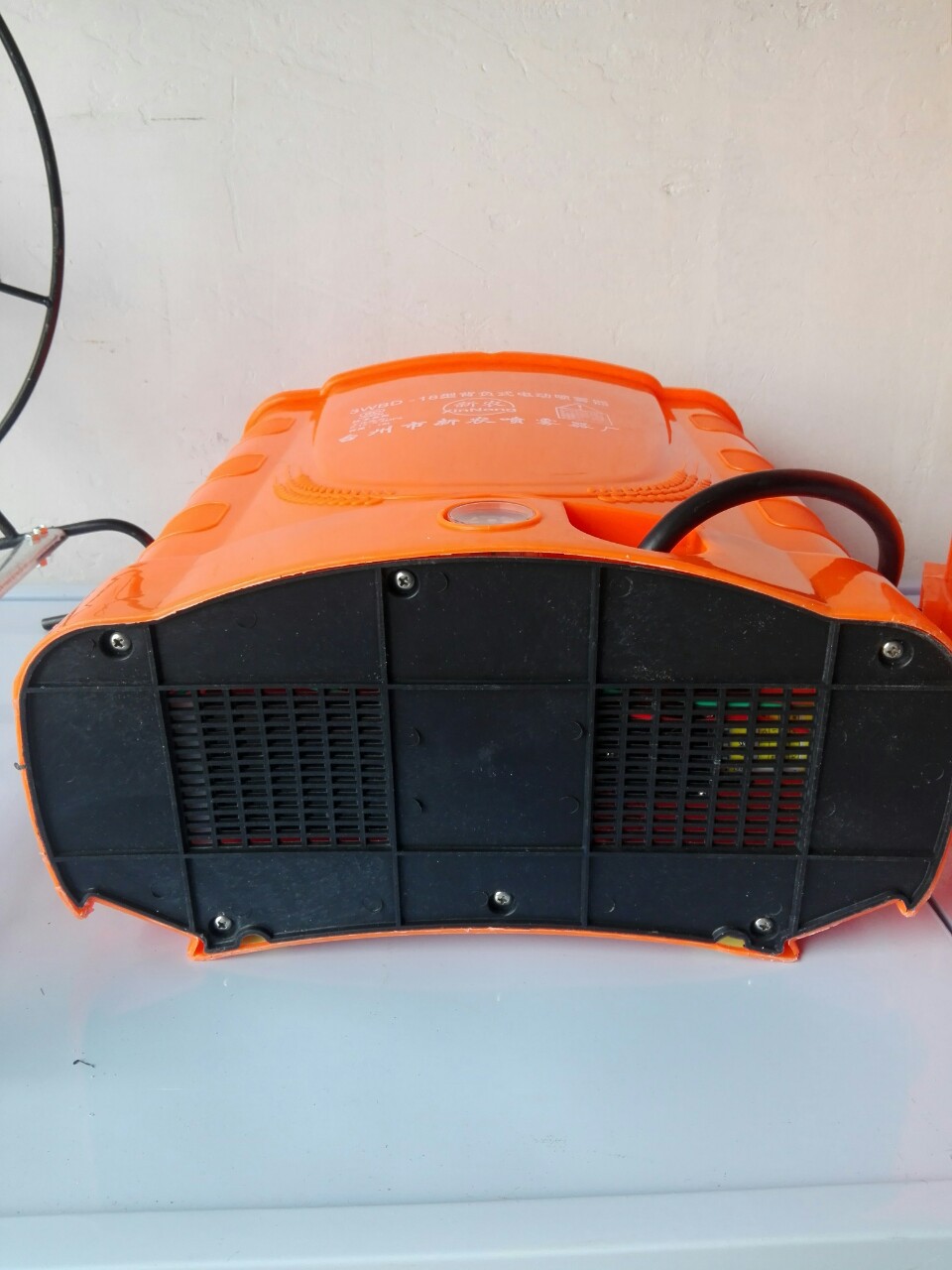

產品底部細節圖

Product bottom detail drawing

購買本產品包含全部使用所需配件：充電器一隻，手把一個，膠管一條，背帶一副，說明書一份，過濾網一個，噴頭有單雙噴頭、花灑噴頭，其他各種配件已全部安裝。

本產品水泵為回流式水泵，壓力大噴霧大，手把上無須使用開關，可延長水泵的使用壽命，使電動噴霧器更加耐用。

使用說明：

1、充電：購機後立即充電，將電瓶充滿電。因為電瓶出廠前隻有部分電量，完全充滿後方可使用。一般充電時間為8—1 2個小時。不要因為忘記切斷電源長時間(幾天幾夜)過充電而損傷電瓶。

2、充電時必需使用本機專用的充電器，與220V電壓連接。充電器紅燈亮，表示正在充電。充電器綠燈亮，表示充電基本完成，但此時電量較虛，需要再充1-2個小時才能真正充滿。

3、每次使用完後(無論使用時間長短)回傢立即充電，這樣可以延長電瓶的壽命。

4、如果噴霧器長時間不用(農閒時)，一般一個月充一次電，保證電瓶不虧電，這樣可以延長電瓶的壽命。

5、本機配有單噴頭、雙噴頭、花灑噴頭、使用時根據作物的不同，選用不同的噴頭。例如：1.2米的棉花，一次可以噴4-6行；大小麥、水稻一次可以噴6—8米；噴果樹，可以使用本機的藥桶也可以自己稍加改裝利用大水罐放在地上，配20—100米的長水管噴藥，本身噴的水霧可以高達6-8米，把噴桿加長可以噴到十幾米以上。

6、必須使用較乾凈水，添加藥液時必須使用本機配有的專用過濾網。

產品詳細介紹：

1、電池：12V  8/12AH全封閉免維護鉛酸電池

2、水泵：智能壓力開關隔膜泵（開關通水，水泵啟動、關水泵停止）

3、充電器：12V 1.5A智能型三段式充電器

4、桶身：全新聚炳烯料

5、噴桿：全新不銹鋼伸縮桿

6、噴頭：單噴頭、雙噴頭、花灑噴頭

7、電開關：紅頭電開關

8、電池容量顯示：帶電壓指示表

9、膠管：耐壓6-8Kg的全新橡塑軟管

10、整機毛重（kg）：5-6kg

11、噴霧幅寬：4-5米

12、藥箱容積（L）：20L

13、電壓：12V

14、流量：1.8-3.5L/min

15、功率：25W

16、工作壓力：2-3Kg

17、一次充電連續工作時間：4.5個小時左右

Buy this product contains all the necessary accessories: a charger, a, a hose, a pair of braces, a manual, filter net a, nozzle with single and double nozzle, shower nozzle and a variety of other accessories has been fully installed.
The product pump is a return type water pump, the pressure is big, the hand is not need to use the switch, the service life of the pump can be prolonged, and the electric sprayer is more durable.
Instructions：
1, charging immediately after purchase, will be full of electricity. Because the battery is only part of the battery before leaving the factory, fully filled with the rear can be used. General charging time is 12 - 8 hours. Do not forget to cut off the power supply for a long time (a few days and a few nights) over charging and damage the battery.
2, charge must use this machine dedicated charger, and 220V voltage connection. Charger red light, said it was charging. Charger green light, said the basic charge is completed, but at this time the power is virtual, need to charge 1-2 hours to really full.
3, after each use (regardless of the length of time) to go home immediately after the charge, so that the battery life can be extended.
4, if the sprayer is not used for a long time (slack), general a month on a single charge to ensure no loss battery power, so you can extend battery life.
5, the machine is equipped with single nozzle, double nozzle, shower nozzle, when used according to the different crops and use different nozzle. For example: 1.2 meters of cotton, a can spray 4-6; wheat, barley, rice a can injection for 6 - 8 meters; spray fruit trees can use the medicine barrel can also himself a little modification on the ground by the pitcher, with 20 - 100 meters long pipes spraying, spray mist can be as high as 6 to 8 meters, the spray rod extension can be sprayed to more than 10 meters.
6, must use clean water, add the liquid must use the machine equipped with a special filter.
Detailed product introduction:
1, battery: 8/12AH 12V full closed maintenance free lead-acid batteries
2, pump: diaphragm pump intelligent pressure switch (switch off pump water, pump start and stop)
3, charger: 1.5A 12V intelligent three paragraph charger
4, the barrel: new polypropylene material
5, spray rod: new stainless steel telescopic rod
6, sprinkler: single nozzle, double nozzle, shower nozzle
7, electric switch: red head electric switch
8, the battery capacity display: voltage indicator
9: the new rubber hose, hose pressure 6-8Kg
10, the gross (kg): 5-6kg
11, spray width: 4-5 meters
12, container capacity (L): 20L
13, voltage: 12V
14, flow: 1.8-3.5L/min
15, power: 25W
16, working pressure: 2-3Kg
17, a continuous charging time: 4.5 hours or so
