加工定製 | 否 | 安裝形式 | 螺紋安裝 | 種類 | 多款供選 |
品牌 | 青島凱迪優液壓有限公司 | 材質 | 碳鋼 | 型號 | 型號齊全 |
適用范圍 | 適用於工程機械、液壓機械、機床、註塑機、液壓泵站等需要高壓的設備上輸送液壓油、高壓水、切削液等。 | 產品別名 | 高壓管件 | 接管口徑 | 多種可選(mm) |
耐溫 | 350(℃) | 耐壓 | 21.0-70.0(MPa) | 螺紋形式 | 英製PF PT (G R Rc) |

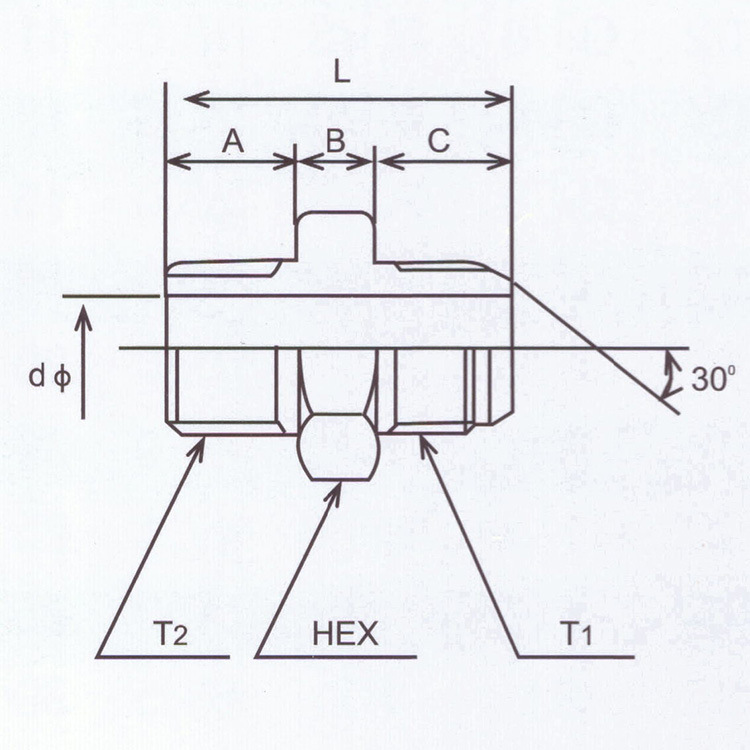

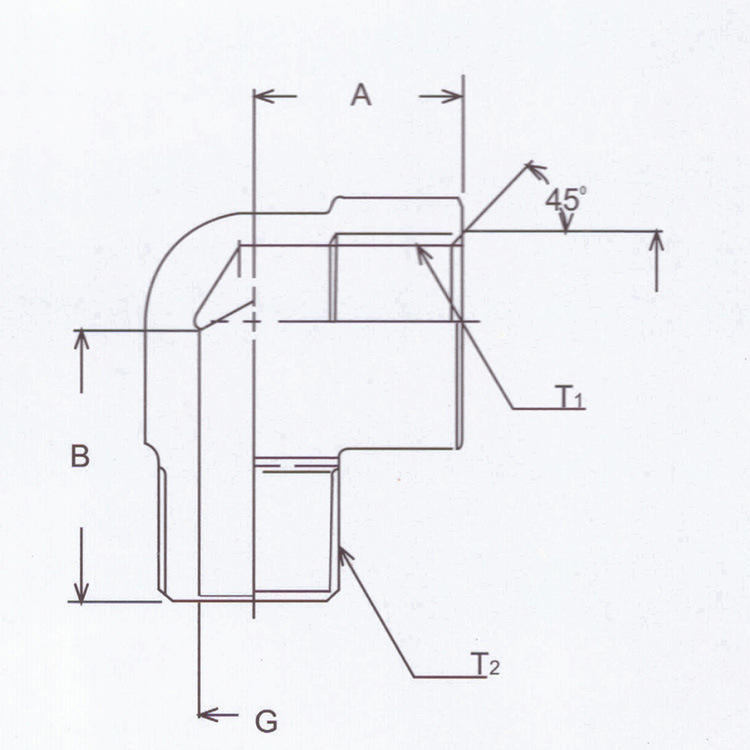

規格 | T1 | T2 | Amm | Bmm | Cmm | dφmm | Lmm | Hmm |
02 | G1/8 | R1/8 | 10 | 6 | 13 | 4 | 29 | 14 |
04 | G1/4 | R1/4 | 13 | 8 | 16 | 5.5 | 37 | 19 |
06 | G3/8 | R3/8 | 15 | 8 | 17.5 | 7 | 40.5 | 22 |
08 | G1/2 | R1/2 | 18 | 10 | 20 | 10 | 48 | 27 |
12 | G3/4 | R3/4 | 20 | 12 | 21.5 | 16 | 53.5 | 36 |
16 | G1 | R1 | 22 | 14 | 22.5 | 21.5 | 58.5 | 41 |
20 | G11/4 | R11/4 | 25 | 17 | 27 | 27.5 | 69 | 50 |
24 | G11/2 | R11/2 | 25 | 20 | 27 | 33 | 72 | 60 |
32 | G2 | R2 | 30 | 22 | 30 | 44 | 82 | 70 |

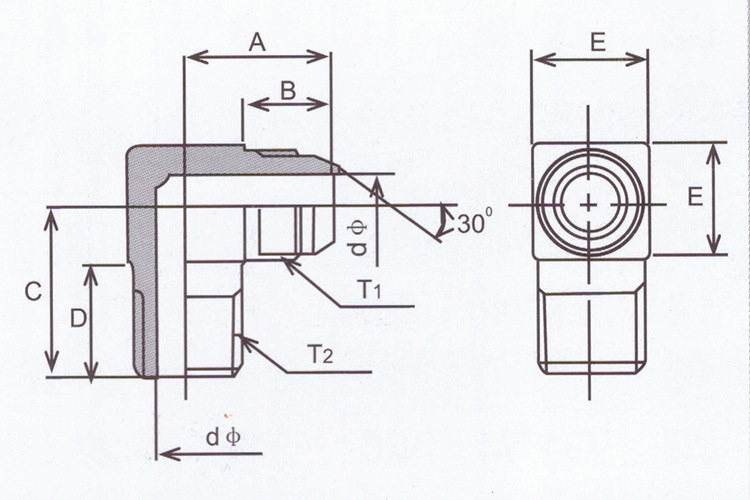

規格 | T1 | T2 | Amm | Bmm | Cmm | Dmm | dφmm | Emm |
02 | G1/8 | R1/8 | 20 | 13 | 21 | 14 | 4 | 14 |
04 | G1/4 | R1/4 | 24 | 16 | 25 | 17 | 5.5 | 17 |
06 | G3/8 | R3/8 | 27.5 | 17.5 | 30 | 20 | 7 | 19 |
08 | G1/2 | R1/2 | 32 | 20 | 36 | 24 | 10 | 24 |
12 | G3/4 | R3/4 | 36.5 | 21.5 | 43 | 28 | 16 | 30 |
16 | G1 | R1 | 40.5 | 22.5 | 50 | 32 | 21.5 | 36 |
20 | G11/4 | R11/4 | 49.5 | 27 | 57.5 | 35 | 27.5 | 45 |
24 | G11/2 | R11/2 | 52 | 27 | 63 | 38 | 33 | 50 |
32 | G2 | R2 | 61.5 | 30 | 73.5 | 42 | 44 | 63 |

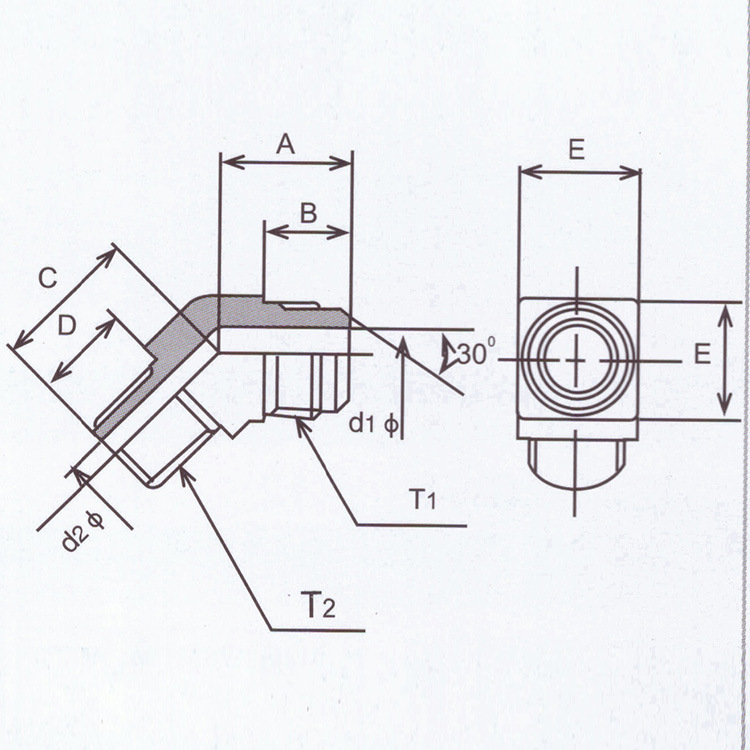

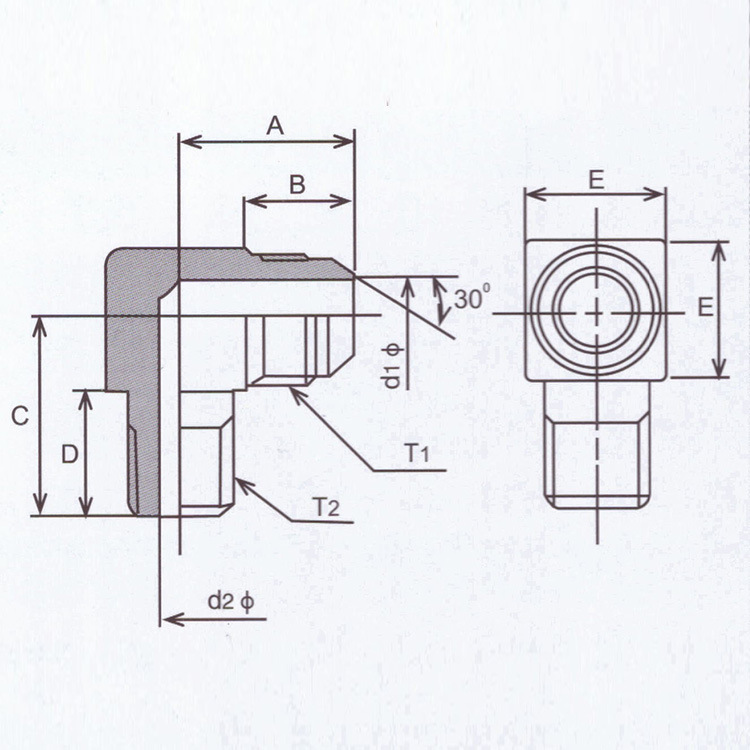

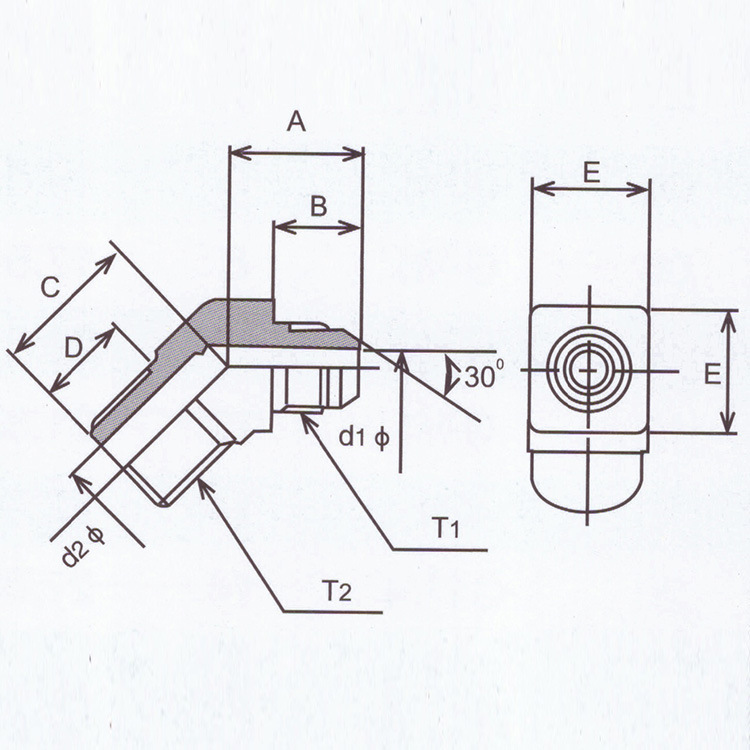

規格 | T1 | T2 | Amm | Bmm | Cmm | Dmm | d1φmm | d2φmm | Emm |
02-04 | G1/8 | R1/4 | 21 | 13 | 25 | 17 | 4 | 5.5 | 14 |
04-06 | G1/4 | R3/8 | 26 | 16 | 30 | 20 | 5.5 | 7 | 19 |
06-08 | G3/8 | R1/2 | 29.5 | 17.5 | 36 | 24 | 7 | 10 | 24 |
08-12 | G1/2 | R3/4 | 35 | 20 | 43 | 28 | 10 | 16 | 30 |
12-16 | G3/4 | R1 | 39.5 | 21.5 | 50 | 32 | 16 | 21.5 | 36 |
16-20 | G1 | R11/4 | 45 | 22.5 | 57.5 | 35 | 21.5 | 27.5 | 45 |
20-24 | G11/4 | R11/2 | 52 | 27 | 63 | 38 | 27.5 | 33 | 50 |
24-32 | G11/2 | R2 | 58.5 | 27 | 73.5 | 42 | 33 | 44 | 63 |

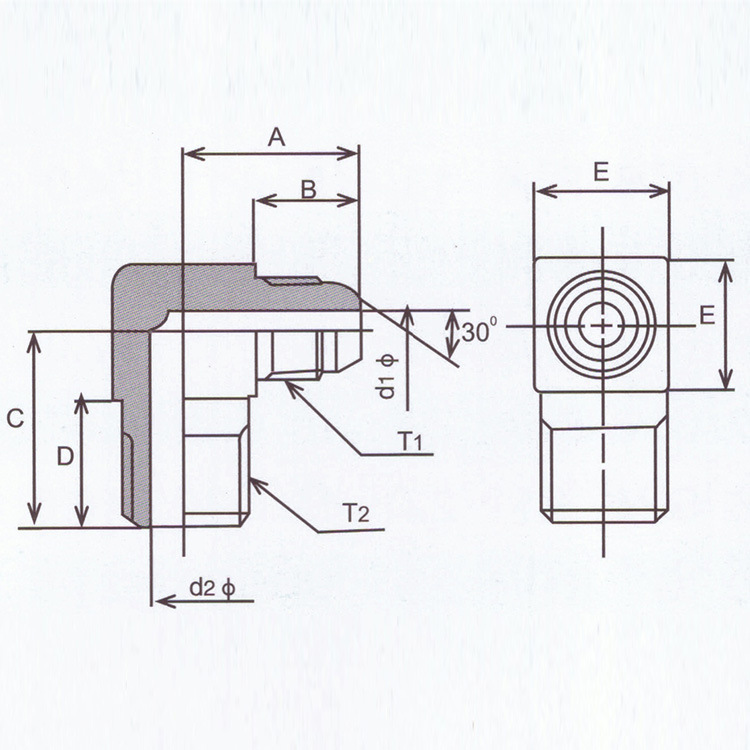

規格 | T1 | T2 | Amm | Bmm | Cmm | Dmm | d1φmm | d2φmm | Hmm |
04-02 | G1/4 | R1/8 | 24 | 16 | 22 | 14 | 5.5 | 4 | 17 |
06-04 | G3/8 | R1/4 | 27.5 | 17.5 | 27 | 17 | 7 | 5.5 | 19 |
08-06 | G1/2 | R3/8 | 32 | 20 | 32 | 20 | 10 | 7 | 24 |
12-08 | G3/4 | R1/2 | 36.5 | 21.5 | 39 | 24 | 16 | 10 | 30 |
16-12 | G1 | R3/4 | 40.5 | 22.5 | 46 | 28 | 21.5 | 16 | 36 |
20-16 | G11/4 | R1 | 49.5 | 27 | 57.5 | 32 | 27.5 | 21.5 | 45 |
24-20 | G11/2 | R11/4 | 52 | 27 | 63 | 35 | 33 | 27.5 | 50 |
32-24 | G2 | R11/2 | 61.5 | 30 | 73.5 | 38 | 44 | 33 | 63 |

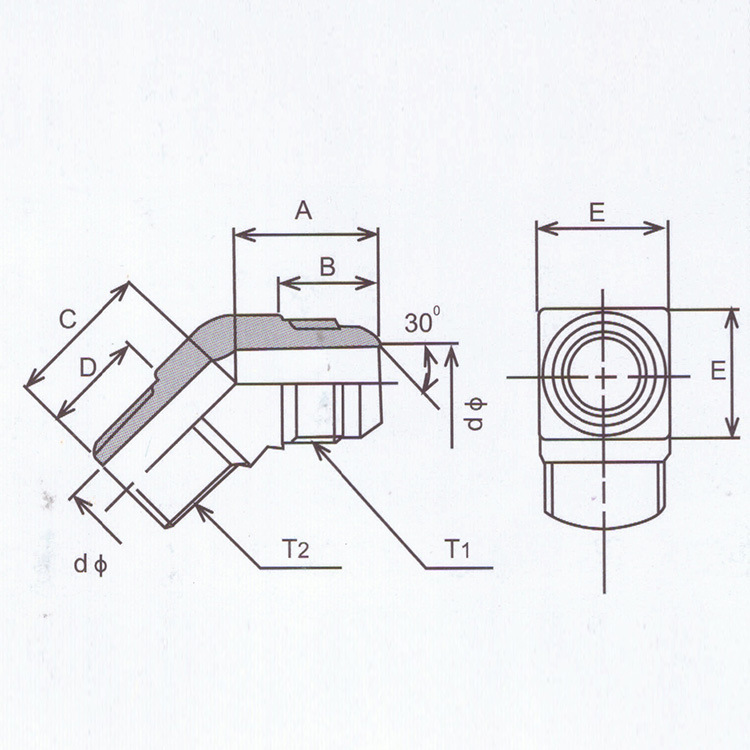

規格 | T1 | T2 | Amm | Bmm | Cmm | Dmm | dφmm | Emm |
02 | G1/8 | R1/8 | 19 | 13 | 18 | 12 | 4 | 14 |
04 | G1/4 | R1/4 | 22 | 16 | 19 | 13 | 5.5 | 17 |
06 | G3/8 | R3/8 | 24.5 | 17.5 | 22 | 15 | 7 | 19 |
08 | G1/2 | R1/2 | 28.5 | 20 | 27 | 18 | 10 | 24 |
12 | G3/4 | R3/4 | 31.5 | 21.5 | 30 | 20 | 16 | 30 |
16 | G1 | R1 | 34 | 22.5 | 34 | 22 | 21.5 | 36 |
20 | G11/4 | R11/4 | 41 | 27 | 40 | 25 | 27.5 | 45 |
24 | G11/2 | R11/2 | 43 | 27 | 41 | 25 | 33 | 50 |
32 | G2 | R2 | 50 | 30 | 50 | 30 | 44 | 63 |
規格 | T1 | T2 | Amm | Bmm | Cmm | Dmm | d1φmm | d2φmm | Emm |
02-04 | G1/8 | R1/4 | 19 | 13 | 19 | 13 | 4 | 5.5 | 14 |
04-06 | G1/4 | R3/8 | 23 | 16 | 22 | 15 | 5.5 | 7 | 19 |
06-08 | G3/8 | R1/2 | 26.5 | 17.5 | 27 | 18 | 7 | 10 | 24 |
08-12 | G1/2 | R3/4 | 30 | 20 | 30 | 20 | 10 | 16 | 30 |
12-16 | G3/4 | R1 | 33 | 21.5 | 34 | 22 | 16 | 21.5 | 36 |
16-20 | G1 | R11/4 | 41 | 22.5 | 40 | 25 | 21.5 | 27.5 | 45 |
20-24 | G11/4 | R11/2 | 43 | 27 | 41 | 25 | 27.5 | 33 | 50 |
24-32 | G11/2 | R2 | 50 | 27 | 50 | 30 | 33 | 44 | 63 |
規格 | T1 | T2 | Amm | Bmm | Cmm | Dmm | d1φmm | d2φmm | Hmm |
04-02 | G1/4 | R1/8 | 22 | 16 | 18 | 12 | 5.5 | 4 | 17 |
06-04 | G3/8 | R1/4 | 24.5 | 17.5 | 20 | 13 | 7 | 5.5 | 19 |
08-06 | G1/2 | R3/8 | 28 | 20 | 24 | 15 | 10 | 7 | 24 |
12-08 | G3/4 | R1/2 | 31.5 | 21.5 | 28 | 18 | 16 | 10 | 30 |
16-12 | G1 | R3/4 | 34 | 22.5 | 32 | 20 | 21.5 | 16 | 36 |
20-16 | G11/4 | R1 | 41 | 27 | 40 | 22 | 27.5 | 21.5 | 45 |
24-20 | G11/2 | R11/4 | 43 | 27 | 41 | 25 | 33 | 27.5 | 50 |
32-24 | G2 | R11/2 | 50 | 30 | 50 | 25 | 44 | 33 | 63 |

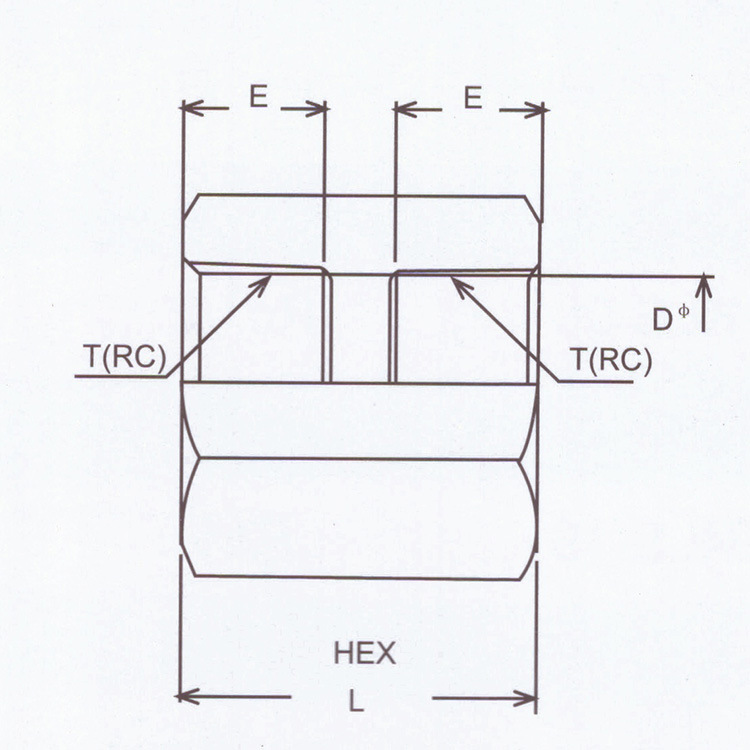

規格 | T(Rc) | Dφmm | Emm | Lmm | Hmm |
02 | 1/8 | 8 | 7.5 | 30 | 17 |
04 | 1/4 | 11 | 12 | 30 | 22 |
06 | 3/8 | 14.5 | 14 | 30 | 24 |
08 | 1/2 | 18 | 14 | 40 | 32 |
12 | 3/4 | 23 | 16 | 42 | 36 |
16 | 1 | 29 | 18 | 50 | 46 |
20 | 11/4 | 36 | 22 | 55 | 55 |
24 | 11/2 | 43 | 22 | 55 | 65 |
32 | 2 | 55 | 25 | 64 | 75 |
規格 | T(Rc) | Amm | Bmm |
04 | 1/4 | 21 | 21 |
06 | 3/8 | 24.5 | 24.5 |
08 | 1/2 | 29 | 29 |
12 | 3/4 | 33 | 33 |
16 | 1 | 38.2 | 38.2 |
20 | 11/4 | 45 | 45 |
24 | 11/2 | 50.8 | 50.8 |
32 | 2 | 60 | 60
|

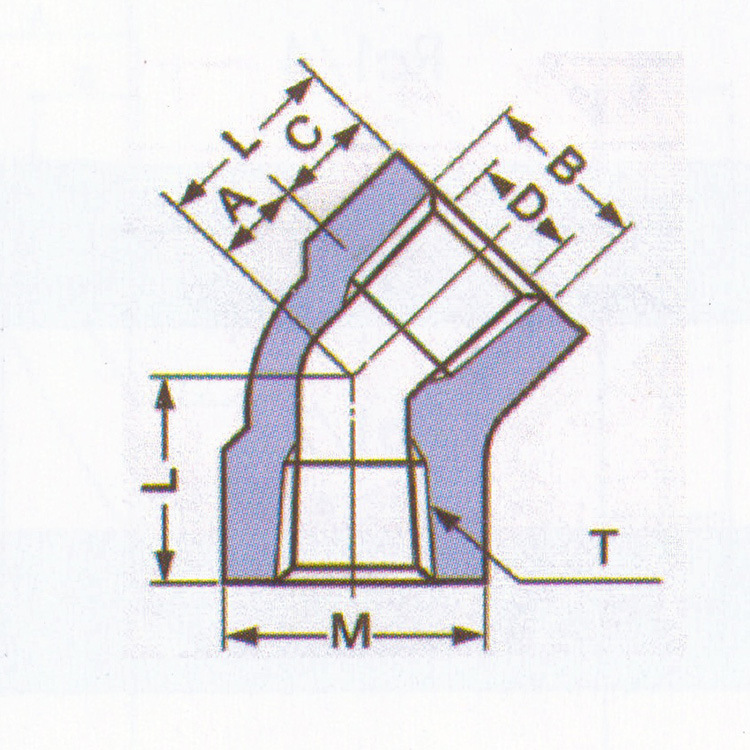

規格 | T(Rc) | Dmm | Lmm | Mmm |
04 | 1/4 | 9.4 | 17.9 | 23 |
06 | 3/8 | 12.7 | 18.9 | 28 |
08 | 1/2 | 16.1 | 24.1 | 34 |
12 | 3/4 | 21.4 | 26.7 | 39 |
16 | 1 | 27.2 | 30.3 | 47 |
規格 | T1(Rc) | T2(R) | Amm | Bmm | dmm |
04 | 1/4 | 1/4 | 14 | 25 | 6 |
06 | 3/8 | 3/8 | 23 | 31 | 9 |
08 | 1/2 | 1/2 | 26 | 37 | 12 |
12 | 3/4 | 3/4 | 31 | 42 | 16 |
16 | 1 | 1 | 33 | 47 | 20 |

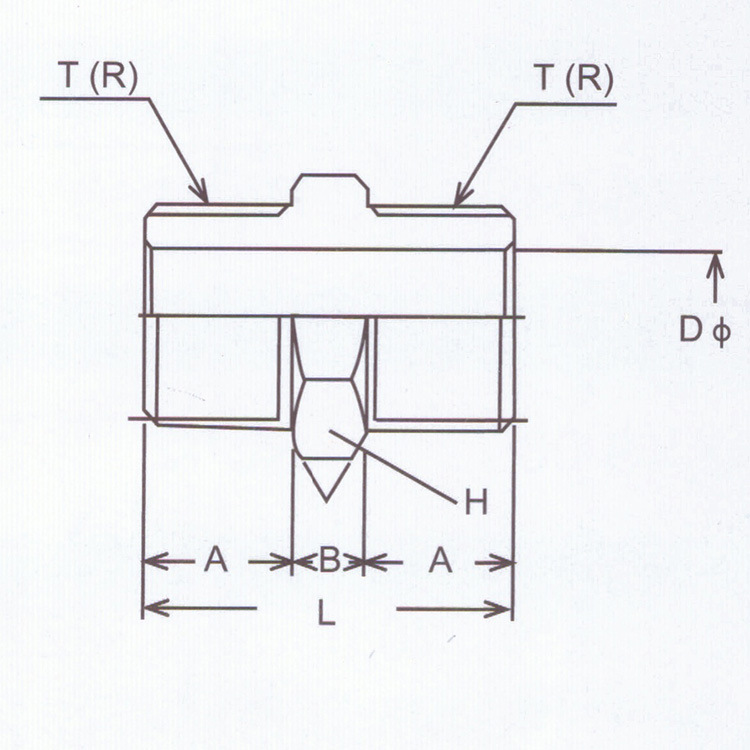

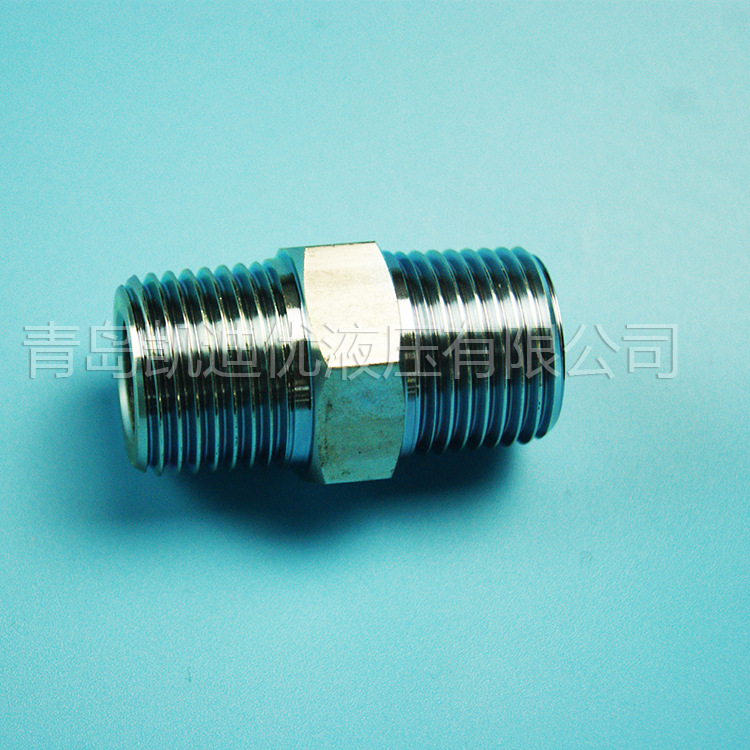

規格 | T(R) | Dφmm | Amm | Bmm | Lmm | Hmm |
02 | 1/8 | 4 | 9 | 6 | 24 | 12 |
04 | 1/4 | 7 | 13 | 8 | 34 | 17 |
06 | 3/8 | 9 | 14 | 8 | 36 | 19 |
08 | 1/2 | 12 | 17 | 9 | 43 | 24 |
12 | 3/4 | 16 | 19 | 10 | 48 | 30 |
16 | 1 | 20 | 22 | 11 | 55 | 36 |
20 | 11/4 | 28 | 24 | 12 | 60 | 46 |
24 | 11/2 | 32 | 24 | 14 | 62 | 50 |
32 | 2 | 40 | 28 | 16 | 72 | 65 |

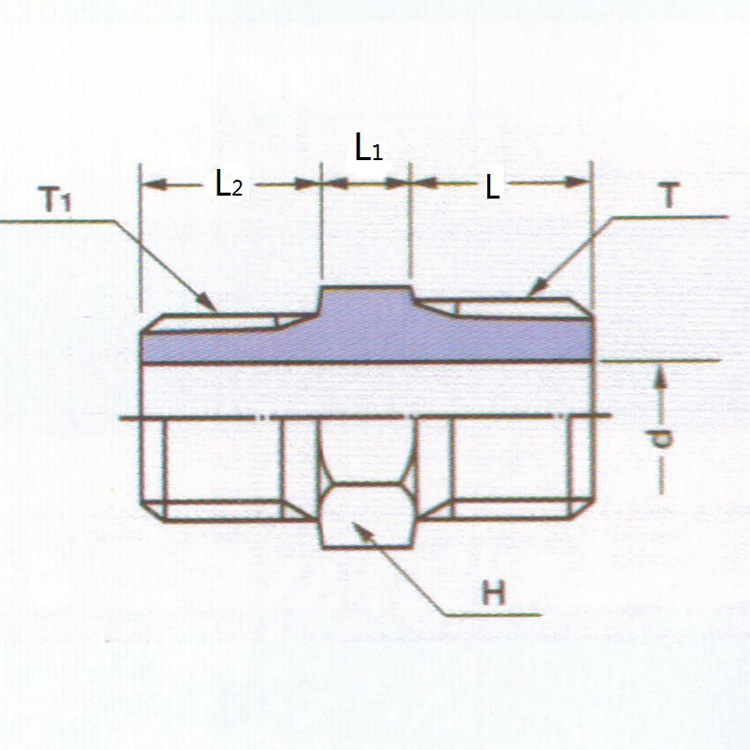

規格 | T(R) | T1(R) | Dφmm | L2mm | Lmm | L1mm | Hmm |
06-04 | 3/8 | 1/4 | 7 | 13 | 14 | 8 | 19 |
08-04 | 1/2 | 1/4 | 7 | 13 | 17 | 9 | 24 |
08-06 | 1/2 | 3/8 | 9 | 14 | 17 | 9 | 24 |
12-04 | 3/4 | 1/4 | 7 | 13 | 19 | 10 | 30 |
12-06 | 3/4 | 3/8 | 9 | 14 | 19 | 10 | 30 |
12-08 | 3/4 | 1/2 | 12 | 17 | 19 | 10 | 30 |
16-06 | 1 | 3/8 | 9 | 14 | 22 | 11 | 36 |
16-08 | 1 | 1/2 | 12 | 17 | 22 | 11 | 36 |
16-12 | 1 | 3/4 | 16 | 19 | 22 | 11 | 36 |
規格 | T(Rc) | Dφmm | Emm | Lmm | Hmm |
02 | 1/8 | 8 | 7.5 | 30 | 17 |
04 | 1/4 | 11 | 12 | 30 | 22 |
06 | 3/8 | 14.5 | 14 | 30 | 24 |
08 | 1/2 | 18 | 14 | 40 | 32 |
12 | 3/4 | 23 | 16 | 42 | 36 |
16 | 1 | 29 | 18 | 50 | 46 |
20 | 11/4 | 36 | 22 | 55 | 55 |
24 | 11/2 | 43 | 22 | 55 | 65 |
32 | 2 | 55 | 25 | 64 | 75 |

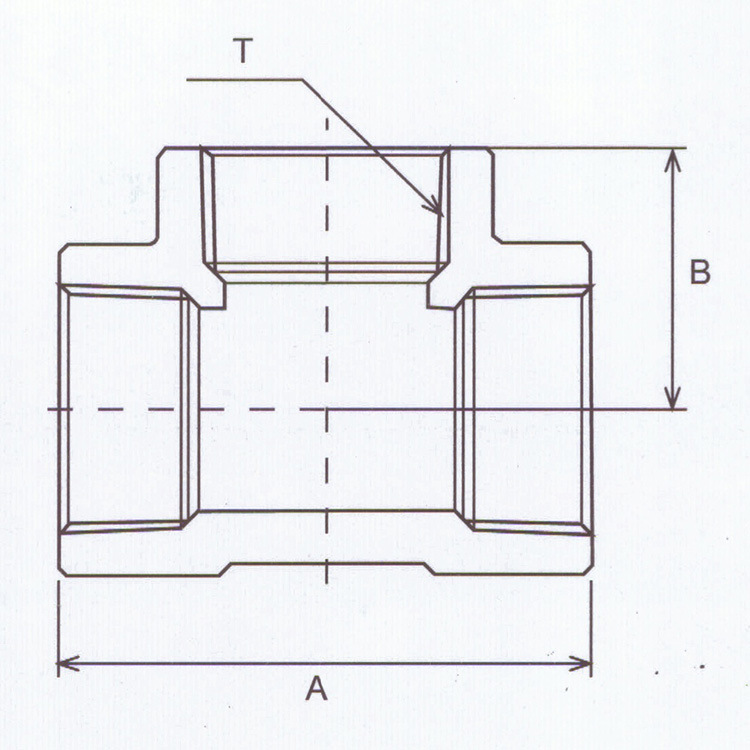

規格 | T(Rc) | Amm | Bmm |
04 | 1/4 | 42 | 21 |
06 | 3/8 | 49 | 24.5 |
08 | 1/2 | 58 | 29 |
12 | 3/4 | 66 | 33 |
16 | 1 | 76.4 | 38.2 |
20 | 11/4 | 90 | 45 |
24 | 11/2 | 101.5 | 50.8 |
32 | 2 | 120 | 60 |
公司介紹:
青島凱迪優液壓有限公司是高壓接頭、卡套式接頭、銅接頭、低壓接頭、PVC軟管、膠管總成及其它工業品等產品專業生產和銷售的公司,目前公司提供的主要產品以日本標準最為齊全,其中小規格低壓瑪鋼件螺紋最小為PT1/8。青島凱迪優液壓有限公司一直堅持向顧客快速、準確的提供高質量的工業品,歡迎各界朋友蒞臨參觀、指導和業務洽談。
