品牌 | 林肯 | 型號 | 620-40023-7 | 適用介質 | 油 |
公稱壓力 | 10(MPa) | 材質 | 不銹鋼 | 適用溫度 | 15(℃) |
適用范圍 | 65 | 安裝形式 | 8 | 加工定製 | 是 |
規格 | VSG | 產品別名 | 78 |
林肯為工業界提供世界一流的潤滑設備,流體泵產品及服務。製造工廠分佈美國、德國、捷克、印度和韓國,並在全球擁有一流的合作夥伴提供林肯設備的系統設計及安裝服務,協助客戶節省成本,提升生產力,林肯工業是業界最大最成功的一傢公司,90多年來,我們以技術及品質,世界級的生產規模及客戶服務,廣大的分銷及技術支持體系贏得眾多工業用戶一致的信賴。
標準型雙線分配閥(-KR)外形尺寸
型號高寬厚
VSG-KR 122 mm 54 mm
VSL-KR 140 mm
2出口:44.5 mm
4出口:76 mm
6出口:108 mm
8出口:140 mm
VSKH-KR
VSKV-KR
124 mm 2出口:52 mm
4出口:80 mm
6出口:108 mm
8出口:136 mm
57 mm
VSG, VSL, VSKH及VSKV雙線分配閥型號說明
型號示例:VSKV 6 VA -KR FKM -KN -01 (1.4571)
VSKV 2 VA -KR (1.4305)
VSG 4 -KR -NP
VSKV 5 -KR -KS C
VSKV 8 -KR -KN TU -A
VSKH 4 VA -KS H (1.4305)
VSKV 4 -D 0.6 -KS H
VSKH 2 -KR (1.4305
*註:1.當雙線分配閥後接遞進式分配閥時,或雙線分配閥到潤滑點間的潤滑管道的油脂壓縮量(約2%)大於其排量時,推薦在雙線分配閥出口配單向閥。2.對所有的雙線分配閥我們都可提供其焊接安裝底板,詳細資料請向當地林肯代表處索取。
VSG, VSL, VSKH及VSKV系列分配閥采用高質量、鍍鋅鋼材料製成,用於高壓(達400巴)雙線系統。也可用於中、低壓系統。雙線分配閥最多有8個出口,每對出口裝配一個指針用於目測監控。雙線分配閥有防塵材料、防塵防酸材料、電氣監控、適用於惡劣工況下的磁鐵式排量調節裝置、耐高溫的氟橡膠材料密封及NPT介面螺紋等多種型號可供選擇。所有的雙線分配閥的工作原理是一樣的,VSG、VSL、VSKH的區別在於排量不同。VSKH與VSKV的區別在於前者出口在側麵,後者出口在正麵(垂直麵)。這樣使佈管時更加靈活。帶-MR後綴(磁鐵式調節裝置)的分配閥內無動點密封,適合於在惡劣工況下作業,如多水、多塵、高溫至120°C。
VSG-KR系列分配閥
帶指針,排量為0-2.2 cm3,可調,碳鋼材質,鍍鋅處理
VSG-KD及D系列分配閥
碳鋼材質,鍍鋅處理,帶指針及固定排量(2.2 cm3)的計量螺絲(KD)或僅帶如圖所示的計量螺絲(D)。
VSG-KR-NP系列分配閥
碳鋼材質,鍍鋅處理,帶指針,M12圓形插口的接近開關(237-13442-4),
排量可調0-2.2 cm3。
VSG-MR系列分配閥
碳鋼材質,鍍鋅處理,磁鐵式指針,排量可調0-2.2 cm3
VSG-KR-KS系列分配閥
碳鋼材質,鍍鋅處理,帶指針,限位開關,排量可調0-2.2 cm3
VSG-KR-KA分配閥
碳鋼材質,鍍鋅處理,帶指針及接近開關插口(M12x1),排量可調
0-2.2 cm3
VSL-KR系列分配閥
碳鋼材質,鍍鋅處理,帶指針,排量可調0-5 cm3
VSL-KD及D系列分配閥
碳鋼材質,鍍鋅處理,帶指針及固定排量(5.0 cm3)的計量螺絲(KD)或僅帶如圖所示的計量螺絲(D)
VSL-KR-KA系列分配閥
碳鋼材質,鍍鋅處理,帶指針及接近開關插口(M12x1),排量可調
0-5.0cm3
VSKH-KR及VSKV-KR分配閥
碳鋼或不銹鋼材質,鍍鋅處理,,帶指針,排量0-1.5 cm3可調
Inlet Size: R 1/8" Female (BSPP) Number of Inlet Size: 1/8" NPT Female
Carbon Steel 303 Stainless 316Ti Stainless Outlets Carbon Steel 303 Stainless
Steel (VA 1.4305) Steel (VA 1.4571) Steel (VA 1.4305)
619-26473-1 619-27471-1 619-27824-1 6 619-27121-1 619-27792-1
619-25730-2 619-27473-1 619-27825-1 8 619-26396-2 619-27796-1
619-26841-1 619-27475-1 619-27889-1 10 619-26844-1 619-27800-1
619-25731-2 619-27477-1 619-27900-1 12 619-26398-2 619-27804-1
619-28862-1 619-29063-1 14
619-28863-1 619-29064-1 16
619-28864-1 619-29065-1 18
619-28865-1 619-29066-1 20
619-28866-1 22
Threaded Fittings
Part No. Description
504-30345-2 check valve for 4 mm tube
504-30344-4 check valve for 6 mm tube
504-31709-1 check valve for 4 mm tube – stainless steel
504-31705-1 check valve for 6 mm tube – stainless steel
Quicklinc – Plug-in Fittings
Part No. Description
226-14091-4 check valve for 6 mm tube – high pressure
(for primary metering devices)
226-14091-6 check valve for 4 mm tube – medium pressure
(for secondary metering devices)
226-14091-2 check valve for 6 mm tube – medium pressure
(for secondary metering devices)
Other
Part No. Description
303-17499-3 outlet closure plug M10 x 1
303-19346-2 outlet closure plug M10 x 1 - stainless steel
219-13798-3 o-ring for stainless steel closure plug*

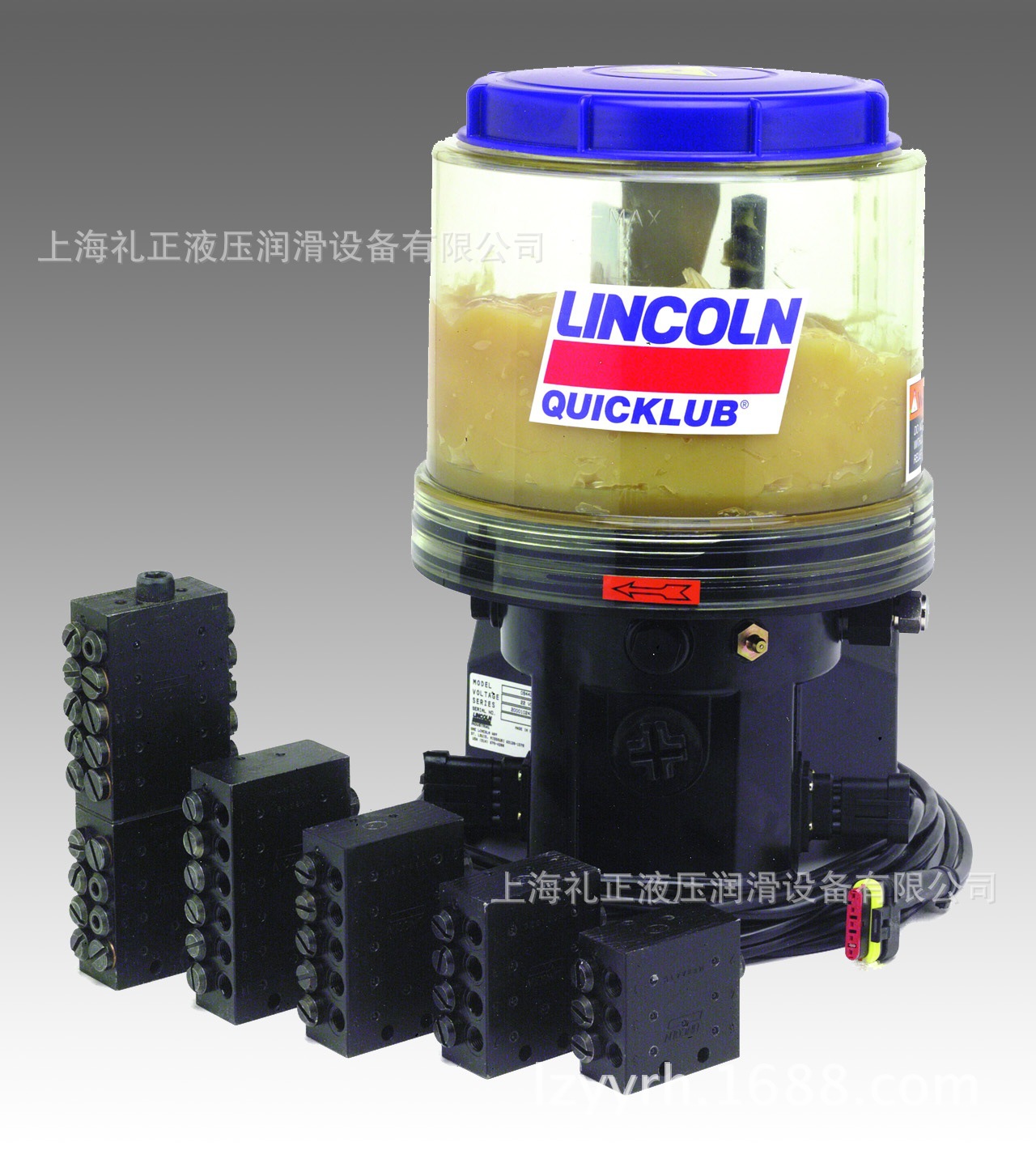

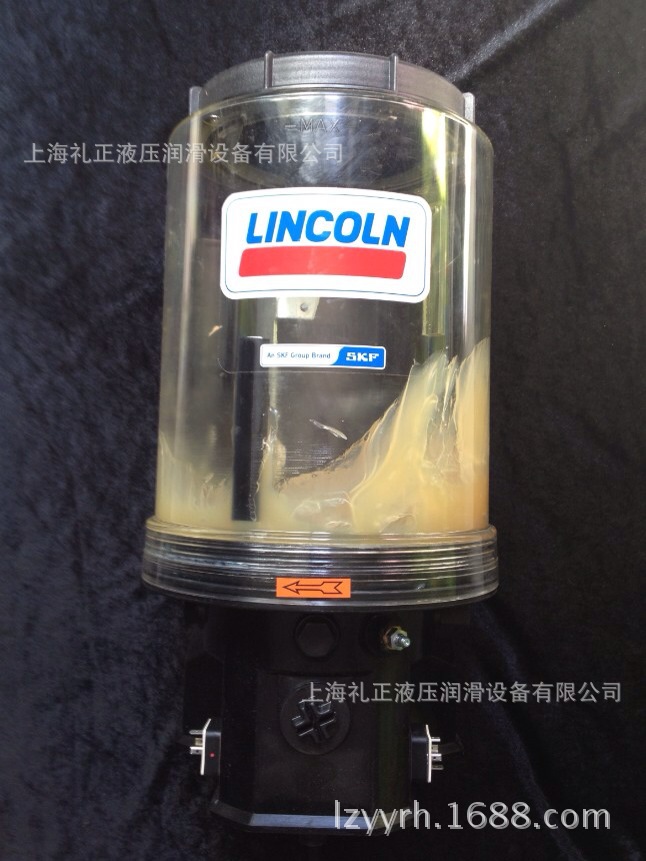

供應Lincoln P203-8XLBO-1K7-24 潤滑系統泵站
水泥廠篦冷機用潤滑泵 655-46472-3 P205-M070-5XL-2K7-380-420
供應Lincoln P203-8XLBO-1K7-24 潤滑系統泵站
供應Lincoln P203-8XLBO-1K6-24 潤滑系統泵站
供應Lincoln P203-8XLBO-1K7-24 潤滑系統泵站
644-40666-2潤滑泵
644-40550-7潤滑泵
ControlSettings
IntervalBetween Alarm ReservoirCapacity
LubeCycle Time
ModelNo. Description Power Min. Hrs. Min. Liters In 3 Lbs.
94222 P203-2XL-1K6-24-2A6.15-M13-A+SV 24 VDC 4 - 60 1 -15 5 or 30 2 122 4
94422 P203-4XLBO-1K6-24-2A6.15-M13-A+SV 24 VDC 4 - 60 1 -15 5 or 30 4 244 8
94822 P203-8XLBO-1K6-24-2A6.15-M13-A+SV 24 VDC 4 - 60 1 -15 5 or 30 8 488 16
644-40821-6 P203-2XLBO-1K6-12-2A6.15-M08 12 VDC 4 - 60 1 -15 5 or 30 2 122 4
644-40843-8* P203-4XLBO-1K6-12-2A6.15-M08 12 VDC 4 - 60 1 -15 5 or 30 4 244 8
644-40822-8* P203-8XLBO-1K6-12-2A6.15-M16 12 VDC 4 - 60 1 -15 5 or 30 8 488 16
644-40873-1* P203-8XLBO-1K6-AC-3A5.01-M08 120 VAC 4 - 60 1 -15 5 or 30 8 488 16
** Contact Lincoln for 15-liter reservoir models.
Model Specifications
*These"644-"pumpsdonotcomewiththepressurereliefvalve.Itmustbeorderedseparatelyandisrecommended.The1/8"NPTadapter
(304-19614-1)isalsonotincludedandmustbeorderedseparately,ifrequired.
Model Description Cap. or level circuit
No. Oil control board
644-46073-5 P203-2XNBO-1K6-AC-1A1.01-V10 2 liter Grease No Yes
(UL)-A+SV
644-46173-4 P203-4XNBO-1K6-AC-1A1.01-V10 4 liter Grease No Yes
(UL)-A+SV
644-46173-5 P203-4YLBO-1K6-AC-1A1.01-V10 4 liter Oil Yes Yes
(UL)-A+SV
644-46073-6 P203-2XNBO-1K6-AC-1A1.01 (UL)-A+SV 2 liter Grease No No
644-46173-6 P203-4XLBO-1K6-AC-2A1.01 (UL)-A+SV 4 liter Grease Yes No
644-46173-8 P203-4YLBO-1K6-AC-1A1.01 (UL)-A+SV 4 liter Oil Yes No
644-46173-7 P203-4XNBO-1K6-AC-1A1.01 (UL)-A+SV 4 liter Grease No No
644-46174-2 P203-8XLBO-1K6-AC-2A1.01-V10 8 liter Grease Yes Yes
(UL)-A+SV
644-46174-4 P203-8XLBO-1K6-AC-2A1.01 (UL)-A+SV 8 liter Grease Yes No
644-46278-3 P203-15XN-1K6-24-1A5.14-A+SV 15 liter Grease No No
644-46278-1 P203-15XN-1K6-24-1A7.70-V20-A+SV 15 liter Grease No Yes
644-40987-2 P203-15XL-1K6-24-2A6.15-M13-A+SV 15 liter Grease Yes Yes

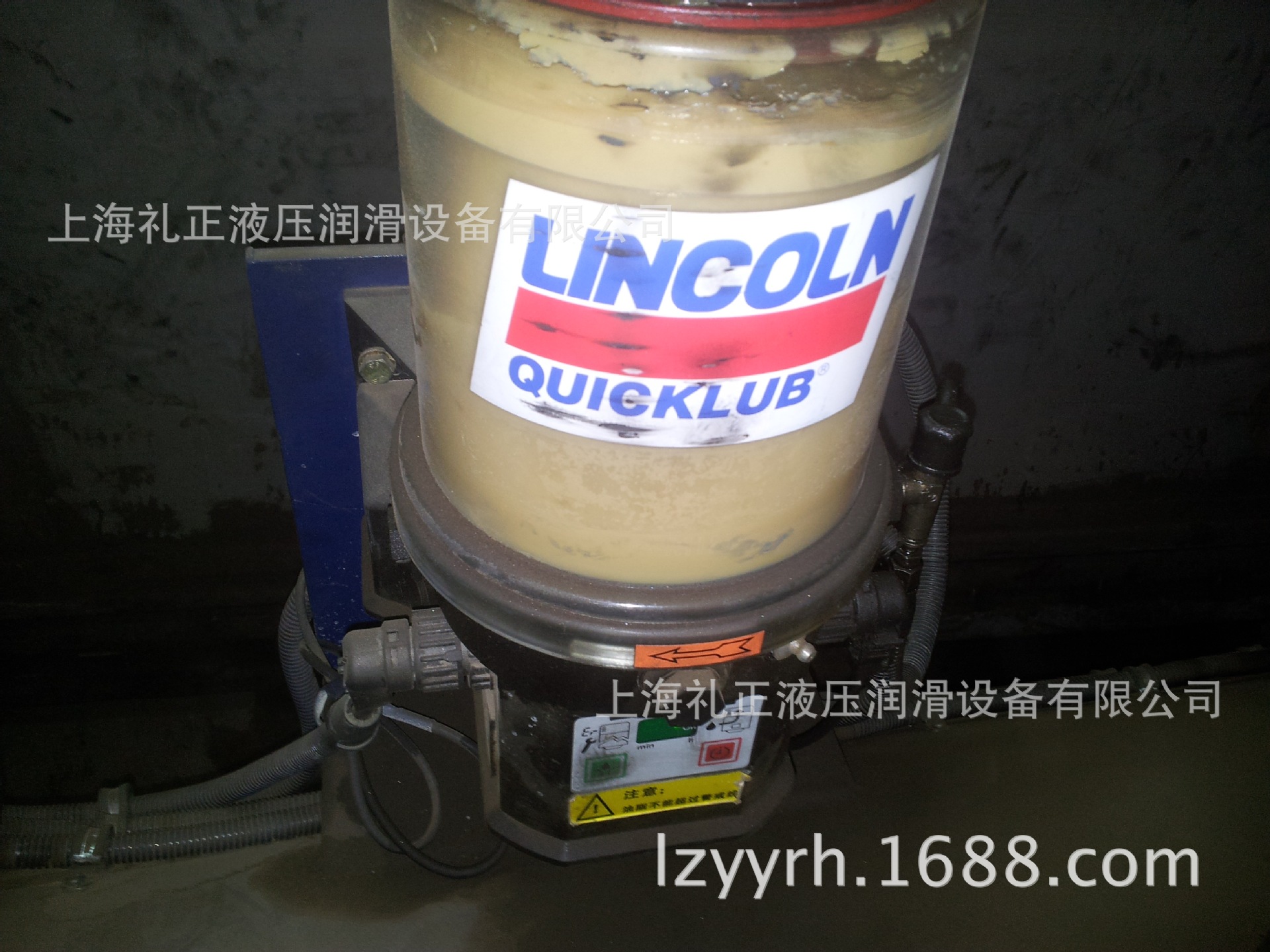

Model Specifications
Model Power ReservoirCapacity Grease Low-Level Printed
No. Description
Liters In
3
Lbs.
Control CircuitBoard
644-40824-1 P233-2XL-1K6-24-2A5.10-MDF00 24 VDC 2 122 4
644-40824-2 P233-2XLBO-1K6-24-2A5.10-MDF00 24 VDC 2 122 4
644-40826-1 P233-4XLBO-1K6-24-2A5.10-MDF00 24 VDC 4 244 8
644-40827-1 P233-8XLBO-1K6-24-2A5.10-MDF00 24 VDC 8 488 16
644-40868-1 P233-2XL-1K6-12-2A5.10-MDF00-A 12 VDC 2 122 4
Grease Yes Yes
644-40869-1 P233-4XLBO-1K6-12-2A5.10-MDF00-A 12 VDC 4 244 8
644-40870-1 P233-8XLBO-1K6-12-2A5.10-MDF00-A 12 VDC 8 488 16
644-40867-1 P233-8XLBO-1K6-AC-3A6.15-MDF00UL120 VAC 8 488 16

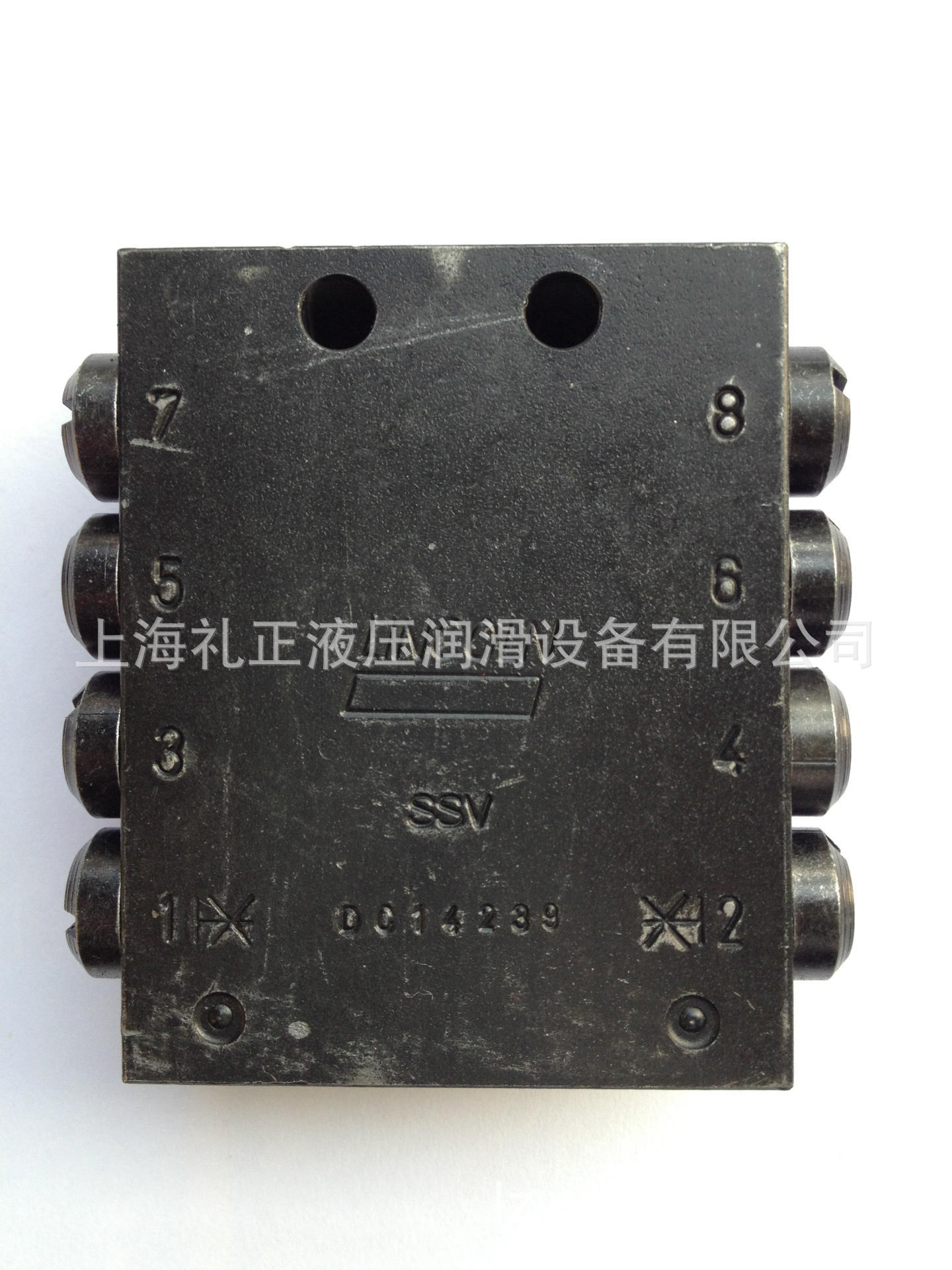

Model Valve Valve
Volt Cable
No. Type Mount

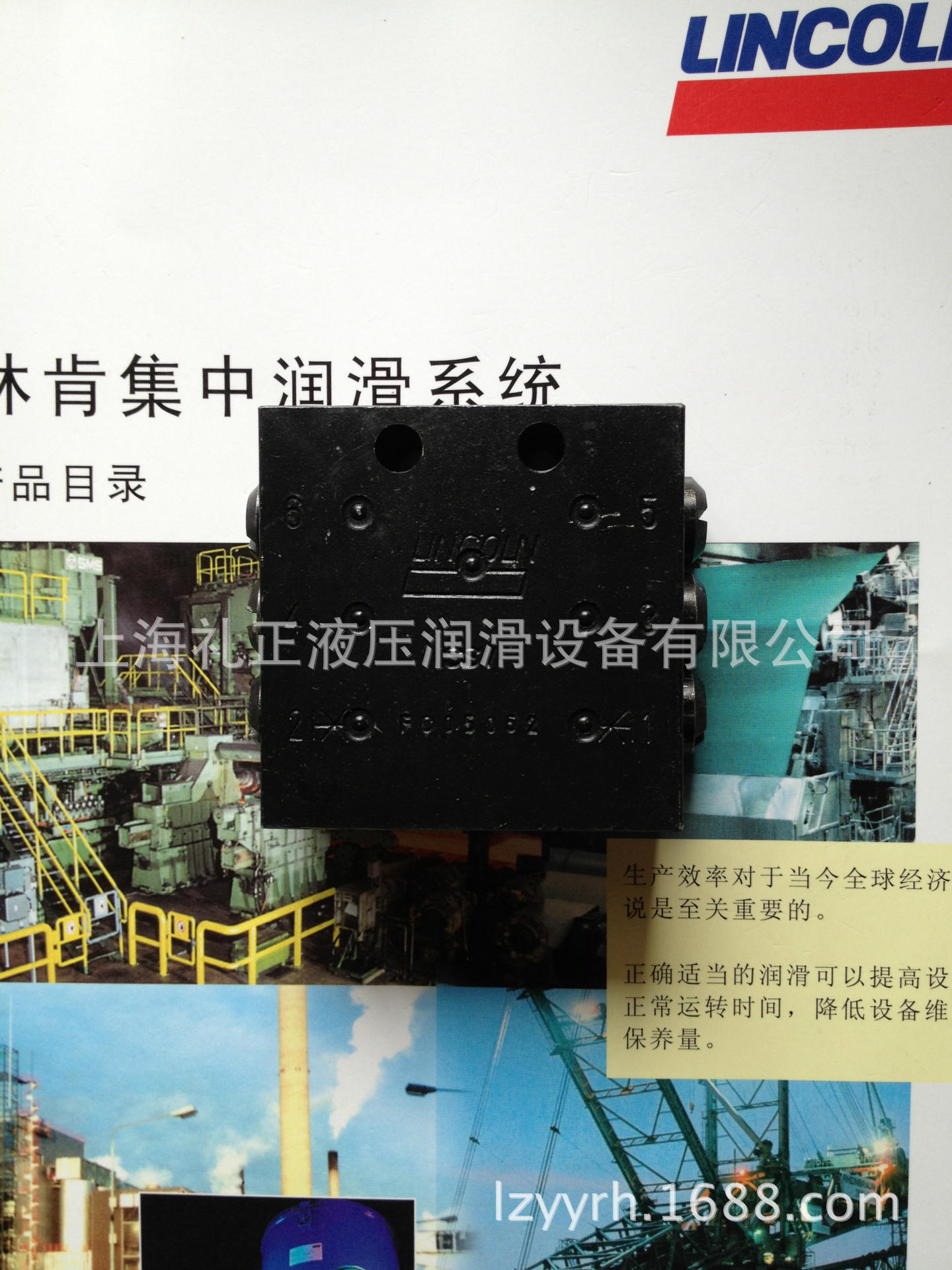

P401 31202574 SSV6 Back 12 VDC 30' / 10m
P401 31402574 SSV6 Back 24 VDC 30' / 10m
P401 42601113 SSV8 Bottom 120 VAC-UL none
P401 42801114 SSV8 Bottom 230 VAC-UL none
P401 61202574 SSV12 Back 12 VDC 30' / 10m
P401 61402574 SSV12 Back 24 VDC 30' / 10m
P401 62601113 SSV12 Bottom 120 VAC-UL none
P401 62801114 SSV12 Bottom 230 VAC-UL none
P401 91202574 SSV18 Back 12 VDC 30' / 10m
P401 91402574 SSV18 Back 24 VDC 30' / 10m
P401 92601113 SSV18 Bottom 120 VAC-UL none
P401 92801114 SSV18 Bottom 230 VAC-UL none
Model Valve Valve
Volt Cable
No. Type Mount
P301 31211154 SSV6 Back 12 DC 30' / 10m
P301 31411154 SSV6 Back 24 DC 30' / 10m
P301 42611113 SSV8 Bottom 120 AC none
P301 42811114 SSV8 Bottom 230 AC none
P301 61211154 SSV12 Back 12 DC 30' / 10m
P301 61411154 SSV12 Back 24 DC 30' / 10m
P301 62611113 SSV12 Bottom 120 AC none
P301 62811114 SSV12 Bottom 230 AC none
P301 91211154 SSV18 Back 12 DC 30' / 10m
P301 91411154 SSV18 Back 24 DC 30' / 10m
P301 92611113 SSV18 Bottom 120 AC none
P301 92811114 SSV18 Bottom 230 AC none
Model Valve Valve
No. Type Mount Volt Cable
P311 31211154 SSV6 Back 12 DC 30' / 10m
P311 61211154 SSV12 Back 12 DC 30' / 10m
P311 91211154 SSV18 Back 12 DC 30' / 10m
P311 31411154 SSV6 Back 24 DC 30' / 10m
P311 61411154 SSV12 Back 24 DC 30' / 10m
P311 91411154 SSV18 Back 24 DC 30' / 10m
P311 42611113 SSV8 Bottom 120 AC none
P311 42811114 SSV8 Bottom 230 AC none
P311 62611113 SSV12 Bottom 120 AC none
P311 92611113 SSV18 Bottom 120 AC none
P311 62811114 SSV12 Bottom 230 AC none
P311 92811114 SSV18 Bottom 230 AC none
Model Valve Valve
Volt Lubricant
No. Type Mount
P301 31411110 SSV6 Back 24 VDC Grease
P301 61411110 SSV12 Back 24 VDC Grease
P301 91411110 SSV18 Back 24 VDC Grease
P311 31411110 SSV6 Back 24 VDC Oil
P311 61411110 SSV12 Back 24 VDC Oil
650-40768-3 SSV8 Bottom 120 VAC Grease
650-40768-4 SSV12 Bottom 120 VAC Grease
650-40768-5 SSV18 Bottom 120 VAC Grease
650-40765-4 SSV8 Bottom 120 VAC Oil
650-40765-5 SSV12 Bottom 120 VAC Oil
650-40765-6 SSV18 Bottom 120 VAC Oil
供應Lincoln P203-8XLBO-1K7-24 潤滑系統泵站
水泥廠篦冷機用潤滑泵 655-46472-3 P205-M070-5XL-2K7-380-420
供應Lincoln P203-8XLBO-1K7-24 潤滑系統泵站
供應Lincoln P203-8XLBO-1K6-24 潤滑系統泵站
供應Lincoln P203-8XLBO-1K7-24 潤滑系統泵站
644-40666-2潤滑泵
644-40550-7潤滑泵
ControlSettings
IntervalBetween Alarm ReservoirCapacity
LubeCycle Time
ModelNo. Description Power Min. Hrs. Min. Liters In 3 Lbs.
94222 P203-2XL-1K6-24-2A6.15-M13-A+SV 24 VDC 4 - 60 1 -15 5 or 30 2 122 4
94422 P203-4XLBO-1K6-24-2A6.15-M13-A+SV 24 VDC 4 - 60 1 -15 5 or 30 4 244 8
94822 P203-8XLBO-1K6-24-2A6.15-M13-A+SV 24 VDC 4 - 60 1 -15 5 or 30 8 488 16
644-40821-6 P203-2XLBO-1K6-12-2A6.15-M08 12 VDC 4 - 60 1 -15 5 or 30 2 122 4
644-40843-8* P203-4XLBO-1K6-12-2A6.15-M08 12 VDC 4 - 60 1 -15 5 or 30 4 244 8
644-40822-8* P203-8XLBO-1K6-12-2A6.15-M16 12 VDC 4 - 60 1 -15 5 or 30 8 488 16
644-40873-1* P203-8XLBO-1K6-AC-3A5.01-M08 120 VAC 4 - 60 1 -15 5 or 30 8 488 16
** Contact Lincoln for 15-liter reservoir models.
Model Specifications
*These"644-"pumpsdonotcomewiththepressurereliefvalve.Itmustbeorderedseparatelyandisrecommended.The1/8"NPTadapter
(304-19614-1)isalsonotincludedandmustbeorderedseparately,ifrequired.
Model Description Cap. or level circuit
No. Oil control board
644-46073-5 P203-2XNBO-1K6-AC-1A1.01-V10 2 liter Grease No Yes
(UL)-A+SV
644-46173-4 P203-4XNBO-1K6-AC-1A1.01-V10 4 liter Grease No Yes
(UL)-A+SV
644-46173-5 P203-4YLBO-1K6-AC-1A1.01-V10 4 liter Oil Yes Yes
(UL)-A+SV
644-46073-6 P203-2XNBO-1K6-AC-1A1.01 (UL)-A+SV 2 liter Grease No No
644-46173-6 P203-4XLBO-1K6-AC-2A1.01 (UL)-A+SV 4 liter Grease Yes No
644-46173-8 P203-4YLBO-1K6-AC-1A1.01 (UL)-A+SV 4 liter Oil Yes No
644-46173-7 P203-4XNBO-1K6-AC-1A1.01 (UL)-A+SV 4 liter Grease No No
644-46174-2 P203-8XLBO-1K6-AC-2A1.01-V10 8 liter Grease Yes Yes
(UL)-A+SV
644-46174-4 P203-8XLBO-1K6-AC-2A1.01 (UL)-A+SV 8 liter Grease Yes No
644-46278-3 P203-15XN-1K6-24-1A5.14-A+SV 15 liter Grease No No
644-46278-1 P203-15XN-1K6-24-1A7.70-V20-A+SV 15 liter Grease No Yes
644-40987-2 P203-15XL-1K6-24-2A6.15-M13-A+SV 15 liter Grease Yes Yes
Model Specifications
Model Power ReservoirCapacity Grease Low-Level Printed
No. Description
Liters In
3
Lbs.
Control CircuitBoard
644-40824-1 P233-2XL-1K6-24-2A5.10-MDF00 24 VDC 2 122 4
644-40824-2 P233-2XLBO-1K6-24-2A5.10-MDF00 24 VDC 2 122 4
644-40826-1 P233-4XLBO-1K6-24-2A5.10-MDF00 24 VDC 4 244 8
644-40827-1 P233-8XLBO-1K6-24-2A5.10-MDF00 24 VDC 8 488 16
644-40868-1 P233-2XL-1K6-12-2A5.10-MDF00-A 12 VDC 2 122 4
Grease Yes Yes
644-40869-1 P233-4XLBO-1K6-12-2A5.10-MDF00-A 12 VDC 4 244 8
644-40870-1 P233-8XLBO-1K6-12-2A5.10-MDF00-A 12 VDC 8 488 16
644-40867-1 P233-8XLBO-1K6-AC-3A6.15-MDF00UL120 VAC 8 488 16
Model Valve Valve
Volt Cable
No. Type Mount
P401 31202574 SSV6 Back 12 VDC 30' / 10m
P401 31402574 SSV6 Back 24 VDC 30' / 10m
P401 42601113 SSV8 Bottom 120 VAC-UL none
P401 42801114 SSV8 Bottom 230 VAC-UL none
P401 61202574 SSV12 Back 12 VDC 30' / 10m
P401 61402574 SSV12 Back 24 VDC 30' / 10m
P401 62601113 SSV12 Bottom 120 VAC-UL none
P401 62801114 SSV12 Bottom 230 VAC-UL none
P401 91202574 SSV18 Back 12 VDC 30' / 10m
P401 91402574 SSV18 Back 24 VDC 30' / 10m
P401 92601113 SSV18 Bottom 120 VAC-UL none
P401 92801114 SSV18 Bottom 230 VAC-UL none
Model Valve Valve
Volt Cable
No. Type Mount
P301 31211154 SSV6 Back 12 DC 30' / 10m
P301 31411154 SSV6 Back 24 DC 30' / 10m
P301 42611113 SSV8 Bottom 120 AC none
P301 42811114 SSV8 Bottom 230 AC none
P301 61211154 SSV12 Back 12 DC 30' / 10m
P301 61411154 SSV12 Back 24 DC 30' / 10m
P301 62611113 SSV12 Bottom 120 AC none
P301 62811114 SSV12 Bottom 230 AC none
P301 91211154 SSV18 Back 12 DC 30' / 10m
P301 91411154 SSV18 Back 24 DC 30' / 10m
P301 92611113 SSV18 Bottom 120 AC none
P301 92811114 SSV18 Bottom 230 AC none
Model Valve Valve
No. Type Mount Volt Cable
P311 31211154 SSV6 Back 12 DC 30' / 10m
P311 61211154 SSV12 Back 12 DC 30' / 10m
P311 91211154 SSV18 Back 12 DC 30' / 10m
P311 31411154 SSV6 Back 24 DC 30' / 10m
P311 61411154 SSV12 Back 24 DC 30' / 10m
P311 91411154 SSV18 Back 24 DC 30' / 10m
P311 42611113 SSV8 Bottom 120 AC none
P311 42811114 SSV8 Bottom 230 AC none
P311 62611113 SSV12 Bottom 120 AC none
P311 92611113 SSV18 Bottom 120 AC none
P311 62811114 SSV12 Bottom 230 AC none
P311 92811114 SSV18 Bottom 230 AC none
Model Valve Valve
Volt Lubricant
No. Type Mount
P301 31411110 SSV6 Back 24 VDC Grease
P301 61411110 SSV12 Back 24 VDC Grease
P301 91411110 SSV18 Back 24 VDC Grease
P311 31411110 SSV6 Back 24 VDC Oil
P311 61411110 SSV12 Back 24 VDC Oil
650-40768-3 SSV8 Bottom 120 VAC Grease
650-40768-4 SSV12 Bottom 120 VAC Grease
650-40768-5 SSV18 Bottom 120 VAC Grease
650-40765-4 SSV8 Bottom 120 VAC Oil
650-40765-5 SSV12 Bottom 120 VAC Oil
650-40765-6 SSV18 Bottom 120 VAC Oil
批發市場僅提供代購諮詢服務,商品內容為廠商自行維護,若有發現不實、不合適或不正確內容,再請告知我們,查實即會請廠商修改或立即下架,謝謝。
