| 建議零售價 | ¥2000.00 | 品牌 | 克萊默 | 型號 | 6241HDxl |
| 規格 | 800mVpp/75?. | 電壓 | 5（V） | 重量 | 0.25（kg） |
| 類型 | 會議 | 功率 | 3（w） |

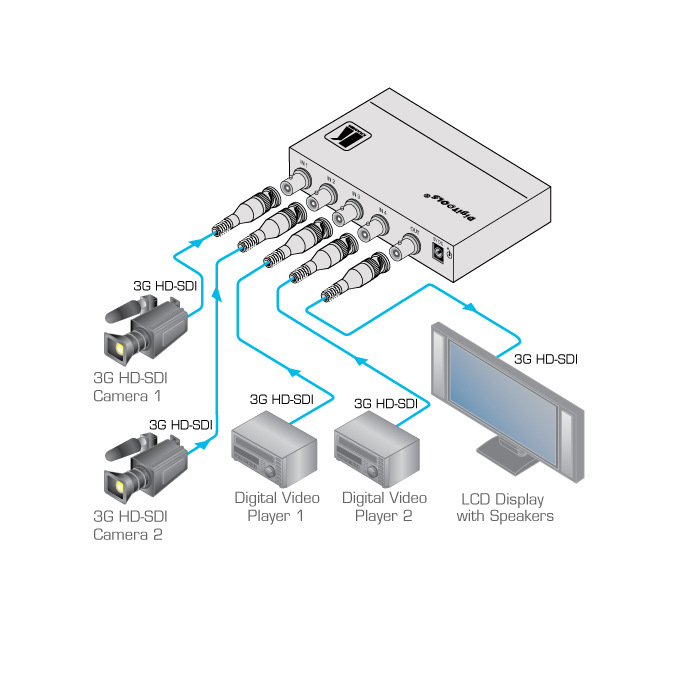

The 6241HDxl is a high-performance switcher for 3G HD-SDI video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.
- Max. Data Rate - 3Gbps.
- HDTV Compatible.
- Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M).
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- 尺寸 - 緊湊型DigiTOOLS® - 通過使用RK-3T機架適配器可將3臺該設備並排安裝在1U機架空間之內。 - compatible with RK-3T Rack adapter for mounting three Kramer TOOLS™ (extruded or regular) into a 19 inch 1U rack space.
應用:
|
|
|
|
| INPUTS: | 4 SMPTE 259M/344M serial digital video inputs (75??6??8) on BNC connectors. |
| OUTPUTS: | 1 SMPTE 259M/344M serial digital video output (75??6??8) on BNC connectors. |
| MAX. DATA RATE: | 2.97Gbps. |
| MAX. OUTPUT LEVEL: | 800mVpp/75??6??8. |
| EQUALIZATION: | Automatic equalization for losses on 75??6??8 coaxial cable. |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H. |
| POWER CONSUMPTION: | 5V DC, 410mA. |
| WEIGHT: | 0.25kg (0.6lbs) approx. |
| INCLUDED ACCESSORIES: | Power supply, mounting bracket. |
| OPTIONS: | RK−3T 19" rack adapter. |
