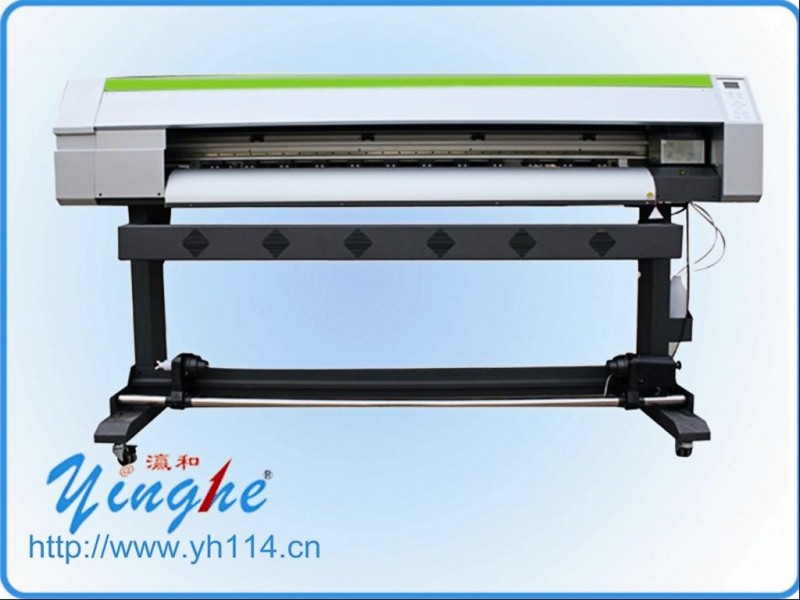

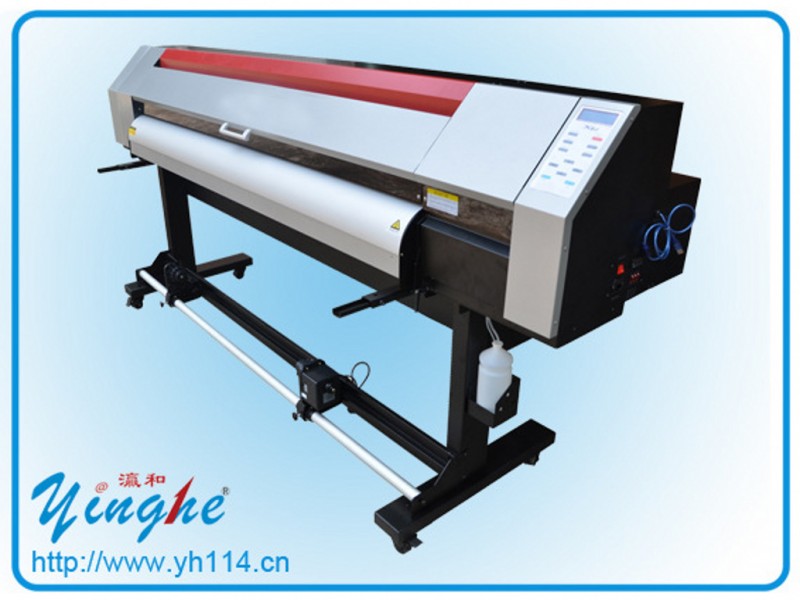

FH系列工業級高速化纖直噴機

聯系電話 13524156429 （王天令）
QQ聯系 2851551855

公司地址 上海市 閔行區 光華路188號 五號樓

>> FH功能特點：

1.采用KM1024i高速工業級打印頭，更好地滿足工業化生產的需求。

The printer uses KM1024i high speed industrial printhead, favorable to meet industrial batch production.

2.機器外觀時尚大氣，做工精良，專業型客戶首選，化纖印染材料高產量打印利器。

Luxurious fashion design for professional high class customer, available direct print on Polyster textile materials and heat transfer paper printing.

3.采用膠輥+擺桿式張力可調系統，可以適應不同類型的化纖材料打印。

Adopt rubber roller and pendulum tension adjustable system, which could meet various polyster materials.

4.機器兩側采用鋼板+全數控加工工藝，保證傳動系統的穩定性和平行度，確保介質進給不皺佈。

Machine structure of Steel plate+ cnc digital processing technology guarantees the stability and parallelism of the transmission system, ensure the media feeding without wrinkle.

5.采用鋁合金橫梁雙導軌，750W松下交流伺服電機，全進口軸承加硬質氧化帶輪，經過超過2個月超負荷老化試驗的X軸傳動系統。確保小車運行的平穩性和耐久性。

We use strong aluminum crossbeam, double linear guider, 750W Panasonic servo motor, world famous hard anodizing belt system, plus more than 2month overload ageing test of X-direction transmission system, to ensure the stability and durability of carriage movement.

6.采用全新研發的PCIE+光纖的數據傳輸系統，數據傳輸更快更可靠，奠定高速打印基礎。

Latest PCIE+ optical fiber data transmission system, amazing fast and stable data transmission.

7.小車高度可調，以更好地適應不同厚度介質的打印。

Carriage height adjustable enables different thickness of media.

8.可選配熱轉印紙打印組件，一機多用，節約投入成本, 應用更廣泛。

Heat transfer paper assembly parts OPTIONAL, all applications in one design saves costs and maximize your benefit.

9.熱轉印打印系統采用變頻可調吸附系統。

Heat transfer printing system adopted Frequency adjustable media adsorption system.

10.應用領域：旗幟佈、窗簾、座椅墊、彈性回轉佈、墻佈、化纖燈箱佈、熱轉印紙、T恤衫等。

Applications: Flag, Curtain, seat cushion, elastic fabric, textile wall covering. Fabric banner, heat transfer paper, T-shirt, etc…

>> BXS顯色機功能特點：

1.箱式結構加保溫層的設計，效果更好，更節能環保。

 Cabinet structure plus insulating layer design, energy saving and environmental.

2.智能溫控系統，可自動選擇開啟2根加熱管保溫或全開進行加熱。

Intelligent temperature control system, auto. selec two heating tube to keep warm or open all of them to heat up..

3.采用PLC控製系統，實現一鍵開始功能，操作簡單方便。

Adopt PLC control system to achieve One-key-start function, very easy operation.

4.采用高品質電機，經久耐用並配備進步速度數字式可調系統。

High-quality and high–durability motor, equipped with Feeding Speed Digital adjustable system.

5.具備介質張緊保護功能，而且保護後等待一定時間（時間可設定）自動重新開始。

With Media Tension Protection function, it can be auto. Restarted after sometime protected. Time is also available to reset.
