產品概述
VP-25W6/ VP-4136
InduSoft and ISaGRAF based ViewPAC (Window CE.NET 5.0 Inside) | |
| ~ NEW ~ | ~ NEW ~ | ![]() | ![]() | | Model: VP-25W6 | Model: VP-4136 |
|
|
ViewPAC系列產品提供Web / FTP / Telnet / SSH Server內建服務，采用多種連接方式（USB、以太網、RS-232/485），具有3個I/O擴展槽，STN、3.5″/5.7″TFT液晶顯示屏和1個橡膠鍵盤。ViewPAC作為PAC傢族的新成員，保持瞭PAC產品一慣的穩定性、實時性、體積小的優勢，與傳統的HMI + PLC解決方案相比較，ViewPAC減少瞭總體系統產本、空間。給您帶來密集型可視化控製系統的全新體驗。
ViewPAC-25W6/ViewPAC-4136 is the new generation WinCE based PAC from ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, variant connectivities (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5”/5.7”/10.4” TFT LCD and a rubber keypad.
Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. The VP-25W6 also features with the powerful InduSoft Web Studio and ISaGRAF. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages (LD, ST, FBD, SFC, FC).
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC. ![]() |
| |
![]() |
![]() VP-25W6/VP-4136 Software Features- Windows CE.NET 5.0
- Remote Maintenance via FTP Server and VCEP software
- Rich Software Solutions (VS.NET 2003/2005/2008 and eVC)
- Runtime InduSoft and ISaGRAF is ready
- Built-in OPC Server (Quicker)
![]() VP-25W6/VP-4136 Software Features
IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system. - Intuitive script language with more than 100 standard functions is provided.
- Conform to industry standards such as Microsoft.NET, OPC, DDE, ODBC, XML.
- Full-Featured WinCE-based run-time environment (CE View).
- Dynamic library of symbols - customizable.
- ActiveX container (Windows NT/2000/XP/CE/7/8).
- Automatic e-mail (SMTP) and dial-up connection interface supported.
Provide multi-level security for applications, including the Internet and Intranet.
![]()
![]() ISaGRAF General Features
- Support five IEC61131-3 languages, LD,ST, FBD, SFC, IL plus FC.
- Modbus RTU/TCP protocol to integrate to SCADA software and HMI
- Controller to Controller Data Exchange via Ethernet: Ebus.
- All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules.
- Auto-scan I/O : Automatically scan I/O boards & declare I/O variables.
- Motion: Motion control is available when I-8091 boards integrated.
- Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running on your PC.
![]()
|
| |
![]() |
- PXA 270 CPU (32-bit & 520MHz)
- Rubber Keypad with 24/6 Keys
- 64-bit Hardware Serial Number for Software Protection
- Rich I/O Expansion Ability (Ethernet, RS-232/422/485, FRnet, CAN bus)
- Built-in one Ethernet Port, 2 Serial Ports (RS-232 & RS-485)
- IP44 Compliant Front Panel
- Audio with MIC-In and Line-Out
- 3 Slots for High Profile I/O Modules
- Dual Battery Backup SRAM (512 KB)
- Operating Temperature: -20 ~ +70 °C
|

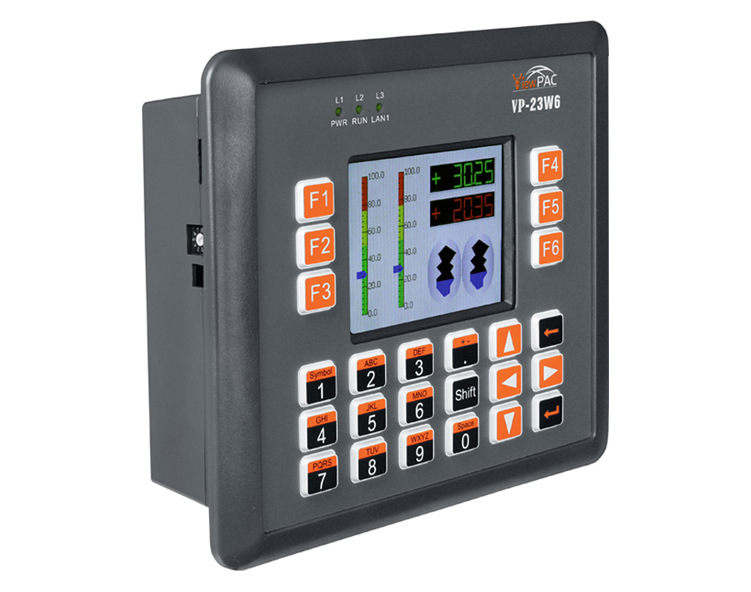

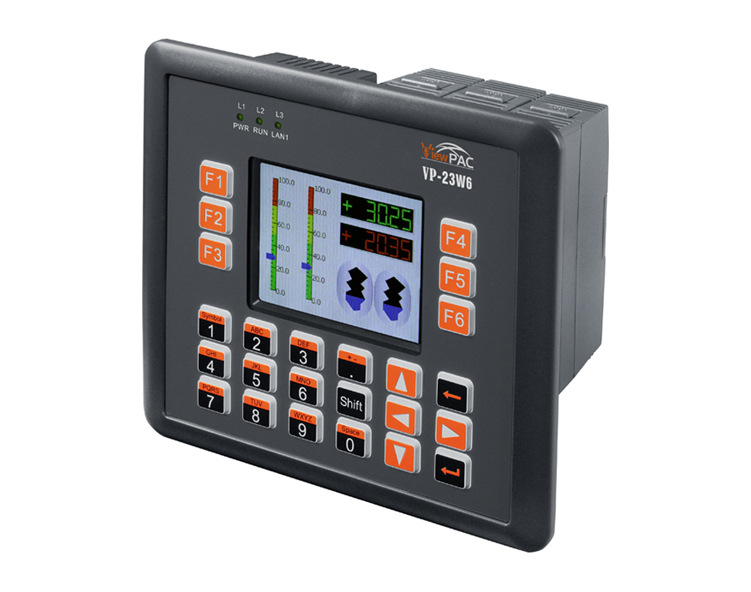

模塊 | VP-23W6 |
系統軟件 |
操作系統 | Windows CE.NET 5.0 |
.Net Compact framework | 2 |
嵌入式服務器 | FTP服務器, Web服務器 (支持 VB、 JAVA 腳本), Embedded SQL 服務器 |
SDK | |
開發軟件 |
InduSoft軟件 | InduSoft Web Studio v6.1 Service Pack 3 |
ISaGRAF軟件 | ISaGRAF 版本3： IEC 61131-3 標準.語言: LD, ST, FBD, SFC, IL & FC |
其他 | Microsoft EVC++4.0或VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
CPU模塊 |
CPU | PXA270(32-bit 520 MHz) |
SRAM | 128 MB |
雙電池後備SRAM | 512 KB (5年數據存留期) |
FLASH | 96 MB ( OS image：64 MB,內建閃盤31 MB,註冊表：1 MB ) |
EEPROM | 數據存留期：40年；100萬次擦寫 |
閃盤擴充 | microSD socket帶一個 1 GB microSD卡(總共可支持16 GB microSDHC卡) |
實時時鐘 | 提供秒、分、時、星期、日、月、年，有效期1980到2079年 |
64位硬件序列號 | √ |
雙看門狗 | √ |
功能旋鈕 | √0~9） |
通訊介面 |
以太網口 | RJ-45 x 1, 10/100 base-TX(自協商, 自動 MDI/MDI-X, LED指示) |
USB 1.1 (主機) | 1 |
COM0 | I-87K 模塊槽內通訊口 |
COM2 | RS-485 (D2+, D2-);ASIC內置self-tuner;隔離電壓： 2500VDC |
COM3 | RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI ,GND);非隔離 |
MMI(人機界麵) |
LCD | 3.5” TFT (分辨率： 320 x 240) |
觸摸麵板 | — |
橡膠鍵盤 | 24鍵 |
音頻 | Microphone輸入,Earphone輸出 |
LED指示 | 3組雙色LED (PWR, RUN, LAN1, L1, L2, L3;用戶編程 L1~L3 ) |
I/O擴展槽 |
槽數 | 3（僅支持高卡模塊） |
熱拔插 | 僅支持I-87K高卡模塊 |
物理規格 |
尺寸規格 | 182 mm x 158 mm x 125 mm |
輸入保護 | 前置麵板: IP65 |
工作環境 |
工作溫度 | -20 ~ +70°C |
存儲溫度 | -30 ~ +80°C |
相對濕度 | 5 ~ 90% RH,無冷凝 |
電源 |
輸入范圍 | +10V ~ +30VDC |
隔離 | 1KV |
功率 | 2.5A, 5V I/O擴展槽供電 |
功耗 | 7.2 W (0.3 A @ 24 VDC) |
| Models | VP-25W6 | VP-4136 | | System Software | | OS | Windows CE.NET 5.0 | | .Net Compact framework | 3.5 | | Embedded Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server | | SDK Provided | Dll for eVC, Dll for Visual Studio.Net 2005/2008 | | Develoment Software | | InduSoft Software | InduSoft Web Studio v7.1 | | ISaGRAF Software | ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC | | Others | Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) | | CPU Module | | CPU | PXA270 or compatible (32-bit and 520 MHz) | | SDRAM | 128 MB | | Dual Battery Backup SRAM | 512 KB (for 5 years data retain) | | Flash | 96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) | 128 MB | | EEPROM | 16 KB | | Data Retention: 40 years; 1,000,000 erase/write cycles | | Expansion Flash Memory | microSD socket with one 4 GB microSD card (support up to 16 GB microSDHC card) | | RTC (Real Time Clock) | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 | | 64-bit Hardware Serial Number | Yes | | Dual Watchdog Timer | Yes | | Rotary Switch | Yes (0 ~ 9) | | Communication Interface | | Ethernet Port | RJ-45 x 1, 10/100 base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) | | USB 1.1 (host) | 1 | 2 | | USB 1.1 (client) | - | 1 | | COM 0 | Internal communication with I-87K modules in slots | | COM 2 | RS-485 (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated. | | COM 3 | RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated | | MMI (Man Machine Interface) | | LCD | 5.7" TFT (Resolution 640 x 480) | 10.4" TFT (Resolution 800 x 600) | | Touch Panel | Yes | | Rubber Keypad | 6 Keys | - | | Audio | Microphone-In and Earphone-Out | Earphone-Out | | LED Indicators | 3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1~L3 For User Programmable) | 2 Dual-Color LEDs (PWR, RUN) | | I/O Expansion Slots | | Slot Number | 3 (For High Profile I-8K and I-87K Modules Only) | | Mechanical | | Dimensions (W x L x H) | 182 mm x 158 mm x 125 mm | 293 mm x 231 mm x 129 mm | | Ingress Protection | Front panel: IP65 | | Environmental | | Operating Temperature | -20 °C ~ +70 °C | | Storage Temperature | -30 °C ~ +80 °C | | Ambient Relative Humidity | 10% ~ 90% RH, non-condensing | | Power | | Input Range | +10 VDC ~ +30 VDC | | Isolation | 1 kV | | Capacity | 2.5 A, 5 V supply to I/O expansion slots | | Consumption | 7.2 W (0.3 A @ 24 VDC) | 8.5 W |
|
| |
![]() |
| VP-25W6-EN CR | InduSoft and ISaGRAF based ViewPAC with 5.7” LCD (English Version of OS) (RoHS) | | VP-4136-EN CR | InduSoft and ISaGRAF based ViewPAC with 10.4” LCD (English Version of OS) (RoHS) | | VP-25W6-TC CR | InduSoft and ISaGRAF based ViewPAC with 5.7” LCD (Traditional Chinese Version of OS) (RoHS) | | VP-4136-TC CR | InduSoft and ISaGRAF based ViewPAC with 10.4” LCD (Traditional Chinese Version of OS) (RoHS) | | VP-25W6-SC CR | InduSoft and ISaGRAF based ViewPAC with 5.7” LCD (Simplified Chinese Version of OS) (RoHS) | | VP-4136-SC CR | InduSoft and ISaGRAF based ViewPAC with 10.4” LCD (Simplified Chinese Version of OS) (RoHS) |
|
| |
VP-23W6-EN CR
InduSoft and ISaGRAF based ViewPAC with 3.5” LCD (English Version of OS) (RoHS)
VP-23W6-TC CR
InduSoft and ISaGRAF based ViewPAC with 3.5” LCD (Traditional Chinese Version of OS) (RoHS)
VP-23W6-SC CR
InduSoft and ISaGRAF based ViewPAC with 3.5” LCD (Simplified Chinese Version of OS) (RoHS)
