| 防爆型金屬軟管 | Explosive Proof VJ Brass Flexible Conduit | |||||||
| 材 質： | 銅帶+銅絲編織 | |||||||
| 防護等級： | IP65 | |||||||
| 耐溫范圍： | -50℃ - +300℃ | |||||||
| 拉 力： | 1700N | |||||||
| Materials: | Brass + brass overbraided | |||||||
| Protection Rating: | IP65 | |||||||
| Temperature Range: | -50℃ - +300℃ | |||||||
| Tension： | 1700N | |||||||
| 型號 Part No. | 規格 | 通徑 | 內徑(mm) | 外徑(mm) | 彎曲半徑（mm) | 包裝（m/coil) | ||
| 銅帶（B) | Inch | mm | I.D. | O.D. | Benging Radius | Packing | ||
| PVJ-8B | 1/4" | Ф8 | 7.80-8.10 | 12.65-12.95 | 70 | 50 | ||
| PVJ-9B | 5/16" | Ф10 | 9.60-10.20 | 14.65-14.95 | 70 | 50 | ||
| PVJ-10B | 3/8" | Ф12 | 11.50-12.50 | 17.15-17.45 | 70 | 50 | ||
| PVJ-11B | 1/2" | Ф16 | 14.80-16.00 | 21.15-21.45 | 90 | 50 | ||
| PVJ-12B | 3/4" | Ф20 | 19.00-20.00 | 25.95-26.25 | 110 | 50 | ||
| PVJ-13B | 1" | Ф25 | 24.50-25.00 | 31.35-31.85 | 150 | 50 | ||
| PVJ-14B | 1-1/4" | Ф32 | 31.50-32.50 | 39.15--39.65 | 175 | 25 | ||
| PVJ-15B | 1-1/2" | Ф38 | 37.50-38.50 | 46.35-46.85 | 200 | 25 | ||
| PVJ-16B | 2" | Ф51 | 49.50-50.50 | 59.45-59.95 | 230 | 20 | ||
| PVJ-17B | 2-1/2" | Ф64 | 62.50-65.00 | 74.15-74.65 | 250 | 10 | ||
| PVJ-18B | 3" | Ф75 | 73.00-76.00 | 85.15-85.85 | 300 | 10 | ||
| PVJ-19B | 4" | Ф100 | 97.00-103.00 | 109.00-110.15 | 500 | 5 | ||

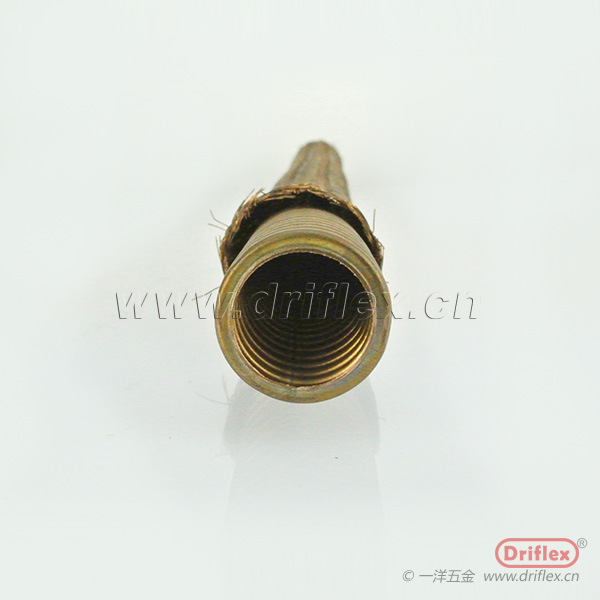

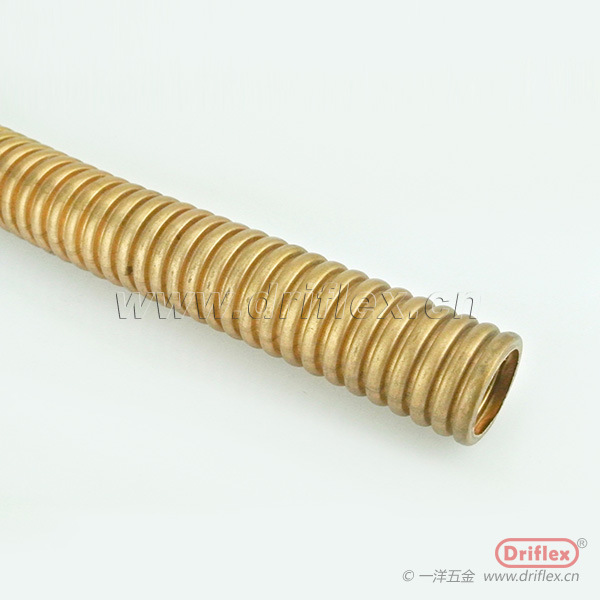

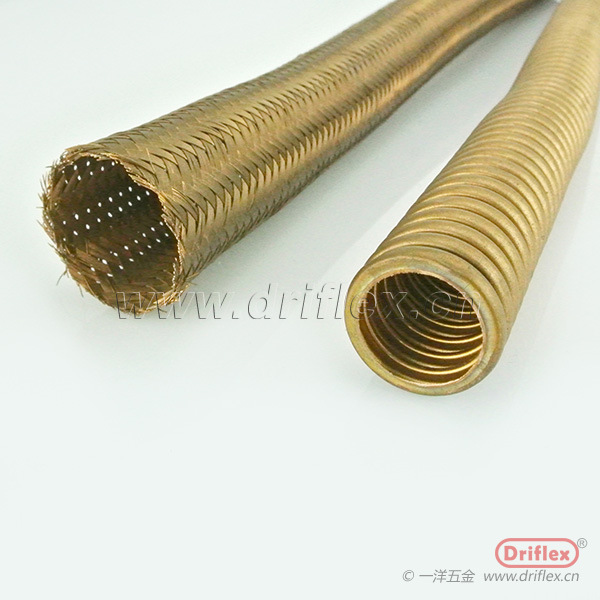

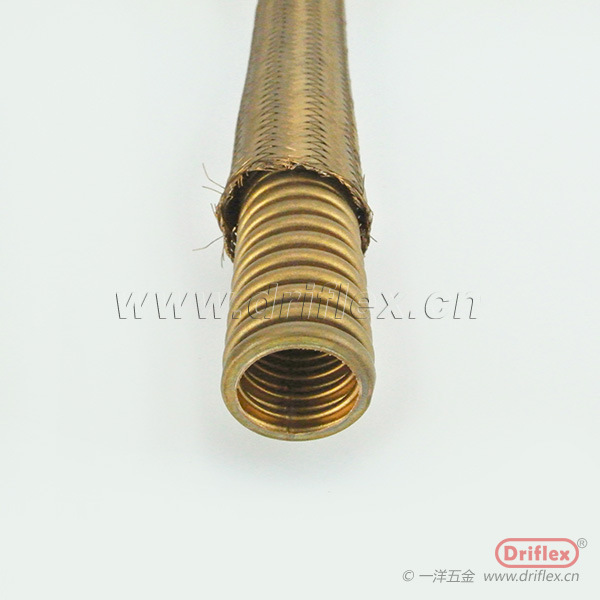

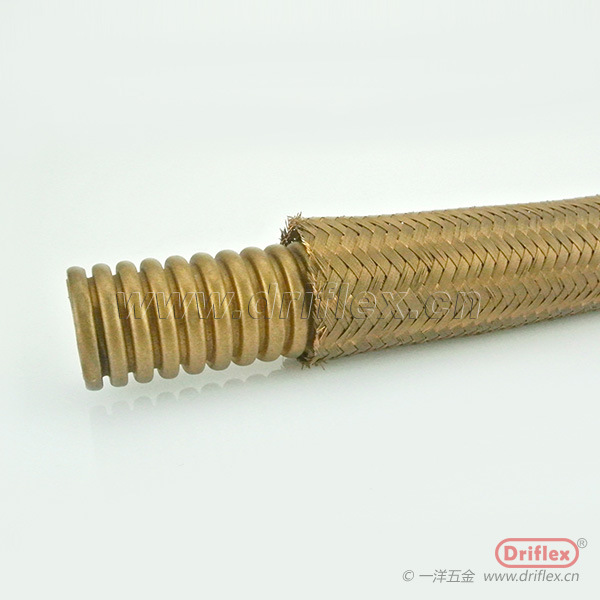

| 銅帶製成， | Brass conduit, square-locked core | |||||||
| 外層編織銅絲，以起到防爆功效。 | outside layer with | |||||||
| 極佳柔軟性及絕對防水、防爆效果。 | brass braided to achieve effect | |||||||
| 吸收移動和震動的性能，多方向彎曲撓性。 | of explosive proof. | |||||||
| 適合使用於油氣水氣重之場所。 | High Flexibility, absolutely waterproof explosive | |||||||
| 適合配套鐵鍍鋅接頭、銅鍍鎳、不銹鋼或鋅合金接頭。 | proof effect. | |||||||
| Absorb moving and shake function, high bendability | ||||||||
| Use for the place with strong oil-gas and hydrosphere. | ||||||||
| Suitable fittings: zinc plated steel, nickel plated brass, | ||||||||
| Stainless steel or zinc alloyed fittings. | ||||||||
