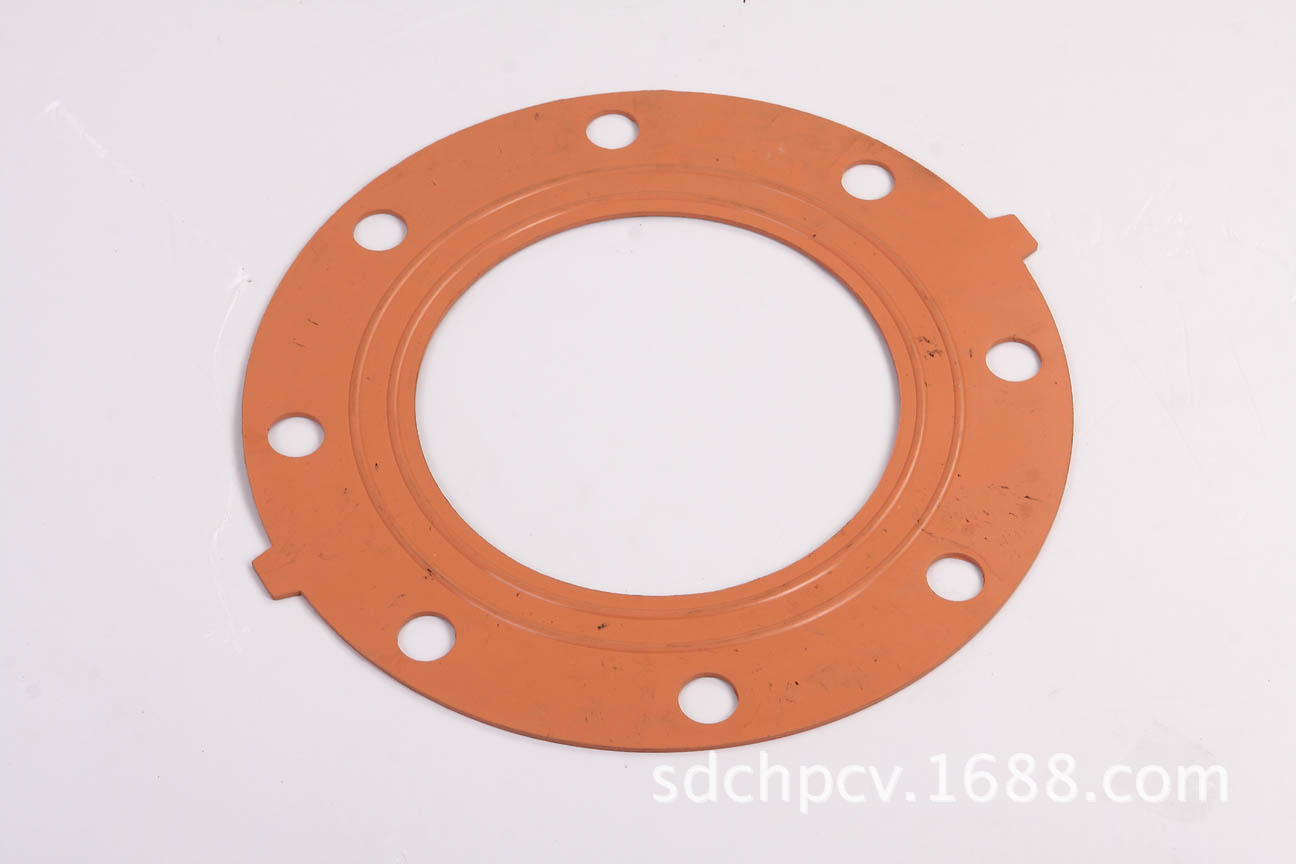

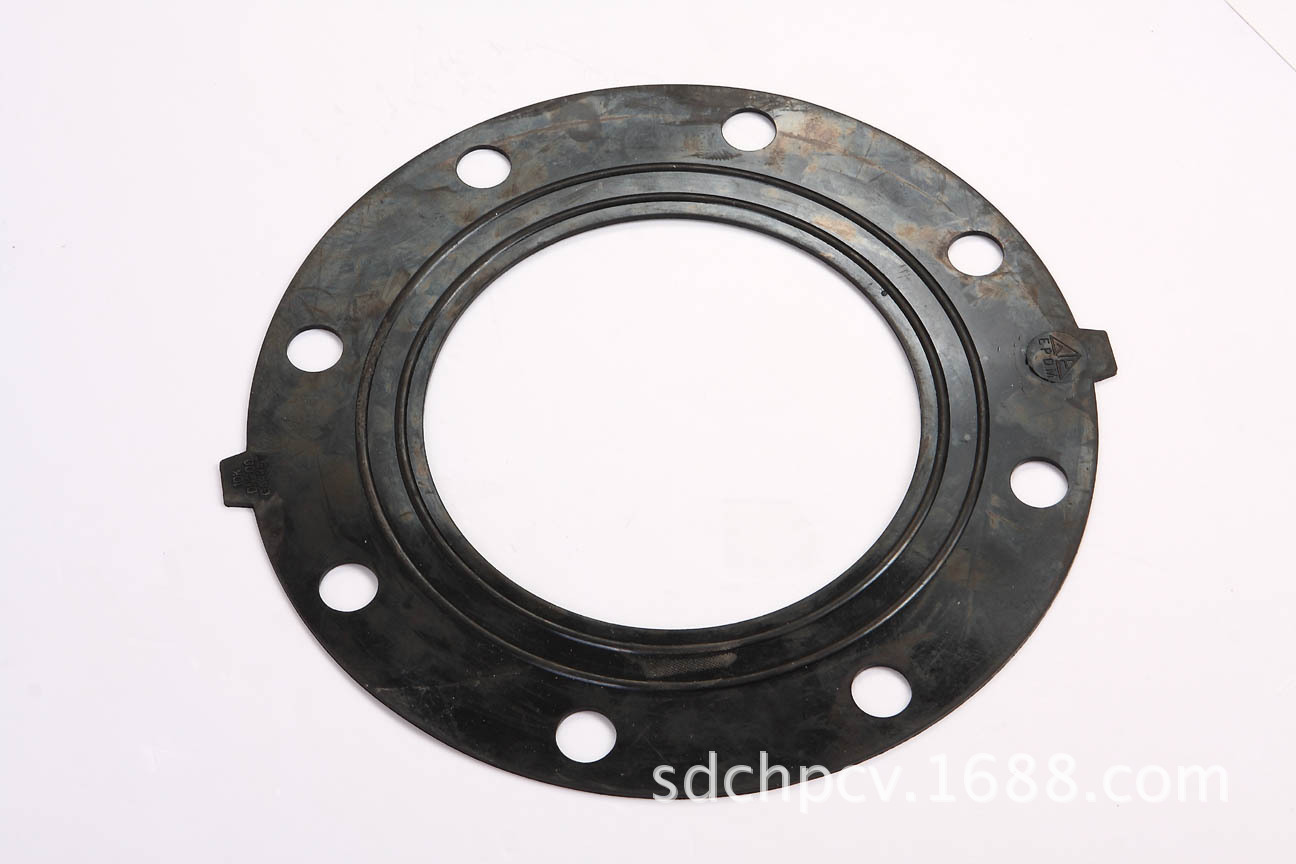

描述:
- 材質：EPDM, NBR, FPM
- 各式規格持續增加中，歡迎來電洽詢
特性:
|
規格:
| 型號 | 尺寸 | 規格 | 材質 | | VP-289 | 1/2"~24" | ANSI, JIS, DIN | EPDM, NBR, FPM |
SIZE
NOM | 1/2"
(15mm) | 3/4"
(20mm) | 1"
(25mm) | 1-1/4"
(32mm) | 1-1/2"
(40mm) | 2"
(50mm) | 2-1/2"
(65mm) | 3"
(80mm) | 4"
(100mm) | 5"
(125mm) | 6"
(150mm) | 8"
(200mm) | 10"
(250mm) | 12"
(300mm) | 14"
(350mm) | 16"
(400mm) | 18"
(450mm) | 20"
(500mm) | 24"
(600mm) | | JIS | ØD | 93 | 98 | 123 | 133 | 138 | 153 | 173 | 183 | 208 | 248 | 278 | 328 | 398 | 443 | 485 | 560 | - | - | - | | ØD1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 | 445 | 510 | - | - | - | | ØD2 | 41 | 47 | 53 | 65 | 69 | 83 | 101 | 112 | 138 | 166 | 190 | 247 | 306 | 352 | 405 | 482 | - | - | - | | ØD3 | 26 | 32 | 38 | 50 | 54 | 68 | 86 | 98 | 120 | 145 | 168 | 216 | 270 | 324 | 380 | 452 | - | - | - | | Ød | 18 | 22 | 30 | 37 | 43 | 54 | 69 | 80 | 102 | 127 | 150 | 198 | 249 | 300 | 350 | 400 | - | - | - | | n-Øe | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-22 | 16-25 | 16-25 | 16-27 | - | - | - | | T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | - | - | | ANSI | ØD | 86.36 | 96.52 | 106.68 | 114.3 | 124.4 | 149.86 | 175.2 | 187.96 | 226.06 | 251.46 | 276.86 | 340.36 | 403.86 | 480.06 | 530 | 595 | 630 | 692 | 800 | | ØD1 | 61 | 70 | 79 | 89 | 98 | 121 | 140 | 152 | 191 | 216 | 241 | 298 | 362 | 432 | 476 | 540 | 578 | 635 | 749 | | ØD2 | 40.64 | 48.26 | 53.34 | 66.04 | 68.55 | 83.82 | 101.6 | 111.76 | 137.16 | 165.1 | 190.5 | 246.38 | 307.34 | 356.06 | 405 | 482 | 510 | 566 | 674 | | ØD3 | 25.4 | 33.02 | 38.1 | 50.8 | 53.34 | 68.58 | 86.36 | 99.06 | 119.38 | 144.78 | 167.64 | 215.9 | 269.24 | 325.2 | 380 | 452 | 472 | 535 | 644 | | Ød | 17.78 | 22.86 | 30.48 | 38.1 | 43.18 | 53.34 | 68.58 | 81.28 | 101.6 | 127 | 148.86 | 198.12 | 248.92 | 299.72 | 350 | 400 | 450 | 500 | 600 | | n-Øe | 4-16 | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 | 4-19 | 4-19 | 8-19 | 8-18 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 | | T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | | DIN | ØD | 93 | 103 | 113 | 133 | 148 | 163 | 183 | 198 | 218 | 248 | 283 | 338 | 393 | 443 | - | - | - | - | - | | ØD1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | - | - | - | - | - | | ØD2 | 41 | 47 | 53 | 65 | 69 | 83 | 101 | 112 | 138 | 166 | 190 | 247 | 306 | 352 | - | - | - | - | - | | ØD3 | 26 | 32 | 38 | 50 | 54 | 68 | 86 | 98 | 120 | 145 | 168 | 216 | 270 | 324 | - | - | - | - | - | | Ød | 18 | 22 | 30 | 37 | 43 | 54 | 69 | 80 | 102 | 127 | 150 | 198 | 249 | 300 | - | - | - | - | - | | n-Øe | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 | 8-22 | 12-22 | 12-22 | - | - | - | - | - | | T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | - | - | - | - |
|
|
