1. 絕緣材料采用PPE（PPO）：突出的絕緣性和優異的耐水性，使用壽命長；新穎的密封防水防塵設計達到IP68 適合長期戶外使用2. PPE(PPO）具有良好阻燃性和自熄性，使用更安全
Insulation material絕緣材料......................................................PPE
Rated current額定電流..............................................................30A
Rated voltage額定電壓..............................................................1000V(TUV)＆600V(UL)
Test voltage測試電壓................................................................6kv(50Hz,lmin
Typical contact resistance接觸電阻.......................................... ≤ 5mΩ
Contact material接解材質.........................................................Copper,Tin plated
Degree of protection防護等級..................................................IP2X/IP67
Safety degree適合防護等級.......................................................II
Flame class防火等級..................................................................UL94-V0
Material RTI使用溫度范圍...........................................................110℃
Withdrawal force拔出力............................................................ ≥ 50N
Insertion force插入力................................................................ ≤ 50N
Ambient temperature range使用溫度.........................................-40℃ until+85℃

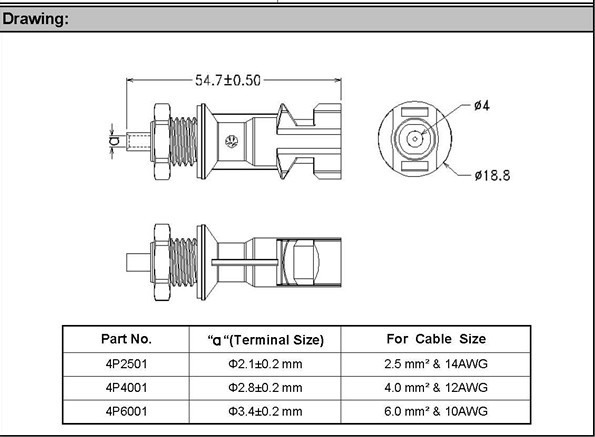

Pin dimensions端子直徑..............................................................Ф4.0
Suitable cable cross section適合的電纜截面...............................2.5/4.0/6.0mm²
