| 主要技術參數 | Main technical parameters： | ||

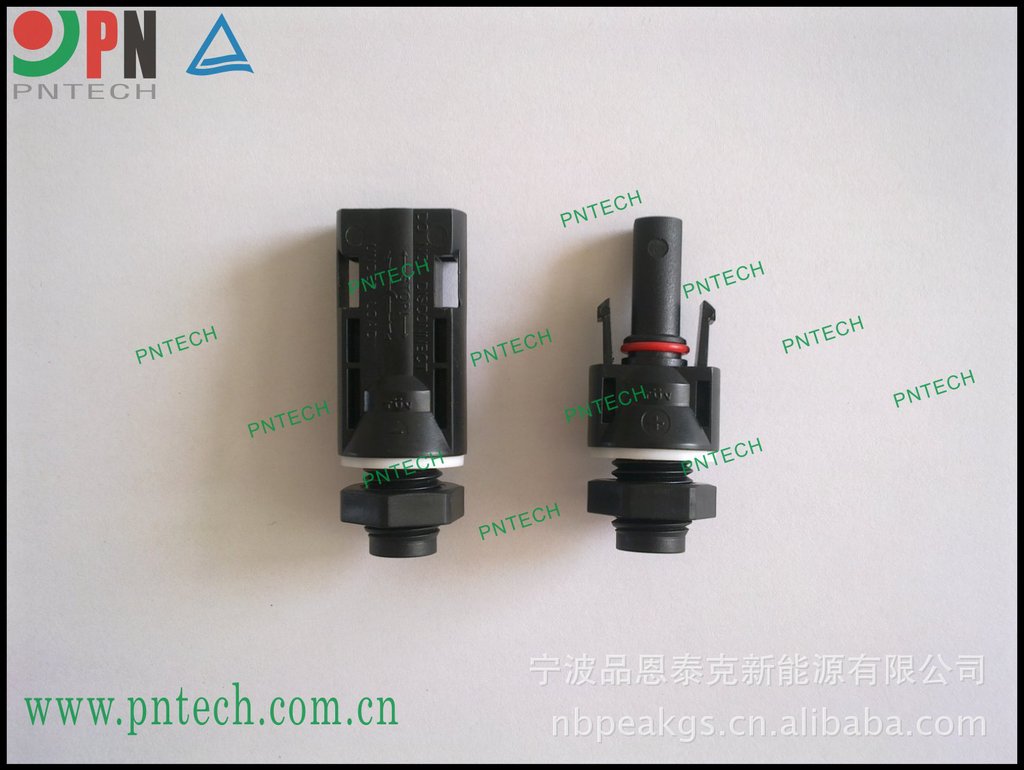

| 適合組件電流 | Rated Current： | 25A | 主要特性： ※ 具備卓越的耐高低溫、防火、抗老化和耐紫外線性能，能滿足室外惡劣環境條件下長期使用要求。 ※ 優異的密封性能，防水防塵等級高達IP67. ※ 公母頭插拔帶有自鎖機構，電氣連接充分可靠，開合自如。 ※ 具有廣泛的適用性，可與MC4完全互插和匹配。 Main features: ※ Possess excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, to meet the outdoor long-term use under harsh environmental conditions require. ※ Excellent sealing performance, waterproof and dustproof rating up to IP67. ※ Male and female head swap with a self-locking, electrical connections fully reliable, open and close freely. ※ Has broad applicability, can be inserted with the MC4 and match each other completely |
| 額度電壓 | Rated Voltage: | DC 1000V | |
| 防護程度 | Protection Degree: | IP67 | |
| 保護等級 | Protection Class: | Ⅱ | |
| 溫度范圍 | Temperature Range: | -40℃to 85℃ | |
| 線徑尺寸 | Max.Current Section: | 4mm2 | |
| 接觸電阻 | Contact Resistance: | ＜5mΩ | |
| 難燃度 | Flame Class: | UL94-V0 | |
| 導電材料 | Contact Material: | Copper | |
| 絕緣材料 | Insulation Material: | PPO | |
| 符合標準 | Standard: | DIN V VDE V 0126-3:2006 | |
| 認證 | Authentication: | Tüv RoHS | |
