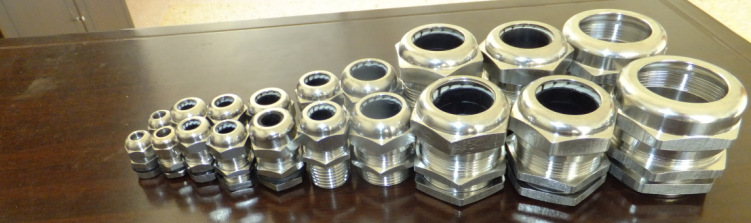

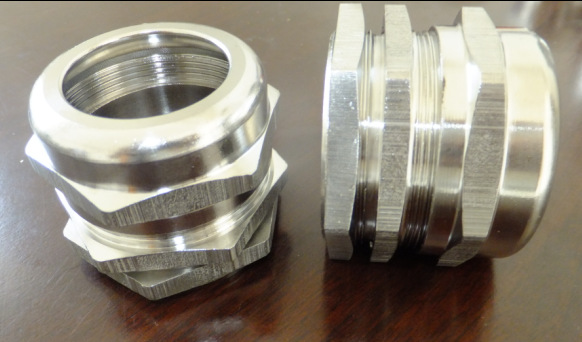

金屬電纜防水接頭 M系列防水型
·產品特性：特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
螺牙規格 AG |
適用電纜 |
螺牙外徑 |
機板口徑 |
螺紋長度GL |
螺紋長度加長型GL |
接合長度 H |
板手徑 |
M8*1.25 | 4-2 | 8mm | 8-8.2 | 5mm | 7mm | 16mm | 11mm |
M10*1.5 | 6-3 | 10mm | 10-10.2 | 5mm | 7mm | 16mm | 12mm |
M12*1.5 | 6.5-3 | 12mm | 12-12.2 | 7mm | 10mm | 19mm | 14mm |
M14*1.5 | 8-4 | 14mm | 14-14.2 | 7mm | 10mm | 19mm | 18mm |
M16*1.5 | 8-4 | 16mm | 16-16.2 | 8mm | 10mm | 20mm | 18mm |
M18*1.5 | 10-5 | 18mm | 18-18.2 | 8mm | 10mm | 21mm | 20mm |
M20*1.5 | 12-6 | 20mm | 20-20.2 | 8mm | 15mm | 22mm | 22mm |
M22*1.5 | 14-10 | 22mm | 22-22.2 | 8mm | 15mm | 23mm | 24mm |
M24*1.5 | 14-10 | 24mm | 24-24.2 | 9mm | 15mm | 25mm | 24/27mm |
M25*1.5 | 14-10 | 25mm | 25-25.2 | 9mm | 15mm | 25mm | 24/27mm |
M25*1.5 | 18-13 | 25mm | 25-25.2 | 9mm | 15mm | 27mm | 30/27mm |
M27*1.5(2) | 18-13 | 27mm | 27-27.2 | 9mm | 15mm | 27mm | 30mm |
M28*1.5(2) | 18-13 | 28mm | 28-28.2 | 9mm | 15mm | 27mm | 30mm |
M30*1.5(2) | 18-13 | 30mm | 30-30.2 | 9mm | 15mm | 29mm | 30/32mm |
M32*1.5(2) | 22-15 | 32mm | 32-32.2 | 10mm | 15mm | 29mm | 35mm |
M33*1.5(2) | 22-15 | 33mm | 33-33.2 | 10mm | 15mm | 29mm | 35mm |
M36*1.5(2) | 25-18 | 36mm | 36-36.2 | 10mm | 15mm | 31mm | 40mm |
M37*1.5(2) | 25-18 | 37mm | 37-37.2 | 10mm | 15mm | 31mm | 40mm |
M40*1.5(2) | 25-18 | 40mm | 40-40.2 | 11mm | 15mm | 31mm | 40/45mm |
M40*1.5(2) | 30-22 | 40mm | 40-40.2 | 11mm | 15mm | 35mm | 45mm |
M42*1.5(2) | 30-22 | 42mm | 42-42.2 | 11mm | 15mm | 35mm | 45mm |
M47*1.5(2) | 33-25 | 47mm | 47-47.2 | 11mm | 15mm | 37mm | 50mm |
M48*1.5(2) | 33-25 | 48mm | 48-48.2 | 11mm | 15mm | 37mm | 50mm |
