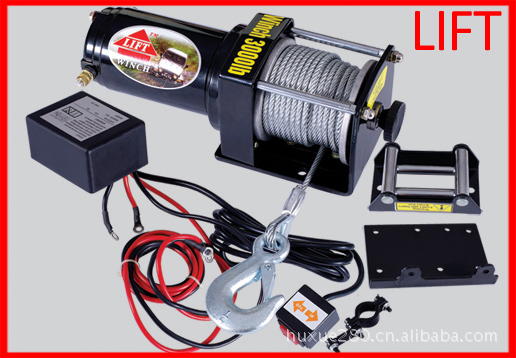

P3000-1B (12V/24V) 3000lbs Electric Winch
Specification:
Rated line pull: 3000 lbs (1361 kgs) single line
Motor: Permanent magnet,1.0kw/1.34h(12V)
Gear reduction ratio: 153:1
Cable (Dia x L): Φ5.2mmX10.2m
Drum size: Φ1.24"X2.88"(Φ31.5mmX73mm)
Overall dimensions (L X W X H): 11.7"X3.8"X3.8"(298mmX96mmX96mm)
Mounting bolt pattern: 3.13" (79.5mm)
Packing size: 34X24x34cm 2PCS/CTN
Weight: N.W/G.W:18kgs/2kgs
Pull,speed,Amperes,Volts(First Layer)
Line pull lbs(kgs) | Line Speed ft/min(m/min) | Current A |
| 12V DC | 12V DC |
0 | 9.5(2.9) | 10 |
1000(454) | 6.6(2.0) | 25 |
2000(907) | 4.3(1.3) | 60 |
3000(1361) | 2.3(0.7) | 150 |
Line Pull And Rope Capacity In Layer
Layer | Rated Line Pull Lbs(kgs) | Total Rope on Drum Ft(m) |
1 | 3000(1361) | 5.6(1.7) |
2 | 2370(1075) | 12.1(3.7) |
3 | 1960(889) | 19.7(6.0) |
4 | 1670(756) | 27.9(8.5) |
5 | 1460(662) | 37.1(11.3) |
6 | 1290(585) | 46.9(14.0) |
